TASK 24-21-49-300-003 IDG Cooling Oil Tubes - Repair the End Fittings, Repair-003 (VRS2928)

DMC:V2500-A0-24-21-4901-00A-657A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 24-21-49-300-003 IDG Cooling Oil Tubes - Repair the End Fittings, Repair-003 (VRS2928)

Effectivity

FIG/ITEM

PART NO.

01-100

740-5727-509

01-100

740-5727-511

01-100

740-5727-513

01-500

740-5269-501

02-100

740-5271-503

02-100

740-5271-505

02-500

740-5273-503

02-500

740-5273-505

03-100

740-5275-503

03-500

740-5737-509

03-500

740-5737-511

Material of component

DESCRIPTION

IAE SYMBOL

MATERIAL

Oil cooling tube

Stainless steel

General

This repair can be done on the end fittings of the tube during overhaul.

The practices and processes are referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the (PCI).

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Smooth flat fileLOCALSmooth flat file
Thread tapLOCALThread tap

0.8750-14 UNJF-3B

Thread tapLOCALThread tap

1.0625-12 UNJ-3B

DieLOCALDie

0.8750-14 UNJF-3A

DieLOCALDie

1.0625-12 UNJ-3A

Thread gageLOCALThread gage

(A GO - NO GO gage to test the size of thread on the thread taps/dies listed above)

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-076 METHYL ETHYL KETONELOCALCoMat 01-076
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 02-102 BRUSH, PAINTLOCALCoMat 02-102
CoMat 10-035 COMPOUND, METAL CUTTING,WATER-TYPE0AM53CoMat 10-035

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 24-21-49-110-057 Clean the End Fittings

      1. Clean the end fittings.

      1. Refer to Cleaning-000 TASK 24-21-49-100-100.

    2. SUBTASK 24-21-49-350-054 Repair the Screw Threads

      CAUTION

      DO NOT DAMAGE THE SEALING FACES OF THE END FITTINGS. IT CAN MAKE THE TUBE UNSERVICEABLE.

      1. Examine the screw threads.

      1. If more than three turns of the screw threads are damaged, then discard the tube assembly.

      2. Repair the screw threads.

      1. Use the applicable thread tap/die and the CoMat 10-035 COMPOUND, METAL CUTTING,WATER-TYPE metal cutting compound. If the thread tap does not turn easily, discard the tube assembly. Refer to Figure for the applicable thread taps/dies..

      3. Make sure that the dimensions of the screw threads are correct.

      1. Use the applicable thread gage to measure the size of the threads. The GO end of the gage must go in the end fitting. The NO-GO end of the gage must not go in the end fitting. If the NO-GO end goes in, discard the tube assembly.

    3. SUBTASK 24-21-49-350-055 Repair the Wrench Flats

      1. Make the wrench flats flat and smooth.

      1. Use the Smooth flat file to remove all burrs and scratches.

      2. Measure across the flats at each of three positions.

      1. Each pair of flats must be parallel to each other. If the dimension is not correct or the flats are not parallel, discard the tube assembly. Refer to Figure for the dimensions for each part number.

      3. Clean the end fitting.

      1. Do again Step.

    4. SUBTASK 24-21-49-220-095 Examine the End Fitting

      1. Examine the end fitting.

      1. Refer to Inspection-000 TASK 24-21-49-200-100.

    5. SUBTASK 24-21-49-230-059 Examine the End Fitting

      1. Do a dye penetrant test on the end fitting.

      1. Refer to SPM TASK 70-23-05-230-501.

    6. SUBTASK 24-21-49-780-003 Pressure Test the Tube

      1. Do a pressure test on the tube.

      1. Refer to Testing-001 TASK 24-21-49-700-101.

    7. SUBTASK 24-21-49-850-054 Put the Repair Scheme Number on the Tube

      1. Mark the repair scheme number VRS2928 on the tube adjacent to the part number using the electro-etch method.

      1. Refer to SPM TASK 70-09-00-400-501.

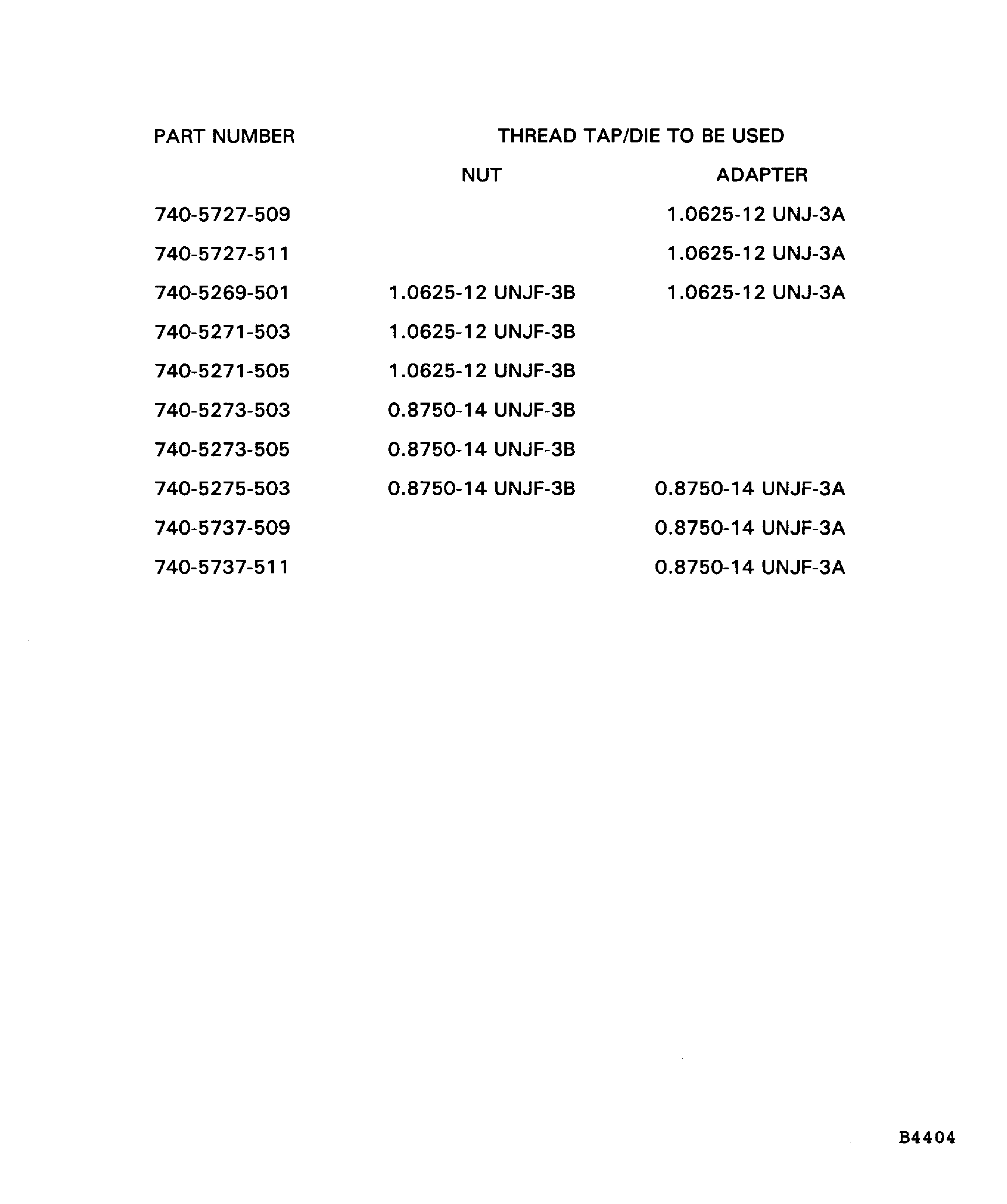

    8. Figure: Part Numbers and Applicable Taps/Dies

    Part Numbers and Applicable Taps/Dies

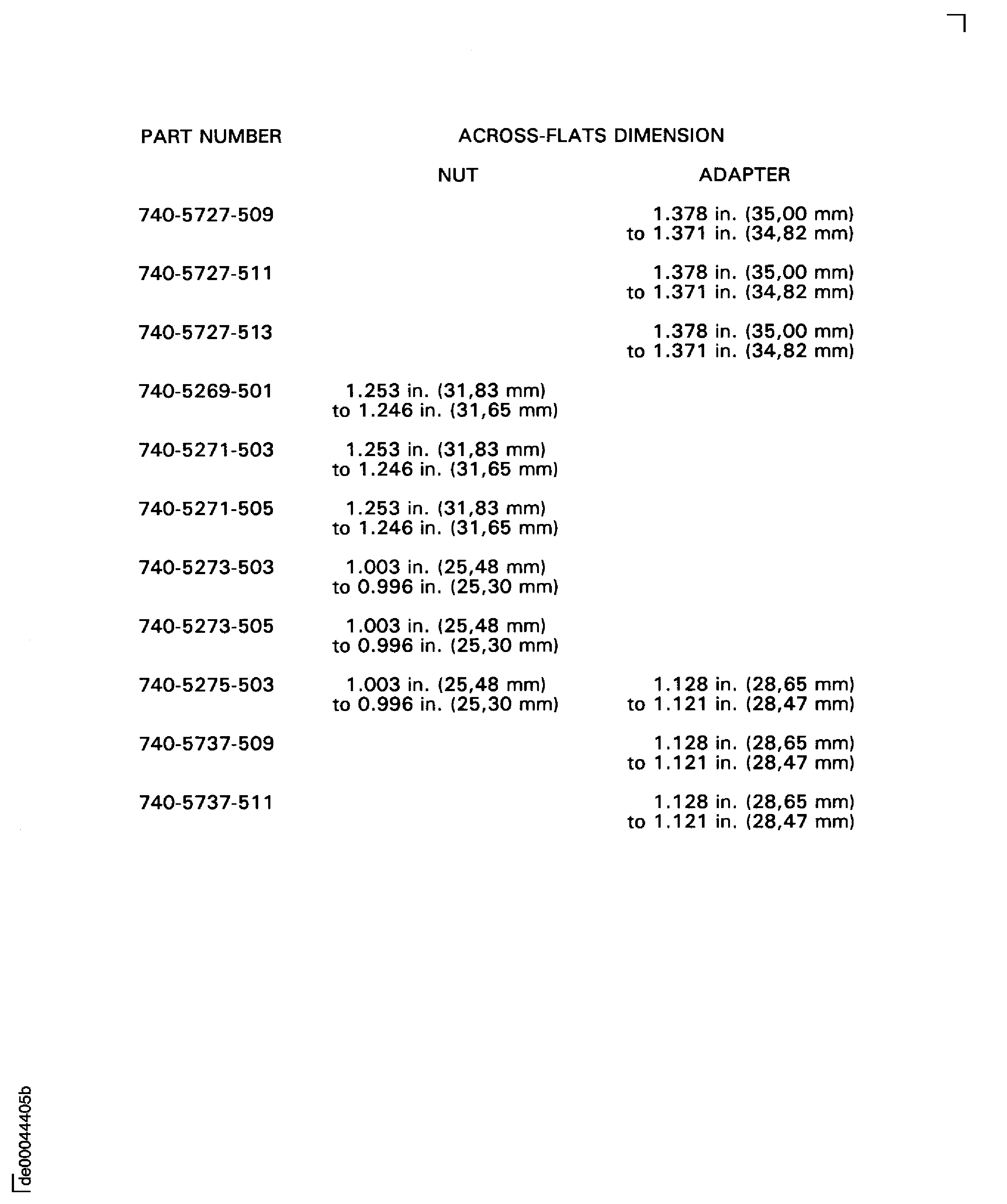

    Figure: Part numbers and across - Flats dimensions

    Part numbers and across - Flats dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
