TASK 29-11-49-300-004 Engine Hydraulic Tubes - Repair The End Fittings, Repair-004 (VRS2929)

DMC:V2500-A0-29-11-4900-00A-657A-C|Issue No:003.00|Issue Date:2020-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 29-11-49-300-004 Engine Hydraulic Tubes - Repair The End Fittings, Repair-004 (VRS2929)

Effectivity

FIG/ITEM

PART NO.

03-100

740-5600-505

03-500

740-5602-507

03-500

745-5602-501

04-100

740-5604-503

04-100

745-5604-501

Material of Component

PART IDENT

RR SYMBOL

MATERIAL

Hydraulic tube

Stainless Steel

General

This repair can be done on the end fittings of the tube during overhaul.

The practices and processes referred to in the procedure by the TASK numbers are in SPM.

NOTE

To identify the consumable materials refer to the PCI

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Smooth flat fileLOCALSmooth flat file
Thread tapLOCALThread tap

0.5625-18 UNJF-3B

Thread tapLOCALThread tap

1.0625-12 UNJ-3B

Thread tapLOCALThread tap

1.625-12 UNJ-3B

DieLOCALDie

1.0625-12 UNJ-3A

DieLOCALDie

1.625-12 UNJ-3A

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-076 METHYL ETHYL KETONELOCALCoMat 01-076
CoMat 02-099 LINT-FREE CLOTHX222XCoMat 02-099
CoMat 02-102 BRUSH, PAINTLOCALCoMat 02-102
CoMat 10-035 COMPOUND, METAL CUTTING,WATER-TYPE0AM53CoMat 10-035

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 29-11-49-110-055 Clean the End Fittings

      1. Clean the end fittings

      1. Refer to Cleaning-000 TASK 29-11-49-100-100.

    2. SUBTASK 29-11-49-350-051 Repair the Screw Threads

      CAUTION

      DO NOT DAMAGE THE SEALING FACES OF THE END FITTINGS. IT CAN MAKE THE TUBE UNSERVICEABLE.

      1. Visually examine the screw threads.

      1. If more than three turns of the screw threads are damaged, then discard the end fitting.

      2. Repair the screw threads

      1. Use the applicable thread tap/die and CoMat 10-035 COMPOUND, METAL CUTTING,WATER-TYPE.

      2. If the thread tap does not turn easily, discard the end fitting.

      3. Refer to Figure for the applicable thread tap/dies.

      3. Make sure that the dimensions of the screw threads are correct.

      1. Use the applicable thread gage to measure the size of the threads.

      2. The GO end of the gage must go in the end fitting. The NO-GO end of the gage must not go in the end fitting.

      3. If the NO-GO end goes in, discard the end fitting.

    3. SUBTASK 29-11-49-350-052 Repair the Wrench Flats

      1. Make the wrench flats flat and smooth.

      1. Use the smooth flat file to remove all burrs and scratches.

      2. Measure the distance across the flats at each of three positions.

      1. Each pair of flats must be parallel to each other.

      2. If the distance is not correct or the flats are not parallel, discard the end fitting.

      3. Refer to Figure for the dimensions for each part number

      3. Clean the end fitting.

      1. Do again Step

    4. SUBTASK 29-11-49-220-063 Examine the End Fittings

      1. Visually examine the end fittings

      1. Refer to Inspection-000 TASK 29-11-49-200-100.

    5. SUBTASK 29-11-49-350-053 Repair a Lockwire Hole

      1. Make the edges of the damaged hole smooth

      1. Do again Step

      2. Drill a new lockwire hole.

      1. Drill a new hole through the two wrench flats at the next position away from the damaged hole.

      2. Use a 0.0625 in (1.59 mm) diameter drill.

      3. Make sure the angle between the nut and the lockwire is correct.

    6. SUBTASK 29-11-49-230-055 Examine the End Fitting

      1. Do a dye penetrant test on the end fitting.

      1. Refer to SPM TASK 70-23-05-230-501.

    7. SUBTASK 29-11-49-780-054 Pressure Test the Tube

      1. Do a pressure test on the tube.

      1. Refer to Testing-001.TASK 29-11-49-700-101.

    8. SUBTASK 29-11-49-850-051 Put the Repair Scheme Number on the Tube

      1. Mark the repair scheme number VRS2929 on to the tube adjacent to the part number with the electro-etch method.

      1. Refer to SPM TASK 70-09-00-400-501.

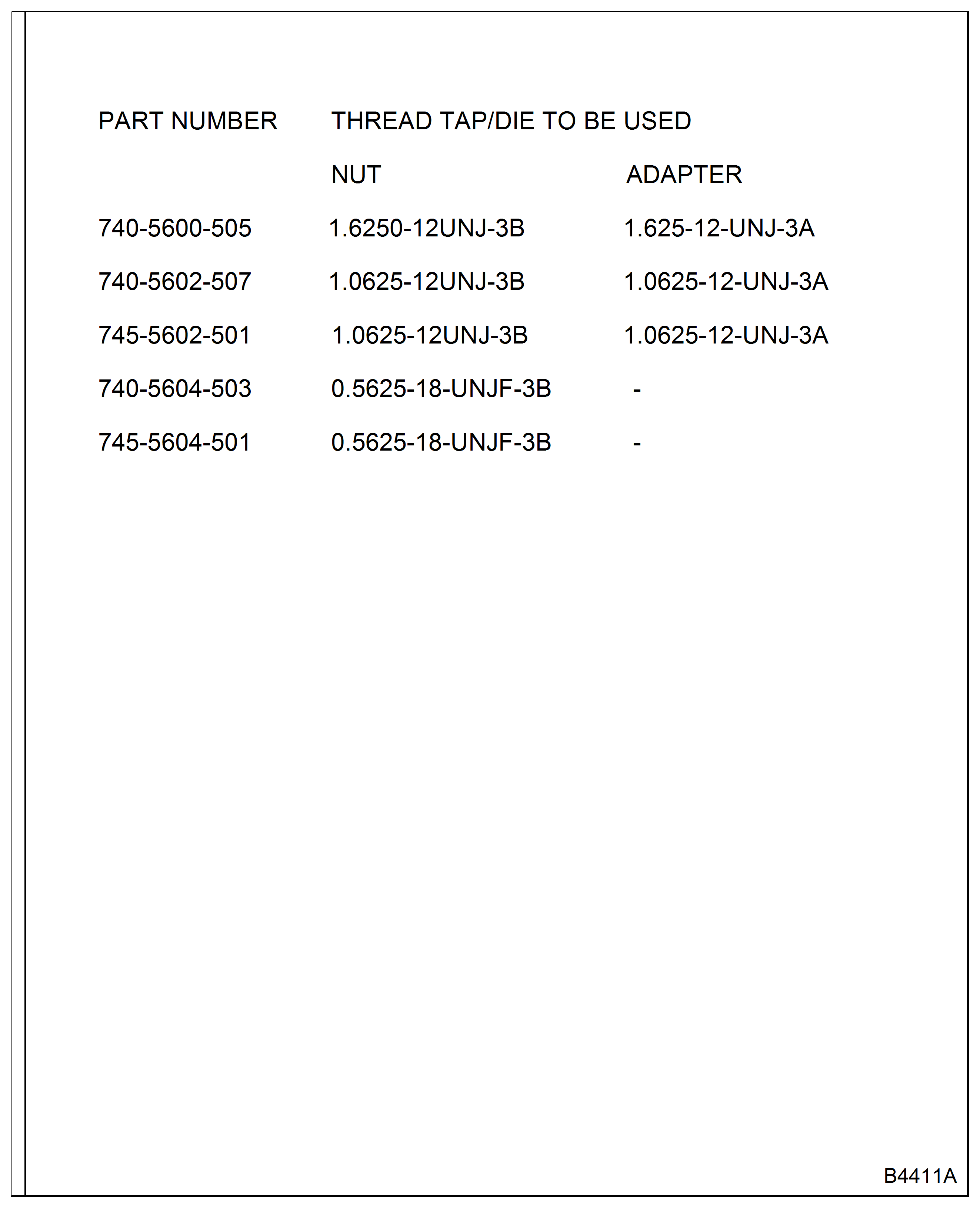

    9. Figure: Part numbers and applicable tap/dies

    Part numbers and applicable tap/dies

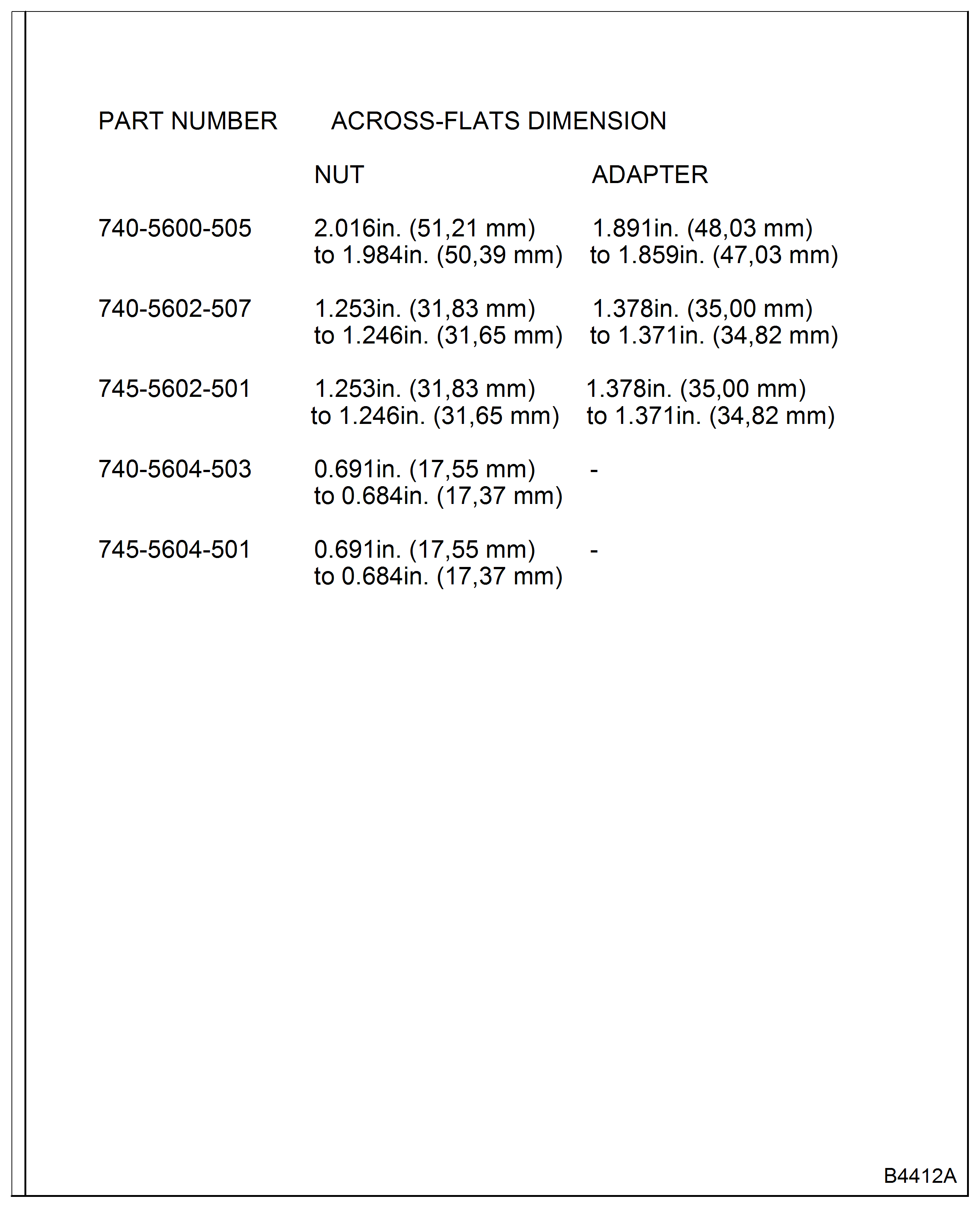

    Figure: Part numbers and across-flats dimensions

    Part numbers and across-flats dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
