TASK 71-00-00-600-004 Clean The Starter Sight Glass, Servicing-004
General
Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.
For all the parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.
For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501, TASK 70-41-01-400-501 and TASK 70-41-02-410-501.
Special torque data is identified with the symbol * after the torque value.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 10-061 STODDARD SOLVENT | LOCAL | CoMat 10-061 | ||
| CoMat 02-126 LOCKWIRE | LOCAL | CoMat 02-126 | ||
| neutral detergent | CoMat xx-xxx |
Safety Requirements
NONEProcedure
Refer to Figure.
Remove the combined drain plug/magnetic chip detector STARTING-PNEUMATIC STARTER (80-13-41, 01-300) and drain the pneumatic starter.
Drain the starter.
Remove the lockwire that safeties the starter sight glass STARTING-PNEUMATIC STARTER (80-13-41, 01-340).
Remove the starter sight glass STARTING-PNEUMATIC STARTER (80-13-41, 01-340) with the sealing ring STARTING-PNEUMATIC STARTER (80-13-41, 01-338) from the pneumatic starter STARTING-PNEUMATIC STARTER (80-13-41, 01-200).
Removal of the starter sight glass.
WARNING
SOLVENT IS TOXIC AND MUST BE USED ONLY IN A WELL VENTILATED ROOM. DO NOT USE NEAR OPEN FLAME. USE PROTECTIVE CLOTHING AND AVOID CONTACT OF THIS SOLUTION WITH THE SKIN.Clean the starter sight glass with CoMat 10-061 STODDARD SOLVENT at room temperature and dry with clean compressed air.
Clean the starter sight glass.
Install the sealing ring STARTING-PNEUMATIC STARTER (80-13-41, 01-338) onto the starter sight glass STARTING-PNEUMATIC STARTER (80-13-41, 01-340) and install into the pneumatic starter STARTING-PNEUMATIC STARTER (80-13-41, 01-200) (Refer to Figure).
Safety the starter sight glass with CoMat 02-126 LOCKWIRE.
Install the starter sight glass.
Refill in accordance with TASK 71-00-00-600-001 (SERVICING-001) Fill the pneumatic starter with oil.
Refill pneumatic starter.
SUBTASK 71-00-00-610-056 Clean the Starter Sight Glass

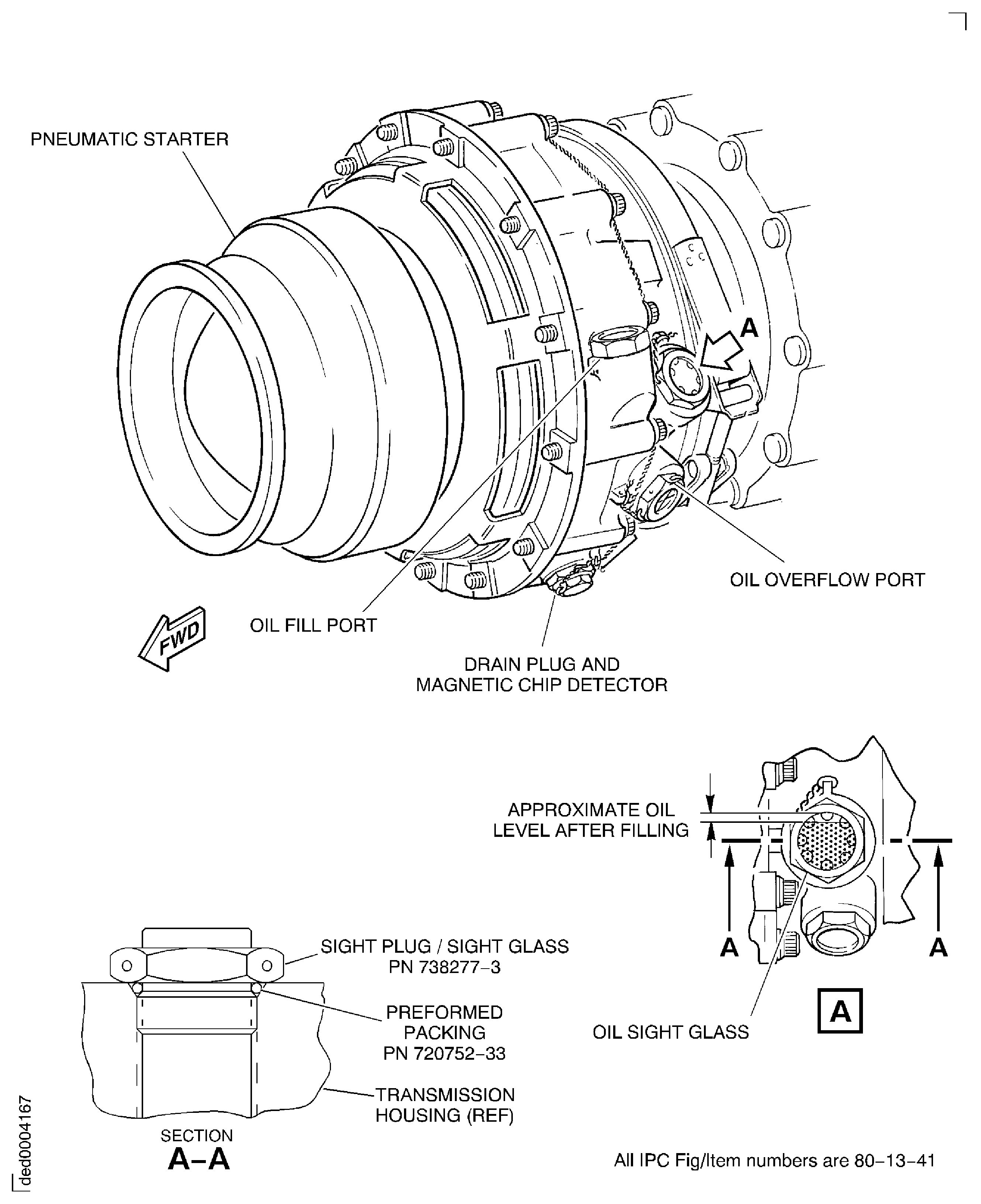

Figure: Clean the starter sight glass
Clean the starter sight glass
