DMC:V2500-A0-71-00-0000-00A-212A-B|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-00-00-600-001 Fill The Pneumatic Starter With Oil, Servicing-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all the parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501, SPM TASK 70-41-01-400-501 and SPM TASK 70-41-02-410-501.

Special torque data is identified with the symbol * after the torque value.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS unless other lubricants are referred to in the procedure.

For lockwire data and procedures refer to the SPM TASK 70-42-05-400-501.

To identify, lubricate and install seal rings, refer to the SPM TASK 70-44-01-400-501.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 02-099 LINT-FREE CLOTH	LOCAL	CoMat 02-099
CoMat 02-126 LOCKWIRE	LOCAL	CoMat 02-126
CoMat 10-077 APPROVED ENGINE OILS	LOCAL	CoMat 10-077
CoMat 02-121 TEMPORARY MARKER PENCIL/CRAYON	IE304	CoMat 02-121

Spares

Name	Manufacturer	Part Number / Identification	Quantity	Remark
Sealing ring			1
Sealing ring			1
Sealing ring			1

Safety Requirements

NONE

Procedure

1. Refer to Figure.
2. WARNING
  DO NOT LET THE OIL STAY ON YOUR SKIN FOR A LONG TIME. THE OIL IS POISONOUS AND CAN GO THROUGH YOUR SKIN AND INTO YOUR BODY.
  CAUTION
  USE CLEAN CONTAINERS AND EQUIPMENT. A SMALL QUANTITY OF SOME CLEANING FLUIDS CAN CAUSE DAMAGE TO THE OIL.
  Make sure the drain plug/magnetic chip detector is installed and safetied with CoMat 02-126 LOCKWIRE.
3. Remove the lockwire that safeties the oil filler plug STARTING-PNEUMATIC STARTER (80-13-41, 01-310).
4. Remove the oil filler plug from the oil filler point and remove and discard the sealing ring STARTING-PNEUMATIC STARTER (80-13-41, 01-308).
5. Put an applicable container below the pneumatic starter to catch any spilled oil.
6. CAUTION
  DO NOT PUT OIL THAT HAS BEEN USED OR SPILLED FROM THE ENGINE OR PNEUMATIC STARTER BACK IN THE OIL SYSTEM.
  Remove the oil overflow plug STARTING-PNEUMATIC STARTER (80-13-41, 01-320) from the oil overflow point and remove and discard the sealing ring STARTING-PNEUMATIC STARTER (80-13-41, 01-318).
7. Put an applicable container below the pneumatic starter to catch any spilled oil.
8. CAUTION
  DO NOT PUT OIL THAT HAS BEEN USED OR SPILLED FROM THE ENGINE OR PNEUMATIC STARTER BACK IN THE OIL SYSTEM.
  Put clean CoMat 10-077 APPROVED ENGINE OILS into the oil filler point until the oil overflows from the oil fill port or overflow port.
9. Lightly lubricate a new STARTING-PNEUMATIC STARTER (80-13-41, 01-318) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it on the oil overflow plug STARTING-PNEUMATIC STARTER (80-13-41, 01-320).
10. Install the oil overflow plug and torque it to 30 to 45 lbfin* (3.4 to 5.0 Nm)*.
11. Safety the oil overflow plug with CoMat 02-126 LOCKWIRE.
12. Lightly lubricate a new STARTING-PNEUMATIC STARTER (80-13-41, 01-308) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it on the oil filler plug.
13. Make sure the oil is at the correct level. Install the oil filler plug and torque to 20 to 35 * lbfin (2,3 to 4 Nm).
14. Safety the oil filler plug with CoMat 02-126 LOCKWIRE.
15. Remove any unwanted oil from the outside of the pneumatic starter with a clean CoMat 02-099 LINT-FREE CLOTH.
16. Remove the container and discard any oil.
1. Refer to Figure.
2. WARNING
  DO NOT LET THE OIL STAY ON YOUR SKIN FOR A LONG TIME. THE OIL IS POISONOUS AND CAN GO THROUGH YOUR SKIN AND INTO YOUR BODY.
  CAUTION
  USE CLEAN CONTAINERS AND EQUIPMENT. A SMALL QUANTITY OF SOME CLEANING FLUIDS CAN CAUSE DAMAGE TO THE OIL.
  Make sure the drain plug/magnetic chip detector is installed and safetied with CoMat 02-126 LOCKWIRE.
3. If the oil sight glass is discoloured and will prevent checking of the oil level after filling it can be cleaned in accordance with relevant cleaning TASK.
4. Remove the lockwire that safeties the oil filler plug STARTING-PNEUMATIC STARTER (80-13-41, 01-290).
5. Hold the adapter STARTING-PNEUMATIC STARTER (80-13-41, 01-310) with a spanner to stop rotation and remove the oil filler plug.
6. Remove and discard the sealing ring STARTING-PNEUMATIC STARTER (80-13-41, 01-288) on the oil filler plug.
7. Put an applicable container below the pneumatic starter to catch any spilled oil.
8. CAUTION
  DO NOT PUT OIL THAT HAS BEEN USED OR SPILLED FROM THE ENGINE OR PNEUMATIC STARTER BACK IN THE OIL SYSTEM.
  Remove the oil overflow plug STARTING-PNEUMATIC STARTER (80-13-41, 01-320) from the oil overflow point and remove and discard the sealing ring STARTING-PNEUMATIC STARTER (80-13-41, 01-318).
9. Put an applicable container below the pneumatic starter to catch any spilled oil.
10. CAUTION
  DO NOT PUT OIL THAT HAS BEEN USED OR SPILLED FROM THE ENGINE OR PNEUMATIC STARTER BACK IN THE OIL SYSTEM.
  NOTE
  The sight glass was introduced to act as a guide to ensure the starter was serviced and must not be relied on as an accurate gauge.
  Put clean CoMat 10-077 APPROVED ENGINE OILS in the oil filler point until oil overflows from the oil fill port or oil overflow port. The starter sight glass can be used to confirm oil is present but not the oil quantity. (Refer to Figure).
11. Lightly lubricate new STARTING-PNEUMATIC STARTER (80-13-41, 01-318) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it on the overflow plug STARTING-PNEUMATIC STARTER (80-13-41, 01-320).
12. Install the overflow plug and torque it to 30 to 45 lbfin* (3.4 to 5.0 Nm)*.
13. Safety the oil overflow plug with CoMat 02-126 LOCKWIRE.
14. Lightly lubricate a STARTING-PNEUMATIC STARTER (80-13-41, 01-288) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it on the oil filler plug.
15. Install the oil filler plug and torque to 20 to 35 lbfin* (2.3 to 4 Nm).
16. Safety the oil filler plug with CoMat 02-126 LOCKWIRE.
17. Remove any unwanted oil from the outside of the pneumatic starter with a clean CoMat 02-099 LINT-FREE CLOTH.
18. Remove the container and discard any oil.
1. Refer to Figure.
2. WARNING
  DO NOT LET THE OIL STAY ON YOUR SKIN FOR A LONG TIME. THE OIL IS POISONOUS AND CAN GO THROUGH YOUR SKIN AND INTO YOUR BODY.
  CAUTION
  USE CLEAN CONTAINERS AND EQUIPMENT. A SMALL QUANTITY OF SOME CLEANING FLUIDS CAN CAUSE DAMAGE TO THE OIL.
  If the oil sight glass is discoloured and will prevent checking of the oil level after filling it can be cleaned as per the relevant cleaning TASK.
3. Make sure the drain plug/magnetic chip detector is installed and safetied with CoMat 02-126 LOCKWIRE.
4. Remove the lockwire that safeties the oil filler plug STARTING-PNEUMATIC STARTER (80-13-41, 01-290).
5. Remove the oil filler plug from the oil filler point and remove and discard the sealing ring STARTING-PNEUMATIC STARTER (80-13-41, 01-308).
6. Put an applicable container below the pneumatic starter to catch any spilled oil.
7. CAUTION
  DO NOT PUT OIL THAT HAS BEEN USED OR SPILLED FROM THE ENGINE OR PNEUMATIC STARTER BACK IN THE OIL SYSTEM.
  Remove the oil overflow plug STARTING-PNEUMATIC STARTER (80-13-41, 01-320) from the overflow point and remove and discard the sealing ring STARTING-PNEUMATIC STARTER (80-13-41, 01-318).
8. Put an applicable container below the pneumatic starter to catch any spilled oil.
9. CAUTION
  DO NOT PUT OIL THAT HAS BEEN USED OR SPILLED FROM THE ENGINE OR PNEUMATIC STARTER BACK IN THE OIL SYSTEM.
  NOTE
  The sight glass was introduced to act as a guide to ensure the starter was serviced and must not be relied on as an accurate gauge.
  Put clean CoMat 10-077 APPROVED ENGINE OILS in the oil filler point until the oil overflows from the oil fill port or oil overflow port. The starter sight glass can be used to confirm oil is present but not the quantity (Refer to Figure).
10. Lightly lubricate a new STARTING-PNEUMATIC STARTER (80-13-41, 01-318) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it on the oil overflow plug STARTING-PNEUMATIC STARTER (80-13-41, 01-320).
11. Install the oil overflow plug and torque it to 30 to 45 lbfin* (3.4 to 5.0 Nm)*.
12. Safety the oil overflow plug with CoMat 02-126 LOCKWIRE.
13. Lightly lubricate a new STARTING-PNEUMATIC STARTER (80-13-41, 01-308) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it on the oil filler plug.
14. Install the oil filler plug and torque to 20 to 35 lbfin* (2.3 to 4 Nm).
15. Safety the oil filler plug with CoMat 02-126 LOCKWIRE.
16. Remove any unwanted oil from the outside of the pneumatic starter with a clean CoMat 02-099 LINT-FREE CLOTH.
17. Remove the container and discard any oil.
1. Refer to Figure.
2. Make sure that the drain plug/magnetic chip detector is installed and safetied with CoMat 02-126 LOCKWIRE.
3. CAUTION
  DO NOT PUT OIL THAT HAS BEEN USED OR SPILLED FROM THE ENGINE OR PNEUMATIC STARTER BACK IN THE OIL SYSTEM.
  Remove the oil overflow plug STARTING-PNEUMATIC STARTER (80-13-41, 01-320) from the overflow point and remove and discard the sealing ring STARTING-PNEUMATIC STARTER (80-13-41, 01-318).
4. Put an applicable container below the pneumatic starter to catch any spilled oil.
5. CAUTION
  DO NOT PUT OIL THAT HAS BEEN USED OR SPILLED FROM THE ENGINE OR PNEUMATIC STARTER BACK IN THE OIL SYSTEM.
  Put clean CoMat 10-077 APPROVED ENGINE OILS in to the pressure fill facility until oil overflows from the oil overflow point.
6. Lightly lubricate a new STARTING-PNEUMATIC STARTER (80-13-41, 01-318) sealing ring 1 off with CoMat 10-077 APPROVED ENGINE OILS and install it on the oil overflow plug STARTING-PNEUMATIC STARTER (80-13-41, 01-320).
7. Install the oil overflow plug and torque it to 30 to 45 lbfin* (3.4 to 5.0 Nm)*.
8. Safety the oil overflow plug with CoMat 02-126 LOCKWIRE.
9. Remove any unwanted oil from the outside of the pneumatic starter with a clean CoMat 02-099 LINT-FREE CLOTH.
10. Remove the container and discard any oil.

Pre SBE 80-0003 and Pre SBE 80-0007: Fill the pneumatic starter with oil

SBE 80-0003 and Pre SBE 80-0007: Fill the pneumatic starter with oil

SBE 80-0007: Fill the pneumatic starter with oil

SBE 70-0395: Fill the pneumatic starter with oil

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	IE304
Enterprise Name:	DELETED
BU Name:	DELETED,SEE CAGE CODE 0V6W9

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

TASK 71-00-00-600-001 Fill The Pneumatic Starter With Oil, Servicing-001

Export Control

Copyright

Applicability

Common Information

TASK 71-00-00-600-001 Fill The Pneumatic Starter With Oil, Servicing-001

General

NOTE

Preliminary Requirements

Pre-Conditions

Support Equipment

Consumables, Materials and Expendables

Spares

Safety Requirements

Procedure

SUBTASK 71-00-00-610-052-A00 Fill the Pneumatic Starter with Oil (Pre SBE 80-0003 and Pre SBE 80-0007)

WARNING

CAUTION

CAUTION

CAUTION

SUBTASK 71-00-00-610-052-B00 Fill the Pneumatic Starter with Oil (SBE 80-0003 and Pre SBE 80-0007)

WARNING

CAUTION

CAUTION

CAUTION

NOTE

SUBTASK 71-00-00-610-052-C00 Fill the Pneumatic Starter with Oil (SBE 80-0007)

WARNING

CAUTION

CAUTION

CAUTION

NOTE

SUBTASK 71-00-00-610-054 Fill the Pneumatic Starter with Oil (SBE 70-0395)

WARNING

CAUTION

CAUTION

CAUTION

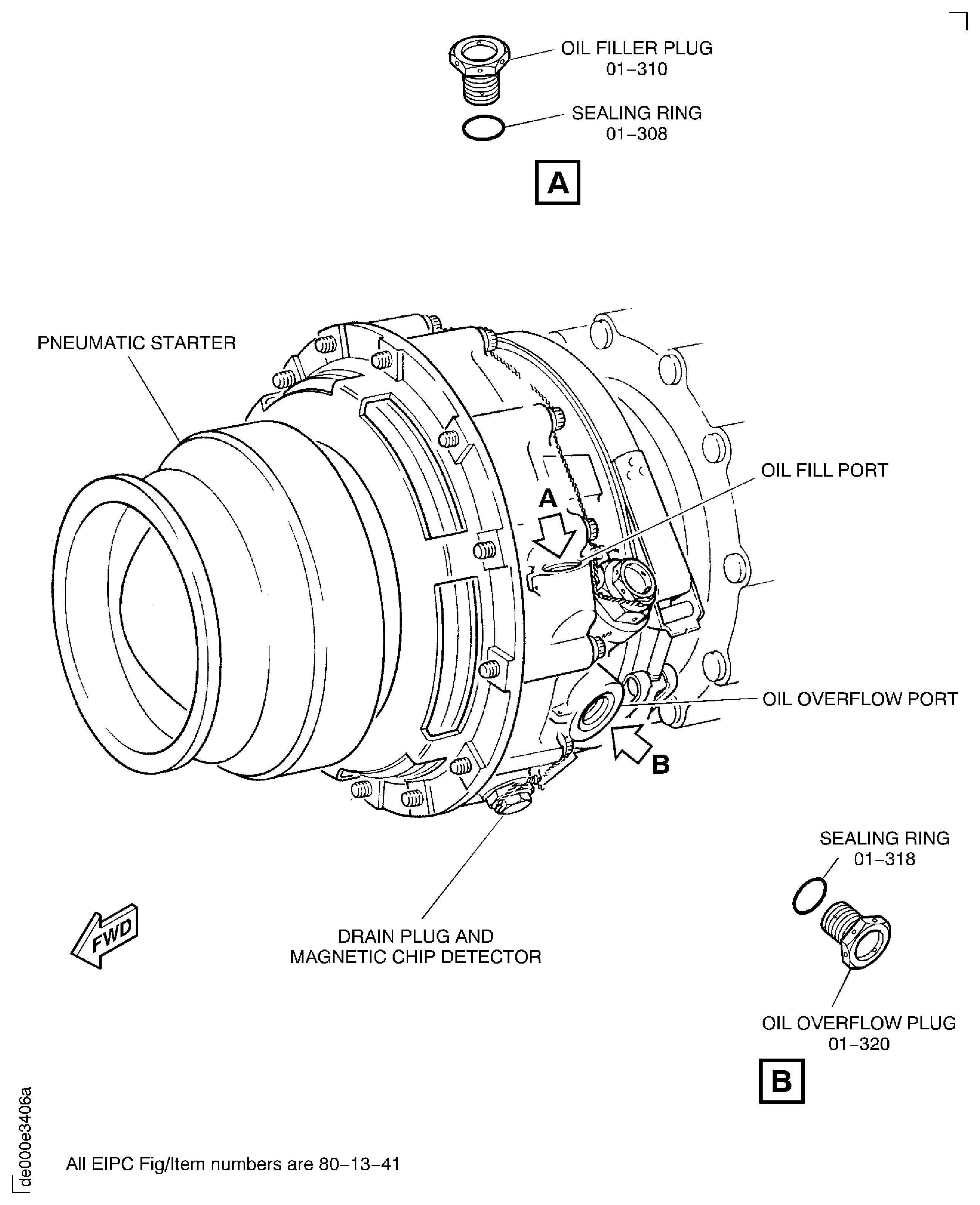

Figure: Pre SBE 80-0003 and Pre SBE 80-0007: Fill the pneumatic starter with oil

Pre SBE 80-0003 and Pre SBE 80-0007: Fill the pneumatic starter with oil

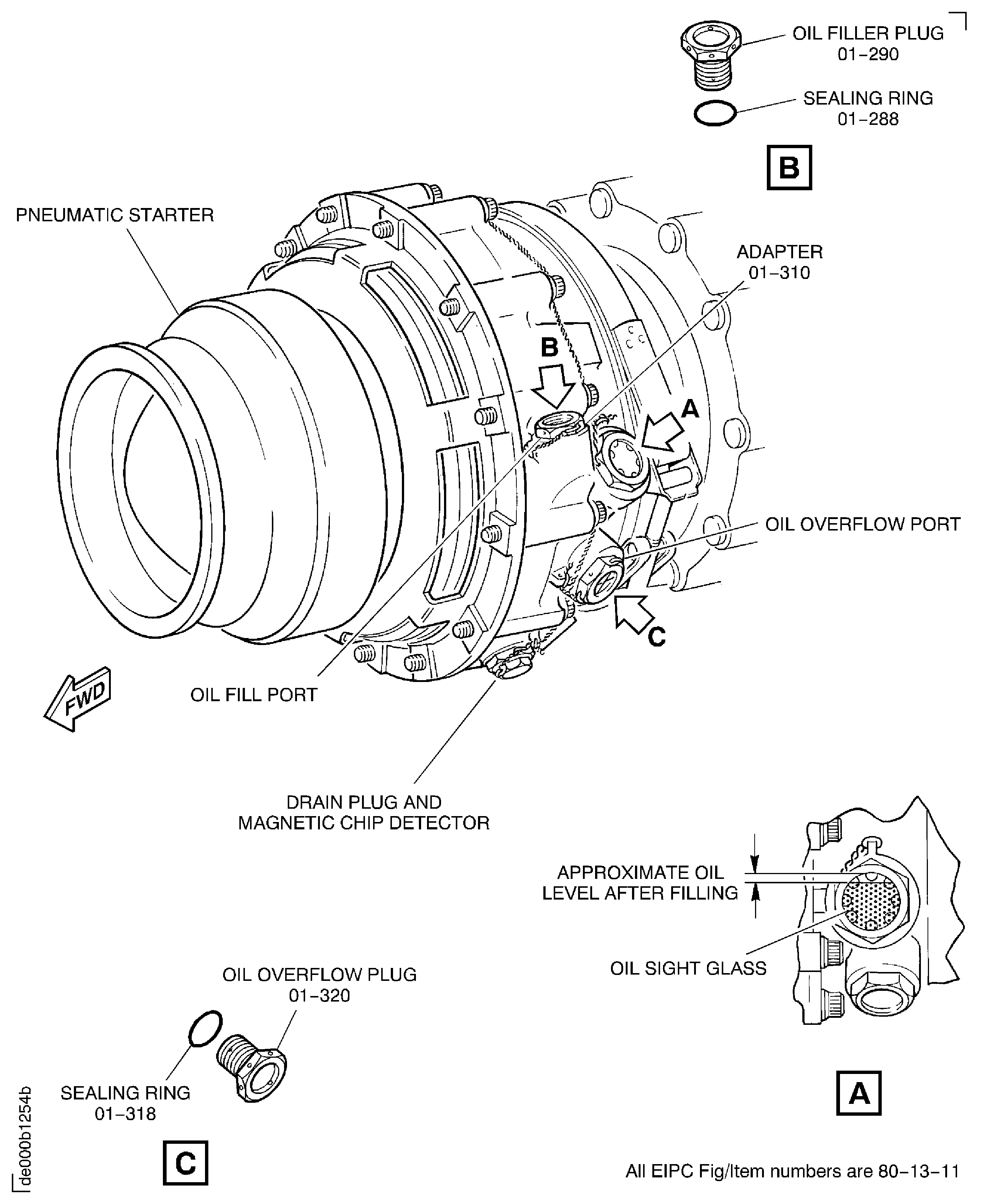

Figure: SBE 80-0003 and Pre SBE 80-0007: Fill the pneumatic starter with oil

SBE 80-0003 and Pre SBE 80-0007: Fill the pneumatic starter with oil

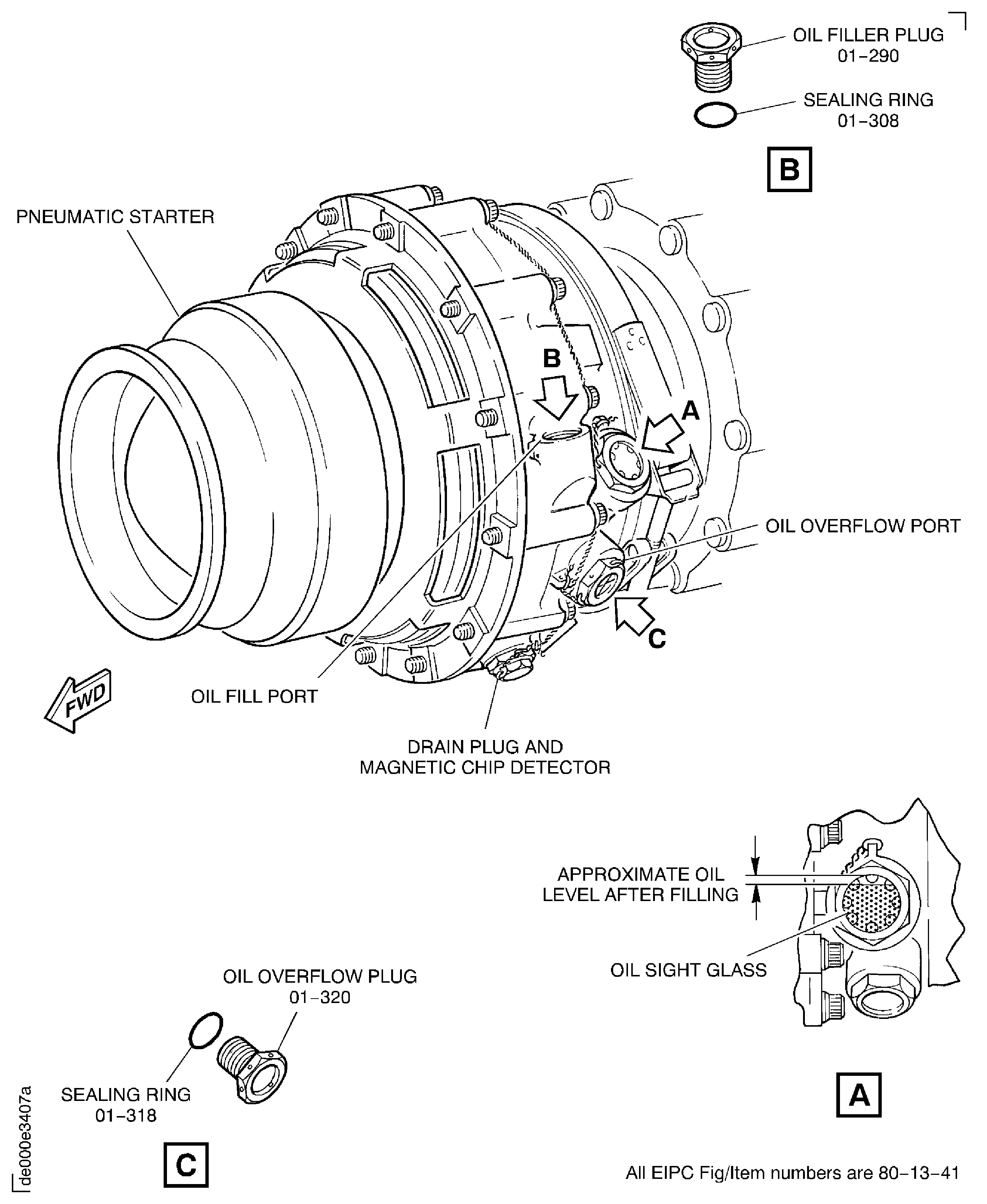

Figure: SBE 80-0007: Fill the pneumatic starter with oil

SBE 80-0007: Fill the pneumatic starter with oil

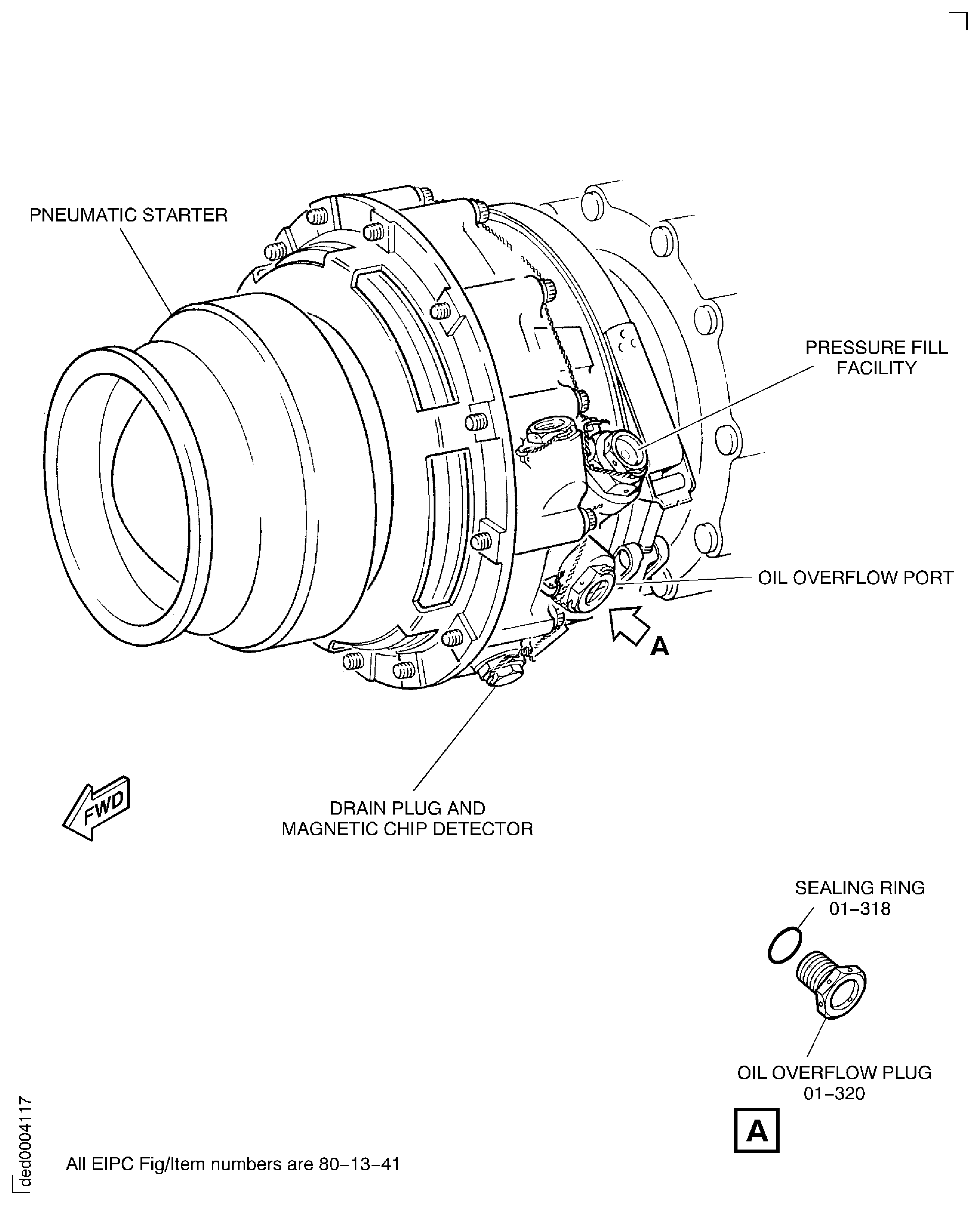

Figure: SBE 70-0395: Fill the pneumatic starter with oil
