TASK 71-00-02-400-004 (A1/A5-PPBU) - Install The Oil System Sensor (Oil Tank Couplings), Installation-004
General
Fig/item numbers in parentheses in the procedure agree with those used in the EIPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the EIPC.
For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501 and SPM TASK 70-41-01-400-501.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-147 LOCKWIRE | LOCAL | CoMat 02-147 | ||
| CoMat 10-039 ENGINE OIL | LOCAL | CoMat 10-039 |
Safety Requirements
WARNING
WARNING
CAUTION
Procedure
Refer to Figure.
Lubricate the new packing POWER PLANT-DEMOUNTABLE (71-00-20, 02-110) with CoMat 10-039 ENGINE OIL.
Install the new packing POWER PLANT-DEMOUNTABLE (71-00-20, 02-110) and coupling POWER PLANT-DEMOUNTABLE (71-00-20, 02-120) in the oil tank overflow port.
Torque the coupling POWER PLANT-DEMOUNTABLE (71-00-20, 02-120) to 200 lbf.in - 225 lbf.in (22.6 - 25.4 Nm).
Install the dust cap POWER PLANT-DEMOUNTABLE (71-00-20, 02-100) on the coupling POWER PLANT-DEMOUNTABLE (71-00-20, 02-120) and attach the lanyard to the oil tank.
Safety the coupling POWER PLANT-DEMOUNTABLE (71-00-20, 02-120) with CoMat 02-147 LOCKWIRE.
SUBTASK 71-00-02-450-155 Install the Coupling to the Overflow Port of Oil Tank
Refer to Figure.
Lubricate the new packing POWER PLANT-DEMOUNTABLE (71-00-20, 02-140) with CoMat 10-039 ENGINE OIL.
Install the new packing POWER PLANT-DEMOUNTABLE (71-00-20, 02-140) and coupling POWER PLANT-DEMOUNTABLE (71-00-20, 02-150) in the oil tank pressure fill port.
Torque the coupling POWER PLANT-DEMOUNTABLE (71-00-20, 02-150) to 70 lbf.in - 80 lbf.in (8 - 9 Nm).
Install the dust cap POWER PLANT-DEMOUNTABLE (71-00-20, 02-130) on the coupling POWER PLANT-DEMOUNTABLE (71-00-20, 02-150) and attach the lanyard to the oil tank.
Safety the coupling POWER PLANT-DEMOUNTABLE (71-00-20, 02-150) with CoMat 02-147 LOCKWIRE.
SUBTASK 71-00-02-450-156 Install the Coupling to the Pressure Fill Port of Oil Tank

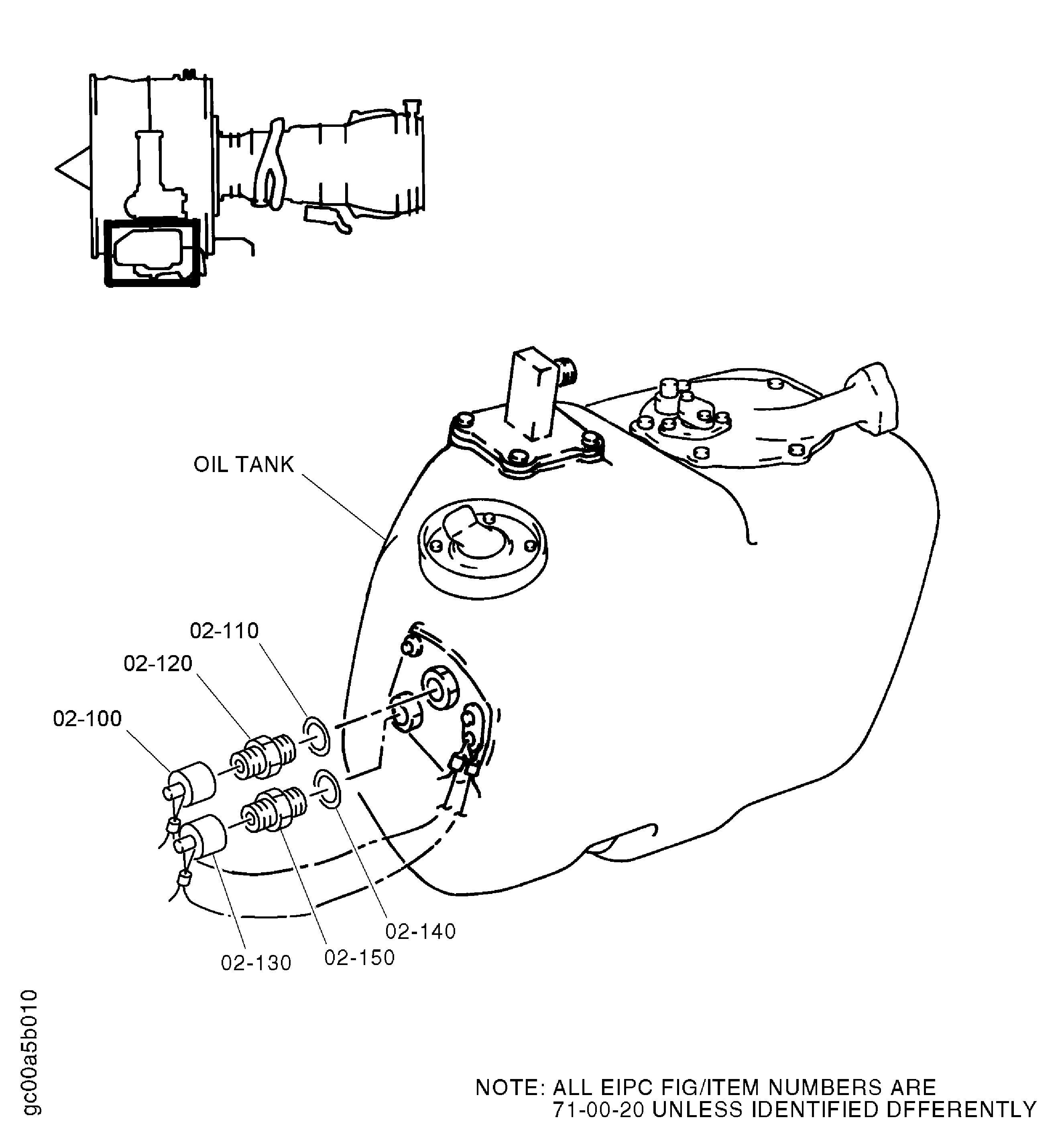

Figure: Install the Oil System Sensor (Oil Tank Couplings)
Install the Oil System Sensor (Oil Tank Couplings)
