Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 71-00-02-400-019 (A1/A5-PPBU) - Install The P2/T2 Probe Hose Assembly, Installation-019
General
Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.
For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.
For standard torque data and procedures, refer to SPM TASK 70-41-00-400-501 and SPM TASK 70-41-02-400-501.
Special torque data and assembly tolerances are included in the procedure.
Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILSs, unless other lubricants are referred to in the procedure.
After assembly apply CoMat 07-032 ENAMEL, POLYURETHANE, AIR-DRYING, TWO-PART, GREY to any damaged surface protection, joint flanges and attach parts. Use the correct color of the air drying enamel. Refer to SPM TASK 70-38-07-380-501.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 07-032 ENAMEL, POLYURETHANE, AIR-DRYING, TWO-PART, GREY | LOCAL | CoMat 07-032 | ||
| CoMat 10-077 APPROVED ENGINE OILS | LOCAL | CoMat 10-077 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Connect the P2/T2 probe hose assembly ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY (73-22-48, 02-020) to the P2/T2 union P2/T2 Sensor Air Tube (73-22-48, 01-040) at the cowl aft bulkhead.
Connect the P2/T2 probe hose assembly ENGINE FUEL AND CONTROL-P2/T2 PROBE ASSEMBLY (73-22-48, 02-020) to the P2 tube.
SUBTASK 71-00-02-420-009 Install the P2/T2 Probe Hose Assembly
NOTE
The P2/T2 probe hose assembly can not be installed until the air intake cowl has been installed.

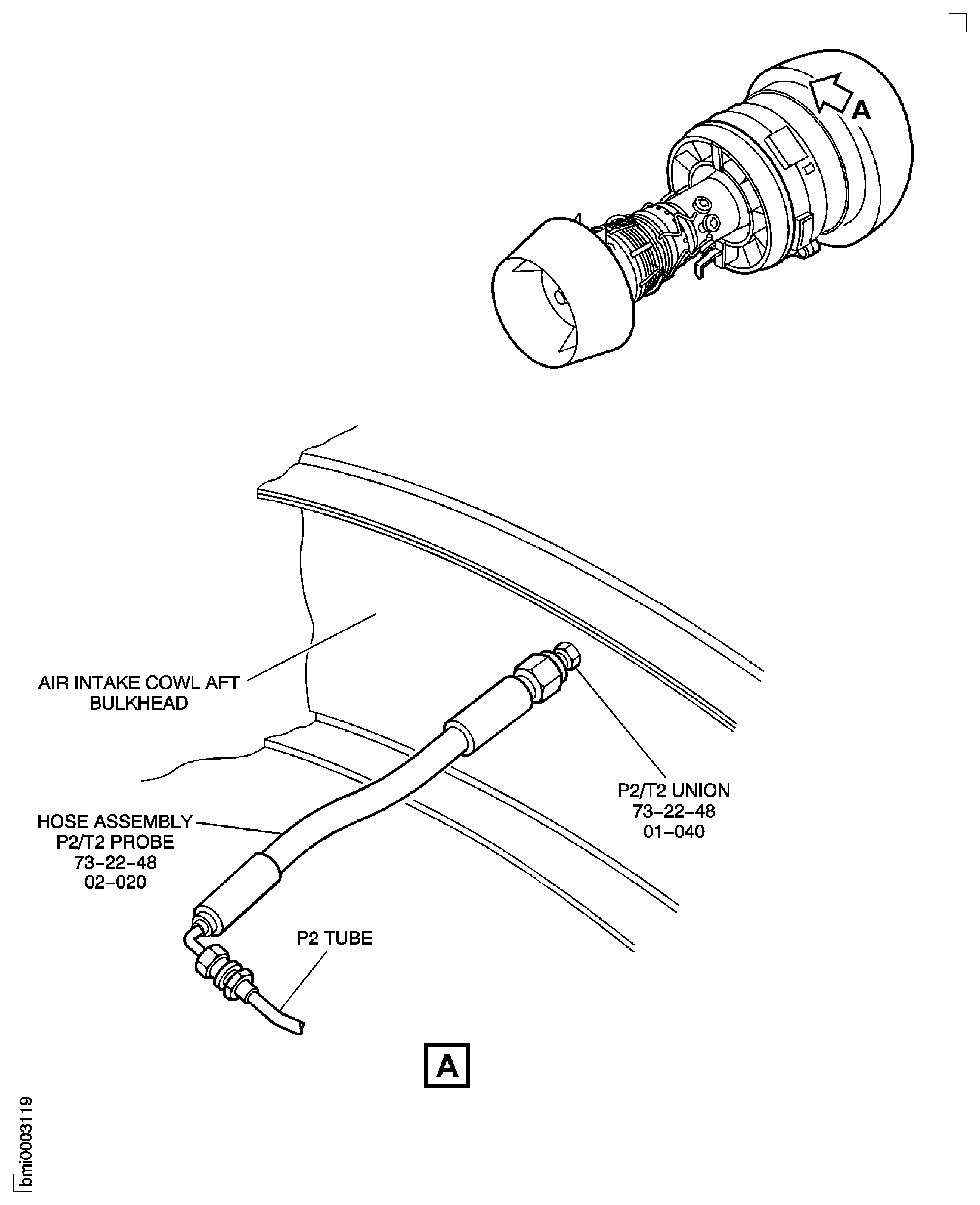

Figure: Install the P2/T2 Probe Hose Assembly
Install the P2/T2 Probe Hose Assembly
