TASK 71-21-11-300-004 Front Mount Tube - Replace The Dry Film Lubricant, Repair-004 (VRS1101)

Effectivity

FIG/ITEM	PART NO.
01-150	5A1698
01-150	5A6025

Material of component

PART IDENT	SYMBOL	MATERIAL
Engine front mount	-	Nickel base alloy
tube assembly

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification
Vapor Degreaser	LOCAL	Vapor Degreaser
Abrasive Blast Equipment	LOCAL	Abrasive Blast Equipment
Oven	LOCAL	Oven

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 02-001 ADHESIVE TAPE (MASKING)	LOCAL	CoMat 02-001
CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER	LOCAL	CoMat 02-002
CoMat 02-005 ADHESIVE TAPE (MASKING)	LOCAL	CoMat 02-005
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING	94960	CoMat 02-019
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADE	LOCAL	CoMat 05-003
CoMat 07-009 THINNER	LOCAL	CoMat 07-009
CoMat 10-004 DRY FILM LUBRICANT	LOCAL	CoMat 10-004

Spares

NONE

Safety Requirements

NONE

Procedure

1. 1. Refer to TASK 71-21-11-100-000 (CLEANING-000).
1. Refer to Figure.
2. 1. Apply the masking tape to the areas which are not to be given a layer of dry film lubricant.
    Use CoMat 02-001 ADHESIVE TAPE (MASKING) or CoMat 02-005 ADHESIVE TAPE (MASKING).
    Refer to TASK 70-38-03-380-501.
3. 1. Use CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADE.
    Refer to TASK 70-38-03-380-501.
    Use abrasive blast equipment.
4. Remove masking tape.
5. 1. Refer to TASK 70-38-03-380-501.
6. 1. Refer to TASK 70-11-26-300-503.
    Use vapor degreasing facility.
1. Refer to Figure.
2. 1. Apply the masking tape to the areas which are not to be given a layer of dry film lubricant.
    Use CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING or CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER.
    Refer to TASK 70-38-03-380-501.
3. 1. Use CoMat 10-004 DRY FILM LUBRICANT and CoMat 07-009 THINNER.
    The thickness of the dry film lubricant is to be 0.00012 to 0.0006 in. (0.003 to 0.015 mm).
    Refer to TASK 70-38-03-380-501.
4. Remove the masking tape.
5. 1. Stove for two hours between 365 and 383 deg F (185 to 195 deg C).
    Use an applicable oven.
6. 1. Refer to TASK 70-38-03-380-501.
7. 1. Measure the dimension of the coated area with an external micrometer.

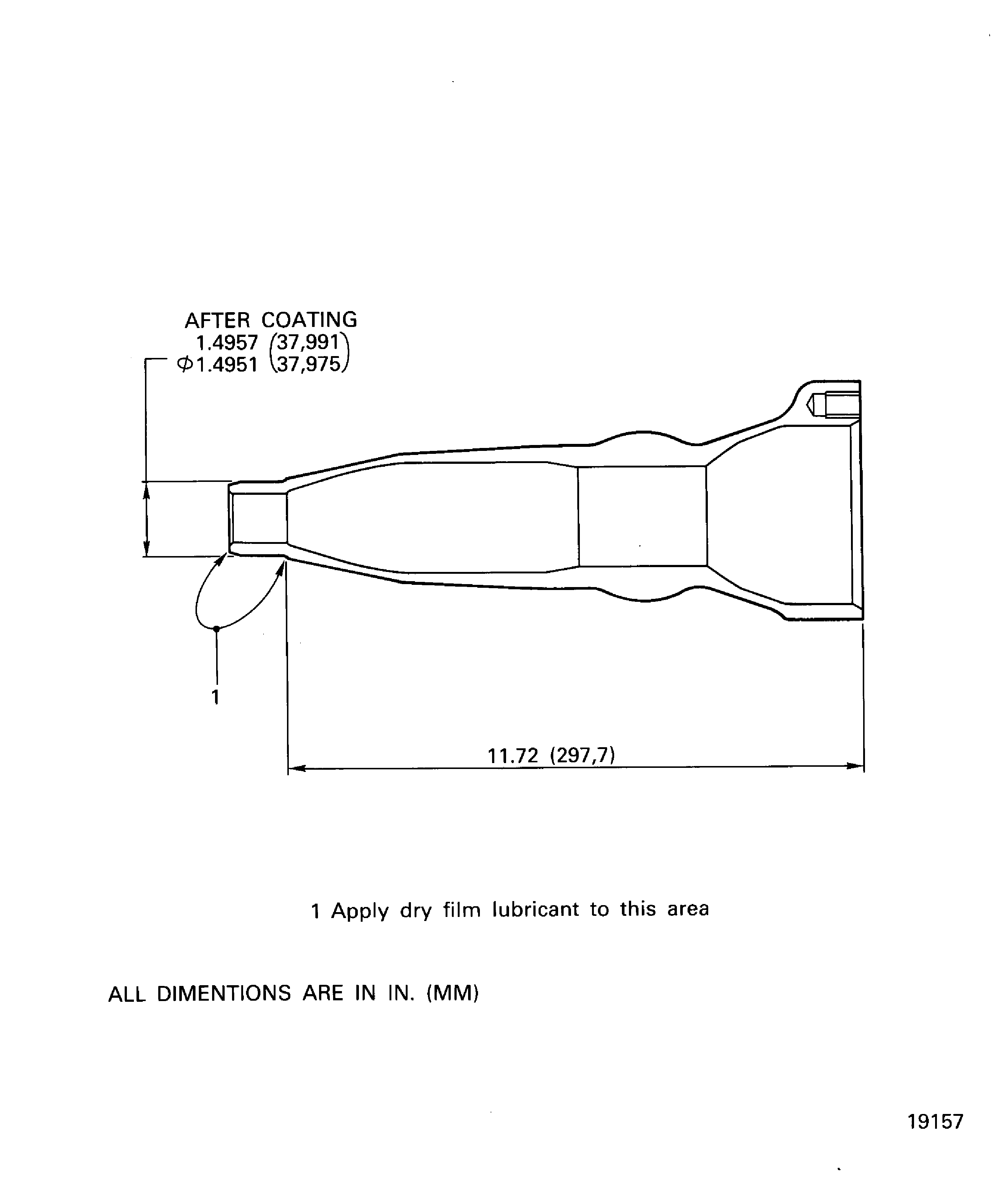

Apply the dry film lubricant to the areas and locations of the engine front mount tube assembly

Requirements After Job Completion

Follow-On Conditions

NONE

Change Type:

Added part number in effectivity table. (89VJ765B)
