TASK 71-51-43-300-004 General Services Harness - Replace The Contact Pins And Sockets, Repair-004 (VRS2988)

DMC:V2500-A0-71-51-4300-03A-920A-C|Issue No:003.00|Issue Date:2019-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 71-51-43-300-004 General Services Harness - Replace The Contact Pins And Sockets, Repair-004 (VRS2988)

Effectivity

FIG/ITEM

PART NO

01-005

740-5966-503

01-005

740-5966-505

01-005

740-5966-507

01-005

740-5966-511

01-005

740-5966-513

01-005

740-5966-515

01-005

740-5966-517

01-005

740-5966-519

01-005

740-5966-521

01-005

740-5966-523

01-005

740-5966-525

01-005

740-5966-527

01-005

740-5966-529

General

The cables are of sufficient length to permit the replacement of the contacts two times only. If more replacements are necessary the harness must be disassembled and the applicable cables replaced (Refer to Repair, VRS2965 TASK 71-51-43-300-001 (REPAIR-001)).

General Services Harness - Replacement of a Cable, refer to Repair, VRS2965 TASK 71-51-43-300-001 (REPAIR-001).

General Services Harness - Replacement of the Connectors, refer to Repair, VRS2981 TASK 71-51-43-300-003 (REPAIR-003).

Repair parts

Repair part location - Refer to Figure.

FIG/ITEM

PART NO.

PART IDENT

QTY

02-910

5000-270-1616

Contact pin

AR

02-920

8522-2349A

Contact pin

AR

02-930

8522-6179A

Contact pin

AR

02-940

BA-4016-50LD

Contact pin

AR

02-950

*020-18- 50LD

Contact pin

AR

02-960

8950-4779

Contact socket

AR

02-970

BA-4120-36LD

Contact socket

AR

02-980

5100-033-16-2

Contact socket

AR

02-990

5100-101-0120

Contact socket

AR

NOTE

The part No. identified with (*) will have BA-4 before it.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Crimp toolLOCAL
LocatorLOCAL

16 gauge

LocatorLOCAL

20 gauge

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-131 MARKING PENLOCALCoMat 06-131

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-51-43-350-060 Replace the Contact Pin or Socket

      CAUTION

      MAKE SURE THAT YOU USE THE CORRECT LOCATOR AND THAT THE CRIMP TOOL IS SET CORRECTLY. IF NOT, THE CABLE OR THE CONTACT CAN BE DAMAGED OR THE CONTACT INCORRECTLY ATTACHED TO THE CABLE.
      1. Disassemble the backclamp and the connector.

      2. Refer to Repair, VRS2981 TASK 71-51-43-300-003 (REPAIR-003).

      1. Prepare the cable end.

      2. Refer to Figure.

      3. Cut the cable adjacent to the contact pin or socket.

      4. Discard the rejected part.

      5. Remove 0.276 in. (7.0 mm) of the cable insulation.

      1. Install the new contact pin or socket.

      2. Refer to Figure.

      3. Put the conductor in to the contact barrel until it touches the bottom (or it can be seen in the inspection hole).

      4. Use the Crimp tool set for the correct gauge of cable, with the applicable Locator (16 gauge or 20 gauge), to crimp the contact barrel.

      1. Do a check of the crimped joint.

      2. Manually pull the contact to make sure that it is satisfactorily attached to the conductor.

      1. Assemble the backclamp and the connector.

      2. Refer to Repair, VRS2981 TASK 71-51-43-300-003 (REPAIR-003).

      1. Do a continuity and insulation test.

    1. SUBTASK 71-51-43-850-053 Put the Repair Scheme Number on the Harness

      1. Put the repair scheme number VRS2988 on the identification sleeve of the harness, adjacent to the part number.

  1. Figure: Contact Replacement

    Contact Replacement

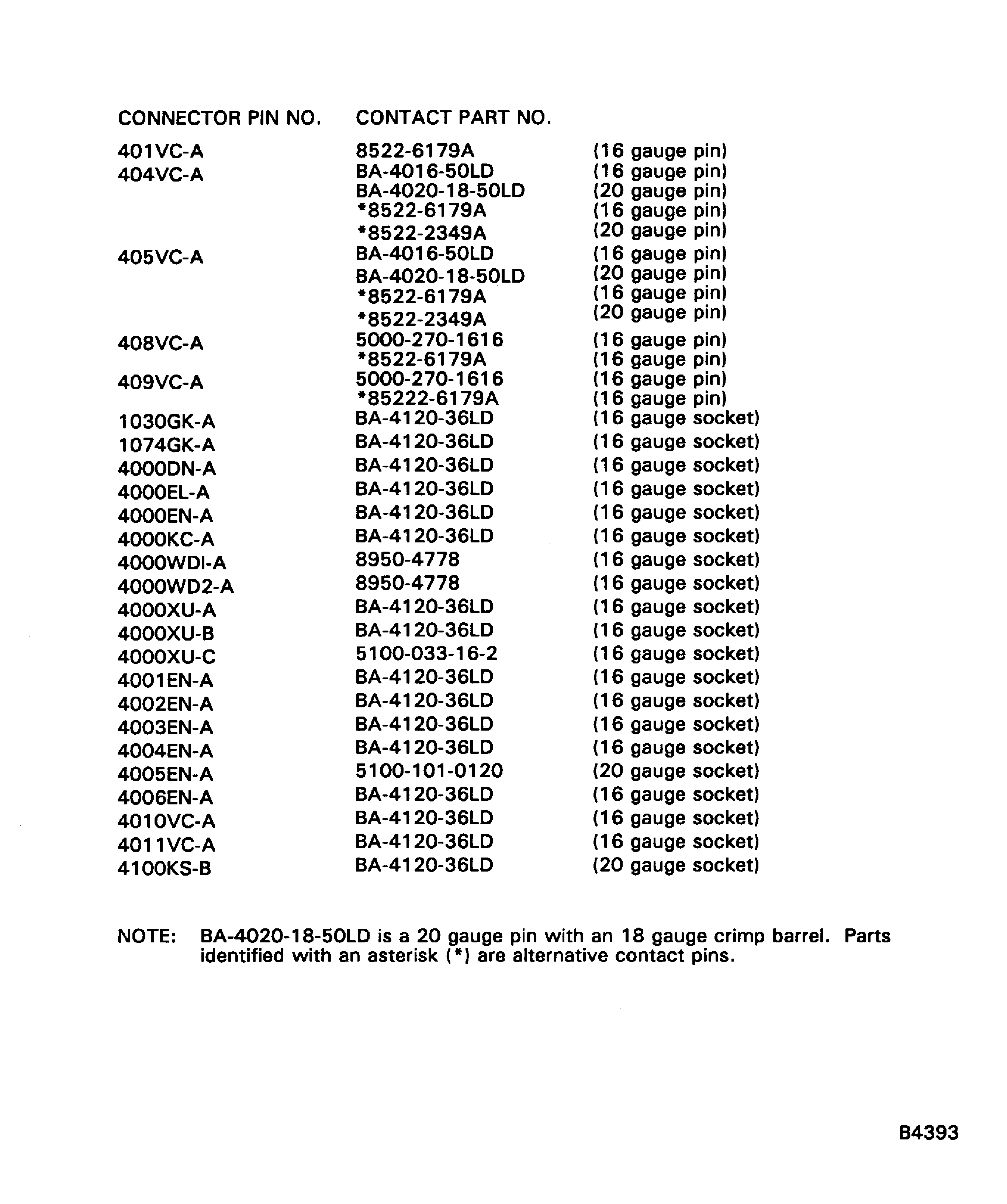

    Figure: Repair Part Location

    Repair Part Location

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised effectivity table to update part number. (13VN801)
