TASK 71-52-42-300-004 Fire Detection (System B) Harness - Replace The Contact Pins and Sockets, Repair-004 (VRS2990)
Effectivity
FIG/ITEM | PART NO. |
|---|---|
01-005 | 740-5862-501 |
01-005 | 740-5862-503 |
01-005 | 740-5862-505 |
01-005 | 740-5862-507 |
01-005 | 745-5862-501 |
01-005 | 745-5862-503 |
01-005 | 745-5862-505 |
01-005 | 745-5862-901 |
General
To identify the consumable materials, refer to the PCI.
The cables are of sufficient length to permit the replacement of the contacts two times only. If more replacements are necessary the harness must be disassembled and the applicable cables replaced (Refer to Repair, VRS2967 TASK 71-52-42-300-001 (REPAIR-001)).
Related repairs.
Fire Detection (System B) Harness - Replacement of a Cable VRS2967 TASK 71-52-42-300-001 (REPAIR-001).
Fire Detection (System B) Harness - Replacement of the Connectors VRS2983 TASK 71-52-42-300-003 (REPAIR-003).
Repair parts
FIG/ITEM | PART NO. | PART IDENT | QTY |
|---|---|---|---|
01-310 | 8533-1004 | Contact pin | AR |
01-320 | 8950-4779 | Contact socket | AR |
01-320A | M39029/30- 217 | Contact Socket | AR |
Repair part location - Refer to Figure.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Crimp tool | LOCAL | Crimp tool | ||
| Locator | LOCAL | Locator | 16 gauge |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 06-153 FELT TIP MARKER, RAPID DRYING | LOCAL | CoMat 06-153 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Repair, VRS2983 TASK 71-52-42-300-003 (REPAIR-003).
Disassemble the backclamp and the connector.
Refer to Figure.
Cut the cable adjacent to the contact pin or socket.
Discard the rejected part.
Remove 0.276 in. (7.0 mm) of the cable insulation.
Prepare the cable end.
Refer to Figure.
Put the conductor into the contact barrel until it touches the bottom (or it can be seen in the inspection hole).
Use the Crimp tool set for the correct gauge of cable, with the applicable Locator, to crimp the contact barrel.
Install the new contact pin or socket.
Manually pull the contact to make sure that it is satisfactorily attached to the conductor.
Do a check of the crimped joint.
Refer to Repair, VRS2983 TASK 71-52-42-300-003 (REPAIR-003).
Assemble the backclamp and the connector.
Refer to TASK 71-52-42-700-301 (TESTING-01).
Do a continuity and insulation test.
SUBTASK 71-52-42-350-061 Replace the Contact Pin or Socket
CAUTION
MAKE SURE THAT YOU USE THE CORRECT LOCATOR AND THAT THE CRIMP TOOL IS SET CORRECTLY. IF NOT, THE CABLE OR THE CONTACT CAN BE DAMAGED OR THE CONTACT INCORRECTLY ATTACHED TO THE CABLE.Put the repair scheme number VRS2990 on the identification sleeve of the harness, adjacent to the part number.
SUBTASK 71-52-42-850-057 Put the Repair Scheme Number on the Harness

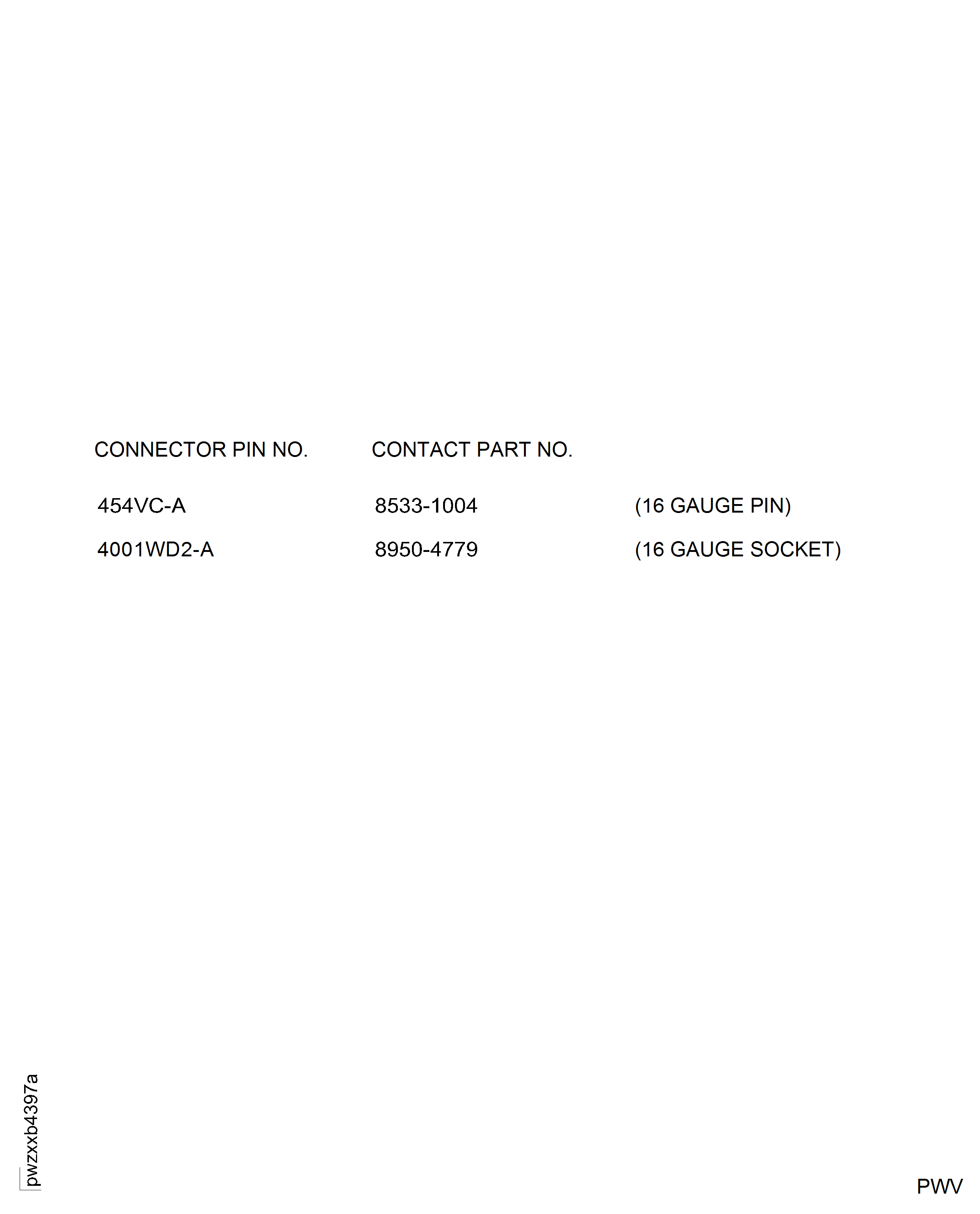

Figure: Repair Details and Dimensions
Repair Details and Dimensions
Figure: Repair Details and Dimensions
Repair Details and Dimensions
