TASK 71-52-43-300-004 EEC Core Harness And Voltage Divider Harness Assembly - Replace The Terminals Of The EEC Core Harness, Repair-004 (VRS1076)

DMC:V2500-A0-71-52-4300-02A-920A-C|Issue No:002.00|Issue Date:2018-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

2A1497

Common Information

TASK 71-52-43-300-004 EEC Core Harness And Voltage Divider Harness Assembly - Replace The Terminals Of The EEC Core Harness, Repair-004 (VRS1076)

Effectivity

FIG/ITEM

PART NO.

01-005

2A1497

01-005

6A8172

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to Cleaning-000 TASK 71-52-43-100-300.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

04-760

321893

Terminal

04-750

323750

Terminal

04-740

2A1440

CR/Terminal

04-741

2A1441

AL/Terminal

04-761

322873

Terminal

03-931

S-792

Tube, glass fabric

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 71-52-43-350-074 Remove Damaged Terminals

    1. Refer to Figure.

    2. Remove the terminal.

      3. CAUTION

        DO NOT CUT THE CONDUCTOR.

        Remove the insulation from the cable

      1. Use a cable stripper.

    2. SUBTASK 71-52-43-350-075 Install the Terminal

    1. Refer to Figure.

      2. Install the terminal

      1. Put the conductor into the terminal barrel.

      2. Use a crimping tool.

      3. Install cable identification sleeve

      1. Refer to Repair, VRS1077 (Repair-005) TASK 71-52-43-300-005.

    3. SUBTASK 71-52-43-350-076 Install the Alumel and Chromel Terminals

    1. Refer to Figure.

      2. Install the terminal

      1. Put the conductor into the terminal barrel.

      2. Use a crimping tool.

      3. Fusion weld the terminal barrel

      1. Refer to SPM TASK 70-31-13-310-501.

      4. Install cable identification sleeve

      1. Refer to Repair, VRS1077 (Repair-005) TASK 71-52-43-300-005.

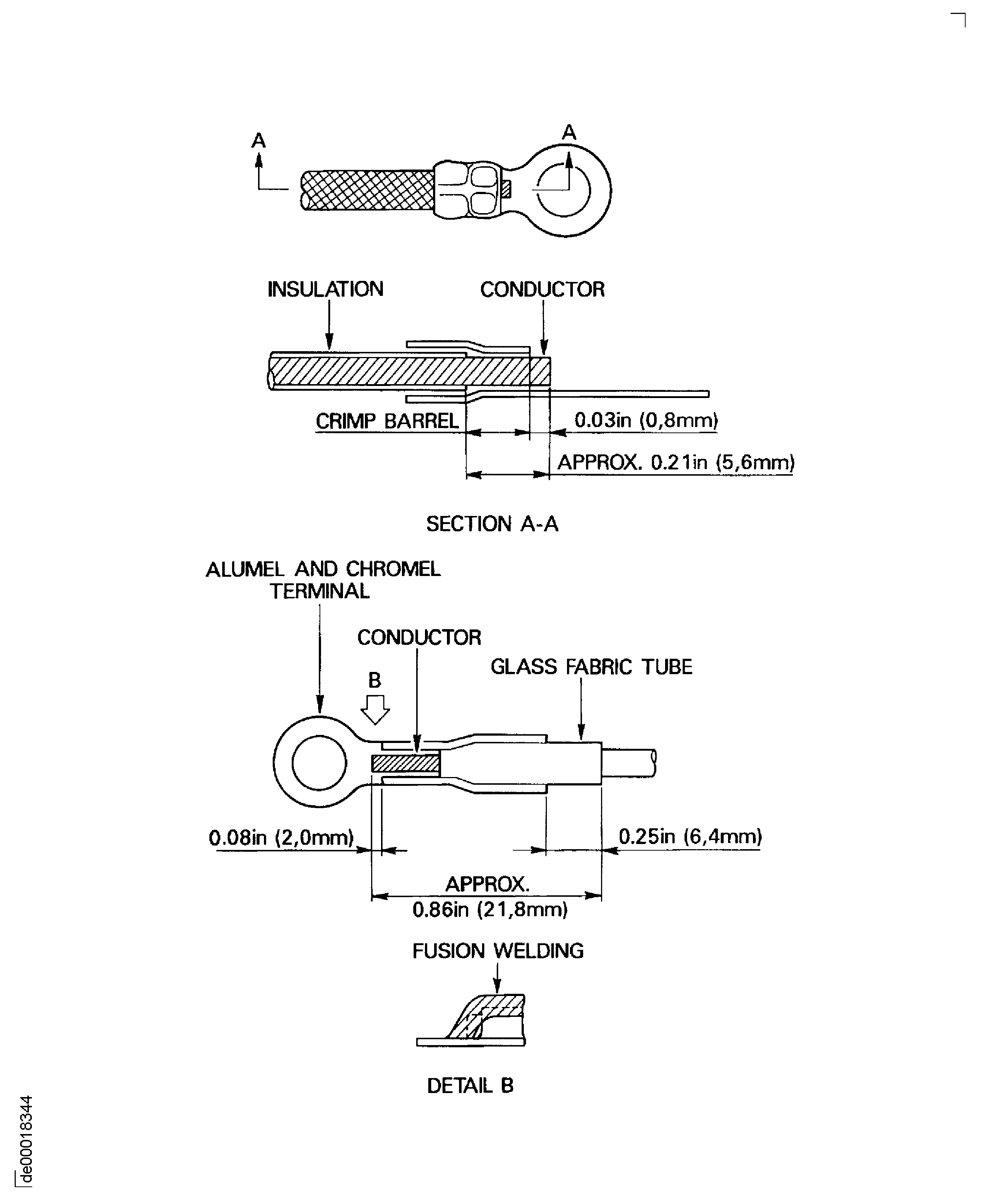

    4. Figure: Installation Of The Terminal

    Installation Of The Terminal

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the effectivity table to add part number 6A8172. (17VC589)
