DMC:V2500-A0-72-31-1102-00A-240A-C|Issue No:001|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-31-11-300-004 Annulus Filler - Replace The Dry Film Lubricant, Repair-004 (VRS1008)

Effectivity

FIG/ITEM	PART NO.
01-100	5A0353
01-100	5A1638
01-100	5A6533
01-100	5A1854

Material of component

PART IDENT	SYMBOL	MATERIAL
Annulus filler	-	Aluminum alloy

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity	Remark
Oven	LOCAL	Oven

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 01-031 ACETONE (CH3)2CO	LOCAL	CoMat 01-031
CoMat 01-124 ISOPROPYL ALCOHOL	LOCAL	CoMat 01-124
CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER	LOCAL	CoMat 02-002
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING	94960	CoMat 02-019
CoMat 07-009 THINNER	LOCAL	CoMat 07-009
CoMat 10-004 DRY FILM LUBRICANT	LOCAL	CoMat 10-004

Spares

NONE

Safety Requirements

NONE

Procedure

1. 1. Refer to TASK 72-31-11-100-000 (CLEANING-000).
1. Refer to Figure, Figure, Figure and Figure.
2. 1. Use a clean cloth which is moist with degreasing fluid and make clean the coating area.
  2. Use CoMat 01-031 ACETONE (CH3)2CO or CoMat 01-124 ISOPROPYL ALCOHOL.
  3. Refer to the SPM TASK 70-11-26-300-503.
3. 1. Apply the masking tape to the areas which are not to be given a layer of dry film lubricant.
  2. Use CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING or CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER.
4. 1. Refer to the SPM TASK 70-38-03-380-501.
  2. Use CoMat 10-004 DRY FILM LUBRICANT and CoMat 07-009 THINNER.
5. Remove the masking tape.
6. 1. Stove for two hours between 365 to 383 deg F (185 to 195 deg C).
  2. Use an applicable oven.
7. 1. Refer to the SPM TASK 70-38-03-380-501.

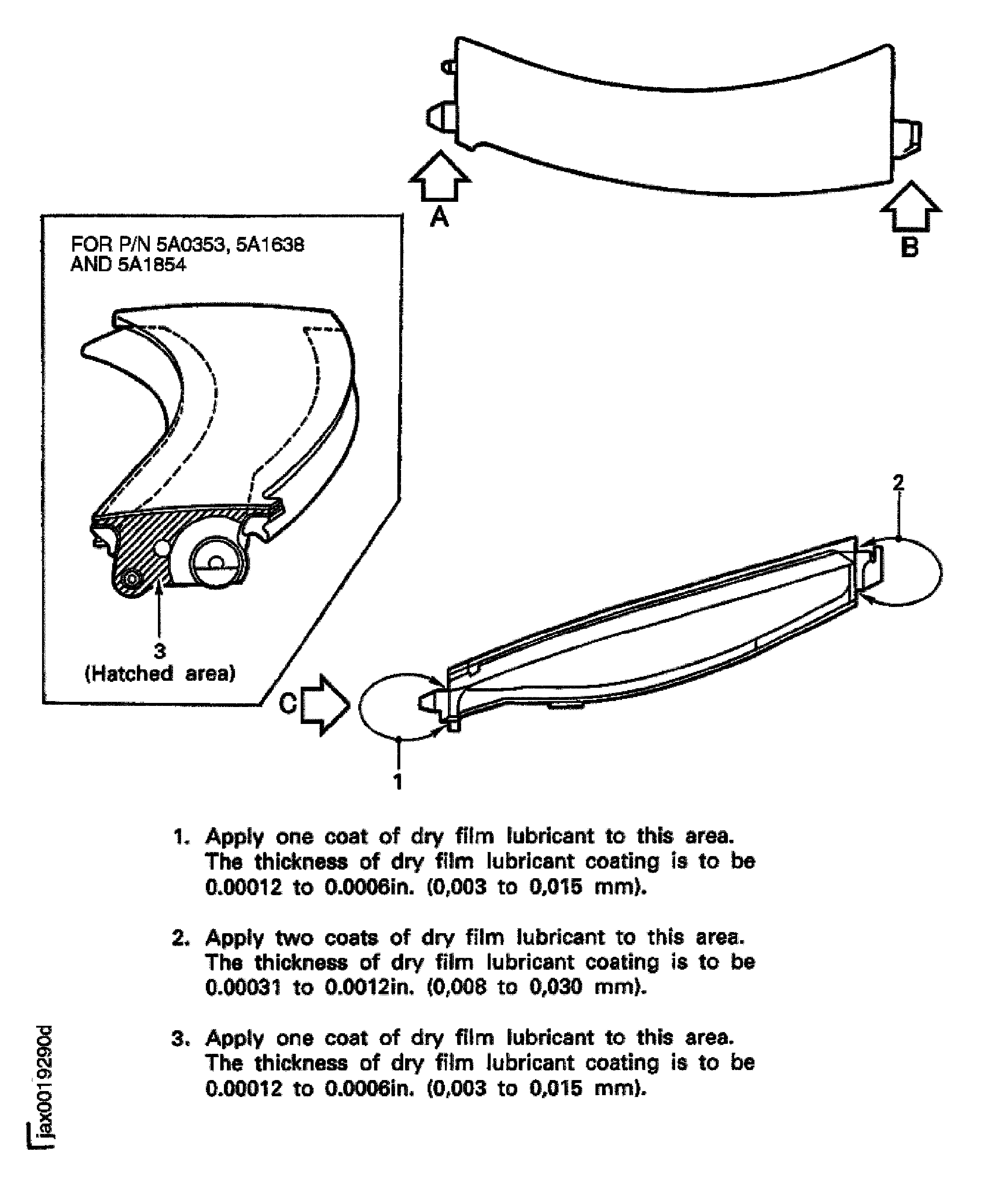

Sheet 1

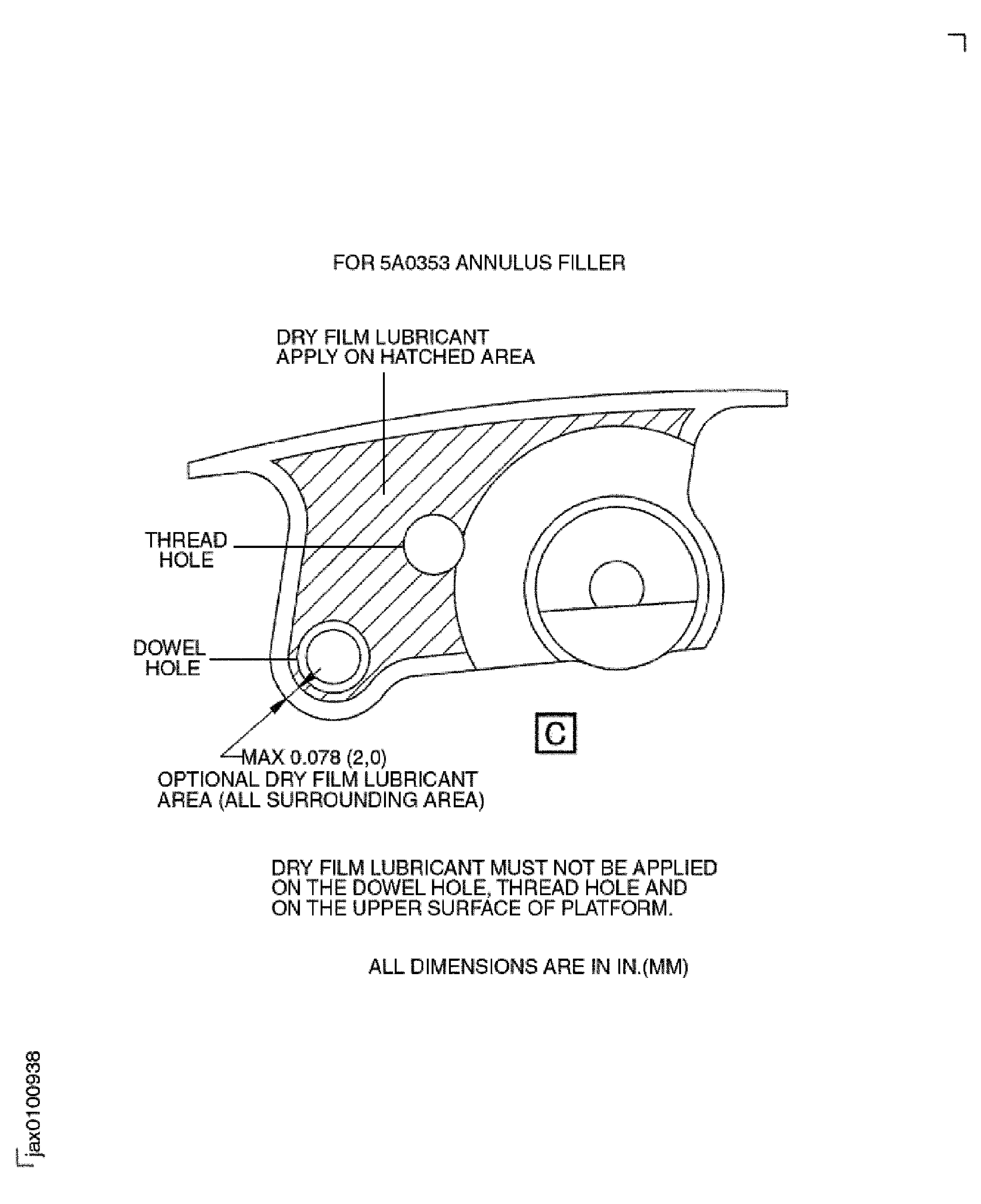

Sheet 2

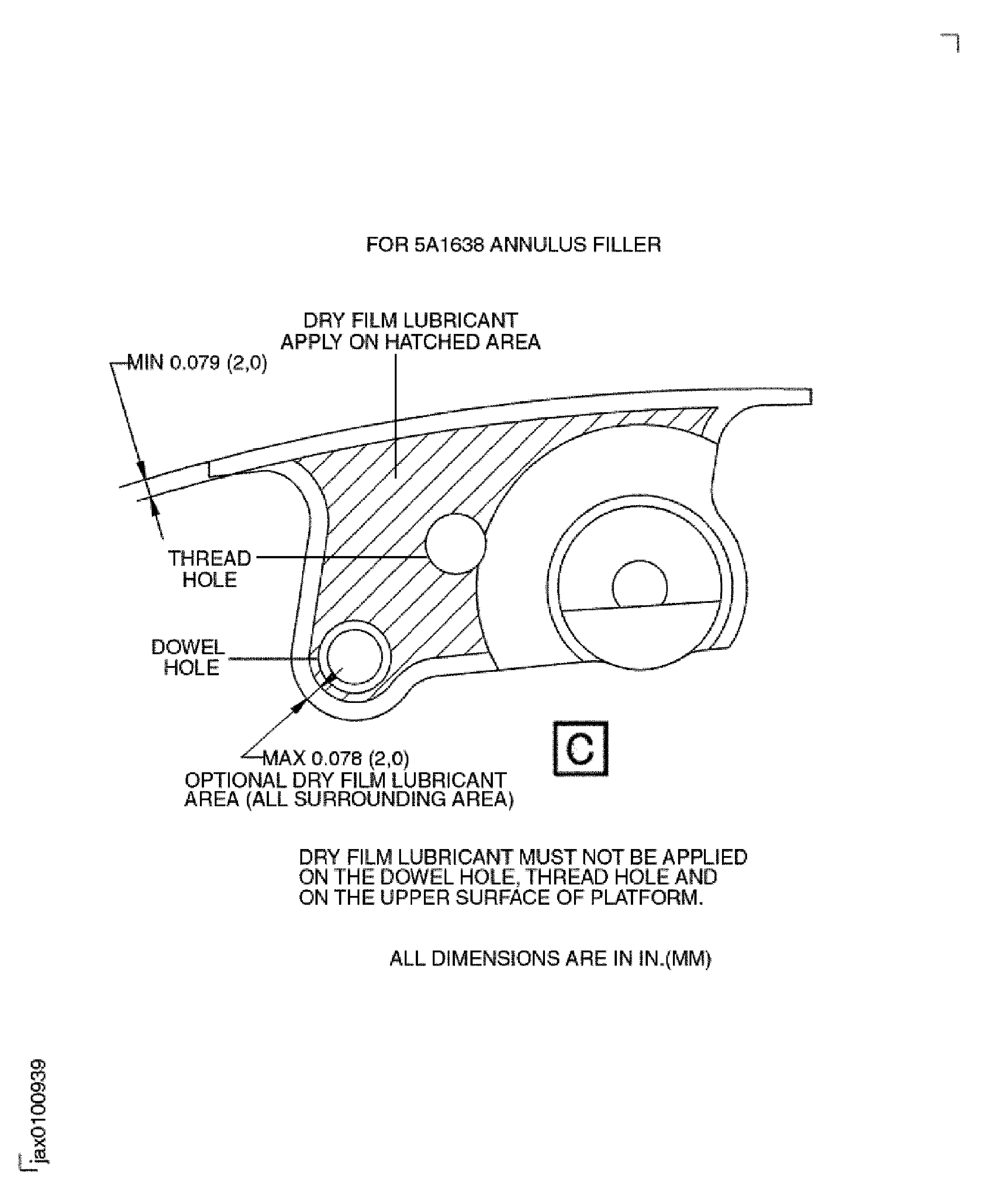

Sheet 3

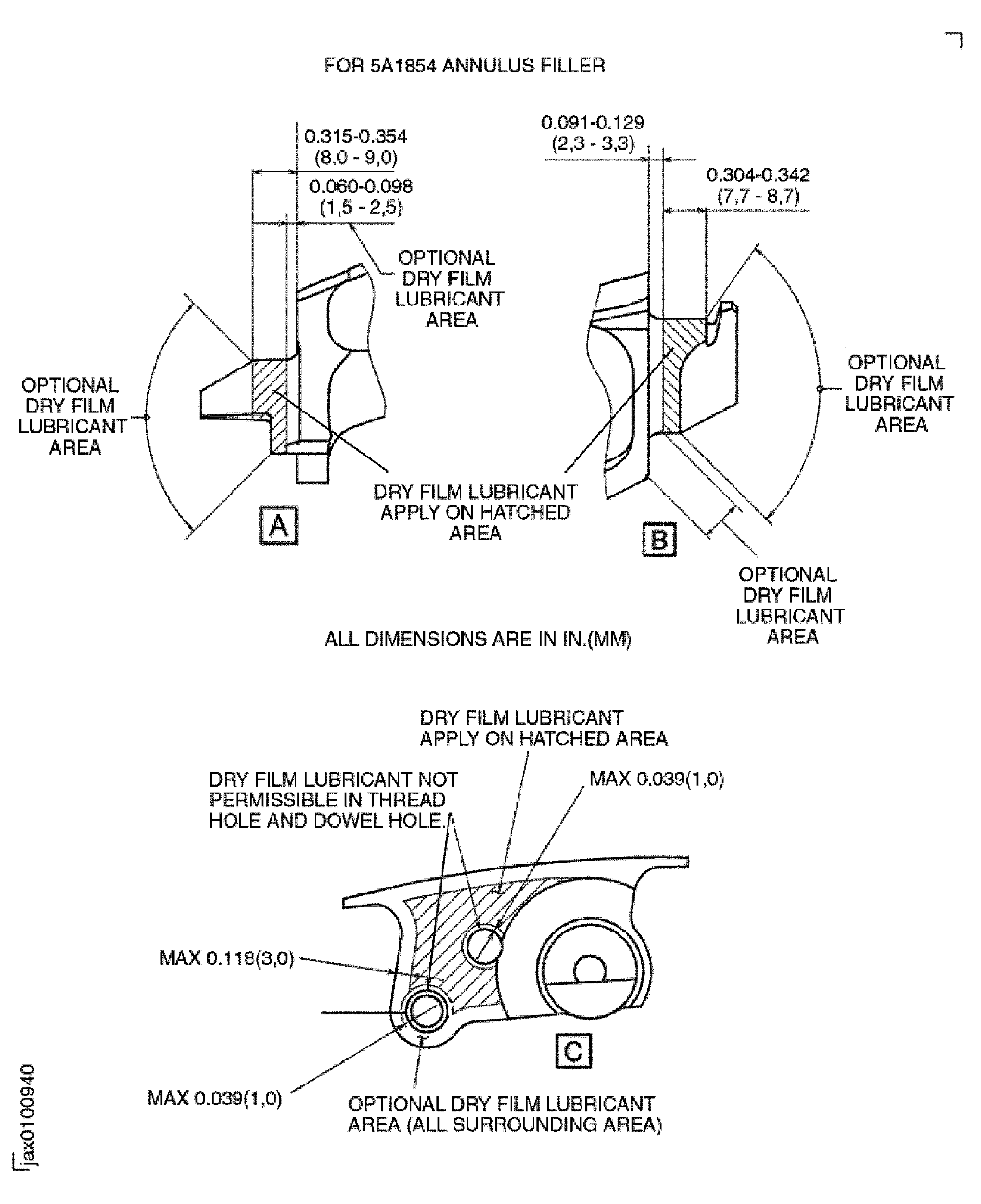

Sheet 4

Requirements After Job Completion

Follow-On Conditions

NONE

Manufacturer Code:	94960
Enterprise Name:	3M TRAFFIC CONTROL
BU Name:	3M TRAFFIC CONTROL
Department:	MATERIALS DIVISION
Building:	225 55
Street:	3M CENTER
City:	ST PAUL
State:	MN
Zip Code:	55144-1000
Country:	USA
Phone Number:	1-612-733-0477
Internet:	www.3m.com/tcm

Manufacturer Code:	LOCAL
Enterprise Name:	LOCALLY SUPPLIED

Manufacturer Code:

LOCAL

Supply Number:

CoMat 01-031

Type:

sp01

Supply Name:

CoMat 01-031 ACETONE (CH3)2CO

Specification Groups:

Doc Number	Type
OMAT: 150 (RR REF)	COMMERCIAL GRADE O-A-51
PMC 9008 (PW REF)	COMMERCIAL GRADE O-A-51
JCR-041 (JAEC REF)	COMMERCIAL GRADE O-A-51
MTH 169 (98%) (MTU REF)	COMMERCIAL GRADE O-A-51

Suppliers:

Manufacturer	Remarks
LOCAL
K6835
81348
K3504
U1185
24853
70657

Manufacturer Code:

LOCAL

Supply Number:

CoMat 01-124

Type:

sp01

Supply Name:

CoMat 01-124 ISOPROPYL ALCOHOL

Specification Groups:

Doc Number	Type
OMAT:1/40	GPR TECHNICAL GRADE
PMC 9094	GPR TECHNICAL GRADE
JCR-011	GPR TECHNICAL GRADE

Suppliers:

Manufacturer	Remarks
LOCAL
U1185
24853
K6835

Manufacturer Code:

LOCAL

Supply Number:

CoMat 02-002

Type:

sp01

Supply Name:

CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER

Specification Groups:

Doc Number	Type
JCR-198	SCOTCH 202 PREMIUM GRADE (A-A-883 TYPE I)
OMAT: 237	SCOTCH 202 PREMIUM GRADE (A-A-883 TYPE I)

Suppliers:

Manufacturer	Remarks
LOCAL
94960
K0993
K6835

Manufacturer Code:

76381

Supply Number:

CoMat 02-019

Type:

sp01

Supply Name:

CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING

Specification Groups:

Doc Number	Type
OMAT: 2/40 (RR REF)	SELLOTAPE 2595 SCAPA 2595 OR 3M HT214
JCR-201 (JAEC REF)	SELLOTAPE 2595 SCAPA 2595 OR 3M HT214

Suppliers:

Manufacturer	Remarks
76381
K3312
K6835

Manufacturer Code:

K3504

Supply Number:

CoMat 07-009

Type:

sp01

Supply Name:

CoMat 07-009 THINNER

Specification Groups:

Doc Number	Type
	IP 9151

Suppliers:

Manufacturer	Remarks
K3504
K6835
00BB6

Manufacturer Code:

00BB6

Supply Number:

CoMat 10-004

Type:

sp01

Supply Name:

CoMat 10-004 DRY FILM LUBRICANT

Specification Groups:

Doc Number	Type
PL237-R1 or P237-R2

Suppliers:

Manufacturer	Remarks
00BB6
K3504
K6835

Manufacturer Code:	LOCAL
Tool Number:	Oven
Tool Name:	Oven
