TASK 72-31-11-300-022 Annulus Filler - Replace The Seals And Bumper, Repair-022 (VRS1018)

DMC:V2500-A0-72-31-1102-03A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-31-11-300-022 Annulus Filler - Replace The Seals And Bumper, Repair-022 (VRS1018)

Effectivity

FIG/ITEM

PART NO.

01-100

5A1459

Assembly A

01-100

5A1611

Assembly A

01-100

5A1710

Assembly B

01-100

5A1750

Assembly A

01-100

5A1752

Assembly A

01-100

5A1753

Assembly B

Material of component

PART IDENT

SYMBOL

MATERIAL

Annulus filler

Aluminum alloy

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
OvenLOCALOven
Vibration peenLOCALVibration peen

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Suction side seal Assembly A and B5A09061
Pressure side seal Assembly A5A14621
Pad bumper Assembly A and B5A11141
Pressure side seal Assembly A and B5A17111

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-31-11-350-075 Remove the Damaged Seal and Bumper from the Annulus Filler Assembly

    1. Refer to Figure.

    2. Examine and identify the damaged seals and pad bumper.

      3. Remove the damaged seals and bumper. Do not cause damage to the parent material. Remove all compound that remains.

      1. Use a cutter, a knife or a scraper.

    2. SUBTASK 72-31-11-360-060 Prepare the Mating Surface for the Cold Curing Silicone Rubber Compound

    1. Refer to: Figure

      2. Remove the grease from the mating surfaces of the annulus filler, the seals and the pad bumper.

      1. Refer to the SPM TASK 70-11-26-300-503.

    4. Do step A. again.

    3. SUBTASK 72-31-11-350-076 Apply the Surface Protection to the Annulus Filler Assembly

    1. Refer to: Figure

      2. Apply chromate conversion coating to the repair surfaces as necessary.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-31-11-360-061 Apply and Cure the Cold Curing Silicone Rubber Compound

    1. CAUTION

      DO NOT EAT OR SMOKE AT LOCATIONS WHERE THESE MATERIALS ARE USED.

      CAUTION

      AFTER PREPARATION, THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND TO PREVENT CONTAMINATION.

      CAUTION

      DO NOT APPLY THE PRIMER TO THE MATING SURFACES OF THE SEALS AND BUMPER BECAUSE THE SILICONE RUBBER WILL BE WEAKENED IN BOND STRENGTH IF YOU APPLY THE PRIMER.

      CAUTION

      APPLY THE PRIMER IN LESS THAN EIGHT HOURS AFTER ANODIZING (CHROMATE CONVERSION COATING).

      Refer to Figure.

      2. NOTE

        The primer must be applied immediately after the mating surfaces are prepared. It is cured at room temperature by the moisture in the air.

        Apply a very thin layer of primer only to the prepared mating surface of the annulus filler. Dry at room temperature for a minimum of 30 minutes.

      3. Apply the cold curing silicone rubber compound to each of the mating surfaces.

      2. Refer to the SPM TASK 70-36-02-360-501.

      4. Install the seals and the pad bumper to the annulus filler in less than three minutes after the compound is applied.

      1. Apply sufficient pressure to ensure good contact and to form a witness of adhesive at all edges.

      2. Make sure that the compound can be seen around the sealed surfaces.

      3. Refer to the SPM TASK 70-36-02-360-501.

      5. NOTE

        The parts can be handled carefully after two hours at room temperature.

        Cure the compound at 68 deg F (20 deg C) for 48 hours.

      1. Refer to the SPM TASK 70-36-02-360-501.

    6. Deleted.

    7. Deleted.

      8. Vibro-peen VRS1018 adjacent to the part number.

      1. Use a vibro-peen.

      9. Apply chromate conversion coating to the marking letters.

      1. Refer to the SPM TASK 70-38-02-300-503.

    5. SUBTASK 72-31-11-220-089 Examine the Repaired Areas of the Annulus Filler Assembly

    1. Refer to Figure.

    2. Dimensionally inspect the position (dimension E) of the repaired bumper.

      3. Visually examine the seals and bumper.

      1. Make sure that there is not too much adhesive coming out of the bond.

      2. There must be continuity of bond around the seals and bumper.

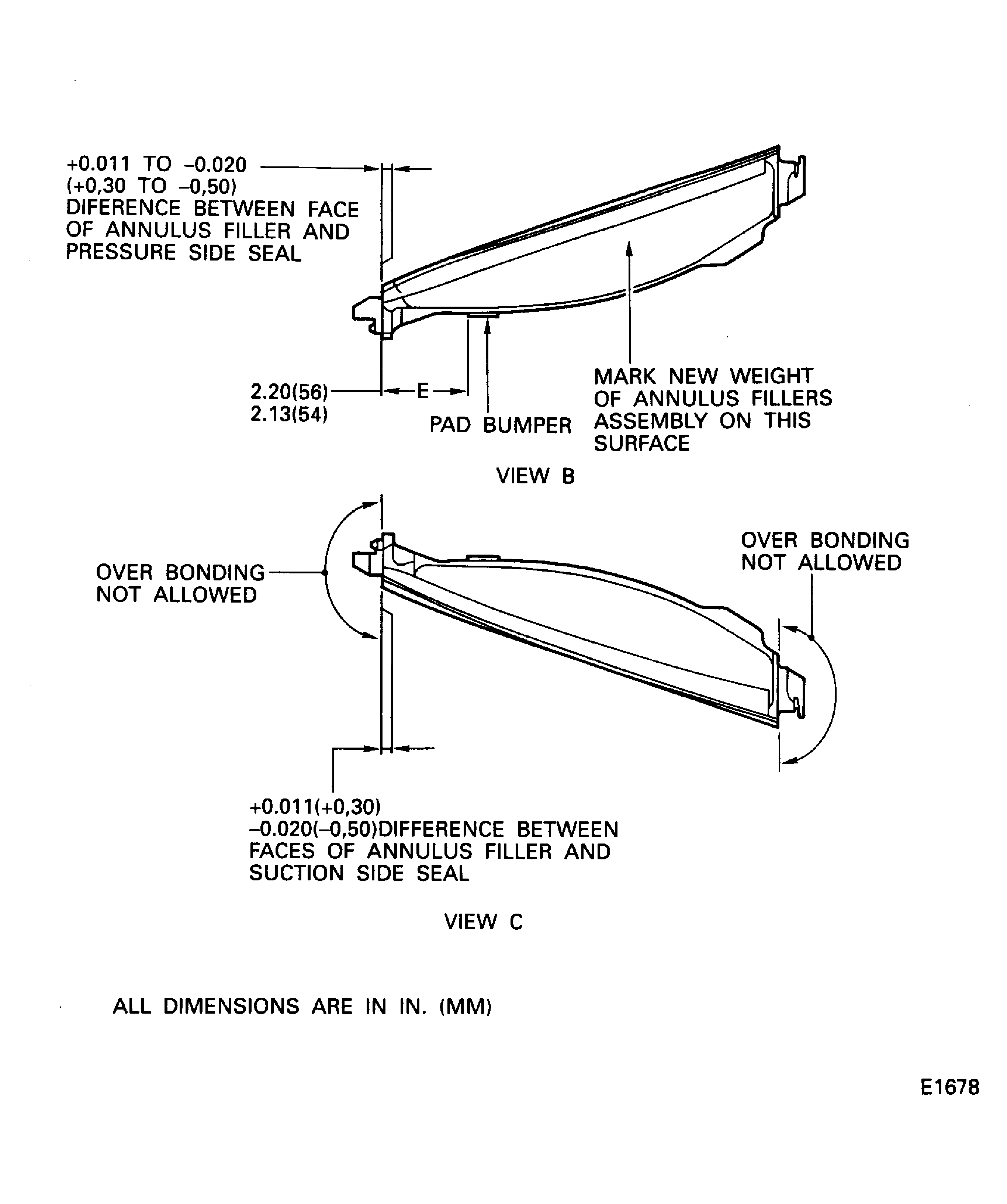

    6. Figure: Bond the Seal and Bumper
