TASK 72-32-00-030-008-B00 LPC/Intermediate Case Module - Remove The LPC Bleed Duct, Booster Stage Bleed Valve And Actuating Mechanism, LPC Stage 2.5 Vane, And The Right And Left Rod Assemblies, Disassembly-008

DMC:V2500-A0-72-32-0000-08B-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-00-030-008-B00 LPC/Intermediate Case Module - Remove The LPC Bleed Duct, Booster Stage Bleed Valve And Actuating Mechanism, LPC Stage 2.5 Vane, And The Right And Left Rod Assemblies, Disassembly-008

General

This TASK gives the procedure to remove the LP compressor bleed duct, the booster stage bleed valve and actuating mechanism, the LP compressor stage 2.5 vane and the right and left rod assemblies.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved penetrating oil before the removal of threaded parts. Let the parts soak before removal. For the approved penetrating oil and procedures refer to the SPM TASK 70-64-00-640-501.

Discard all tab washers removed in this procedure.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

The No. 1 strut, which is the top position strut of the fan frame assembly, is identified by the five pressure tubes on the No. 1 strut leading edge.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1J12208 Puller0AM53IAE 1J122081
IAE 1J12188 Puller bolt0AM53IAE 1J121881
IAE 1J13104 Vertical sling0AM53IAE 1J131041

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-030-283 Turn the Fan Frame Assembly Horizontal with the No. 1 Strut Up

    1. Refer to Figure.

    2. Make sure that the fan frame assembly is installed, vertically with the front end up on the turnover stand. Refer to TASK 72-32-00-030-007-A00 (DISASSEMBLY-007, CONFIG-001).

    3. Release the lock pin from the holes in the handle and the support C of the turnover stand.

    4. Turn the handle to set the fan frame assembly horizontally with the No. 1 strut up.

    5. Align the hole in the support C with one of the eight holes in the handle.

    6. Install the lock pin in to position to lock the handle of the turnover stand.

    2. SUBTASK 72-32-00-030-284 Remove the Right and Left Rod Assemblies

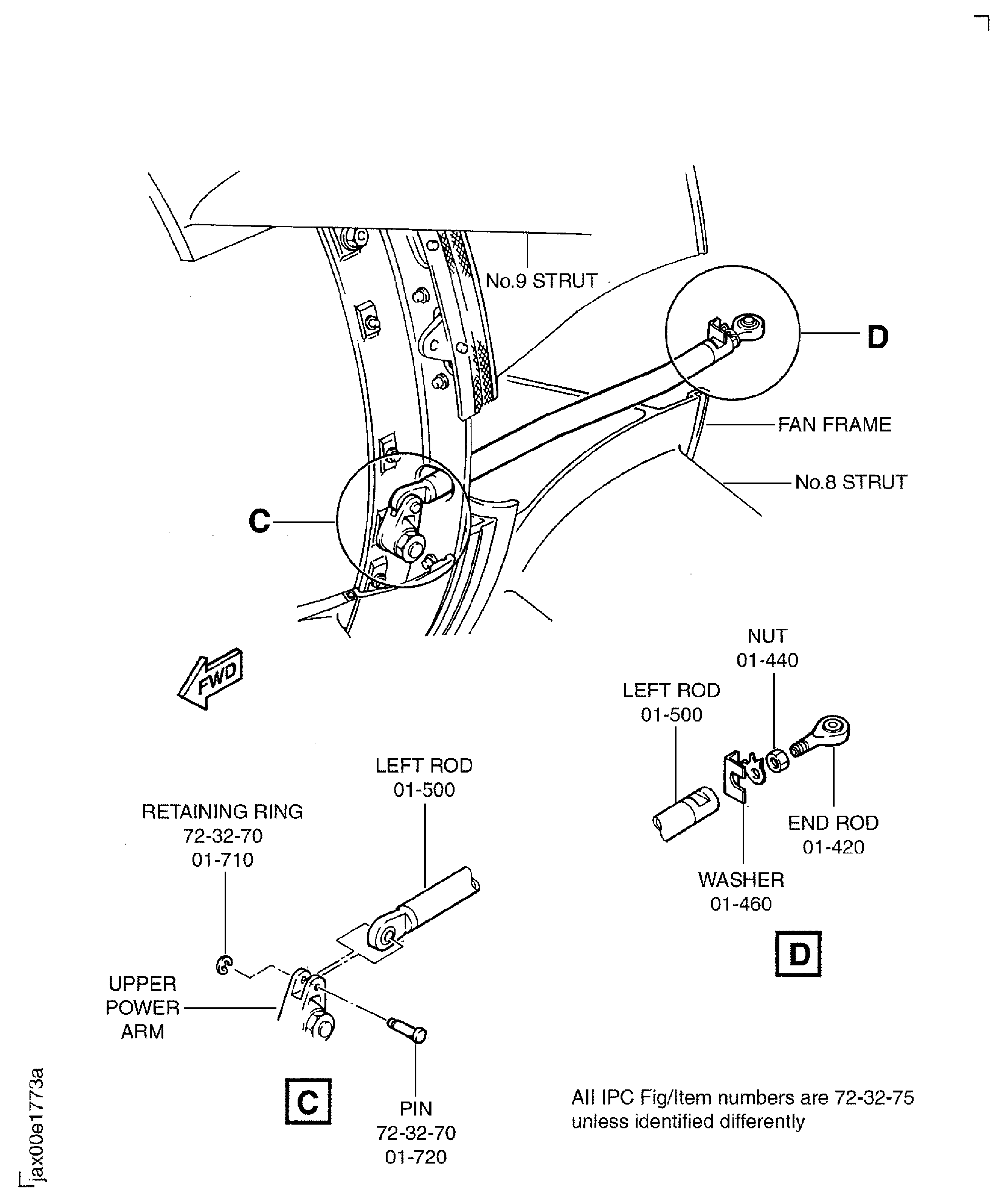

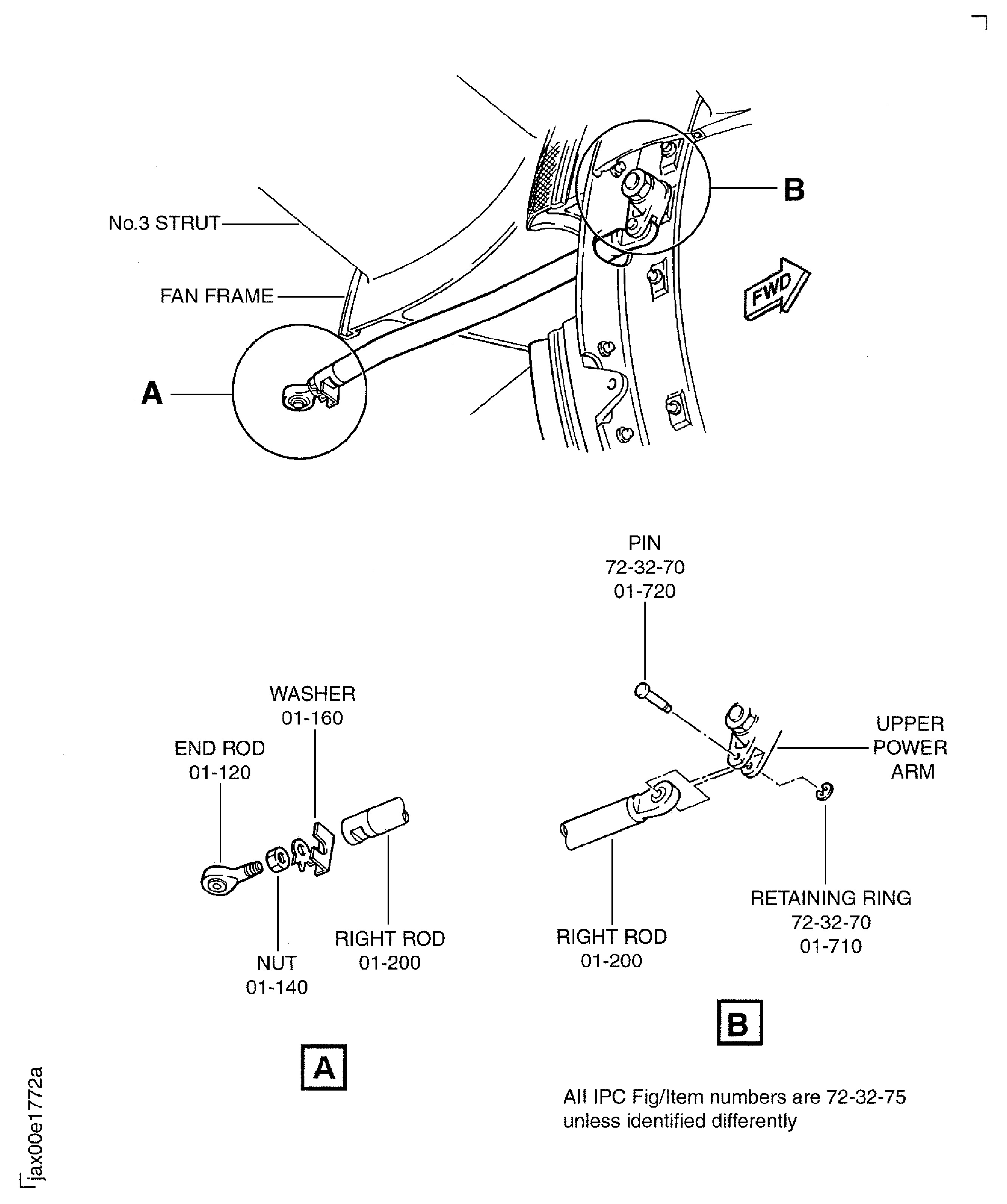

    1. Refer to Figure and Figure.

      2. Disconnect the two rod assemblies from the power arms.

      1. Remove the stopper from each pin with IAE 1J12208 Puller 1 off.

      2. Remove the pin from the holes in each power arm and rod assembly.

    3. Remove the rod assemblies from the fan frame assembly.

      4. Remove the two rod end adapters from the rod assemblies.

      1. Bend back the tabs on each tab washer to release the jam nut.

      2. Loosen each jam nut.

      3. Remove the rod end adapter and the jam nut from each rod assembly.

    5. Remove the two tab washers from the rod assemblies. Discard the tab washers.

    3. SUBTASK 72-32-00-030-285 Turn the Fan Frame Assembly Vertically with the Front End Up

    1. Refer to Figure.

    2. Release the lock pin from the holes in the handle and the support C of the turnover stand.

    3. Turn the handle to set the fan frame assembly vertically with the front end up.

    4. Align the hole in the support C with one of the eight holes in the handle.

    5. Install the lock pin in to position to lock the handle of the turnover stand.

    4. SUBTASK 72-32-00-030-286 Remove the LP Compressor Stage 2.5 Vanes from the Fan Frame Assembly

    1. Refer to Figure and Figure.

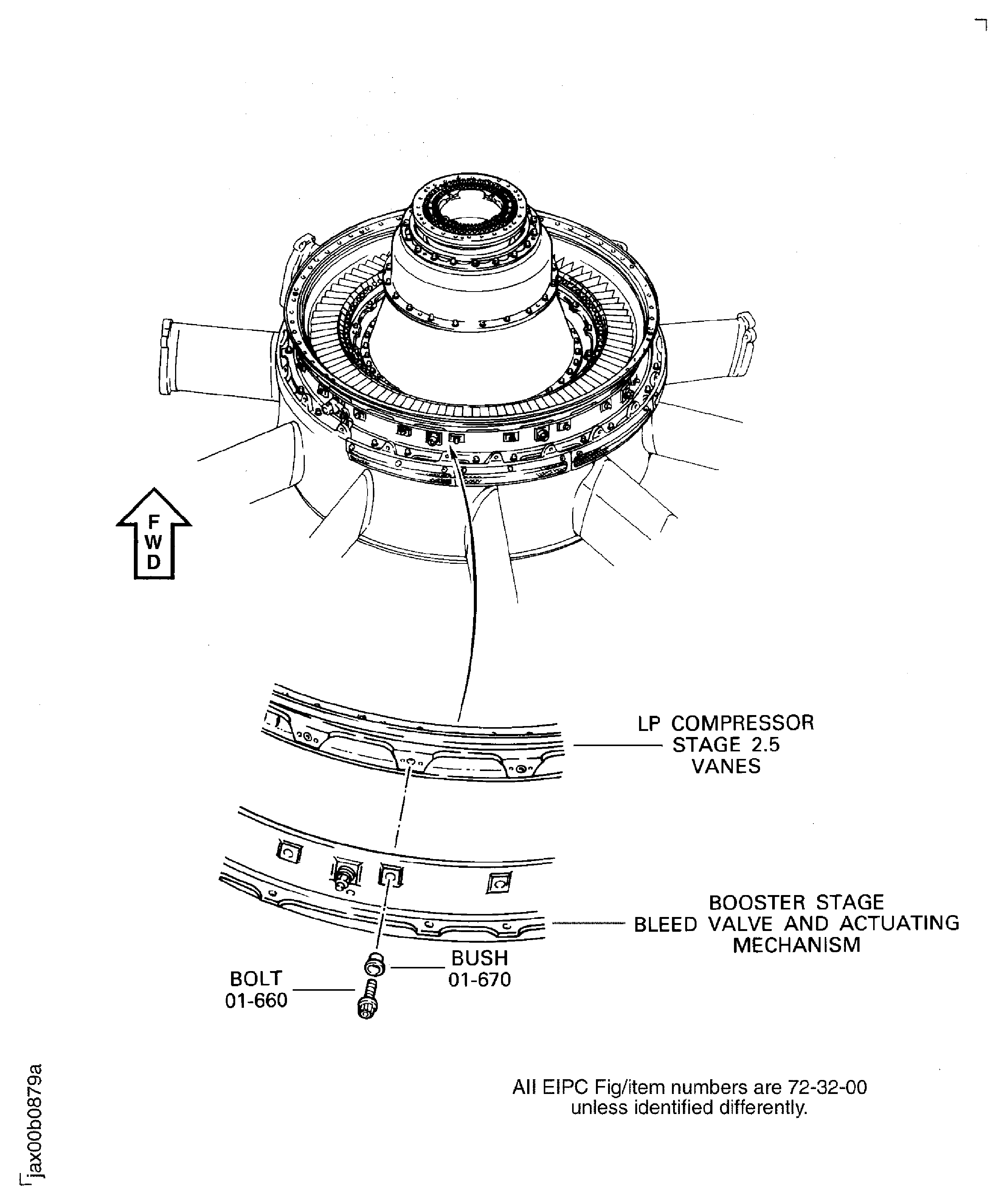

    2. Remove the 20 bolts and bushes which attach the stage 2.5 vanes to the booster stage bleed valve and actuating mechanism.

    3. Remove the 18 bolts and washers which attach the stage 2.5 vanes to the fan frame assembly.

      4. Use the three puller bolts (part of IAE 1J12188 Puller bolt 1 off) to release the stage 2.5 vanes from the fan frame assembly.

      1. Install the puller bolts in to the three threads in the stage 2.5 vanes.

      2. Tighten the three puller bolts equally until the stage 2.5 vanes are released from the fan frame assembly.

      3. Remove the puller bolts from the threads in the stage 2.5 vanes.

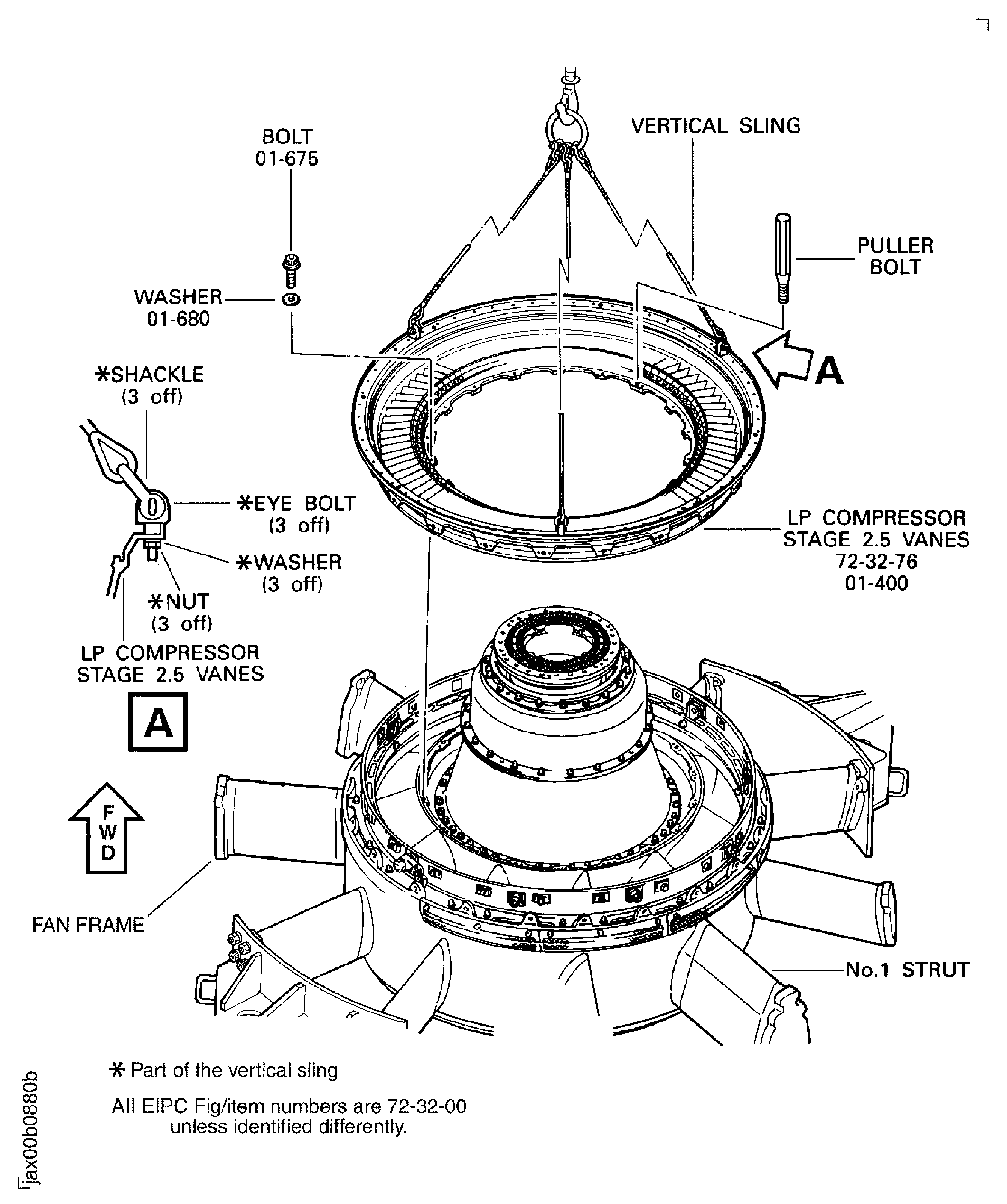

    5. Attach a hoist to IAE 1J13104 Vertical sling 1 off.

      6. Install the vertical sling to the stage 2.5 vanes.

      1. Install the three eye bolts, washers and nuts (part of the vertical sling) in to the three of eight threads in the stage 2.5 vanes. The three eye bolts must be installed at approximately 120 degrees apart from each other.

      2. Connect the vertical sling to the eye bolts with the three shackles (part of the vertical sling).

    7. Lift and remove the stage 2.5 vanes from the fan frame assembly. Put the stage 2.5 vanes on to a work bench.

      8. Remove the vertical sling from the stage 2.5 vanes.

      1. Remove the three shackles which attach the vertical sling to the eye bolts on the stage 2.5 vanes.

      2. Remove the three eye bolts, washers and nuts from the threads in the stage 2.5 vanes.

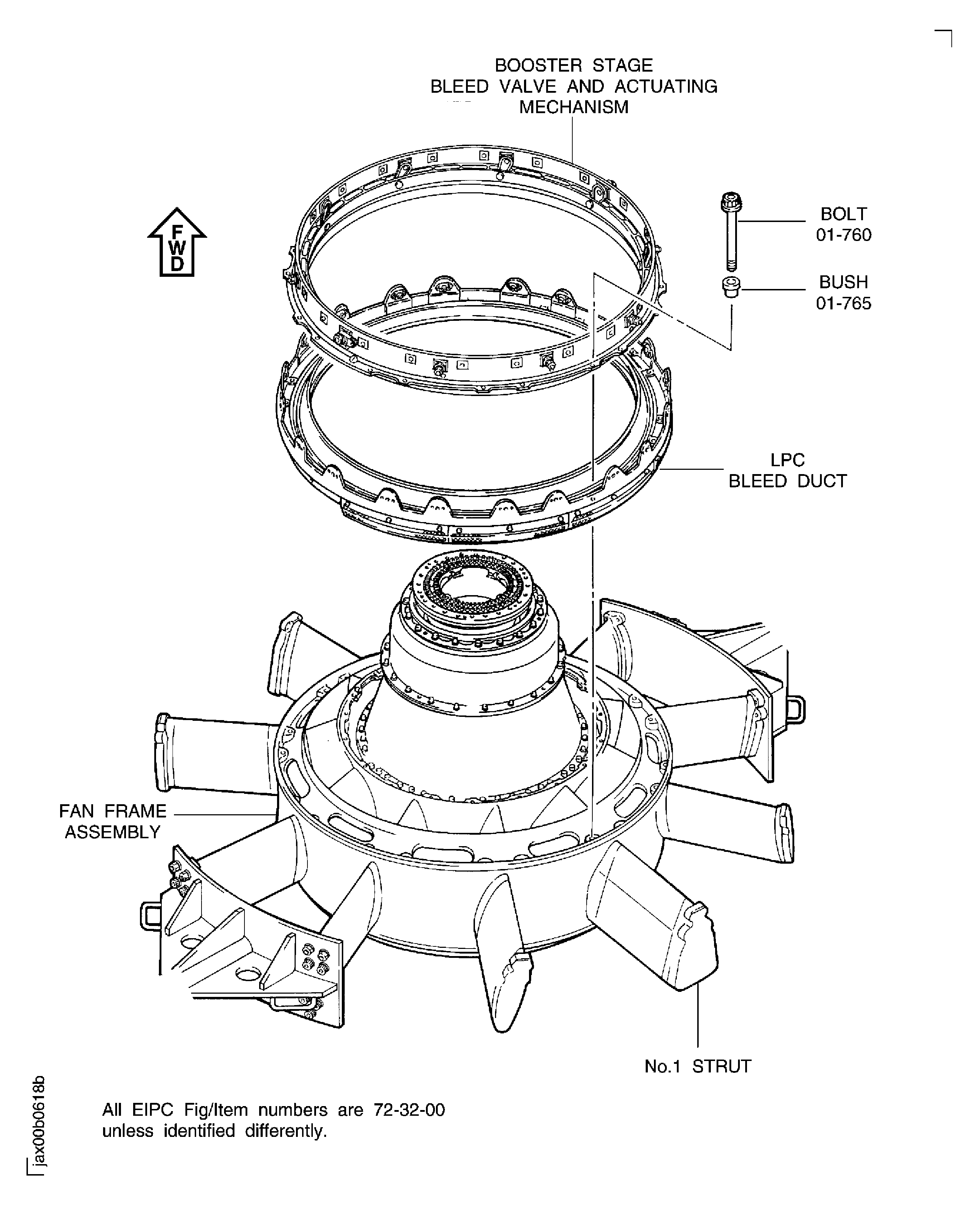

    5. SUBTASK 72-32-00-030-287 Remove the Booster Stage Bleed Valve and Actuating Mechanism from the LP Compressor Bleed Duct

    1. Refer to Figure.

    2. Remove the 20 bolts and bushes which attach the bleed valve and actuating mechanism and the LP compressor bleed duct to the fan frame assembly. Remove the bleed valve and actuating mechanism.

    6. SUBTASK 72-32-00-030-288-A00 Remove the LP Compressor Bleed Duct from the Fan Frame Assembly (Pre SBE 72-0155 and Pre SBE 70-0631)

    1. Refer to Figure, Figure and Figure.

    2. Remove the LP compressor bleed duct from the fan frame assembly.

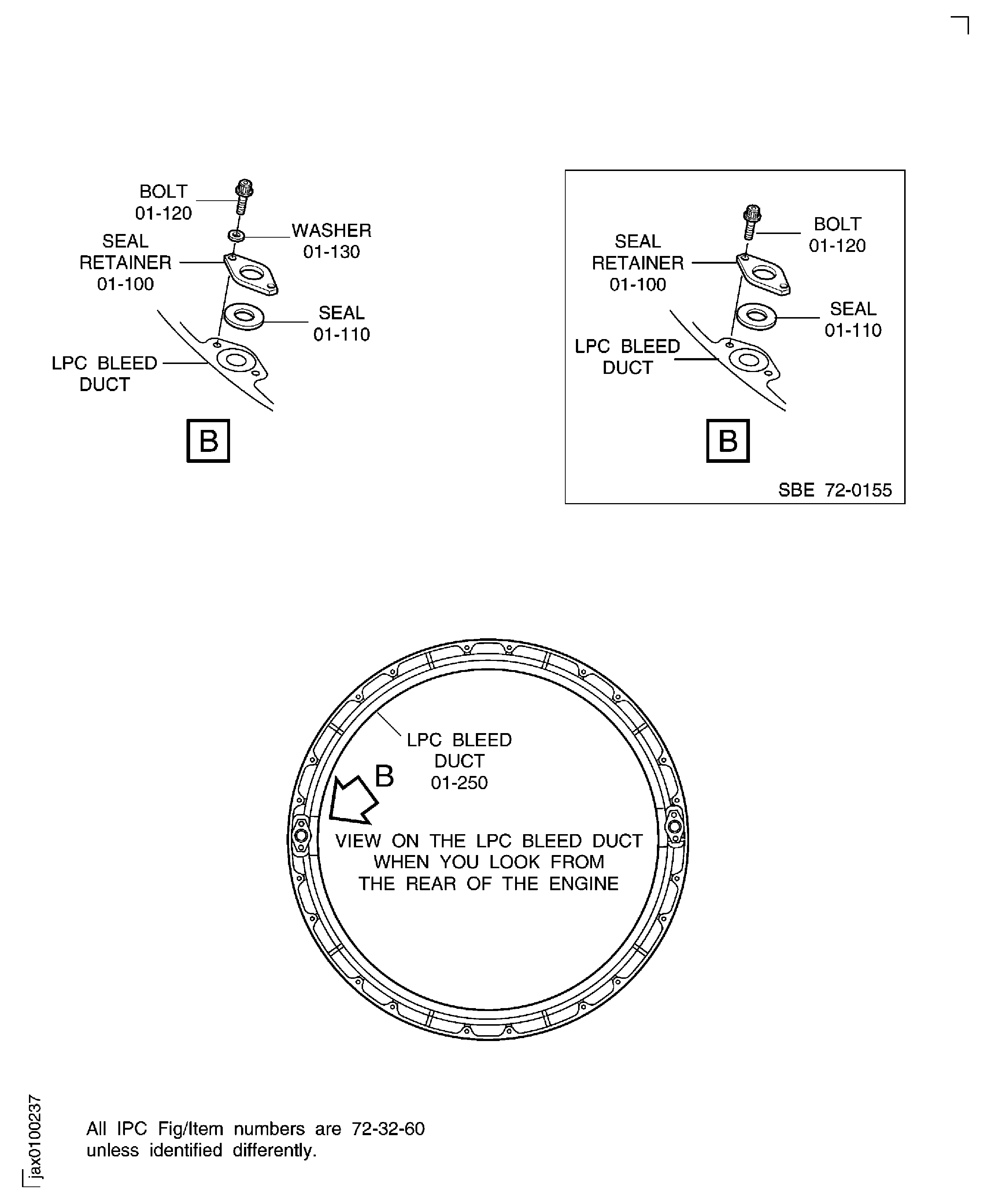

    3. Remove the four bolts and washers which attach the seal retainers to the LP compressor bleed duct.

    4. Remove the two seal retainers and seals from the recesses in the LP compressor bleed duct.

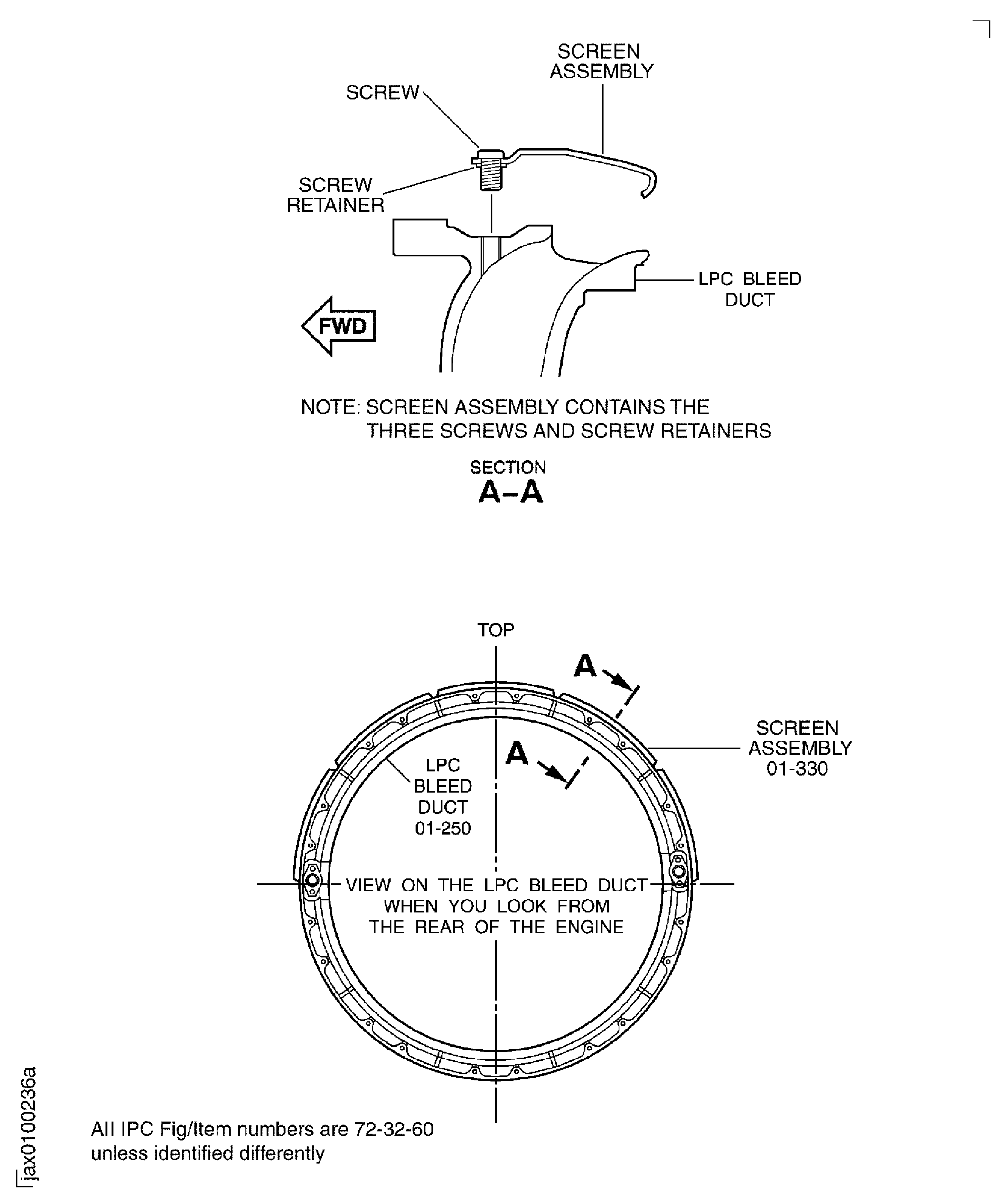

    5. Loosen the three screws which attach the screen to the LP compressor bleed duct until the screws are clear of the duct.

    6. NOTE

      The screen assembly contains the three screws and screw retainers.

      Remove the screen assembly from the LP compressor bleed duct.

    7. Repeat Step and Step for the remaining four screen assemblies.

    7. SUBTASK 72-32-00-030-288-B00 Remove the LP Compressor Bleed Duct from the Fan Frame Assembly (SBE 72-0155 and Pre SBE 70-0631)

    1. SBE 72-0155: To provide new screens with improved durability features.

    2. Refer to Figure, Figure and Figure.

    3. Remove the LP compressor bleed duct from the fan frame assembly.

    4. Remove the four bolts which attach the seal retainers to the LP compressor bleed duct.

    5. Remove the two seal retainers and seals from the recesses in the LP compressor bleed duct.

    6. Loosen the three screws which attach the screen to the LP compressor bleed duct until the screws are clear of the duct.

    7. NOTE

      The screen assembly contains the three screws and screw retainers.

      Remove the screen assembly from the LP compressor bleed duct.

    8. Repeat Step and Step for the remaining four screen assemblies.

    8. SUBTASK 72-32-00-030-288-C00 Remove the LP Compressor Bleed Duct from the Fan Frame Assembly (SBE 72-0155 and SBE 70-0631)

      SBE 72-0155: To provide new screens with improved durability features. SBE 70-0631: To provide new rubber seal of the LPC bleed duct.

    1. Refer to Figure and Figure.

    2. Remove the LP compressor bleed duct from the fan frame assembly.

    3. Remove the four bolts which attach the seal retainers to the LP compressor bleed duct.

    4. Remove the two seal retainers and seals from the recesses in the LP compressor bleed duct.

    9. Figure: Install the Lock Pin in to Position to Lock the Handle of the Turnover Stand

    Install the Lock Pin in to Position to Lock the Handle of the Turnover Stand

    Figure: Remove the Right and Left Rod Assemblies

    Sheet 1

    Legend
    Remove the Right and Left Rod Assemblies

    Sheet 1

    Close

    Figure: Remove the Right and Left Rod Assemblies

    Sheet 2

    Legend
    Remove the Right and Left Rod Assemblies

    Sheet 2

    Close

    Figure: Release the LPC Stage 2.5 Vanes from the Booster Stage Bleed Valve and Actuating Mechanism

    Release the LPC Stage 2.5 Vanes from the Booster Stage Bleed Valve and Actuating Mechanism

    Figure: Remove the LPC Stage 2.5 Vanes

    Remove the LPC Stage 2.5 Vanes

    Figure: Remove the (LPC) Bleed Duct and the Booster Stage Bleed Valve and Actuating Mechanism

    Remove the (LPC) Bleed Duct and the Booster Stage Bleed Valve and Actuating Mechanism

    Figure: Remove the Screens from the LPC Bleed Duct

    Remove the Screens from the LPC Bleed Duct

    Figure: Remove the Seals from the LPC Bleed Duct

    Remove the Seals from the LPC Bleed Duct
