TASK 72-32-03-300-013 Fan Frame - Replace The Thermocouples, Repair-013 (VRS1727)

DMC:V2500-A0-72-32-0301-05A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-300-013 Fan Frame - Replace The Thermocouples, Repair-013 (VRS1727)

Effectivity

FIG/ITEM

PART NO.

03-100

5A0256

03-100

5A0349

03-100

5A0362

03-100

5A0363

03-100

5A0364

03-100

5A0365

03-100

5A0366

03-100

5A0395

03-100

5A0397

03-100

5A0399

03-100

5A0401

03-100

5A0403

03-100

5A0405

03-100

5A0407

03-100

5A0409

03-100

5A0423

03-100

5A0424

03-100

5A0856

03-100

5A1448

03-100

5A6592

03-100

5A6596

03-100

5A1047

03-100

5A1049

03-100

5A1062

03-100

5A1064

03-100

5A1066

03-100

5A1068

03-100

5A1167

03-100

5A1087

03-100

5A1652

03-100

5A1377

03-100

5A1654

03-100

5A0083

03-100

5A0359

03-100

5A1070

03-100

5A1072

03-100

5A1074

03-100

5A1763

03-100

5A1764

03-100

5A1765

03-100

5A1766

03-100

5A1767

03-100

5A1768

03-100

5A1769

03-100

5A1770

03-100

5A1771

03-100

5A1772

03-100

5A1773

03-100

5A1774

03-100

5A1775

03-100

5A1776

03-100

5A1777

03-100

5A1778

03-100

5A1779

03-100

5A1780

03-100

5A1781

03-100

5A1782

03-100

5A1783

03-100

5A1784

03-100

5A1785

03-100

5A1786

03-100

5A1787

03-100

5A1788

03-100

5A1789

03-100

5A1790

03-100

5A1791

03-100

5A1792

03-100

5A1828

03-100

5A1824

Material of component

PART IDENT

SYMBOL

MATERIAL

Fan frame assembly

Titanium alloy

General

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Crimping toolLOCAL49935

AMP Co,, LTD.

Lamp and battery - tester 4.5 volts DCLOCALLamp and battery - tester 4.5 volts DC

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Terminal assembly T2.5 CM5A13181
Thermocouple assembly T2.5 CM5A13151

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-350-100 Remove the Terminal Assembly from the Thermocouple

    2. Refer to Figure.

    3. Remove the terminal assembly from the fan frame assembly and cut the wires.

    1. SUBTASK 72-32-03-750-001 Do the Continuity Test

    2. Refer to Figure and Figure.

      1. Connect the lamp and battery tester - 4.5 volts and sensing cover in turn.

      2. Use lamp and battery tester - 4.5 volts.

    3. Make sure the lamp comes on which shows contimuity.

    4. Replace the thermocouple assembly, if the lamp does not come on which shows continuity.

    1. SUBTASK 72-32-03-330-001 Remove the Damaged Thermocouple from the Fan Frame Assembly

    2. Refer to Figure and Figure.

    3. Remove the damaged thermocouple without any damage to the fan frame.

      1. Remove the remaining compound from the block.

    1. SUBTASK 72-32-03-360-051 Prepare the Mating Surface for the Cold Curing Silicone Compound

    2. Refer to Figure.

      1. Cold liquid degrease the mating surfaces of the new thermocouples and block.

      1. Clean the mating surface with garnet paper and a small brush.

    3. Do step A again.

    1. SUBTASK 72-32-03-360-052 Apply and Cure the Cold Curing Silicone Compound

    2. Refer to Figure.

      1. CAUTION

        DO NOT EAT ANYTHING OR SMOKE AT LOCATIONS WHERE THESE MATERIAL ARE USED.

        CAUTION

        AFTER PREPARATION THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND, TO PREVENT CONTAMINATION.

        NOTE

        The primer must be applied immediately after the mating surfaces are prepared. It is cured at room temperature.
        If the parts are not used immediately after the primer is applied, they must be kept in polythene bags, but for not longer than 24 hours.

        Apply a thin layer of primer only to the prepared mating surface on the collar of the new thermocouple and the bore of the block. Dry in air for 30 minutes.

      1. Apply the cold curing silicone compound to each of the mating surfaces.

      1. Install the new thermocouples in the fan frame through the blocks in not more than three minutes after the compound is applied.

      2. Apply sufficient pressure to ensure good contact and to form a witness of adhesive at all edges.

        Make sure that compound can be seen around the sealed surfaces.

      1. Cure the compound at 68 deg F (20 deg C) for 48 hours.

      2. Do not apply a load during this time.

    3. NOTE

      The parts can be touched after 12 hours.
    1. SUBTASK 72-32-03-350-101 Install the Thermocouple to the Fan Frame Assembly

    2. Refer to Figure.

    3. Pull out the jackets of the new thermocouple to prevent looseness of the wire in the tube.

      1. Apply the cold curing silicone compound into the block connector to fix the jackets.

    4. Wind together all the Alumel wires and also wind together all the Chromel wires of each thermocouple.

    5. Connect the wound together Alumel wires to the Alumel socket and also connect the wound together Chromel wires to the Chromel socket of the new terminal assembly with the use of a crimping tool.

      1. NOTE

        The wires are identified as follows:
        Alumel wire - red color.
        Chromel wire - yellow color.
        The sockets are identified on the terminal assembly T2.5 CM as follows:
        Alumel socket - AL.
        Chromel socket - CR.

        Fill the block connector with cold curing silicone compound.

    6. Install the terminal assembly (01-500) and the bracket (01-495) to the block connector using two bolts (01-510).

      1. Torque the bolts between 36 and 45 lbfin (4.00 and 5.00 Nm).

      2. Use a standard torque wrench.

      1. NOTE

        When you install the terminal assembly to the block connector, the Chromel stud must be located to the No. 10 strut side of the fan frame assembly.
        When you put the wires into the block connector, wind the wires into a coil.

        Do the resistance check of the installed thermocouple.

      2. Do the insulation resistance check between the thermocouple and the fan frame assembly. The insulation resistance value must be a minimum of five megohms.

      3. Do the loop resistance check between the Alumel stud and Chromel stud. The loop resistance value must be 0.4 to 1.8 ohms at room temperature.

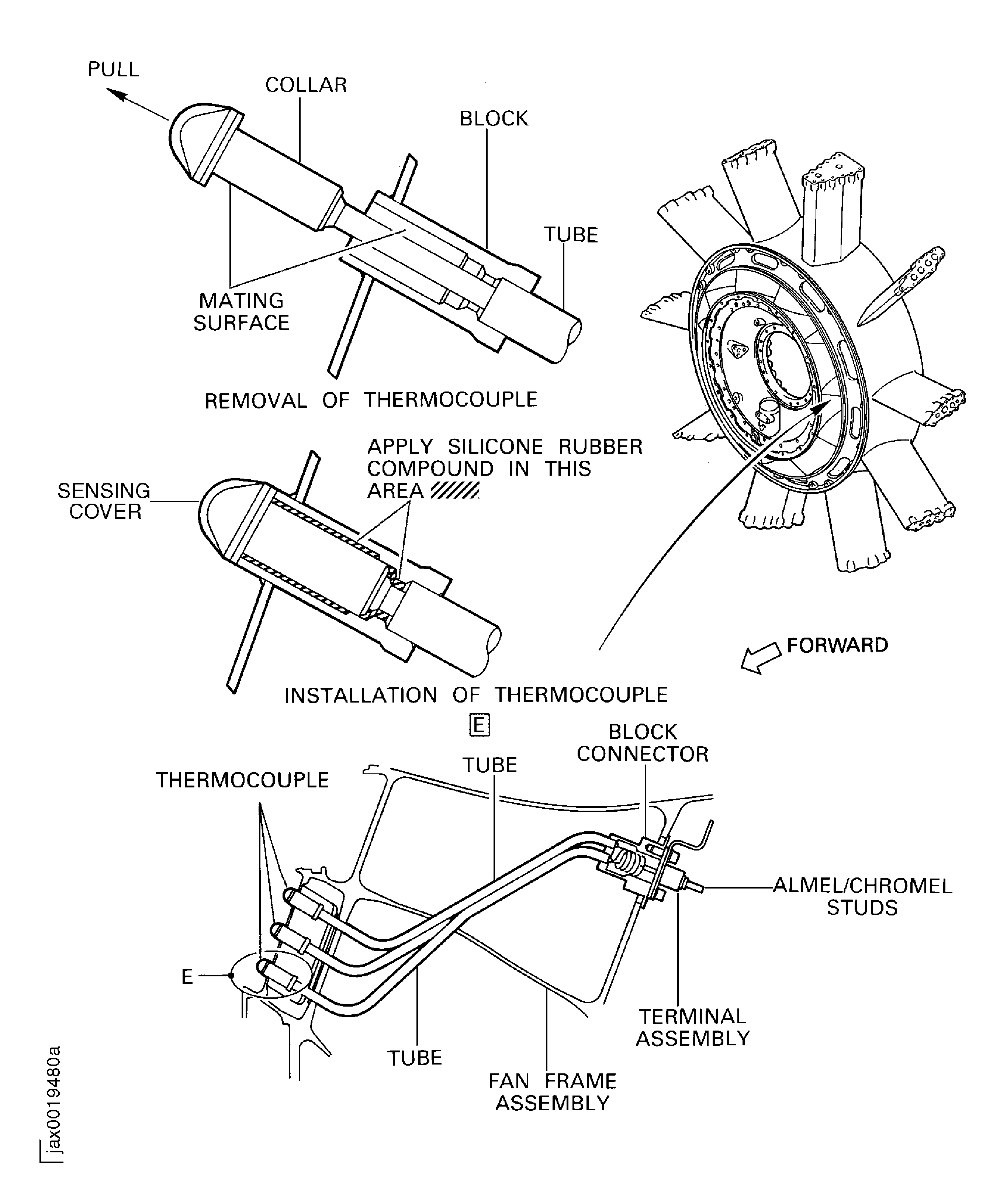

  1. Figure: Removal of thermocouples

    Removal of thermocouples

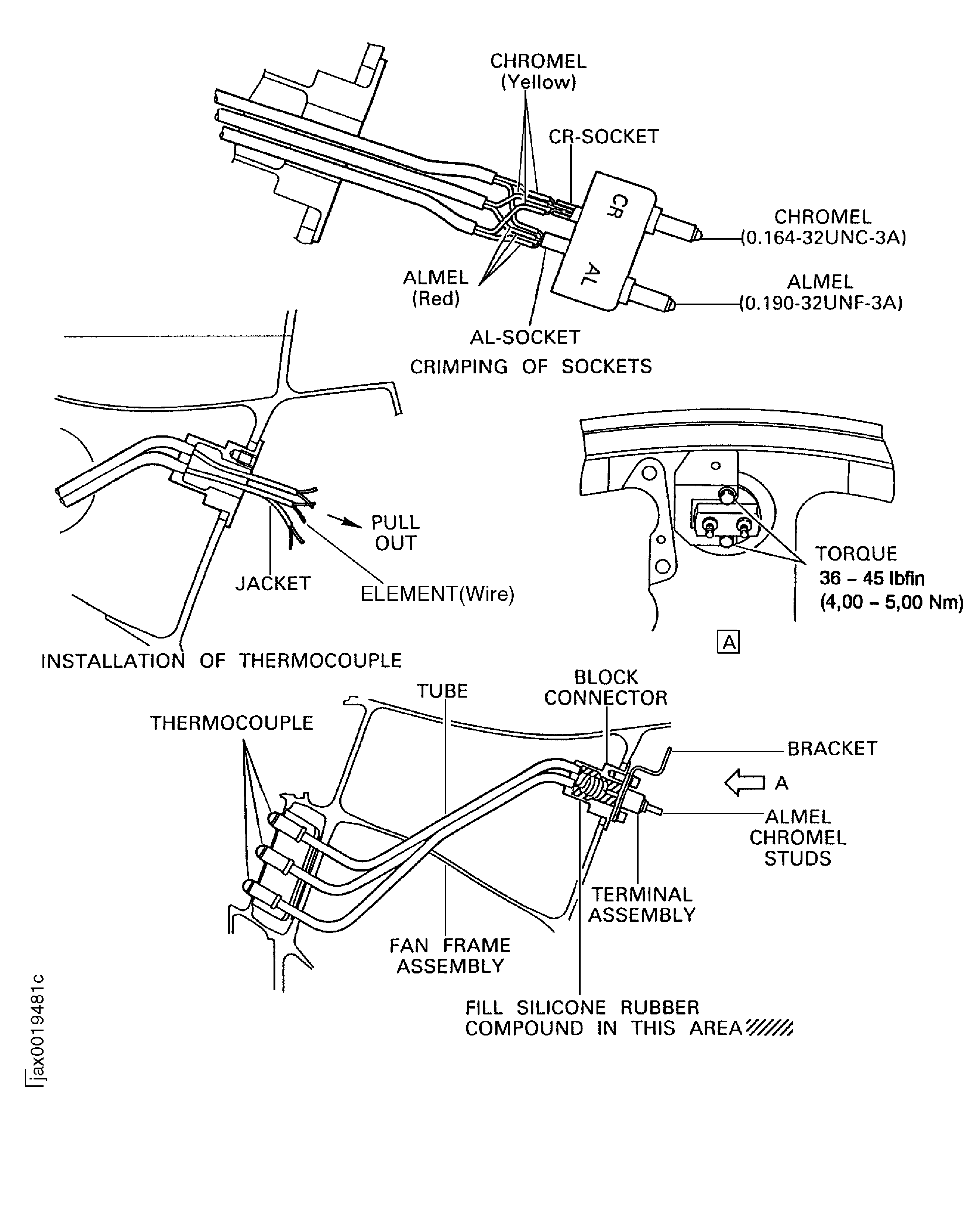

    Figure: Installation of thermocouples

    Installation of thermocouples
