TASK 72-32-03-300-011 Fan Frame LH And RH Corner Panel Fillers - Blend Repair, Repair-011 (VRS1725)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPP.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 01-031 ACETONE (CH3)2CO | LOCAL | CoMat 01-031 | ||
| CoMat 01-124 ISOPROPYL ALCOHOL | LOCAL | CoMat 01-124 | ||
| CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM | LOCAL | CoMat 01-275 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Use abrasive stones or CoMat 05-020 WATERPROOF SILICON CARBIDE or use CoMat 05-021 WATERPROOF SILICON CARBIDE and/or fine file.
Surface finish of the repair must be the same as the adjacent area.
Refer to the SPM TASK 70-35-03-300-501.
Refer to Figure.
Scallop, make smooth and/or hand polish to remove the burrs the nicks and/or scores.
SUBTASK 72-32-03-350-066 Remove the Damage from the LH and RH Corner Panel Filler Assembly
Refer to TASK 72-32-03-200-005 (INSPECTION-005, CONFIG-001).
Visually examine the repaired area.
SUBTASK 72-32-03-220-094 Examine the LH and RH Corner Panel Filler Assembly
Refer to TASK 72-32-03-200-005 (INSPECTION-005, CONFIG-001).
Refer to the SPM TASK 70-23-05-230-501.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-03-230-061 Examine the LH and RH Corner Panel Filler Assembly
Use clean cloth which is moist degreasing fluid and clean the repaired area.
Refer to the SPM TASK 70-11-26-300-503.
Remove the grease with cold liquid.
SUBTASK 72-32-03-110-058 Remove the Grease from LH and RH Corner Panel Filler Assembly
Refer to the SPM TASK 70-38-02-300-503.
Apply chromate conversion coating with a brush to the repaired area.
SUBTASK 72-32-03-330-052 Apply Surface Protection to the LH and RH Corner Panel Filler Assembly

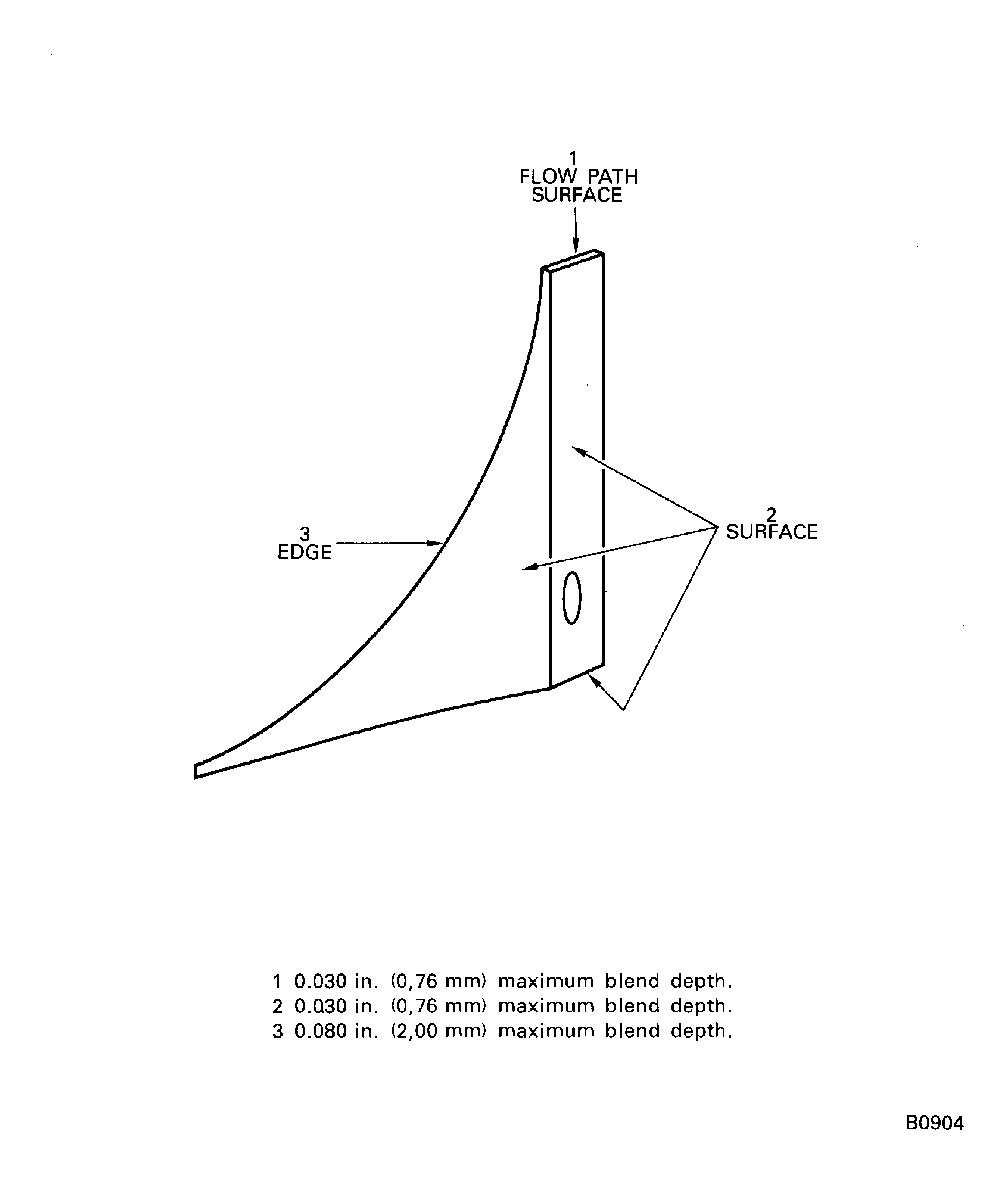

Figure: LH and RH corner panel filler assembly - repair limits
LH and RH corner panel filler assembly - repair limits
