TASK 72-32-03-200-005 Fan Frame LH And RH Corner Panel Fillers - Examine, Inspection-005

DMC:V2500-A0-72-32-0302-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-200-005 Fan Frame LH And RH Corner Panel Fillers - Examine, Inspection-005

Effectivity

FIG/ITEM

PART NO.

01-700

5A2126

01-800

5A2126

01-750

5A2127

01-850

5A2127

General

This TASK gives the procedure for the inspection of the LH and RH corner panel filler assembly. For the other intermediate structure parts, refer to TASK 72-32-03-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-03-100-000.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damages, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-230-054 Examine the LH and RH Corner Panel Filler Assembly (01-700, 01-750, 01-800 and 01-850) for Cracks

    1. Clean the parts. Refer to TASK 72-32-03-100-000.

      2. Do the test for cracks on the parts that are given below. Use the applicable fluorescent penetrant procedure.

        PART IDENT

        TASK/OP

        LH and RH corner panel filler assembly

        SPM TASK

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-03-220-070 Examine the LH and RH Corner Panel Filler Assembly (01-700, 01-750, 01-800 and 01-850) Flow Path Surface

    1. Refer to Figure.

      2. Examine the flow path surface at location 1.

        1. Nicked or scored.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1725 TASK 72-32-03-300-011

        2. Dented.

          1. Up to 0.080 in. (2.00 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

    3. SUBTASK 72-32-03-220-071 Examine the LH and RH Corner Panel Filler Assembly (01-700, 01-750, 01-800 and 01-850) Surface

    1. Refer to Figure.

      2. Examine the surfaces at location 2.

        1. Nicked or scored.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1725 TASK 72-32-03-300-011

    4. SUBTASK 72-32-03-220-072 Examine the LH and RH Corner Panel Filler Assembly (01-700, 01-750, 01-800 and 01-850) Edge

    1. Refer to Figure.

      2. Examine the edge at location 3.

        1. Dented.

          1. Up to 0.080 in. (2.00 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

        2. Nicked or scored.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1725 TASK 72-32-03-300-011

    5. SUBTASK 72-32-03-220-073 Examine the LH and RH Corner Panel Filler Assembly (01-700, 01-750, 01-800 and 01-850) Screw Thread insert

    1. Refer to Figure.

      2. Examine the screw thread insert at location 4.

        1. Loose or damaged

        1. Repair, VRS1726 TASK 72-32-03-300-012

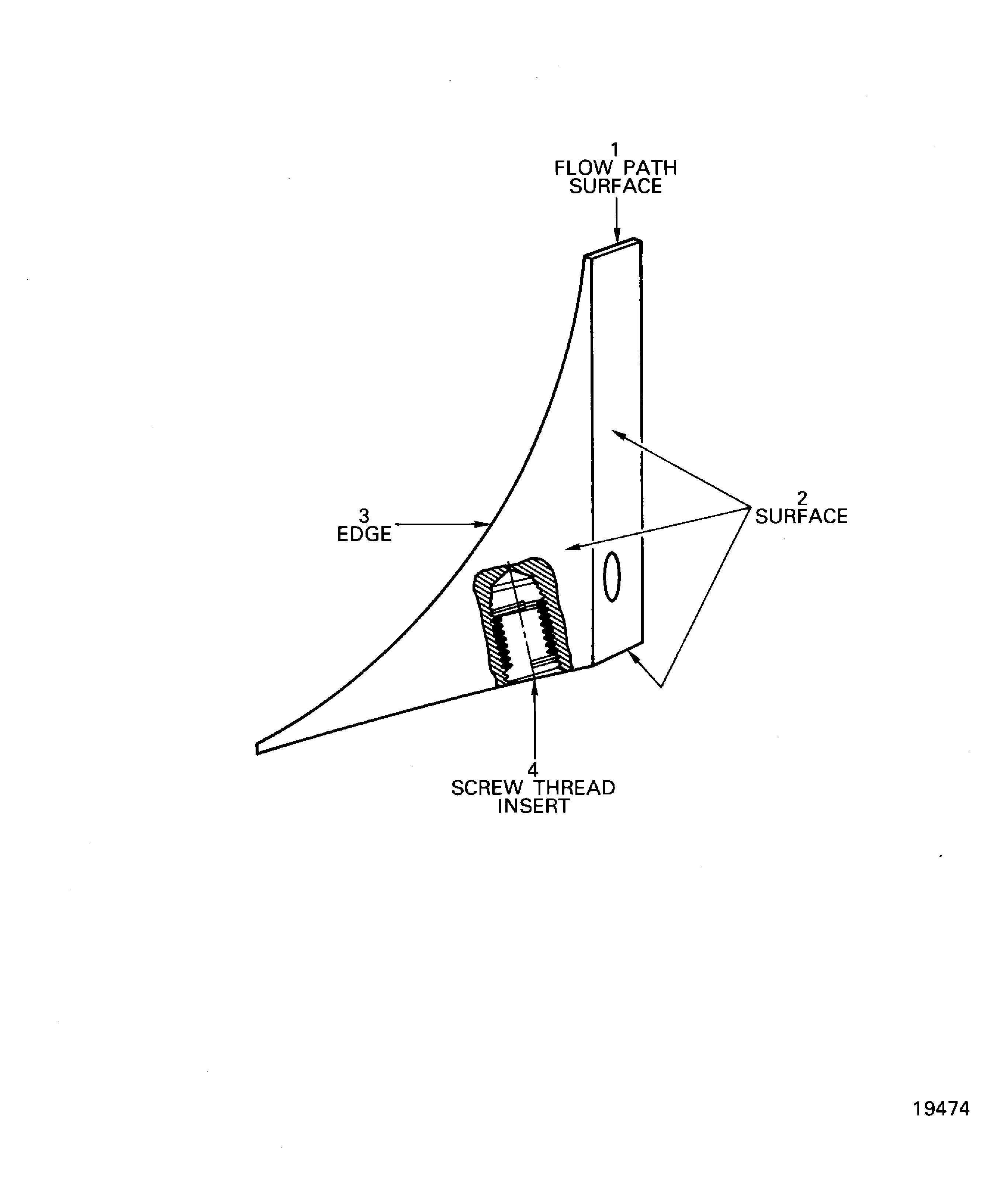

    6. Figure: Locations on the LH and RH corner panel filler assembly
