TASK 72-32-03-200-010 Engine Front Mount Stopper - Examine, Inspection-010

DMC:V2500-A0-72-32-0305-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-200-010 Engine Front Mount Stopper - Examine, Inspection-010

Effectivity

FIG/ITEM

PART NO.

02-450

5A0426

General

This TASK gives the procedure for the inspection of the mount tube stopper assembly. For the other intermediate structure parts, refer to TASK 72-32-03-200-000 (INSPECTION-000).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variant refer to IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any parts are examined. Refer to TASK 72-32-03-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defect that is not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the parts are visually examined.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damages, TASK 70-02-02-350-501

Inspection of Pasrts, TASK 70-20-01-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of testing for Crack Indications

Chemical Process

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-230-074 Examine the Mount Tube Stopper Assembly (02-450) for Cracks

    1. NOTE

      The crack test is not necessary for rubber portion of the stopper assembly.

      Clean the parts. Refer to TASK 72-32-03-100-000 (CLEANING-000).

      2. Do the test for cracks on the parts that are given below. Use the applicable fluorescent penetrant procedure.

        PART IDENT

        TASK/SUBTASK

        Mount tube stopper assembly

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-03-220-134 Examine the Mount Tube Stopper Assembly (02-450) Surface

    1. Refer to Figure.

      2. Examine the rubber surface at location 1.

        1. Cut, cracked, torn or missing

        1. Reject

      2. Peeled or deformed.

        3. If the rubber is not loose

        1. Accept

        4. Other than in Step

        1. Reject

      3. Examine the bracket surface at location 2.

        1. Bent

        1. Reject

        2. Nicked or scored

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

        3. Dented.

          1. Up to 0.040 in. (1.00 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

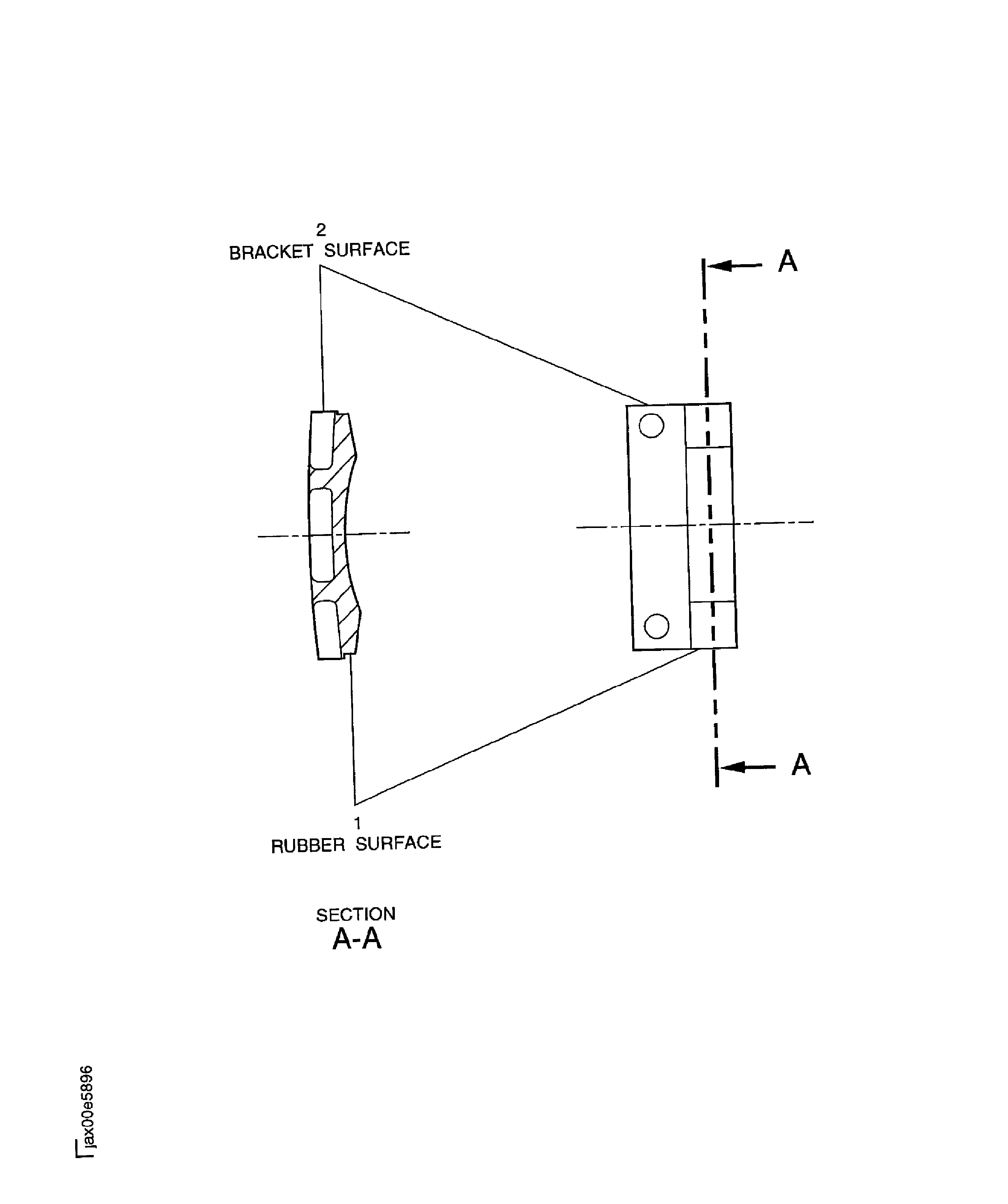

    3. Figure: Locations on the Mount Tube Stopper Assembly

    Locations on the Mount Tube Stopper Assembly

Requirements After Job Completion

Follow-On Conditions

NONE
