TASK 72-32-22-300-006 No. 3 Bearing Seal Support - Repair The Plasma Coat On The Front Flange Front Face, Repair-006 (VRS3281)

DMC:V2500-A0-72-32-2200-01A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-22-300-006 No. 3 Bearing Seal Support - Repair The Plasma Coat On The Front Flange Front Face, Repair-006 (VRS3281)

Effectivity

FIG/ITEM

PART NO.

01-040

2A0421

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

No. 3 Bearing seal

-

Titanium alloy

support assembly

General

This repair must only be done when the instructions to do so are given in TASK 72-32-22-200-000 Inspection-000.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Price and availability - refer to IAE

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-134 MASKING TAPE, PLASTIC99742CoMat 02-134

or equivalent

CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 05-051 SILICON CARBIDE GRIT DELETED0AM53CoMat 05-051

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-22-350-054 Prepare the No. 3 Bearing Seal Support for Plasma Coating

    1. Refer to Figure.

      2. Remove the inserts from the seal support before you apply plasma coating.

      1. Refer to VRS3003, TASK 72-32-22-300-003.

      3. Apply masking to areas that are not to be plasma sprayed.

    2. SUBTASK 72-32-22-120-052 Clean the No. 3 Bearing Seal Support

      CAUTION

      DO NOT USE ANY SOLUTIONS THAT CONTAIN CHLORIDE TO CLEAN THE NO. 3 BEARING SEAL SUPPORT. CHLORIDE CAN CAUSE CORROSION TO THE SEAL SUPPORT.

      1. Abrasisve blast to clean the seal support.

      1. Use CoMat 05-051 SILICON CARBIDE GRIT DELETED at a pressure of 60 psig (413.7 kPa).

      2. Refer to the SPM TASK 70-12-09-120-501.

        NOTE

        Use clean gloves to handle the No. 3 bearing seal support after you clean it.

    3. SUBTASK 72-32-22-320-053 Machine the Front Flange Front Face of the No. 3 Bearing Seal Support

    1. Refer to Figure.

      2. Machine the front face.

      1. Machine the front face so the flange thickness is 0.222 to 0.232 in. (5.64 to 5.89 mm).

      2. Hold to the maximum value.

    4. SUBTASK 72-32-22-340-052 Apply Plasma Coating to the Front Flange Front Face of the No. 3 Bearing Seal Support

    1. Refer to Figure.

      2. Apply plasma coating to the front face.

      2. Refer to the SPM TASK 70-34-03-340-501.

      3. Apply the coating so that the thickness of the flange is a minimum of 0.242 in. (6.147 mm).

    5. SUBTASK 72-32-22-320-054 Machine the Front Flange Front Face of the No. 3 Bearing Seal Support after Plasma Spray

    1. Refer to Figure.

      2. Machine the front face after plasma spray.

      1. Machine the front face so that the thickness of the flange at location 1 is 0.235 to 0.237 in. (5.969 to 6.019 mm).

    6. SUBTASK 72-32-22-220-062 Examine the Front Flange Front Face of the No. 3 Bearing Seal Support after Plasma Spray Repair

    1. Refer to Figure.

      2. Examine the flange at location 1 after plasma spray repair.

      1. The thickness of the flange must be 0.235 to 0.237 in. (5.969 to 6.019 mm).

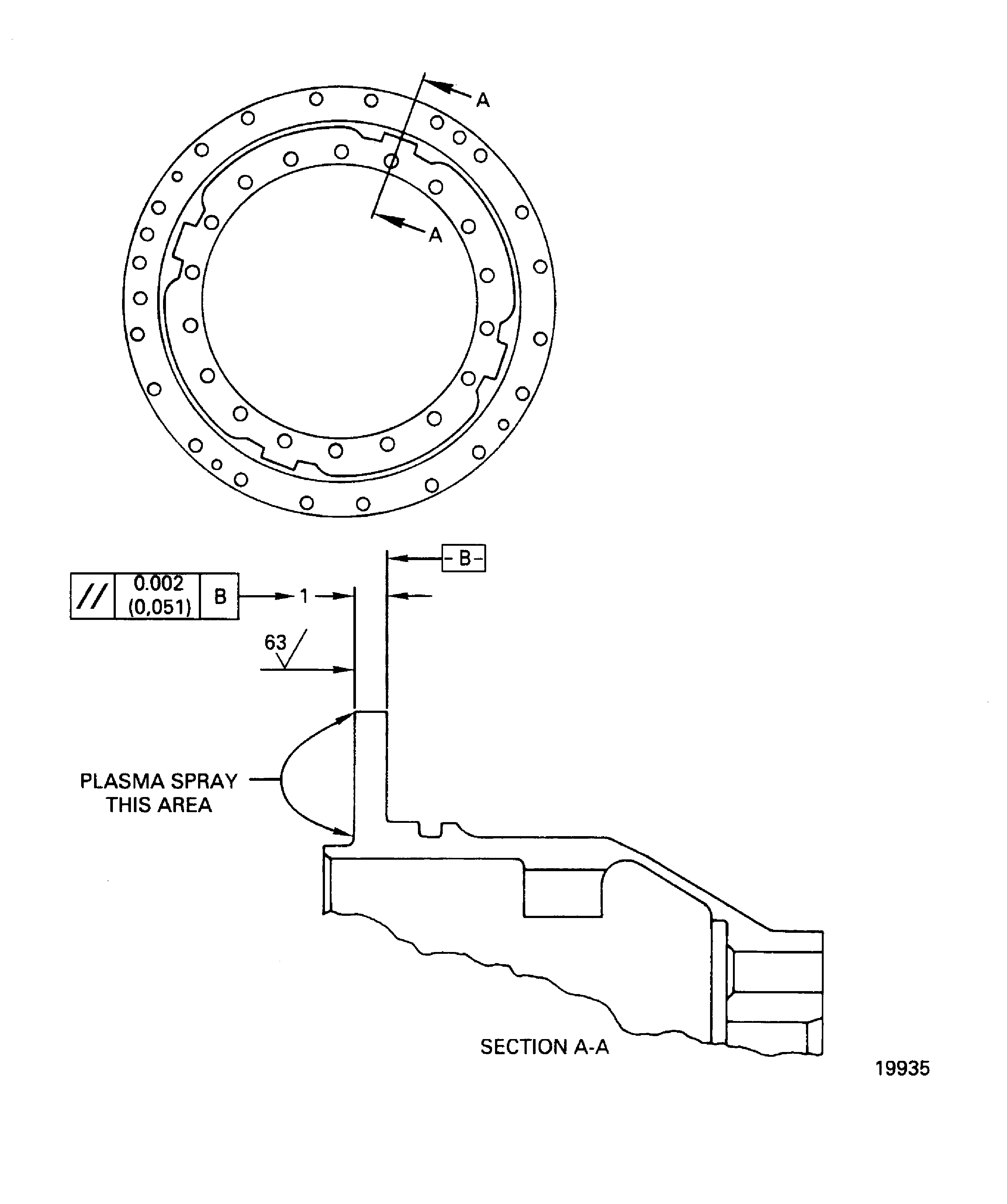

    7. Figure: Front flange front face plasma coat repair

    Front flange front face plasma coat repair

Requirements After Job Completion

Follow-On Conditions

NONE
