TASK 72-32-25-300-015 No. 3 Bearing Seal Ring Holder - Plasma Spray Outside Diameter, Repair-015 (VRS3485)

DMC:V2500-A0-72-32-2501-02A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-25-300-015 No. 3 Bearing Seal Ring Holder - Plasma Spray Outside Diameter, Repair-015 (VRS3485)

Effectivity

FIG/ITEM

PART NO.

02-230

2A1288

General

Material of component

PART IDENT

SYMBOL

MATERIAL

No. 3 bearing seal ring holder assembly

Titanium alloy

NOTE

To identify the consumable materials refer to PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Machine shop equipmentLOCALMachine shop equipment
Plasma spray equipmentLOCALPlasma spray equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089

Spares

NONE

Safety Requirements

CAUTION

USE ONLY APPROVED CLEANING PROCEDURE FOR TITANIUM ALLOY. REFER TO THE SPM TASK 70-11-06-300-503 AND SPM TASK 70-11-26-300-503.

CAUTION

USE ONLY APPROVED CLEANING PROCEDURE FOR TITANIUM ALLOY

Procedure

    1. SUBTASK 72-32-25-320-056 Remove the Remaining Plasma Spray from the Outside Diameter of the No. 3 Bearing Seal Ring Holder Assembly

    1. Refer to Figure.

      2. Remove the remaining plasma spray by machining.

      1. Make sure the outside diameter of the holder assembly is machined to 8.327 to 8.353 in. (211.51 to 212.17 mm) to permit coat thickness of 0.003 to 0.015 in. (0.08 to 0.38 mm) each side after finish machining.

        Keep base metal removal to a minimum.

    2. SUBTASK 72-32-25-340-054 Apply Plasma Spray to the Outside Diameter of the No. 3 Bearing Seal Ring Holder Assembly

    1. Refer to Figure.

      2. Apply plasma spray to the outside diameter.

      1. Plasma spray machined area to a coat thickness sufficient to allow for 0.003 to 0.015 in. (0.08 to 0.38 mm) maximum each side after finish machining.

        Refer to the SPM TASK 70-34-03-340-501.

    3. SUBTASK 72-32-25-320-057 Finish Machine Plasma Sprayed Areas on the Outside Diameter of the No. 3 Bearing Seal Ring Holder Assembly

    1. Refer to Figure.

    2. Finish machine plasma sprayed diameters to dimensions specified in Figure.

    4. SUBTASK 72-32-25-220-105 Visually Examine the Repaired Diameters on the No. 3 Bearing Seal Ring Holder Assembly Repair

    1. Refer to Figure.

      2. Visually inspect repaired diameters.

      1. Refer to Figure.

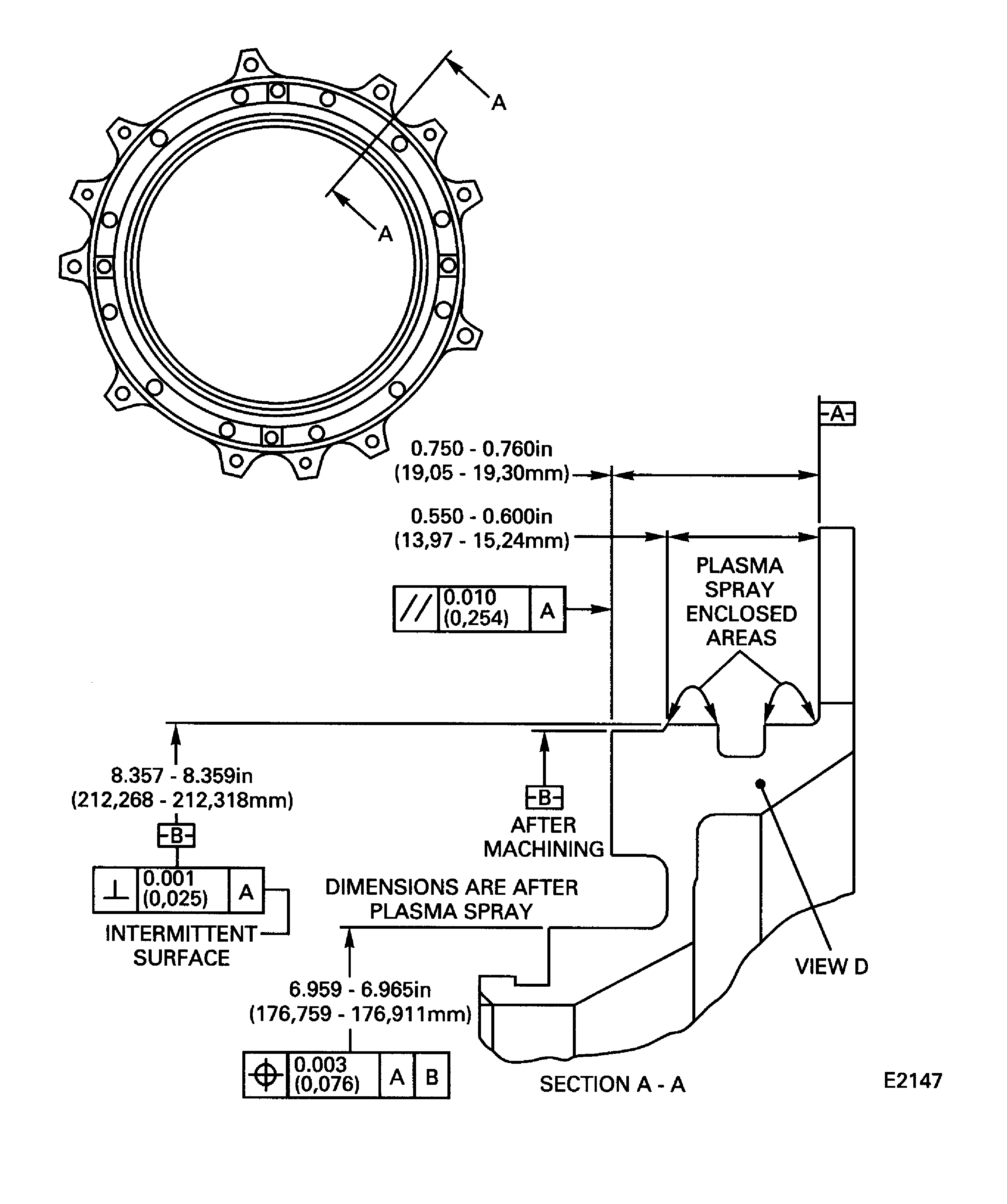

    5. Figure: No. 3 seal ring holder assembly outside diameter repair

    No. 3 seal ring holder assembly outside diameter repair

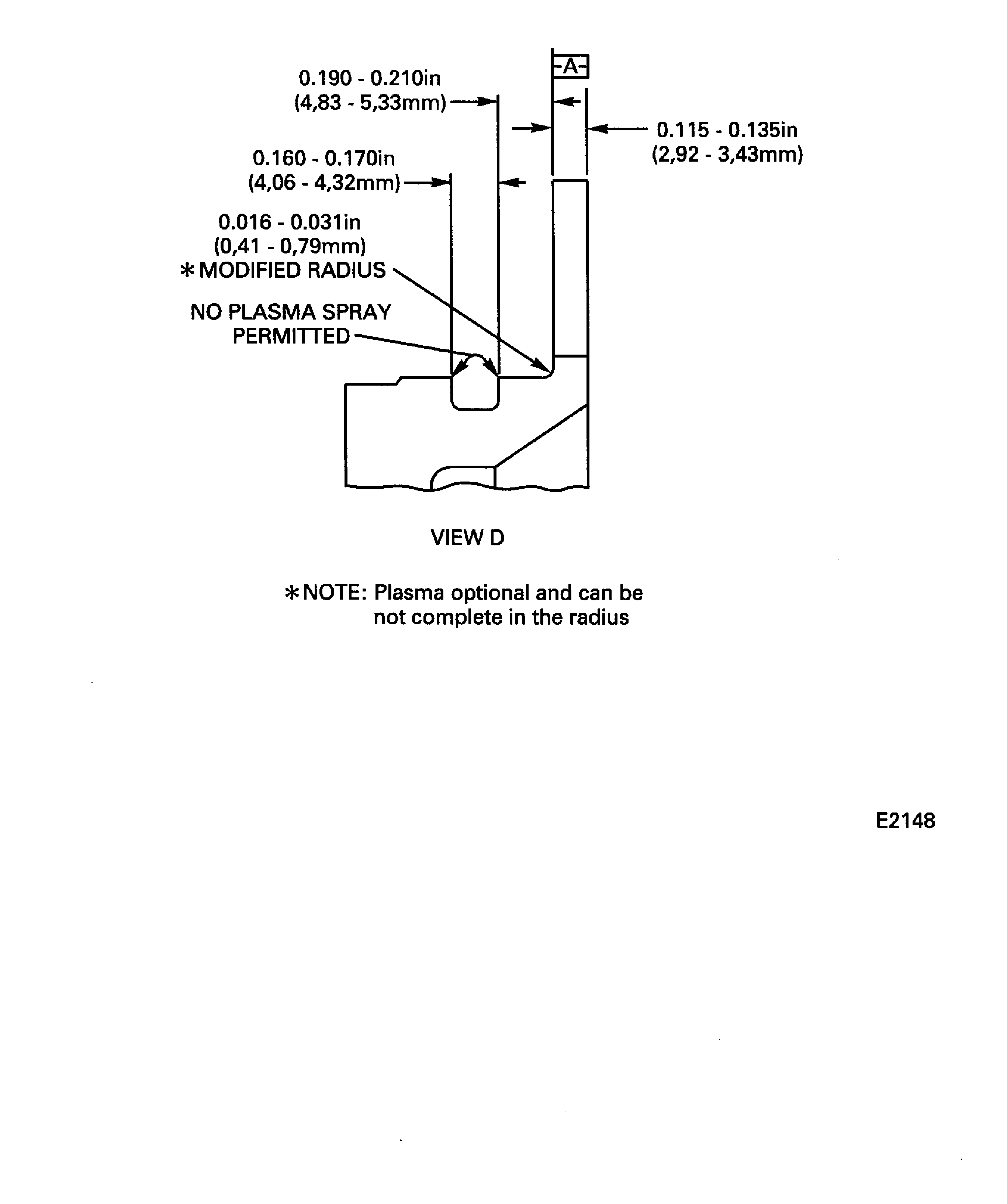

    Figure: No. 3 seal ring holder assembly outside diameter repair

    No. 3 seal ring holder assembly outside diameter repair

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:00741
Enterprise Name:Was BOC GASES
BU Name:DELETED, REFER TO SUPPLIER CODE 46AN7
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:33870
Supply Number:CoMat 03-089
Type:sp01
Supply Short Name:CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)
Supply Name:CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)
Specification Groups:
Doc NumberType
PWA 1337 (PW REF)NI-109 or NI-970 or AI 1037
Suppliers:
ManufacturerRemarks
33870
Manufacturer Code:LOCAL
Tool Number:Machine shop equipment
Tool Name:Machine shop equipment
Manufacturer Code:LOCAL
Tool Number:Plasma spray equipment
Tool Name:Plasma spray equipment
