TASK 72-32-37-300-003 Fan Speed/Trim Balance Probes Electrical Harness - Repair Surface Damage, Repair-003 (VRS1262)
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
To identify the consumable materials refer to the PCI.
Material of component
PART IDENT | SYMBOL | MATERIAL |
|---|---|---|
Bracket | - | Corrosion and heat resistant steel |
Tube | - | Corrosion and heat resistant steel |
Related repairs
Replace the Terminal - Refer to VRS1261 TASK 72-32-37-300-002 (REPAIR-002).
Replace the Sleeves and/or the sleeve markers - Refer to VRS1263 TASK 72-32-37-300-004 (REPAIR-004).
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Magnifying Glass, 10x | LOCAL | Magnifying Glass, 10x |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE and/or fine file.
Surface finish of the repair must be the same as the adjacent area. Refer to SPM TASK 70-35-03-300-501.
Make smooth and/or hand polish to remove the burrs, nicks.
SUBTASK 72-32-37-350-060 Remove the Damage of the Bracket and Tube
Visually examine the repaired area for burrs using Magnifying Glass, 10x.
Refer to TASK 72-32-37-200-300 (Inspection-000).
Visually examine the repaired area.
SUBTASK 72-32-37-220-063 Examine the Bracket and Tube
Refer to Testing-001 TASK 72-32-37-700-301.
Do a test on the fan speed/trim balance probes harness.
SUBTASK 72-32-37-750-053 Do a test on the Fan Speed/Trim Balance Probe Harness

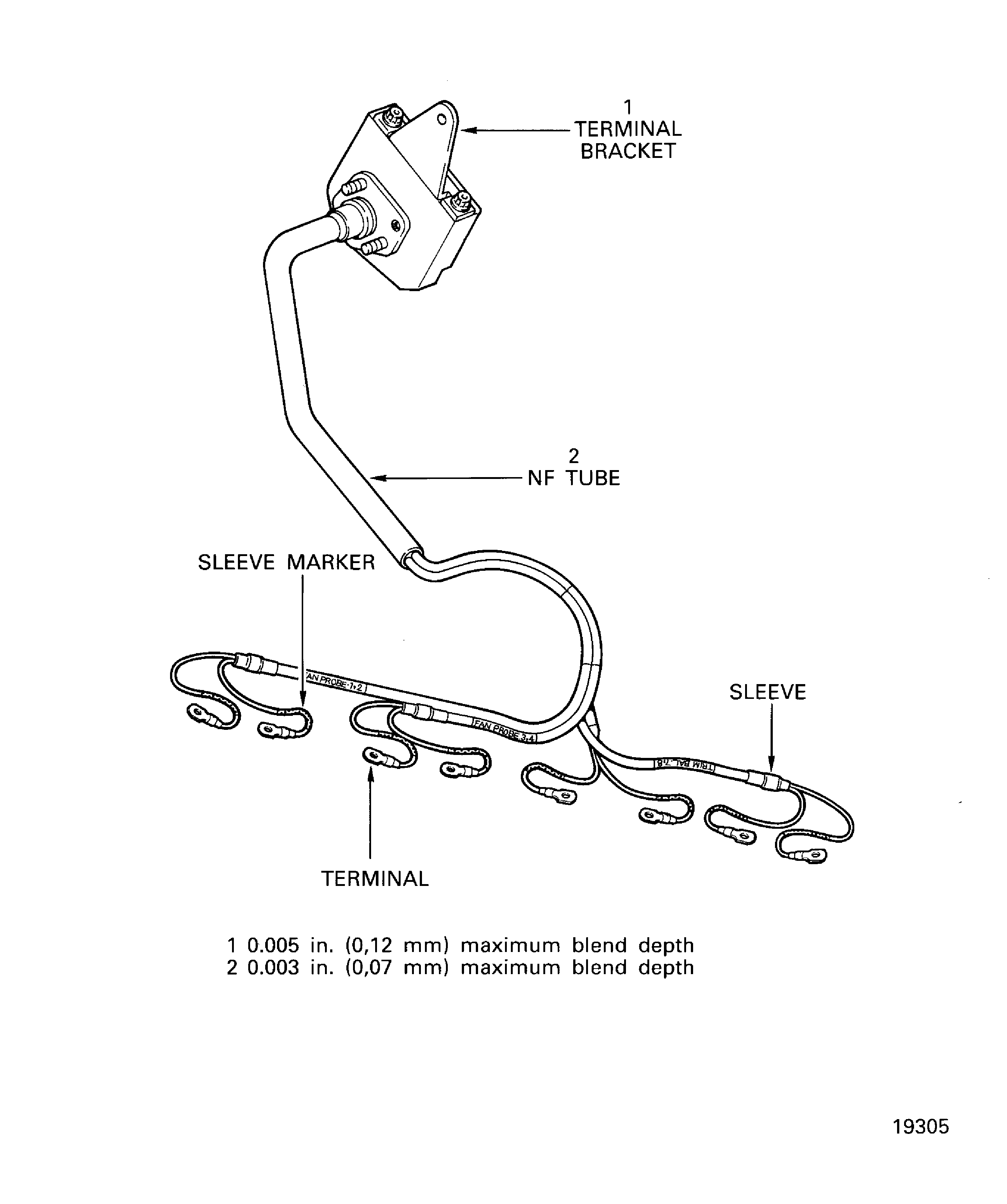

Figure: Electric Harness, Nf - Repair Limit
Electric Harness, Nf - Repair Limit
