TASK 72-32-41-300-012 No. 1 Bearing Front Support - Blend Repair, Repair-012 (VRS1960)

DMC:V2500-A0-72-32-4103-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-41-300-012 No. 1 Bearing Front Support - Blend Repair, Repair-012 (VRS1960)

Effectivity

FIG/ITEM

PART NO.

01-300

5W2323

Material of component

PART IDENT

SYMBOL

MATERIAL

No. 1 bearing front support assembly

17-4PH

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPP.

For the method to clean the parts, refer to TASK 72-32-41-100-000 (CLEANING-000).

NOTE

  1. To identify the consumable materials, refer to the PCI.

  2. Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-338 CLEANING SOLVENTLOCALCoMat 01-338
CoMat 01-471 CLEANER/PASSIVATORIE367CoMat 01-471
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-41-350-001 Blend the Damaged Surface of the No. 1 Bearing Front Support Assembly (01-300)

    1. Refer to Figure.

      3. Examine the repaired No.1 bearing front support assembly.

      1. Refer to TASK 72-32-41-200-000 (INSPECTION-000).

    2. SUBTASK 72-32-41-220-083 Clean the Repaired Area, Except at Area A

      1. Wipe the repaired area with solvent and cloth.

    3. SUBTASK 72-32-41-220-084 Surface Treat the Repaired Area, Except at Area A

      1. Use a clean brush to apply one coat of cleaner/passivator. Keep the area wet for 5 to 10 minutes.

    4. SUBTASK 72-32-41-380-001 Clean the Repaired Surface, Except at Area A

    1. Clean the repaired area with clean water or with a clean cloth.

      2. Dry the repaired area.

      1. After complete removal of cleaner/passivator residual by clean wet cloth, dry the repaired area with a clean dry cloth or with a clean air-flow.

    5. SUBTASK 72-32-41-380-002 Touch Up the Paint on the Repaired Surface at Area A

      1. Touch up the paint.

      1. Refer to Repair 013, VRS1962 TASK 72-32-41-300-013 (REPAIR-013).

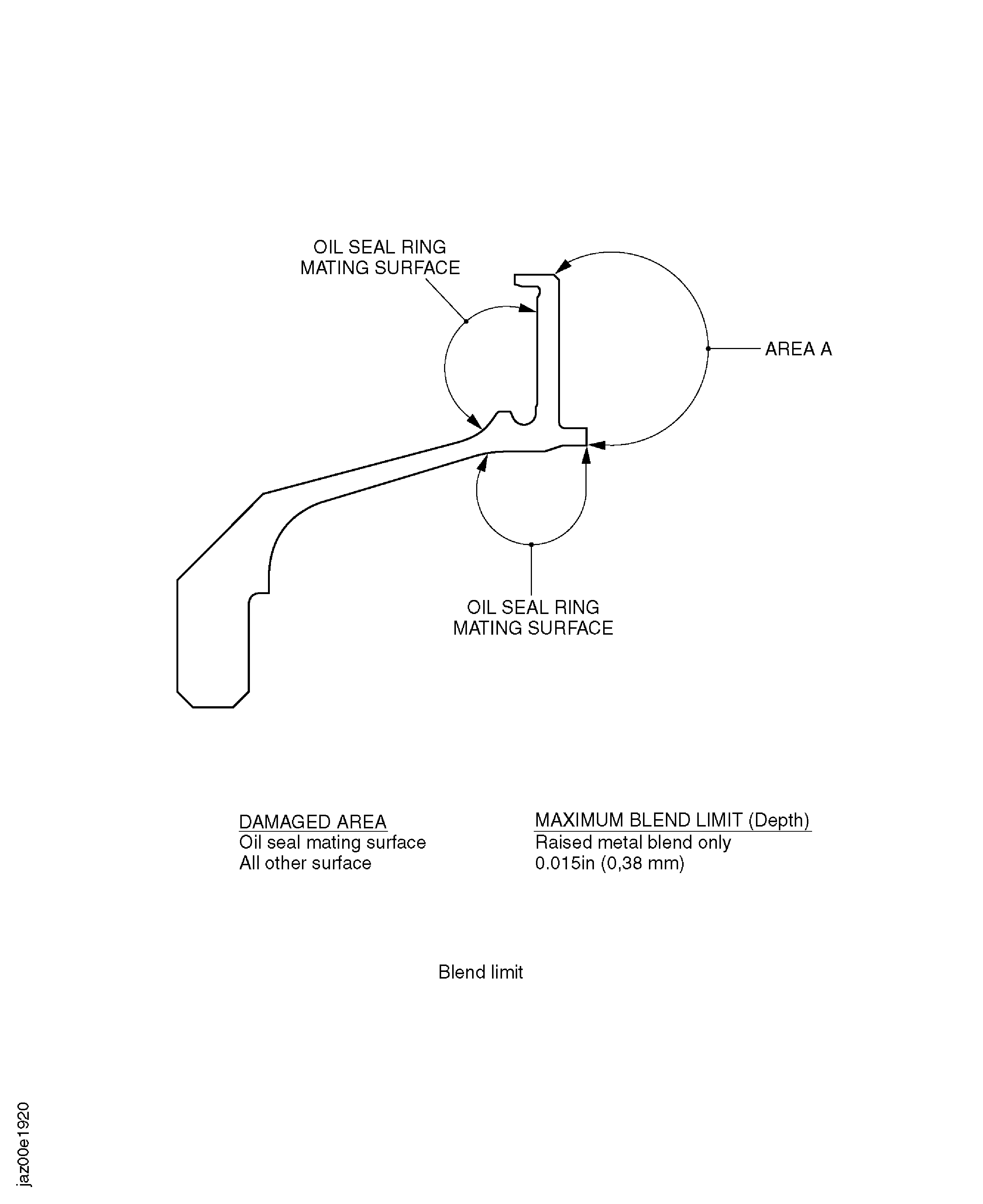

    6. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
