TASK 72-32-51-300-014 LP Stub Shaft - Repair The Corrosion Resistant Coating Of The Stub Shaft Assembly, Repair-014(VRS1289)

DMC:V2500-A0-72-32-5104-00A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-51-300-014 LP Stub Shaft - Repair The Corrosion Resistant Coating Of The Stub Shaft Assembly, Repair-014(VRS1289)

Effectivity

FIG/ITEM

PART NO.

01-350

5A6068

01-350

5A0895

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Stub shaft assembly

Non corrosion resistant steel

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Related repairs

Stub shaft assembly - Repair the surface damage. Refer to Repair, VRS1292, TASK 72-32-51-300-008 (REPAIR 008)

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 07-037 CORROSION RESISTANT TOUCH-UP COATINGLOCALCoMat 07-037

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-51-110-056 Remove the Grease from the Stub Shaft Assembly

    1. Refer to Figure.

      2. Remove grease from the area of damaged coating with degreasing fluid.

      1. Use a clean cloth which is moist with degreasing fluid.

      2. Refer to the SPM TASK 70-11-26-300-503.

    2. SUBTASK 72-32-51-350-060 Prepare the Surface Protection to the Stub Shaft Assembly

    1. Refer to Figure.

      2. Rub down the damaged area with waterproof abrasive paper 'Up to' the time that the damaged area is removed smoothly into the adjacent area.

      1. Refer to the SPM TASK 70-38-21-380-501.

    3. SUBTASK 72-32-51-110-057 Remove the Grease from the Stub Shaft Assembly

      1. Remove the grease from the repaired area.

      1. Refer to the SPM TASK 70-11-26-300-503.

      2. Use a clean cloth which is moist with degreasing fluid and make clean the repaired area.

    4. SUBTASK 72-32-51-380-051 Apply the Corrosion Resistance Coating to the Stub Shaft Assembly

    1. Refer to Figure.

      2. Apply the corrosion resistance coating to the repaired area.

      1. Mix thoroughly the corrosion resistance touch-up coating PL.177 and apply one coat with a clean brush to get a thickness of approximately 0.0016 in. (0.04 mm).

      3. Refer to the SPM TASK 70-38-21-380-501.

      3. Let the stub shaft assembly air dry for 30 minutes.

      1. Let the coated area dry in air for 30 minutes.

      2. Refer to the SPM TASK 70-38-21-380-501.

      4. Examine the coated surface.

      1. Refer to the SPM TASK 70-38-21-380-501.

      2. Refer to TASK 72-32-51-200-000 (INSPECTION-000).

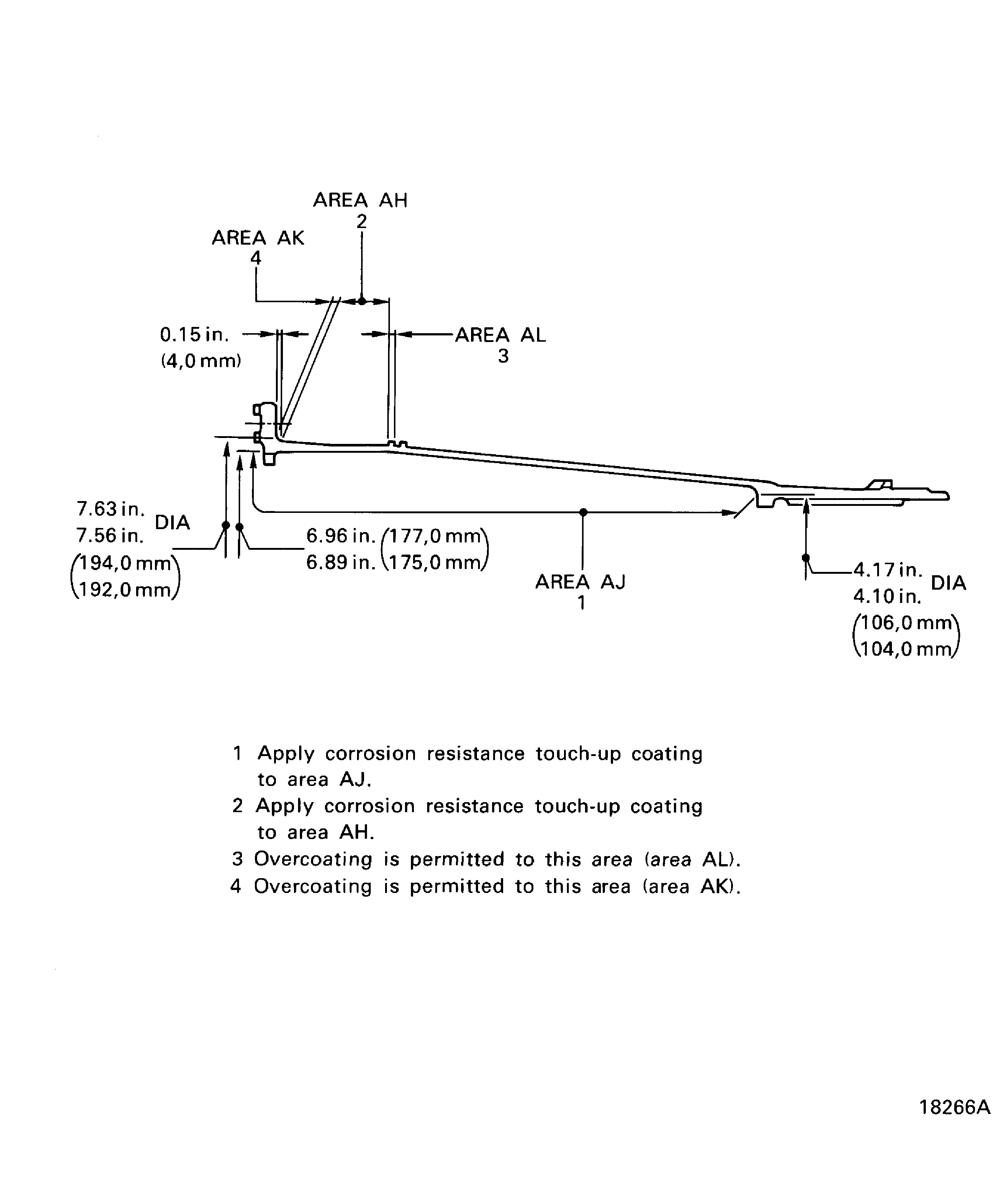

    5. Figure: Stub shaft assembly - corrosion resistance coating repair

    Stub shaft assembly - corrosion resistance coating repair

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:44197
Enterprise Name:SAINT-GOBAIN INDUSTRIAL CERAMICS INC.
BU Name:SAINT-GOBAIN ABRASIVES, INC
Street:ONE NEW BOND STREET
P.O. Box:PO BOX 15008
City:WORCESTER
State:MA
Zip Code:01615-0008
Country:USA
Phone Number:1-508-795-5000
Fax Number:1-508-795-2828
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:1E1X8
Supply Number:CoMat 05-020
Type:sp01
Supply Short Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-020 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/33 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 320 (ANSI B74.18)
JCR-027 (JAEC REF)
JCR-186 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
LOCAL
K6835
Manufacturer Code:1E1X8
Supply Number:CoMat 05-021
Type:sp01
Supply Short Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Supply Name:CoMat 05-021 WATERPROOF SILICON CARBIDE
Specification Groups:
Doc NumberType
OMAT: 5/35 (RR REF)WATERPROOF SILICON CARBIDE ABRASIVE PAPER, CAMI GRIT DESIGNATION 240 (ANSI B74.18 )
JCR-188 (JAEC REF)
Suppliers:
ManufacturerRemarks
1E1X8
K6835
LOCAL
Manufacturer Code:00BB6
Supply Number:CoMat 07-037
Type:sp01
Supply Short Name:CoMat 07-037 CORROSION RESISTANT TOUCH-UP COATING
Supply Name:CoMat 07-037 CORROSION RESISTANT TOUCH-UP COATING
Specification Groups:
Doc NumberType
PL.177 CERTIFIED MIL-C-81751
JCR-031 (JAEC REF)
Suppliers:
ManufacturerRemarks
00BB6
K6835
K3504
