TASK 72-32-51-300-008 LP Stub Shaft - Repair Surface Damage, Repair-008 (VRS1292)

DMC:V2500-A0-72-32-5104-00A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-51-300-008 LP Stub Shaft - Repair Surface Damage, Repair-008 (VRS1292)

Effectivity

FIG/ITEM

PART NO.

01-350

5A6068

01-350

5A0895

Material of component

IAE

DESCRIPTION

SYMBOL

MATERIAL

Stub shaft

3Cr-1Mo-0.2V Steel

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Related repairs

Stub shaft assembly - Repair the corrosion resisting coating, Refer to TASK 72-32-51-300-014 (REPAIR-014).

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Magnetic particle inspection equipmentLOCALMagnetic particle inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-51-350-061 Remove the Damage from the Stub Shaft Assembly

      1. Scallop, smooth and/or hand polish to remove burrs, scores, pits, nicks, dents, corrosion, galls, scratches and/or tool marks.

      1. Use abrasive stones and papers and/or fine file.

      2. Surface finish of the repair must be the same as the adjacent area.

      4. Refer to the SPM TASK 70-35-03-300-501.

      5. Refer to Figure.

    2. SUBTASK 72-32-51-220-077 Examine the Stub Shaft Assembly

      1. Visually examine repaired area.

        1. Visually examine the repaired area for burr, scores, and/or tool marks using 10X magnifying glass.

        1. Refer to TASK 72-32-51-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-51-240-054 Examine the Stub Shaft Assembly for Cracks

      1. NOTE

        This TASK is an alternative to Step.

        Magnetic particle examine repaired area.

      1. Refer to the SPM TASK 70-24-01-240-501.

      2. Refer to TASK 72-32-51-200-000 (INSPECTION/CHECK-000).

    4. SUBTASK 72-32-51-230-066 Examine the Stub Shaft Assembly for Cracks

      1. NOTE

        This TASK is an alternative to Step.

        Fluorescent penetrant examine repaired area.

    5. SUBTASK 72-32-51-380-052 Apply the Corrosion Resistant Coating to the Stub Shaft Assembly

      1. Apply the corrosion resistant coating to repaired area, if required.

      1. Refer to TASK 72-32-51-300-014 (REPAIR-014).

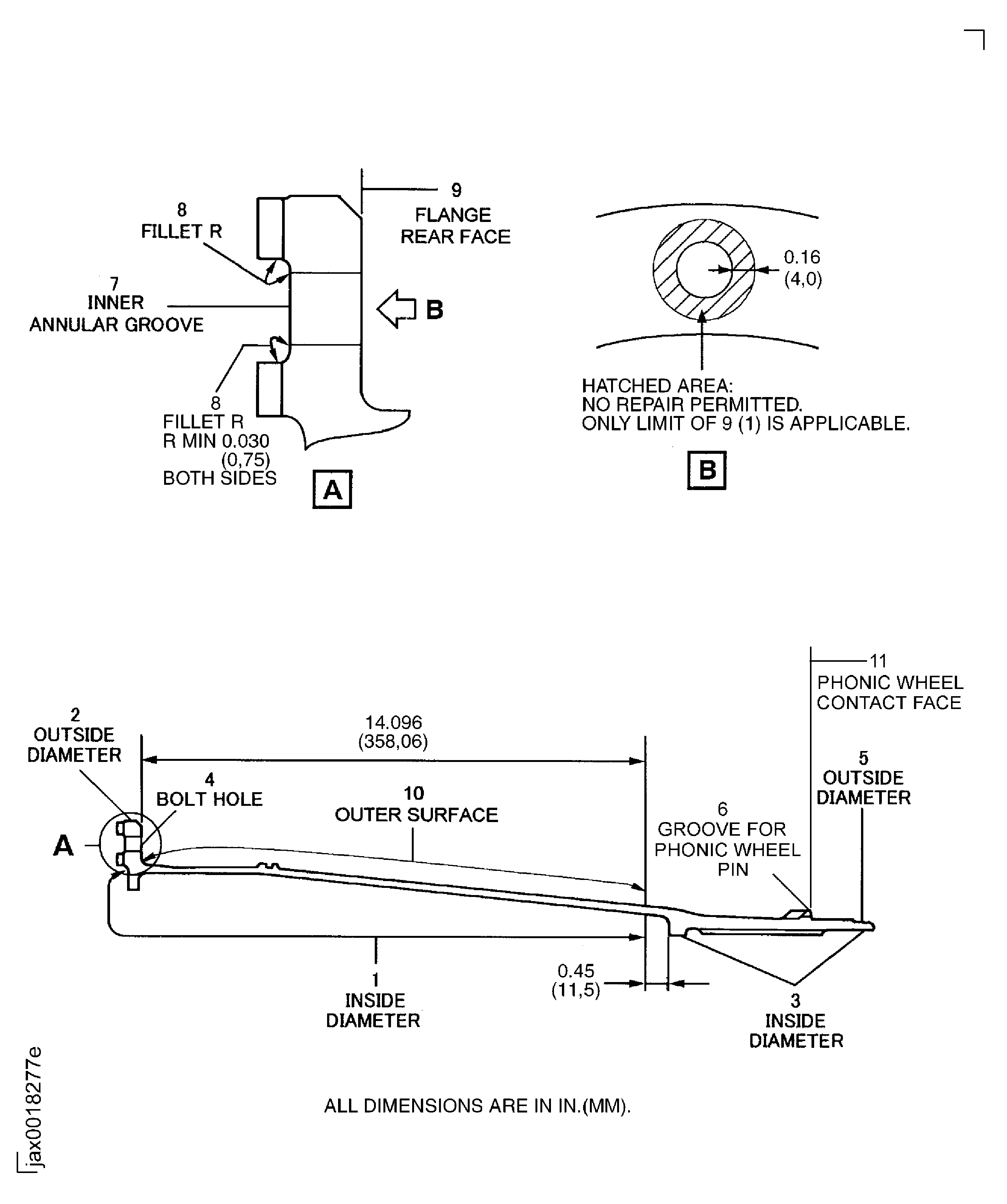

    6. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
