TASK 72-32-51-300-027 LP Stub Shaft - Repair The Surface Damage Of The Stub Shaft Assembly, Repair-027(VRS1919)
General
Price and availability - not applicable
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials, refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Magnetic particle inspection equipment | LOCAL | Magnetic particle inspection equipment | ||
| Magnifying glass, 10x | LOCAL | Magnifying glass, 10x |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 | ||
| CoMat 05-127 ABRASIVE PAD | LOCAL | CoMat 05-127 |
Spares
NONESafety Requirements
NONEProcedure
The surface finish of the repair must be the same as the adjacent area.
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
Hand polish to remove pits.
SUBTASK 72-32-51-350-076 Remove the Damage from the Stub Shaft Assembly
Use a Magnifying glass, 10x.
Refer to TASK 72-32-51-200-004 (INSPECTION-004, CONFIG-001).
Do a visual examination of the repaired area.
SUBTASK 72-32-51-220-161 Examine the Stub Shaft Assembly
Refer to the SPM TASK 70-24-01-240-501.
Refer to TASK 72-32-51-200-004 (INSPECTION-004, CONFIG-001).
Do a magnetic particle examination of the repaired area.
SUBTASK 72-32-51-240-163 Examine the Stub Shaft Assembly for Cracks

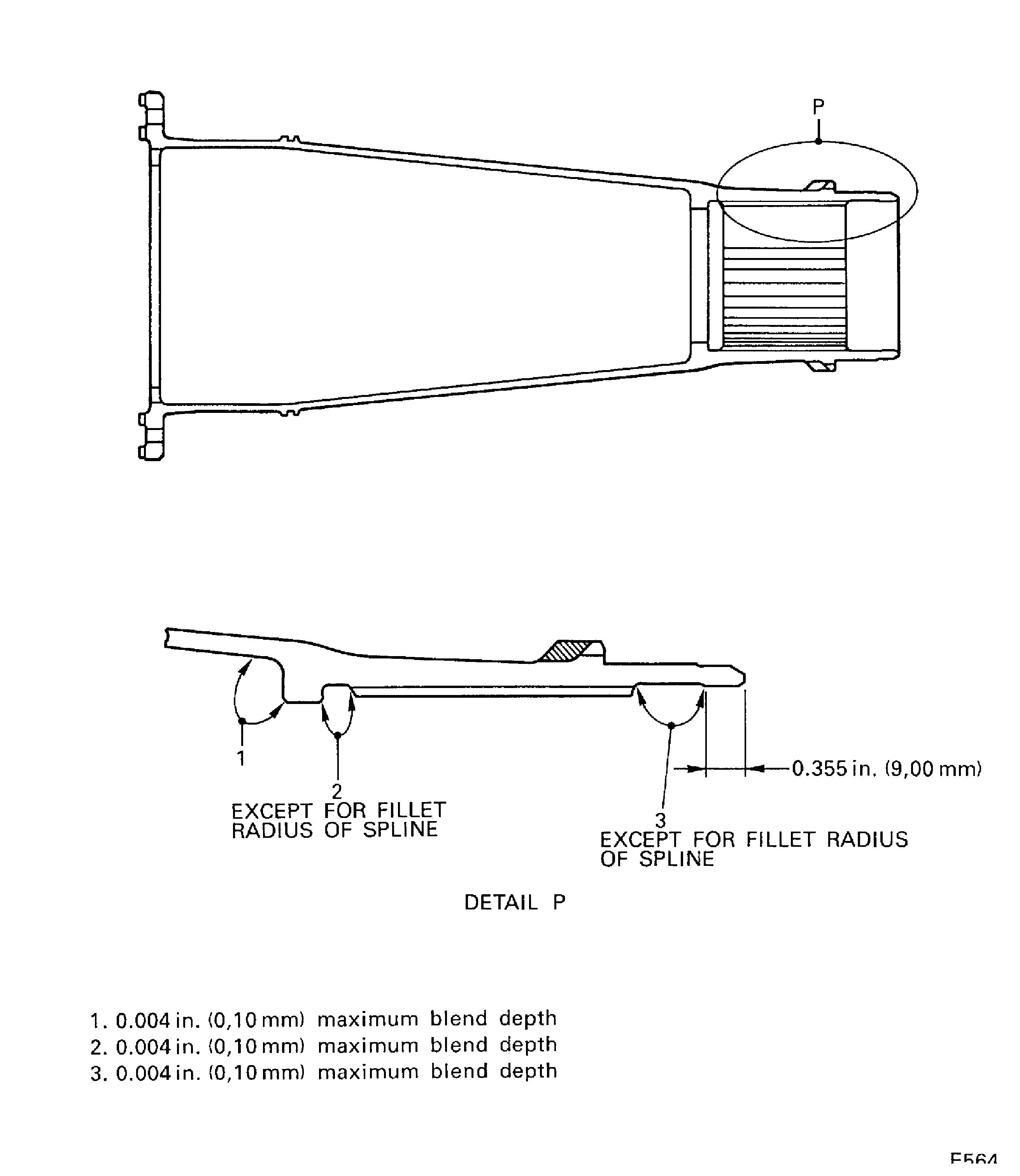

Figure: Stub shaft assembly - repair limits
Stub shaft assembly - repair limits
