TASK 72-32-55-300-004 Front Bearing Compartment Seal Support - Apply Powder To The Snap Diameter, Repair-004 (VRS1304)

DMC:V2500-A0-72-32-5500-00A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-55-300-004 Front Bearing Compartment Seal Support - Apply Powder To The Snap Diameter, Repair-004 (VRS1304)

Effectivity

FIG/ITEM PART NO.

01-100

5W2050

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Seal support assembly

-

Corrosion resistant steel

(FV607)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-55-100-000.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Plasma spray equipmentLOCALPlasma spray equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-089 METAL SPRAYING POWDER Ni/Al (95/5)00741CoMat 03-089
CoMat 03-090 METAL SPRAYING POWDER Ni/Al (95/5)0AM53CoMat 03-090

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-55-350-055 Prepare the Seal Support Assembly for the Coating

    1. Refer to Figure and Figure.

    2. Machine surface index 6 such that snap diameter index 3. Hold to the maximum dimension.

      3. Clean the area to be coated, solvent wipe only.

      1. Refer to the SPM TASK 70-11-26-300-503.

      4. Mask areas which are not to be coated. Neither grit blast or overspray is allowed in holes.

      1. Refer to the SPM TASK 70-34-03-340-501.

      5. Dry grit blast the surface to be coated using aluminum oxide grit.

      1. Refer to the SPM TASK 70-34-03-340-501.

      6. Thoroughly clean the surface of all dirt, grit, grease or other foreign material, solvent wipe only.

      1. Refer to the SPM TASK 70-11-26-300-503.

    7. Touch-up or replace masking, as necessary.

    2. SUBTASK 72-32-55-350-056 Apply Plasma Coat to the Surface

    1. Refer to Figure and Figure.

      2. Plasma coat the designated area. Hold to the minimum dimension. Ensure that there is sufficient coating to permit finish machining.

      3. Visually inspect the coated area.

      1. Refer to the SPM TASK 70-34-03-340-501.

    3. SUBTASK 72-32-55-350-058 Machine the Coated Area

    1. Refer to Figure and Figure.

      2. Finish machine the coated surface to dimensions in referenced figure.

      1. Refer to the SPM TASK 70-34-03-340-501.

    4. SUBTASK 72-32-55-350-057 Inspect the Repaired Area

    1. Refer to Figure and Figure.

      2. Inspect the part for run-out of coating, chipping. Coating run-out, chipping, is not allowed.

      1. Refer to the SPM TASK 70-34-03-340-501.

      3. Dimensionally check repaired area.

      1. Refer to the SPM TASK 70-34-03-340-501.

    4. Remove the masking material and any residual adhesives.

    5. Inspect holes. Remove all foreign material. Chamfer edges of holes, as required. No chipping of the coating is allowed.

    5. SUBTASK 72-32-55-350-059 Vibro Engrave VRS1304

    1. Vibro engrave VRS1304 near to part number.

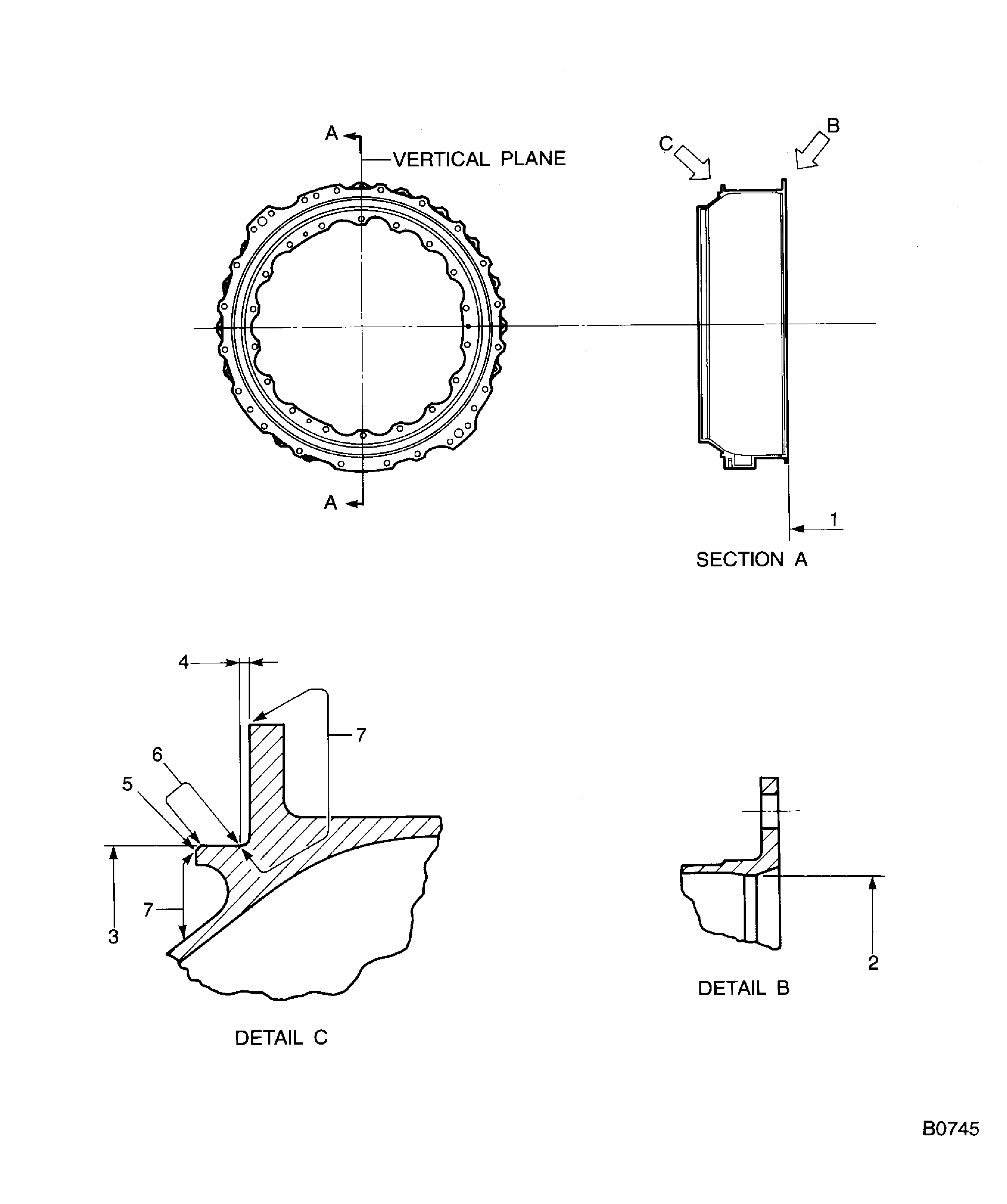

    6. Figure: Apply Powder To The Snap Diameter Of The Seal Support Assembly

    Sheet 1

    Legend
    Apply Powder To The Snap Diameter Of The Seal Support Assembly

    Sheet 1

    Close

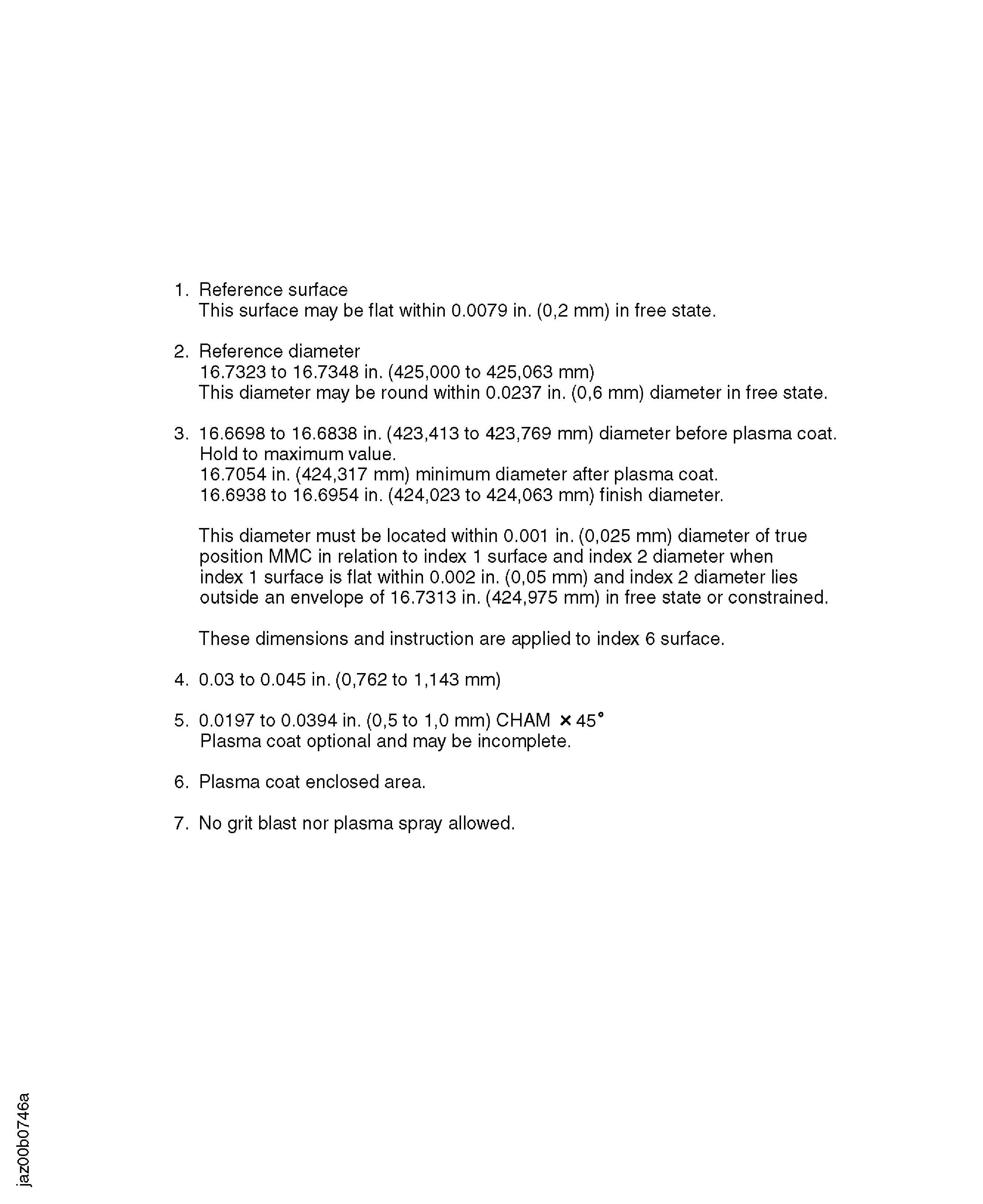

    Figure: Apply Powder To The Snap Diameter Of The Seal Support Assembly

    Sheet 2

    Legend
    Apply Powder To The Snap Diameter Of The Seal Support Assembly

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
