TASK 72-32-60-300-007 LPC Bleed Duct - Blend Repair, Repair-007 (VRS1908)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
For the method to clean the parts, refer to TASK 72-32-60-100-000 (CLEANING-000)
NOTE
To identify the consumable materials refer to the PCI.
Other consumable materials are given in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Dress until all damage is removed. Refer to SPM TASK 70-35-03-300-501.
Dress to remove damage.
Refer to the SPM TASK 70-35-03-300-501.
Deleted.
Blend the dressed area.
SUBTASK 72-32-60-350-062 Blend the Damaged Surface of the LPC Bleed Duct Assembly (01-250)
Refer to SPM TASK 70-21-01-220-501.
Deleted.
Visually examine the LPC bleed duct assembly.
SUBTASK 72-32-60-220-091 Examine the LPC Bleed Duct Assembly (01-250)
Refer to the SPM TASK 70-11-26-300-503.
De-grease the blended surface with a cloth.
Refer to SPM TASK 70-38-02-300-503.
Surface treat the blended surface.
SUBTASK 72-32-60-380-055 Surface Treat the Blended Surface of the LPC Bleed Duct Assembly (01-250)
Refer to TASK 72-32-60-840-001.
If the repair area was fit with screen, rework the insert holes.
SUBTASK 72-32-60-380-064 Rework the Insert Holes of LPC Bleed Duct Assembly (01-250), Except P/N 5W2280, P/N 5W2318, P/N 5W2331 and P/N 5W2332
Figure: Repair Details and Dimensions
Sheet 1
Figure: Repair Details and Dimensions
Sheet 2

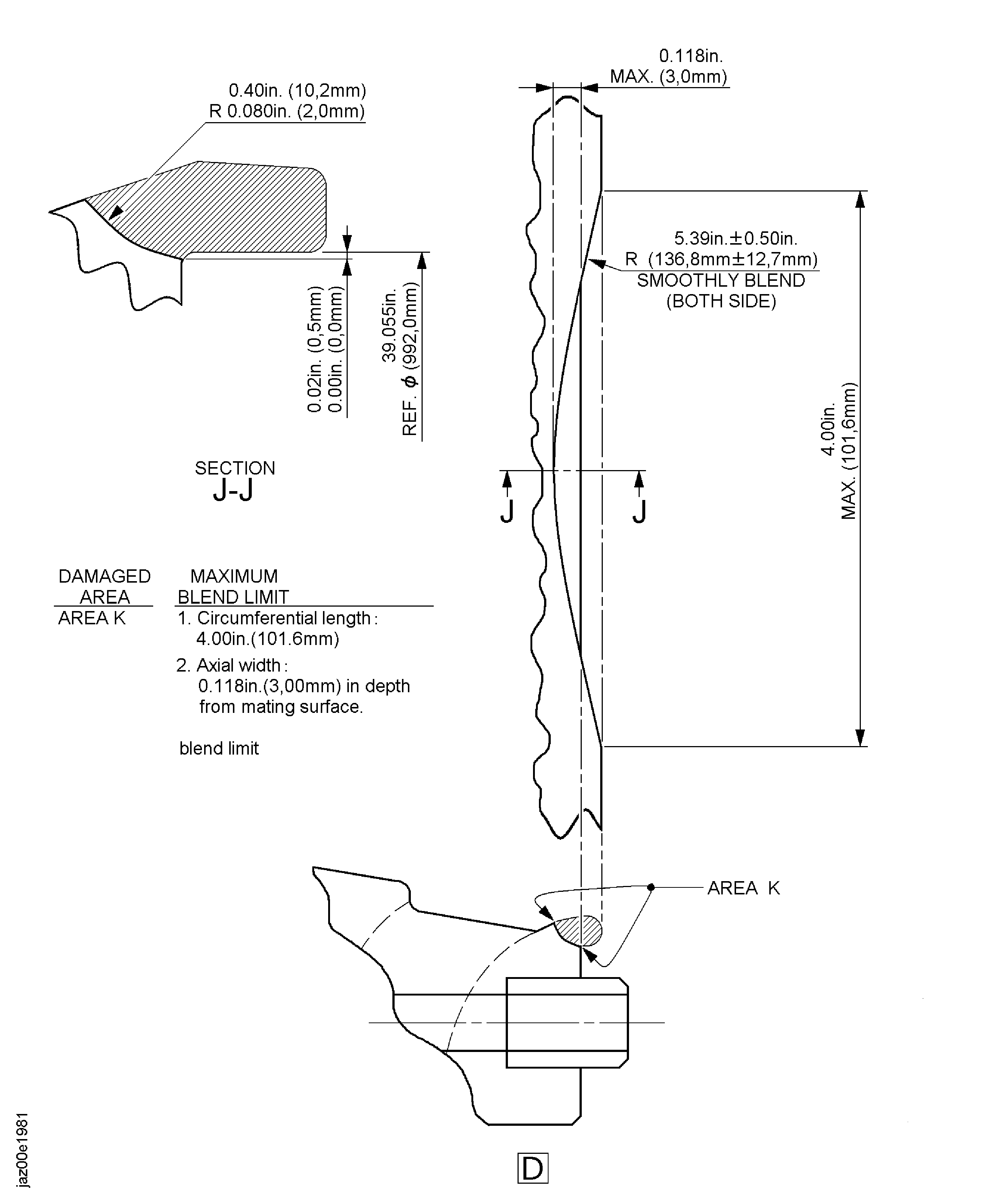

Figure: Repair Details and Dimensions
Sheet 3
Figure: Repair Details and Dimensions
Sheet 4
