TASK 72-32-60-300-014 LPC Bleed Duct - Replace The Seal, Repair-014 (VRS1338)

DMC:V2500-A0-72-32-6001-08A-920A-C|Issue No:003.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-60-300-014 LPC Bleed Duct - Replace The Seal, Repair-014 (VRS1338)

Effectivity

FIG/ITEM

PART NO.

01-250

5W2268

01-250

5W2280

01-250

5W2231

01-250

5W2331

01-250

5W2332

Material of component

PART IDENT

SYMBOL

MATERIAL

LPC bleed duct assembly

Al-5Si-1.3Cu-0.5Mg

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-60-100-000

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 08-013B COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013B

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Seal5W22201

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-60-350-073 Remove the Damaged Seal from the LPC Bleed Duct Assembly

    1. Refer to Figure.

    2. Examine and identify the damaged strip seal.

      3. Remove damaged seal (but do not cause damage to the parent material) and remaining compound.

      1. Use non-metallic scraper.

    2. SUBTASK 72-32-60-360-003 Prepare the Mating Surfaces for the Cold Curing Silicone Rubber Compound

    1. Refer to Figure.

      2. Cold liquid degrease the mating surfaces.

    4. NOTE

      A water break-test is not necessary.

      Do Step again.

    3. SUBTASK 72-32-60-230-057 Apply the Surface Protection to the LPC Bleed Duct Assembly

    1. Refer to Figure.

      2. Apply chromate conversion coating to the repair surfaces, if necessary.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-32-60-360-004 Apply and Cure the Cold Curing Silicone Rubber Compound

    1. CAUTION

      DO NOT EAT ANYTHING OR SMOKE AT LOCATIONS WHERE THESE MATERIALS ARE USED.

      CAUTION

      AFTER PREPARATION THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND, TO PREVENT CONTAMINATION.

      Refer to Figure, Figure and Figure.

      2. Apply the cold curing silicone rubber compound to the mating surface of the LPC bleed duct assembly. Amount to be such that gaps are filled completely by adhesive.

      2. Refer to the SPM TASK 70-36-02-360-501.

      3. Install the seal to the LPC bleed duct assembly within five minutes after the compound is applied.

      1. Apply sufficient pressure to ensure good contact and to form a witness of adhesive at all edges.

      2. Make sure that compound can be seen around the sealed surfaces.

      3. Seal end gap should be maximum 0.098 in. (2.5 mm).

    4. Remove excess adhesive compound from the LPC bleed duct assembly.

      5. Fill gap of seal end with compound.

      6. Mask the seal end area.

      1. Use Teflon coated paper, Teflon coated cooking paper or similar.

    7. Put the valve ring assembly V2500-A5-72-32-72-01A-941A-D (72-32-72,01-100) on the seal of LPC bleed duct assembly.

      8. NOTE

        The parts can be touched after 12 hours.

        Cure the compound at 68 deg F (20 deg C) for 48 hours.

      1. Do not apply a peeling load during this time.

    9. Remove the paper.

      10. Cut off the seal protrusion from the LPC bleed duct assembly.

      1. Use cutter knife.

      2. Take care that the LPC bleed duct assembly is not damaged.

    5. SUBTASK 72-32-60-220-103 Examine the Repaired Areas of the LPC Bleed Duct Assembly

    1. Refer to Figure.

    2. Visually examine gapping and filling.

      3. Visually examine the repaired area.

      1. Cracks are not permitted.

      2. Bubbles are not permitted.

      3. Foreign inclusions are not permitted.

      4. Peelings are not permitted.

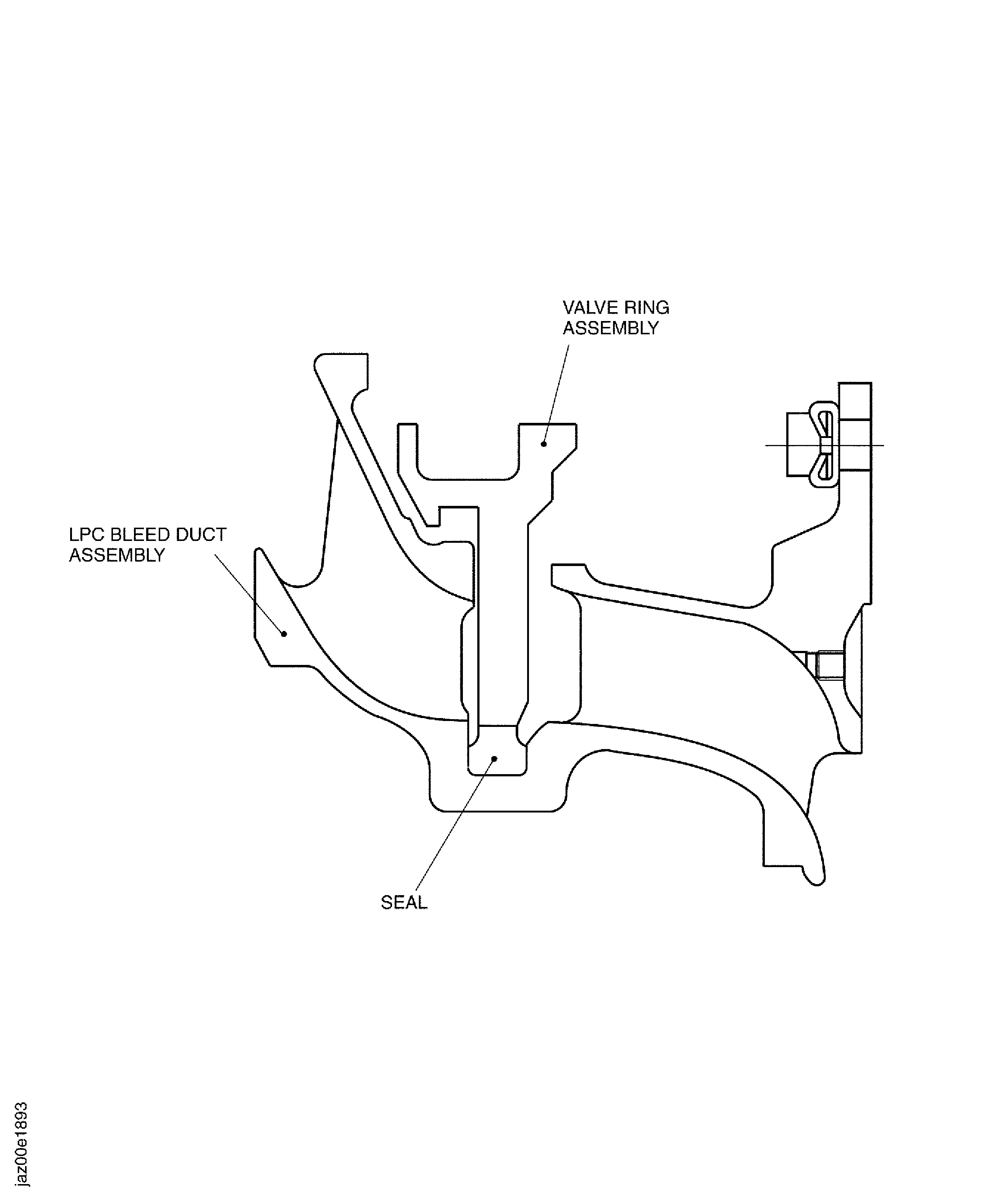

    6. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

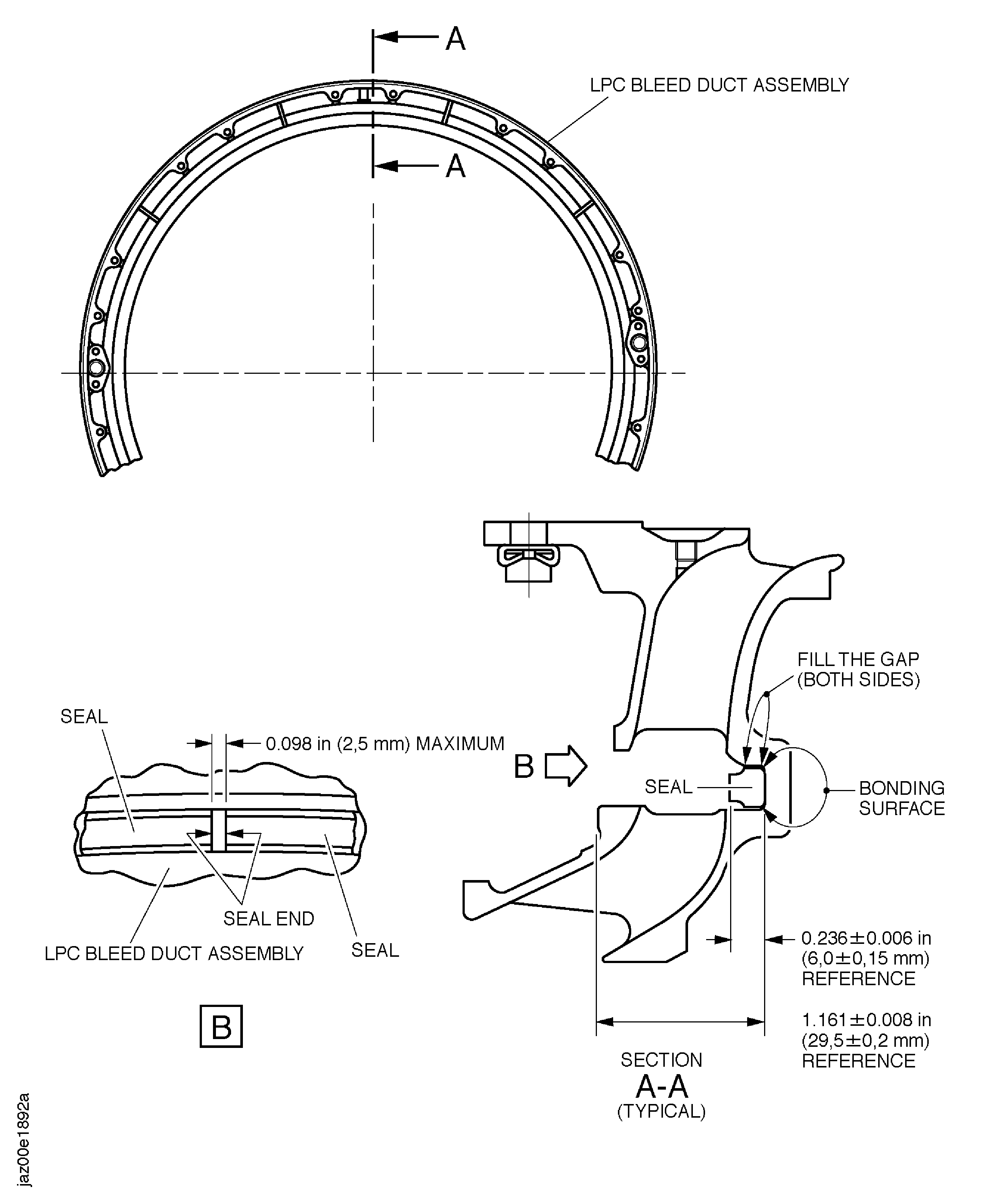

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised procedure to add gap dimension. Deleted dimension inspection step. (00VJ801E)
