TASK 72-32-71-300-006 LPC Bleed Valve Support Ring - Repair Surface Damage By Blending, Repair-006 (VRS1330)

DMC:V2500-A0-72-32-7121-00A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-71-300-006 LPC Bleed Valve Support Ring - Repair Surface Damage By Blending, Repair-006 (VRS1330)

Effectivity

FIG/ITEM

PART NO.

01-600

5A3703

01-600

5A0950

Material of component

PART IDENT

SYMBOL

MATERIAL

Support ring assembly

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-71-350-052 Remove the Damage of the Support Ring Assembly

      1. Scallop, make smooth and/or hand polish to remove nicks, scratches and burrs.

        1. Use abrasive stones or papers and/or fine file.

        1. Surface finish of the repair must be the same as the adjacent area.

        2. Refer to Figure.

        3. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-71-220-081 Examine the Support Ring Assembly

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for nicks, scratches, and/or burrs using 10X magnifying glass.

      2. Refer to TASK 72-32-71-200-004.

    3. SUBTASK 72-32-71-230-059 Examine the Support Ring Assembly for Cracks

      1. Fluorescent penetrant examine the repaired area.

      1. Make sure there are no cracks in the repaired area.

      2. Refer to the SPM TASK 70-23-05-230-501.

    4. SUBTASK 72-32-71-110-052 Remove the Grease from the Support Ring Assembly

      1. Remove the grease from the repaired area.

      1. Use a clean cloth which is moist with degreasing fluid and make clean repaired area.

      2. Refer to the SPM TASK 70-11-26-300-503.

    5. SUBTASK 72-32-71-330-052 Apply Surface Protection to the Support Ring Assembly

      1. Apply chromate conversion coating to the repaired area.

      2. Refer to the SPM TASK 70-38-02-100-501.

    2. Clean cold water and dry air blast to the repaired area.

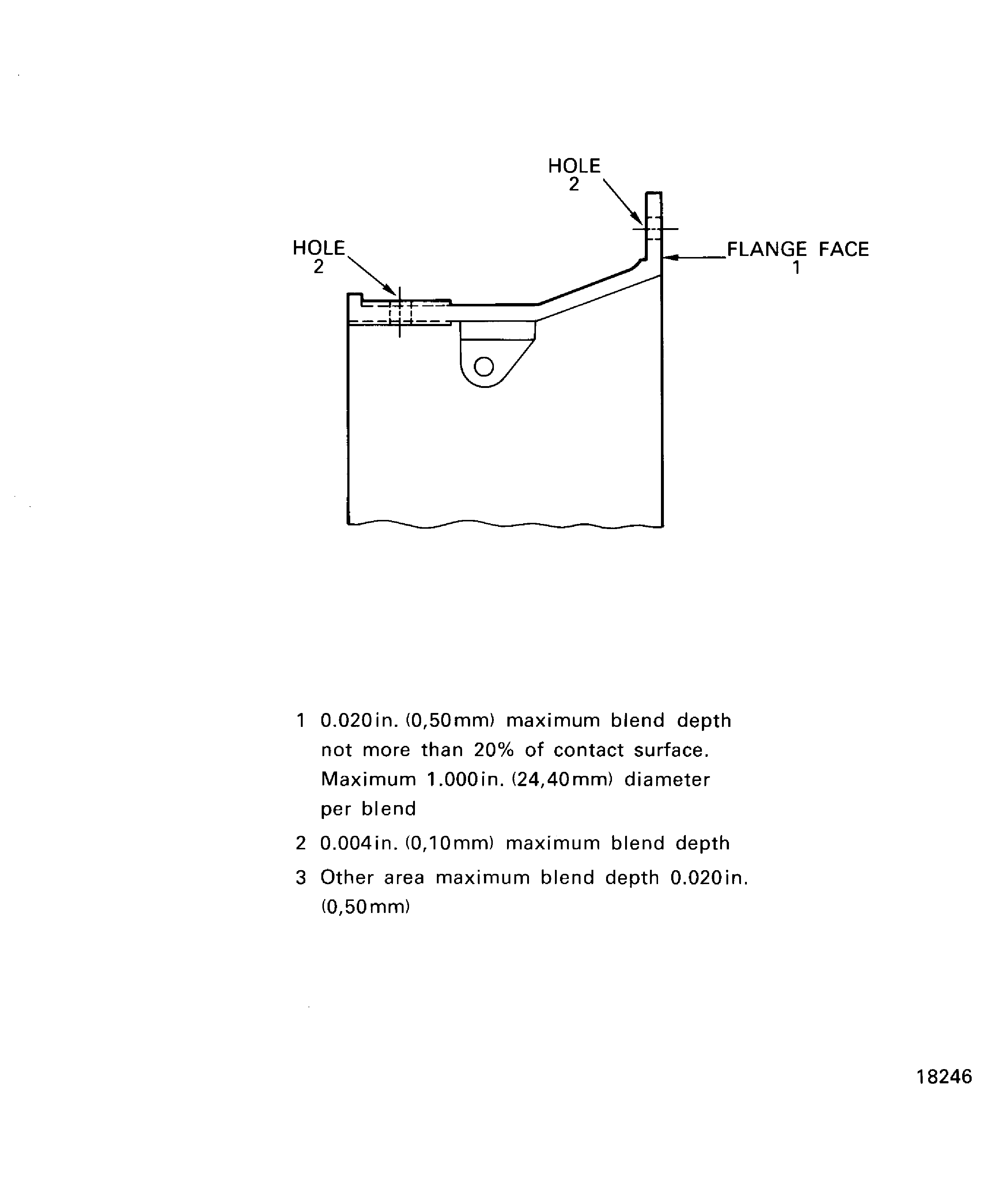

    6. Figure: Support ring assembly - blend limit

    Support ring assembly - blend limit

Requirements After Job Completion

Follow-On Conditions

NONE
