TASK 72-32-71-200-003-B00 LPC Bleed Valve Arm Pins - Examine, Inspection-003

DMC:V2500-A0-72-32-7151-00B-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-71-200-003-B00 LPC Bleed Valve Arm Pins - Examine, Inspection-003

Effectivity

FIG/ITEM

PART NO.

01-230

5A0794

01-430

5A0794

General

This TASK gives the procedure for the inspection of the pins. For the other bleed valve support and arm parts, refer to TASK 72-32-71-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/.item numbers are used. For the service bulletin alpha variants refer to IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any parts are examined. Refer to TASK 72-32-71-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the parts are visually examined.

Do not discard any parts until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definition of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of testing for Crack Indications

Chemical Process

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-71-230-078 Examine the Pins (01-230 and 01-420) for Cracks

    1. Clean the parts. Refer to TASK 72-32-71-100-000 (CLEANING-000).

      2. Do the test for cracks on the parts that are given below. Use the applicable fluorescent penetrant procedure.

        PART IDENT

        TASK/SUBTASK

        Pin

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-71-220-136 Examine the Pins (01-230 and 01-430) Surface

    1. Refer to Figure.

      2. Examine all the surfaces.

        1. Galled.

          1. Any galls

          1. Repair, VRS1329 TASK 72-32-71-300-008 (REPAIR-008)

        2. Nicked.

          1. Any nicks

          1. Repair, VRS1329 TASK 72-32-71-300-008 (REPAIR-008)

    3. SUBTASK 72-32-71-220-137 Examine the Pins (01-230 and 01-430) Diameter

    1. Refer to Figure.

      2. Examine the diameter at location 1.

        1. Worn.

          1. If the diameter is not less than 0.1637 in. (4.158 mm)

          1. Accept

          2. Less than 0.1637 in. (4.158 mm)

          1. Reject

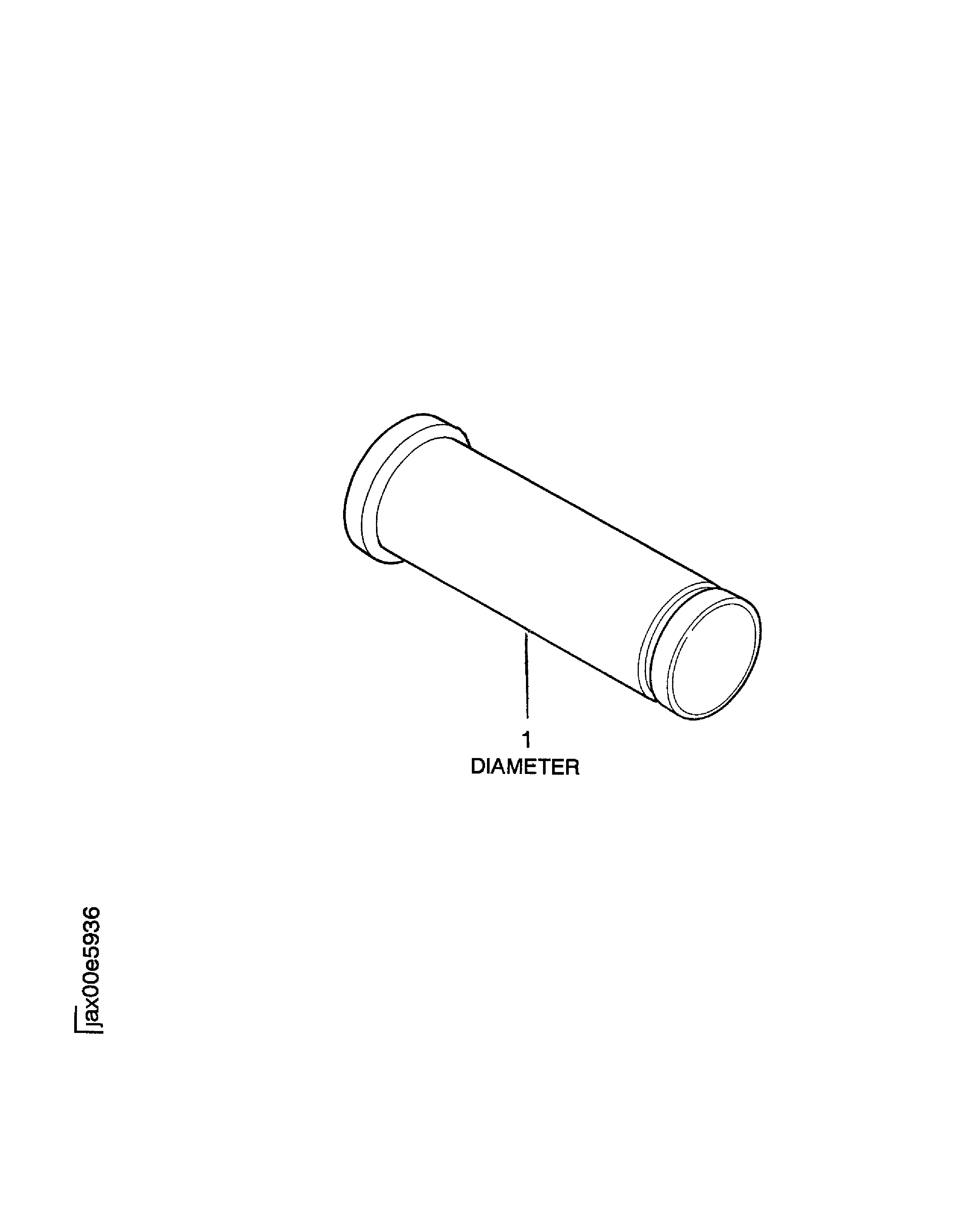

    4. Figure: Location on the pin

    Location on the pin

Requirements After Job Completion

Follow-On Conditions

NONE
