TASK 72-32-72-300-006 LPC Bleed Valve Ring - Replace The Seal, Repair-006 (VRS1751)

DMC:V2500-A0-72-32-7200-02A-920A-C|Issue No:002.00|Issue Date:2020-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-72-300-006 LPC Bleed Valve Ring - Replace The Seal, Repair-006 (VRS1751)

Effectivity

FIG/ITEM

PART NO.

02-100

5A1450

02-100

5A1686

02-100

5A1872

02-100

5A2225

Material of component

PART IDENT

SYMBOL

MATERIAL

Valve ring assembly

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3J12821 Rolling fixture0AM53IAE 3J12821

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM00BB6CoMat 01-275
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
DELETEDLOCALDELETED
CoMat 08-013B COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013B

(Alternative to CoMat 08-013F)

CoMat 08-013F COLD CURING SILICONE COMPOUND00BB6CoMat 08-013F

(Alternative to CoMat 08-013B)

CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANTX222XCoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Seal5A04681

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-72-350-054 Remove the Damaged Seal from the Valve Ring Assembly

    1. CAUTION

      WHEN YOU REMOVE DAMAGED SEAL, DO NOT CAUSE DAMAGE TO THE PARENT MATERIAL.

      Refer to Figure.

    2. Examine the seal.

      3. Remove damaged seal and all remaining compound.

      1. Use cutter knife or scraper.

    2. SUBTASK 72-32-72-380-053 Apply the Surface Protection to the Valve Ring Assembly

      1. Apply chromate conversion coating to the repair surfaces, if necessary.

      2. Refer to the SPM TASK 70-38-02-300-503.

    3. SUBTASK 72-32-72-360-053 Prepare the Mating Surfaces for the Cold Curing Silicone Rubber Compound

    1. Refer to Figure.

      2. Cold liquid degrease the mating surfaces of the valve ring assembly and the seal.

      1. Refer to the SPM TASK 70-11-26-300-503.

      3. Hand clean the mating surface of the seal only.

      2. Refer to the SPM TASK 70-36-02-360-501.

    4. NOTE

      A water-break test is not necessary.

      Do Step again.

    4. SUBTASK 72-32-72-360-056 Apply and Cure the Cold Curing Silicone Rubber Compound

    1. CAUTION

      YOU MUST NOT EAT OR SMOKE AT LOCATIONS WHERE THESE MATERIALS ARE USED.

      CAUTION

      AFTER PREPARATION THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND, TO PREVENT CONTAMINATION.

      CAUTION

      BONDING MUST BE DONE IMMEDIATELY AFTER THE SURFACE PREPARATION.

      Refer to Figure.

      NOTE

      The primer must be applied immediately after the mating surfaces are prepared. It is cured at room temperature by touching to moisten in air.

      NOTE

      If the parts are not used immediately, after the primer is applied, they must be kept in polythene bags; but for no longer than 24 hours.

      2. Apply a thin layer of primer only to the prepared mating surface of the valve ring assembly. Dry in air for 30 minutes.

      2. Refer to the SPM TASK 70-36-02-360-501.

      3. CAUTION

        APPLY THE COLD CURING SILICONE RUBBER COMPOUND TO A MINIMUM THICKNESS OF 0.021 IN. (0.53 MM) IN ORDER TO PREVENT SEAL PEELING.

        NOTE

        Only CoMat 08-013B COLD CURING SILICONE COMPOUND or CoMat 08-013F COLD CURING SILICONE COMPOUND can be used as listed in the Overhaul Process and Consumable Index.

        Apply the cold curing silicone rubber compound to the mating surfaces of the valve ring assembly and the seal.

      1. Use a spatula and CoMat 08-013B COLD CURING SILICONE COMPOUND or CoMat 08-013F COLD CURING SILICONE COMPOUND. A minimum thickness of the compound must be 0.021 in. (0.53 mm).

      2. Refer to the SPM TASK 70-36-02-360-501.

      4. Install the seal to the valve ring assembly within 3 minutes after the compound applied.

      2. Apply sufficient pressure to ensure good contact, and to make the seal surface smooth, and to form a witness of compound at all edges.

      3. Make sure the compound can be seen around the sealed surface.

      5. NOTE

        The part can be touched after 12 hours.

        Cure the compound at 68 deg F (20 deg C), for 48 hours.

      1. Do not apply a load during this time.

    5. SUBTASK 72-32-72-220-073 Examine the Repaired Area of the Valve Ring Assembly

    1. Refer to Figure.

    2. Dimensionally examine the position of the repaired seal.

    3. Visually examine the protrusion of compound.

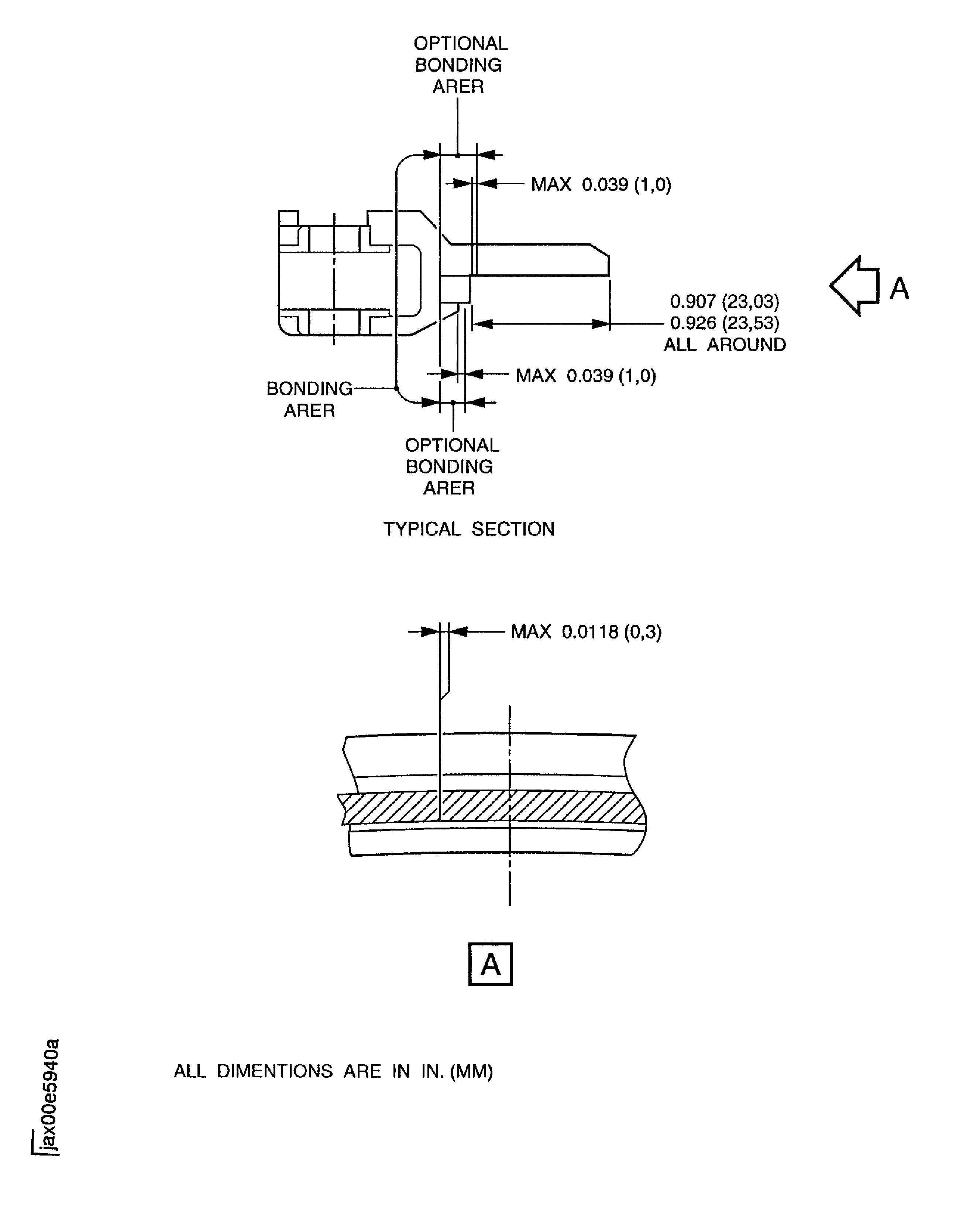

    6. Figure: Replace the Seal

    Replace the Seal

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised consumable materials and effectivity table. (96VJ813C)
