TASK 72-32-75-200-002-B00 LPC Bleed Valve Actuating Rods - Examine, Inspection-002

DMC:V2500-A0-72-32-7510-00B-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-75-200-002-B00 LPC Bleed Valve Actuating Rods - Examine, Inspection-002

Effectivity

FIG/ITEM

PART NO.

01-200

5A0790

01-200

5A1747

01-500

5A0479

01-500

5A1746

General

This TASK gives the procedure for the inspection of the Right and Left Rod Assembly.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the TASK 72-32-75-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-00-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indication

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-75-230-056 Examine the Right Rod Assembly (01-200) and the Left Rod Assembly (01-500) for Cracks

    1. Clean the part. Refer to TASK 72-32-75-100-000 (CLEANING-000).

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/SUBTASK

        Right rod and left rod assembly

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-75-220-068 Examine the Right Rod Assembly (01-200) Tube and the Left Rod Assembly (01-500) Tube

    1. Refer to Figure.

      2. Examine the tube at location 1.

        1. Nicked or scratched

        1. Repair, VRS1340 TASK 72-32-75-300-002 (REPAIR-002)

        2. Dented

          1. Up to 0.01 in. (0.25 mm)

          1. Accept

          2. More than in Step

          1. Reject

    3. SUBTASK 72-32-75-220-069 Examine the Right Rod Assembly (01-200) Rod End Assembly and the Left Rod Assembly (01-500) Rod End Assembly

    1. Refer to Figure.

      2. Examine the spherical bearing at location 3.

        1. Loosen.

          1. If the radial clearance between the ball and the race is less than 0.002 in. (0.05 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1341 TASK 72-32-75-300-004 (REPAIR-004)

    4. SUBTASK 72-32-75-220-070 Examine the Right Rod Assembly (01-200) Boss and the Left Rod Assembly (01-500) Boss

    1. Refer to Figure.

      2. Examine the thread at location 2.

        1. Stripped

        1. Reject

        2. Crossed

        1. Reject

        3. Pick-up

        1. Reject

    5. SUBTASK 72-32-75-220-071 Examine the Right Rod Assembly (01-200) Rod End and the Left Rod Assembly (01-500) Rod End

    1. Refer to Figure.

      2. Examine the rod end at location 4.

        1. Nicked and scratched

        1. Repair, VRS1340 TASK 72-32-75-300-002 (REPAIR-002)

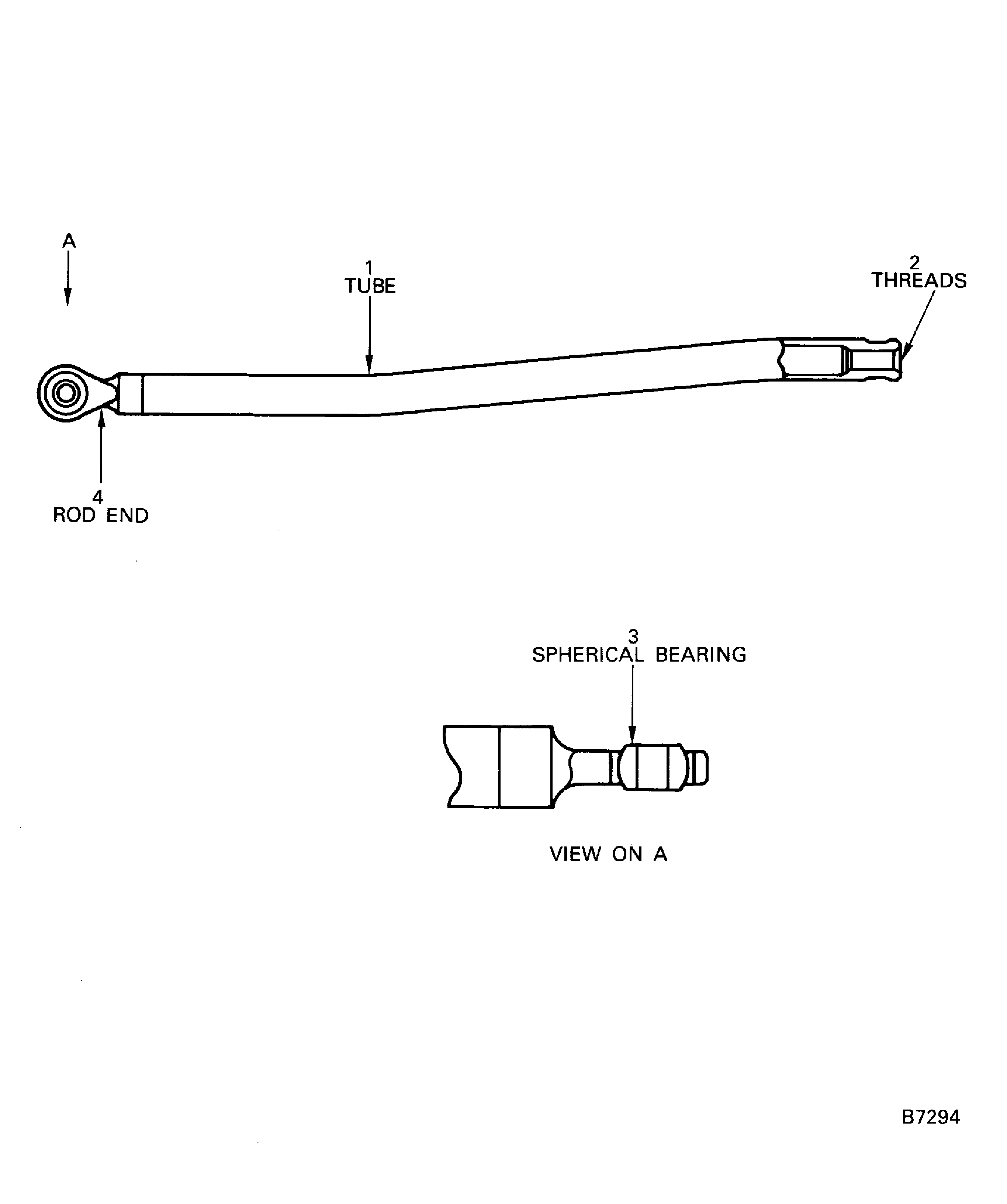

    6. Figure: Locations on the right and left rod assembly (Typical)

    Locations on the right and left rod assembly (Typical)
