TASK 72-32-76-300-013 LPC Stage 2.5 Stator - Replace The Vane, Repair-013 (VRS1860)

DMC:V2500-A0-72-32-7600-09A-920A-C|Issue No:002.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-76-300-013 LPC Stage 2.5 Stator - Replace The Vane, Repair-013 (VRS1860)

Effectivity

FIG/ITEM

PART NO.

01-400

5R0097

General

This Repair scheme gives the procedure for replacing the vane assemblies.

Material of components

PART IDENT

SYMBOL

MATERIAL

Vane, Stage 2.5 LPC (O/C)

Aluminum alloy

Vane, Stage 2.5 LPC (Nom)

Aluminum alloy

Vane, Stage 2.5 LPC (U/C)

Aluminum alloy

Price and availability.

Refer to IAE for any of the following:

Tools.

Engine parts.

Repair of spares.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

Equivalent materials or equipment can be used.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3J13171 Stand, working0AM53IAE 3J131711
IAE 3J13215 Holder,locating0AM53IAE 3J132151

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-076 METHYL ETHYL KETONELOCALCoMat 01-076
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 07-070 ZINC CHROMATE PRIMERIAE59CoMat 07-070
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Vane assy of, Stage 2.55R014540

(O/C)

Vane assy of, Stage 2.55R014740

(Nom)

Vane assy of, Stage 2.55R014940

(U/C)

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-76-350-065 Remove the Defective Vane

      1. Remove the rubber from the defective vane.

        1. Use hand tools.

        1. Care must be taken not to damage the parent material.

      2. Remove the defective vane.

      1. Disconnect the bolt that attaches the vane to the inner ring.

      3. Remove the remaining rubber from the outer shroud, if the remaining rubber is not fully removed in Step.

        1. Apply adhesive tape for masking to the areas which do not require remaining rubber.

        2. Use dry plastic blast to remove the remaining rubber.

        1. Refer to SPM TASK 70-12-07-120-501.

      3. Remove adhesive tape for masking.

    2. SUBTASK 72-32-76-110-061 Clean the Repair Area

    3. SUBTASK 72-32-76-360-062 Attach the New Vane in Position

    1. Refer to Figure, Figure, Figure and Figure.

      2. Apply primer to bond surface.

      1. Refer to Repair, VRS1874 TASK 72-32-76-300-016 (REPAIR-016).

      3. Install the new vane in position.

        1. Use IAE 3J13171 Stand, working 1 off and IAE 3J13215 Holder,locating 1 off to obtain the correct position.

        1. Apply CoMat 07-070 ZINC CHROMATE PRIMER to the surface of washers, where they contact with the inner ring. Apply CoMat 10-077 APPROVED ENGINE OILS, to the bolts and torque the bolts to between 32 lbfin to 36 lbfin (3.61 Nm to 4.07 Nm).

      4. Apply the silicone rubber compound and cure.

      1. Refer to Repair, VRS1874 TASK 72-32-76-300-016 (REPAIR-016).

    4. SUBTASK 72-32-76-220-125 Examine the Repaired Area

      1. CAUTION

        IF VANES ARE INCORRECTLY ASSEMBLED, BLADES SUFFER EXCESSIVE STRESS WHICH CAN LEAD TO A BREAKDOWN OF THE BLADES.

        Examine the repaired area.

      1. Refer to Repair, VRS1874 TASK 72-32-76-300-016 (REPAIR-016).

      2. Examine the vane location.

        1. Refer to Figure.

        1. If necessary, do this TASK again.

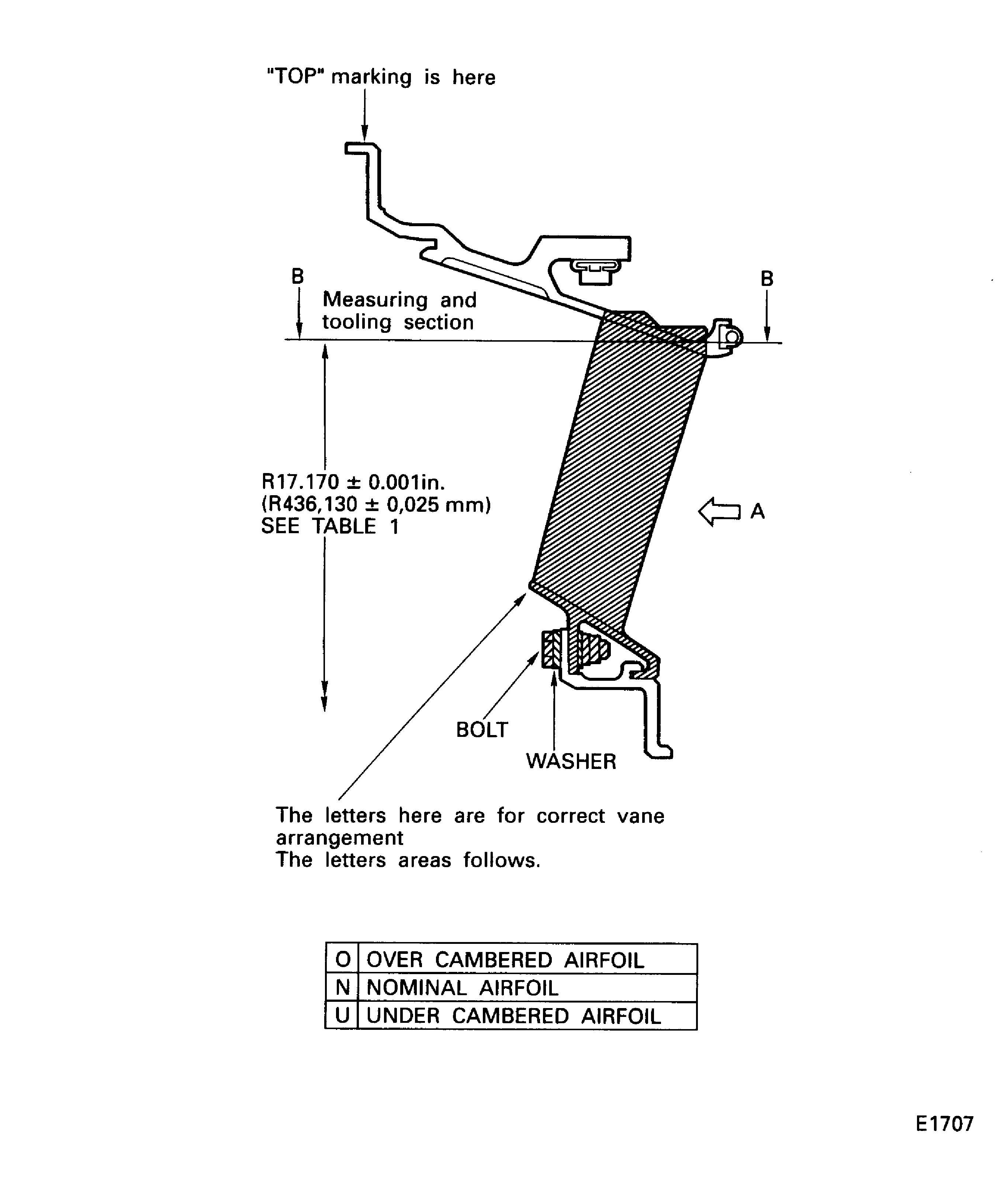

    5. Figure: Stage 2.5 Vane Assembly

    Sheet 1

    Legend
    Stage 2.5 vane assembly

    Sheet 1

    Close

    Figure: Stage 2.5 Vane Assembly

    Sheet 2

    Legend
    Stage 2.5 vane assembly

    Sheet 2

    Close

    Figure: Stage 2.5 Vane Assembly

    Sheet 3

    Legend
    Stage 2.5 vane assembly

    Sheet 3

    Close

    Figure: Stage 2.5 Vane Assembly

    Sheet 4

    Legend
    Stage 2.5 vane assembly

    Sheet 4

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised procedure to remove the damaged vanes and related molding rubber and added CoMat 02-001 and CoMat 02-005 information. (93VJ834B)
