TASK 72-32-83-300-011 LPC Stage 1.5 Stator - Replace The Stator Vane, Repair-011 (VRS1392)

DMC:V2500-A0-72-32-8315-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-83-300-011 LPC Stage 1.5 Stator - Replace The Stator Vane, Repair-011 (VRS1392)

Effectivity

FIG/ITEM

PART NO.

01-500

5A0069

Assembly B

01-500

5A1417

Assembly B

01-500

5A7376

Assembly A

Material of component

PART IDENT

SYMBOL

MATERIAL

LPC stage 1.5 vane assembly

Vane: Titanium alloy

Inner ring: Aluminum alloy

General

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Plastic chisel type toolLOCALPlastic chisel type tool
InjectorLOCALInjector

(Air pressure type)

SpatulaLOCALSpatula
Vacuum pumpLOCALVacuum pump
IAE 3J12134 Molding fixture0AM53IAE 3J121341
IAE 3J12757 Molding fixture0AM53IAE 3J127571

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-121 SILICON CARBIDE GRITIAE72CoMat 05-121
CoMat 05-122 SILICON CARBIDE GRITIAE72CoMat 05-122
CoMat 05-123 SILICON CARBIDE GRITIAE72CoMat 05-123
CoMat 05-124 SILICON CARBIDE GRITIAE72CoMat 05-124
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014
CoMat 08-036 SILICONE RUBBER COMPOUNDLOCALCoMat 08-036
CoMat 08-042 SILICONE RUBBER COMPOUNDIAE55CoMat 08-042

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Vane, stage 1.5 LPC5A7377AR

(Assembly A)

Vane, stage 1.5 LPC5A0070AR

(Assembly B)

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-360-054 Remove the Identified Vane from the LPC Stage 1.5 Stator Assembly

    1. Refer to Figure.

      2. CAUTION

        BE CARFUL NOT TO DAMAGE THE SURFACE OF VANE AND RING WHEN REMOVING MOULDING RUBBER.

        Remove molding rubber to break the connection between vane and inner ring. Remove the identified vane from the inner ring.

      1. Use a clean plastic chisel type tool.

      3. Remove rubber from Area A and Area B.

      1. Use a clean, plastic chisel type tool.

      4. NOTE

        If abradable seal silicone rubber on inner ring is to be replaced, remove rubber after vanes are removed. New rubber should be installed and cured after new vanes are installed and bonded. Refer to VRS1395 (TASK 72-32-83-300-012) (REPAIR-012). If the rubber is serviceable then it should be protected from possible damage during this repair by installing a protective shield.

        Remove remaining molding rubber from the removed vane if it is serviceable.

      1. Use a clean plastic chisel type tool.

    2. SUBTASK 72-32-83-120-051 Clean the Surfaces which are to be Applied the Silicone Rubber Compound

    1. Refer to Figure, Figure and Figure.

      2. Apply masking tape to the areas which do not require the molding compound.

    4. Remove remaining abrasive by vacuuming or clean air blow.

      5. Wipe and clean the surfaces of vane and inner ring.

      1. Refer to the SPM TASK 70-36-04-360-501.

      6. NOTE

        After cleaning the component must not be touched by hand and must be covered by craft paper to prevent contamination.

        Air dry for 15 minutes minimum.

      1. Refer to the SPM TASK 70-36-04-360-501.

    3. SUBTASK 72-32-83-360-055 Apply Primer to the Surfaces after Cleaning

    1. Refer to Figure, Figure and Figure.

      2. CAUTION

        DO NOT APPLY THE PRIMER TO THE SILICONE RUBBER.

        Apply primer to the surfaces after cleaning.

      2. Refer to the SPM TASK 70-36-04-360-501.

      3. Apply the primer to the metal surface only.

    3. Air dry for 30 minutes.

    4. SUBTASK 72-32-83-360-100 Make-up of Silicone Rubber Compound

      1. Mix 9.5 to 10.5 parts by weight of the base material with 0.8 to 1.2 parts by weight of the curing agent in 8 to 10 minutes at 70 to 80 deg F (21 to 27 deg C) until the material is a constant color.

      1. Use CoMat 08-042 SILICONE RUBBER COMPOUND and a clean spatula or equivalent.

      2. NOTE

        When mixed, the life of the silicone rubber compound is a maximum of 1.5 hours at room temperature.

        Remove all the air from the mixture at 28 in. (711.2 mm) of mecury for 15 minutes minimum.

      1. Use a vacuum pump.

    5. SUBTASK 72-32-83-360-101 Mold the Silicone Rubber Compound

    1. Refer to Figure and Figure.

      2. NOTE

        Make sure that the clearance between each vane is in limit in the figure.

        Set up the mold with the molding fixture.

      1. Use an air pressure type injector.

    4. Cure the silicone rubber compound at 70 to 80 deg F (21 to 27 deg C) for a minimum of 4 hours with the moulding fixture attached.

    6. SUBTASK 72-32-83-360-056 Mold the Silicone Rubber Compound

    1. Refer to Figure and Figure.

      2. Mix silicone rubber compound.

      2. Refer to the SPM TASK 70-36-04-360-501.

      3. Degas from the mixture.

      1. Refer to the SPM TASK 70-36-04-360-501.

      4. Put the mixture into Area B.

      1. Use a air pressure type injector.

      2. Refer to the SPM TASK 70-36-04-360-501.

      5. Cure the silicone rubber compound.

      1. Refer to the SPM TASK 70-36-04-360-501.

    7. SUBTASK 72-32-83-220-095 Examine the Repaired Area

    1. Refer to Figure, Figure and Figure.

    2. Visually and dimensionally examine the repaired area.

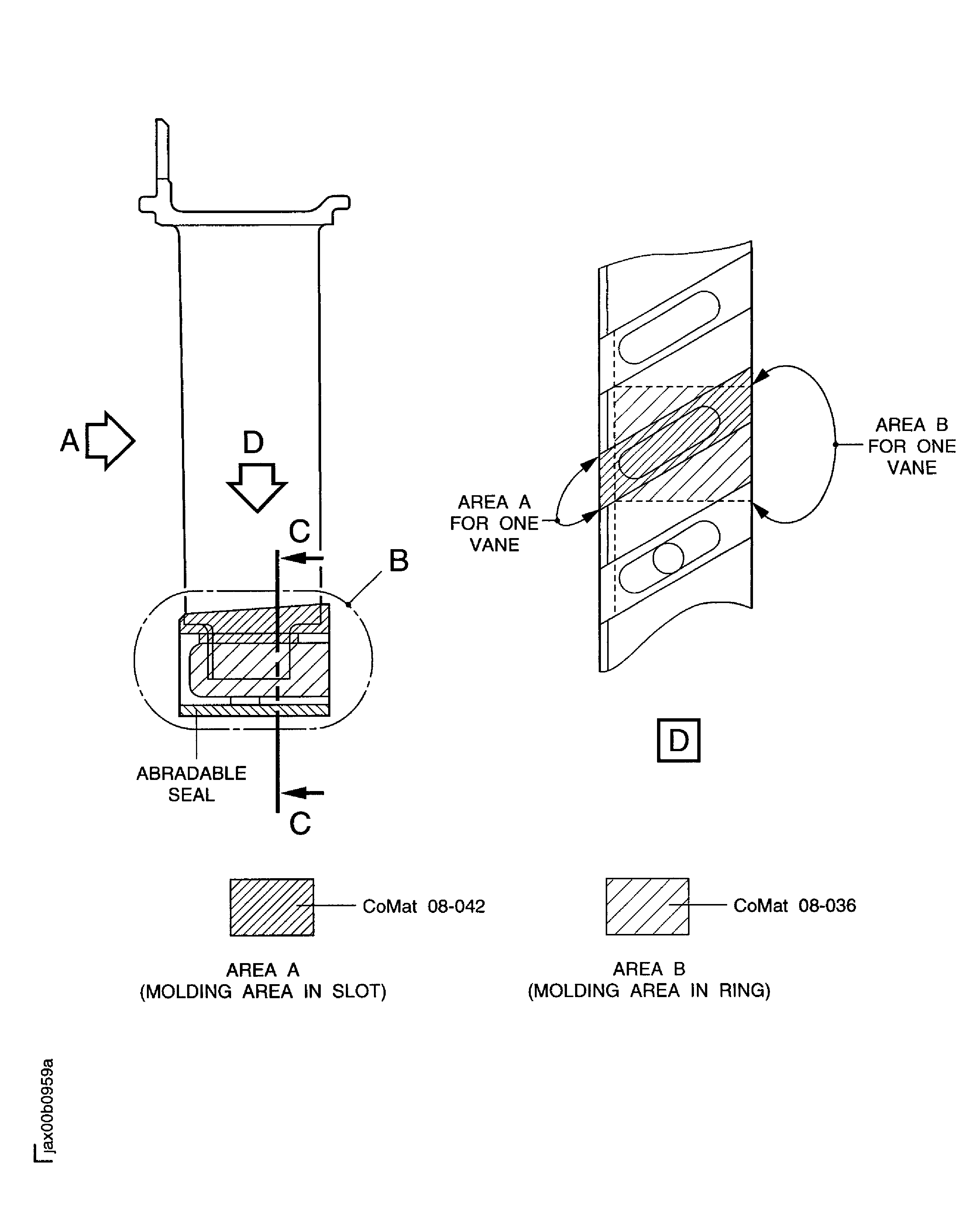

    8. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

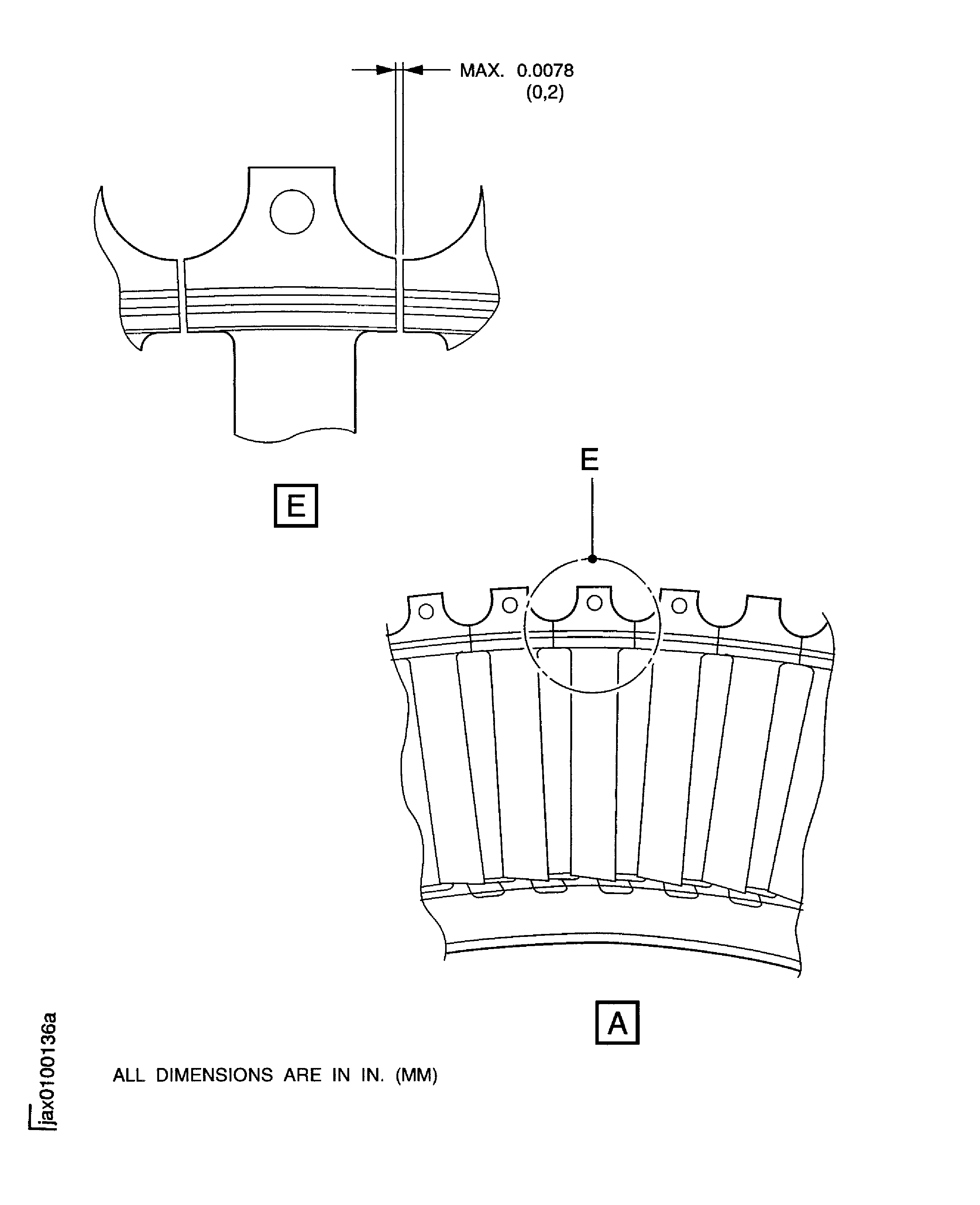

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

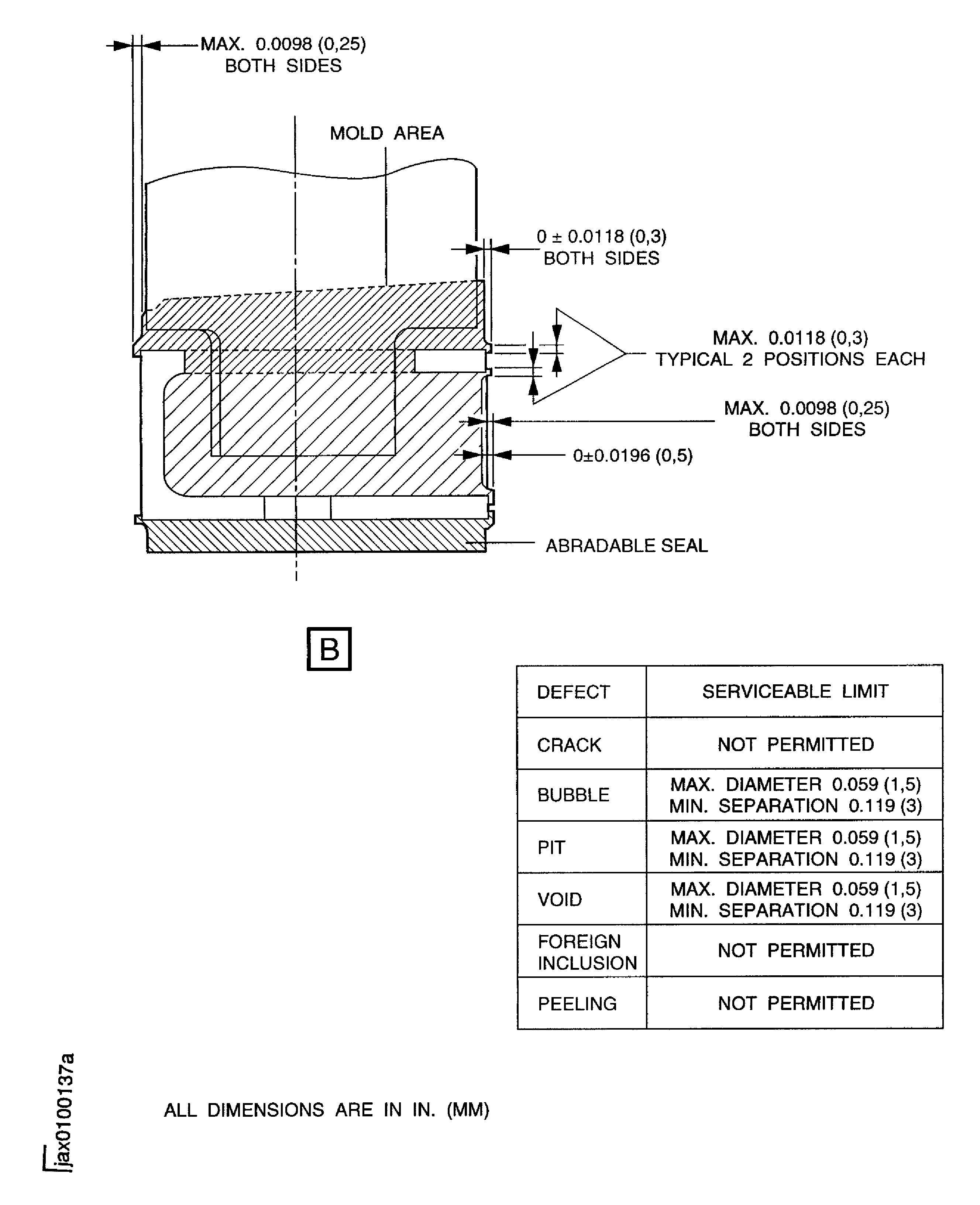

    Figure: Repair Details and Dimensions

    Sheet 3

    Legend
    Repair Details and Dimensions

    Sheet 3

    Close

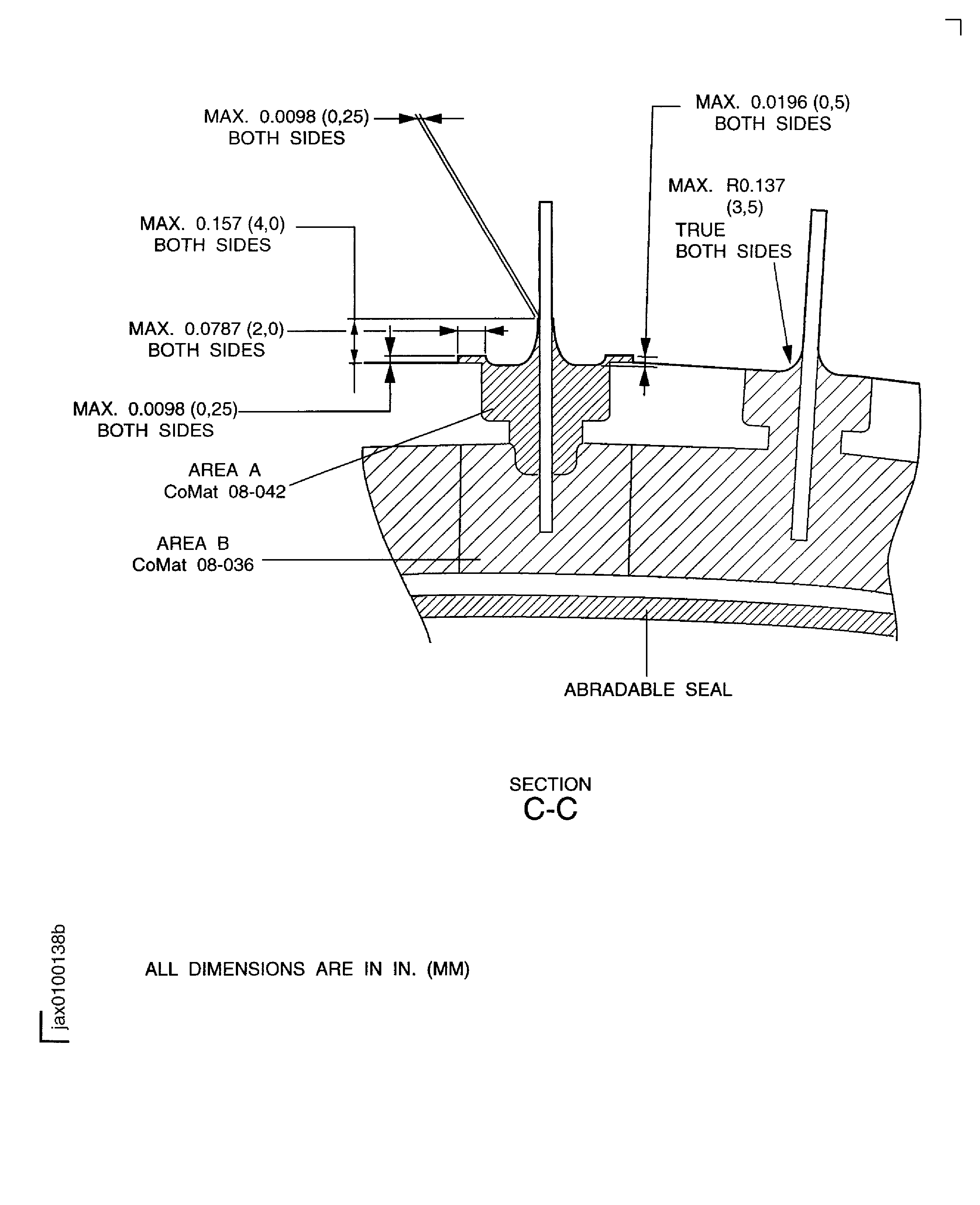

    Figure: Repair Details and Dimensions

    Sheet 4

    Legend
    Repair Details and Dimensions

    Sheet 4

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
