TASK 72-32-83-200-004-B00 LPC Stage 2 Stator - Examine, Inspection-004

DMC:V2500-A0-72-32-8320-00B-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-83-200-004-B00 LPC Stage 2 Stator - Examine, Inspection-004

Effectivity

FIG/ITEM

PART NO.

02-800

5A0433

General

This TASK gives the procedure for the inspection of the LP compressor stage 2 stator assembly. For the other LP compressor booster stage vanes parts, refer to TASK 72-32-83-200-000 (INSPECTION-000).

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-32-83-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 2J12619 Inspection fixture0AM53IAE 2J126191

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-230-064 Examine the LP Compressor Stage 2 Stator Assembly (02-800) for Cracks

    1. Clean the parts. Refer to TASK 72-32-83-100-000 (CLEANING-000).

    2. Do the crack test on the parts that are given below.

      PART IDENT

      TASK/SUBTASK

      LP compressor stage 2 stator assembly

      3. Inner shroud ring.

        1. Cracked

        1. Reject

      4. Vanes.

        1. Cracked

        1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

    2. SUBTASK 72-32-83-220-119 Examine the LP Compressor Stage 2 Stator Assembly (02-800) Leading Edge

    1. Refer to Figure.

      2. Examine the leading edge at location 7.

        1. Dented.

          1. In zone A

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

          2. In area other than Step

          1. Up to 0.040 in. (1.01 mm) in depth

          2. Repair, VRS1766 TASK 72-32-83-300-032 (REPAIR-032)

          3. More than in 0.040 in. (1.01 mm) in depth

          4. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

        2. Nicked.

          1. In zone A

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

          2. In area other than Step

          1. Up to 0.040 in. (1.01 mm) in depth

          2. Repair, VRS1766 TASK 72-32-83-300-032 (REPAIR-032)

          3. More than 0.040 in. (1.01 mm) in depth

          4. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

        3. Cracked

        1. Refer to Step

    3. SUBTASK 72-32-83-220-120 Examine the LP Compressor Stage 2 Stator Assembly (02-800) Trailing Edge

    1. Refer to Figure.

      2. Examine the trailing edge at location 3.

        1. Dented.

          1. In zone A

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

          2. In area other than Step

          1. Up to 0.040 in. (1.01 mm) in depth

          2. Repair, VRS1766 TASK 72-32-83-300-032 (REPAIR-032)

          3. More than 0.040 in. (1.01 mm) in depth

          4. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

        2. Nicked.

          1. In zone A

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

          2. In area other than Step

          1. Up to 0.040 in. (1.01 mm) in depth

          2. Repair, VRS1766 TASK 72-32-83-300-032 (REPAIR-032)

          3. More than 0.040 in. (1.01 mm) in depth

          4. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

        3. Cracked

        1. Refer to Step

    4. SUBTASK 72-32-83-220-121 Examine the LP Compressor Stage 2 Stator Assembly (02-800) Convex and Concave Airfoil Surface

    1. Refer to Figure.

      2. Examine the convex and concave airfoil surface at location 4.

        1. Dented.

          1. In zone A

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

          2. In area other than Step

          1. Up to 0.010 in. (0.25 mm) in depth

          2. Repair, VRS1766 TASK 72-32-83-300-032 (REPAIR-032)

          3. More than 0.010 in. (0.25 mm) in depth

          4. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

          5. To cause a protrusion on the opposite side of the airfoil

          6. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

        2. Nicked.

          1. In zone A

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

          2. In area other than Step

          1. Up to 0.010 in. (0.25 mm) in depth

          2. Repair, VRS1766 TASK 72-32-83-300-032 (REPAIR-032)

          3. More than 0.010 in. (0.25 mm) in depth

          4. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

          5. To cause a protrusion on the opposite side of the airfoil

          6. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

    5. SUBTASK 72-32-83-220-122 Examine the LP Compressor Stage 2 Stator Assembly (02-800) Outer Platform

    1. Refer to Figure.

      2. Examine the outer platform at location 1.

        1. Galled.

          1. Up to 0.005 in. (0.12 mm) in depth

          1. Repair, VRS1768 TASK 72-32-83-300-034 (REPAIR-034)

          2. More than 0.005 in. (0.12 mm) in depth

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

    6. SUBTASK 72-32-83-220-123 Examine the LP Compressor Stage 2 Stator Assembly (02-800) Inner Shroud Ring

    1. Refer to Figure.

      2. Examine the inner shroud ring at location 5.

        1. Corroded

        1. Repair, VRS1951 TASK 72-32-83-300-048 (REPAIR-048)

        2. Nicked

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1951 TASK 72-32-83-300-048 (REPAIR-048)

        3. Dented.

          1. Up to 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than 0.010 in. (0.25 mm) in depth

          1. Repair, VRS1951 TASK 72-32-83-300-048 (REPAIR-048)

    7. SUBTASK 72-32-83-220-124 Examine the LP Compressor Stage 2 Stator Assembly (02-800) Molding Rubber

    1. Refer to Figure.

      2. Examine the molding rubber at location 8.

        1. Eroded

        1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

        2. Peeled

          1. Up to 30 percent of each section length at location 8

          1. Accept

          2. More than in Step

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

    8. SUBTASK 72-32-83-220-125 Examine the LP Compressor Stage 2 Stator Assembly (02-800) Abradable Seal

    1. Refer to Figure.

      2. Examine the abradable seal at location 6, use IAE 2J12619 Inspection fixture 1 off.

        1. Rubbed by the seal fins.

          1. Up to 0.040 in. (1.01 mm) in depth

          1. Accept

          2. More than 0.040 in. (1.01 mm) in depth

          1. Repair, VRS1769 TASK 72-32-83-300-033 (REPAIR-033)

        2. Worn.

          1. If the inner diameter is between 30.611 and 30.618 in. (777.50 and 777.70 mm)

          1. Accept

          2. More than 30.618 in. (777.70 mm)

          1. Repair, VRS1769 TASK 72-32-83-300-033 (REPAIR-033)

    9. SUBTASK 72-32-83-220-126 Examine the LP Compressor Stage 2 Stator Assembly (02-800) Platform Flowpath Surface

    1. Refer to Figure.

      2. Examine the flowpath at location 2.

        1. Scratched.

          1. Up to 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1768 TASK 72-32-83-300-034 (REPAIR-034)

          2. More than 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

        2. Nicked.

          1. Up to 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1768 TASK 72-32-83-300-034 (REPAIR-034)

          2. More than 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

        3. Dented.

          1. Up to 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1768 TASK 72-32-83-300-034 (REPAIR-034)

          2. More than 0.008 in. (0.20 mm) in depth

          1. Repair, VRS1767 TASK 72-32-83-300-031 (REPAIR-031)

    10. SUBTASK 72-32-83-220-158 Examine the LP Compressor Stage 2 Stator Assembly (02-800) Borescope Port

    1. Refer to Figure.

      2. Examine the borescope port at location 9.

        1. Scratched.

          1. Up to 0.020 in. (0.50 mm) in depth

          1. Repair, VRS1768, TASK 72-32-83-300-034 (REPAIR-034)

          2. More than 0.020 in. (0.50 mm) in depth

          1. Repair, VRS1767, TASK 72-32-83-300-031 (REPAIR-031)

        2. Galled.

          1. Up to 0.020 in. (0.50 mm) in depth

          1. Repair, VRS1768, TASK 72-32-83-300-034 (REPAIR-034)

          2. More than 0.020 in. (0.50 mm) in depth

          1. Repair, VRS1767, TASK 72-32-83-300-031 (REPAIR-031)

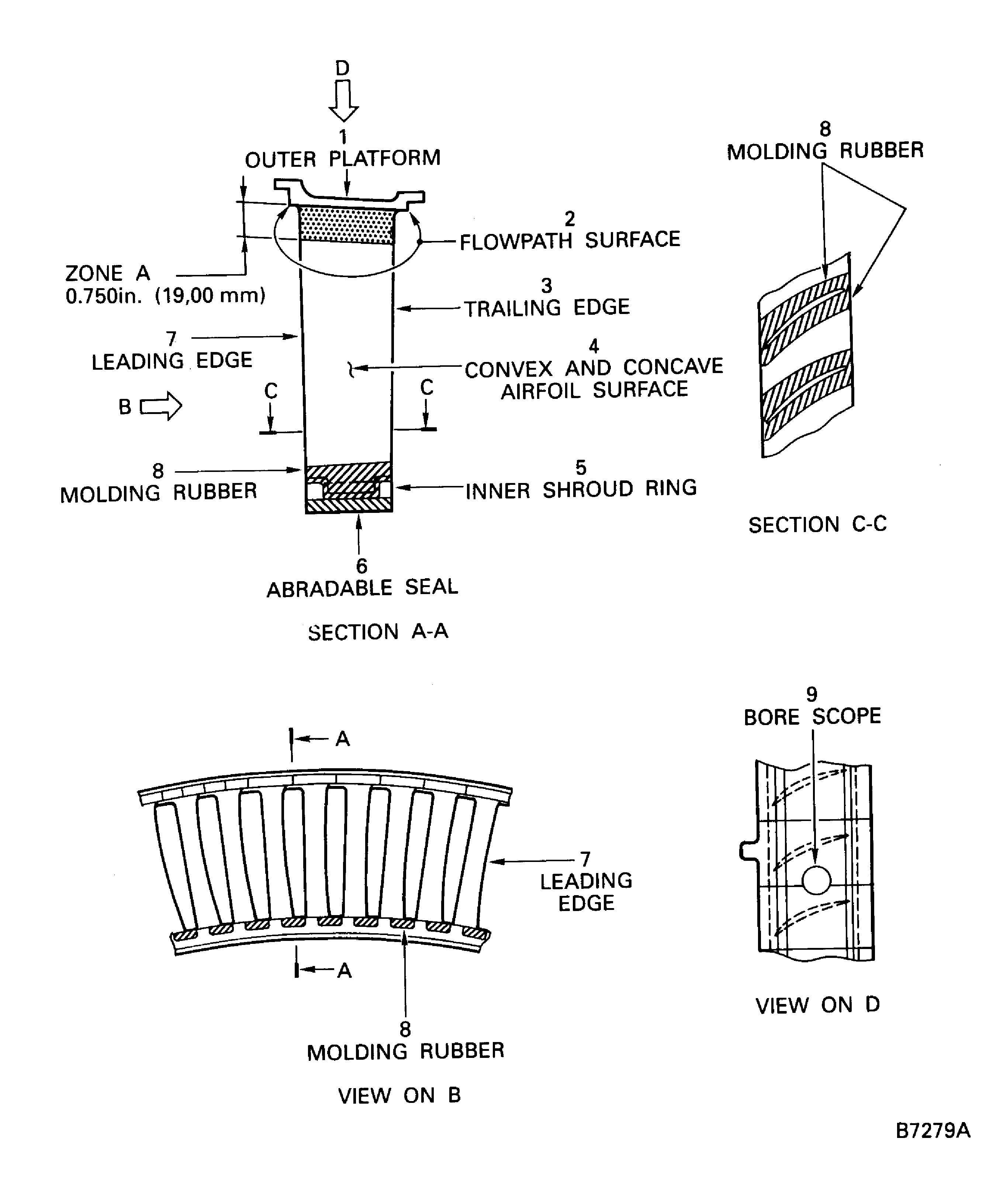

    11. Figure: Locations on the LP compressor stage 2 stator assembly

    Locations on the LP compressor stage 2 stator assembly

Requirements After Job Completion

Follow-On Conditions

NONE
