TASK 72-32-83-300-051 LPC Front Case - Repair The Rear Inside Diameter By Plasma Spray - Repair-051 (VRS1713)

DMC:V2500-A0-72-32-8330-03A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-83-300-051 LPC Front Case - Repair The Rear Inside Diameter By Plasma Spray - Repair-051 (VRS1713)

Effectivity

FIG/ITEM

PART NO.

02-350

5A0458

02-350

5A1864

Material of component

PART IDENT

SYMBOL

MATERIAL

LPC front case assembly

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Vertical latheLOCALVertical lathe
Throwaway turningtoolLOCALThrowaway turning tool
Dry blast cabinetLOCALDry blast cabinet
Plasma spray facilityLOCALPlasma spray facility
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Magnifying glass, 7xLOCALMagnifying glass, 7x
Vibrating marking pencilLOCALVibrating marking pencil
Inside micrometerLOCALInside micrometer
IAE 3J12839 Machining fixture0AM53IAE 3J128391

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)IE200CoMat 03-038
CoMat 05-015 ABRASIVE MEDIUM, ALUMINUM OXIDELOCALCoMat 05-015
CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)LOCALCoMat 06-063

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-325-053 Machine the Rear Inside Diameter of the LPC Front Case Assembly

    1. Refer to Figure.

      2. Set up and machine the rear inside diameter.

      1. Use vertical lathe and throw-away turning tool.

    2. SUBTASK 72-32-83-220-184 Examine the Rear Inside Diameter

    1. Refer to Figure.

      2. Measure and record the rear inside diameter.

      1. Use inner diameter micrometer.

    3. SUBTASK 72-32-83-230-082 Examine the LPC Front Case Assembly for Cracks

      1. Do a fluorescent penetrant inspection on the rear inside diameter.

      1. No cracks are permitted.

      3. Use FPI equipment.

      4. Refer to the SPM TASK 70-23-05-230-501.

    4. SUBTASK 72-32-83-120-062 Abrasive Blast the Rear Inside Diameter

    1. Refer to Figure.

      2. Apply masking tape to the areas which are not to be given plasma spray.

      3. Abrasive blast the rear inside diameter.

      2. Use dry blast cabinet.

      3. Refer to the SPM TASK 70-34-01-340-501.

    5. SUBTASK 72-32-83-340-054 Plasma Spray the Rear Inside Diameter of the Front Case Assembly

    1. Refer to Figure and Figure.

      2. Apply new masking tape if necessary.

      3. Apply plasma spray to the rear inside diameter.

      1. Refer to the SPM TASK 70-34-01-340-501.

      3. Use plasma spray facility.

      4. Apply sufficient plasma spray to get the necessary thickness.

      5. Maximum thickness of the plasma spray must be 0.012 in. (0.304 mm).

    6. SUBTASK 72-32-83-350-088 Remove the Overspray

    1. Refer to Figure.

      2. Remove the overspray.

      1. Use non-metallic hand scraper.

    7. SUBTASK 72-32-83-325-054 Finish Machine the Rear Inside Diameter of the Front Case Assembly

    1. Refer to Figure.

      2. Set up the front case assembly on machine.

      1. Use vertical lathe.

      3. Finish machine the rear inside diameter.

      1. Use throw-away turning tool.

      2. The minimum plasma spray coating thickness is 0.003 in. (0.08 mm).

      3. Refer to the SPM TASK 70-34-01-340-501.

    8. SUBTASK 72-32-83-220-185 Examine the Rear Inside Diameter of the Front Case Assembly

    1. Refer to Figure and Figure.

      2. Visually examine the coated area for chips, cracks, lifted material and coating that is not attached to the base metal.

      1. Refer to TASK 72-32-83-200-000 (INSPECTION-000).

      2. Use a 7x magnification glass.

      3. Dimensionally examine the rear inside diameter.

      1. Refer to TASK 72-32-83-200-000 (INSPECTION-000).

      2. Use inner diameter micrometer.

    9. SUBTASK 72-32-83-350-089 Identify the Repair

      1. Write VRS1713 adjacent to the part number.

      1. Mark a permanent mark.

      2. Refer to the SPM TASK 70-09-00-400-501.

      3. Use the vibration peening method.

      4. Use vibrating marking pencil.

      2. Apply the chromate conversion coating to the marking.

      1. Refer to the SPM TASK 70-38-02-300-503 (SUBTASK 72-38-02-300-02).

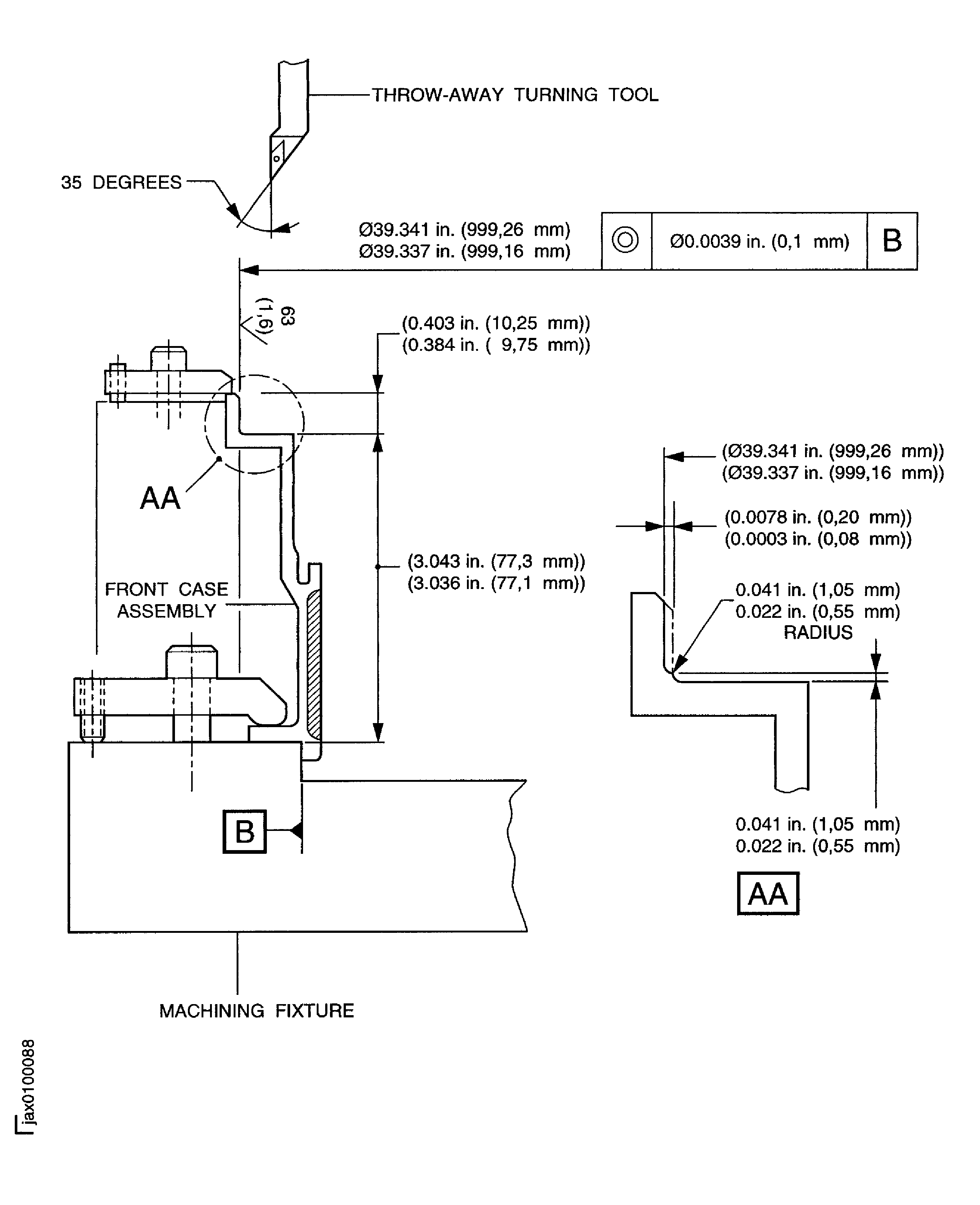

    10. Figure: Repair details and machining dimensions before plasma spray

    Repair details and machining dimensions before plasma spray

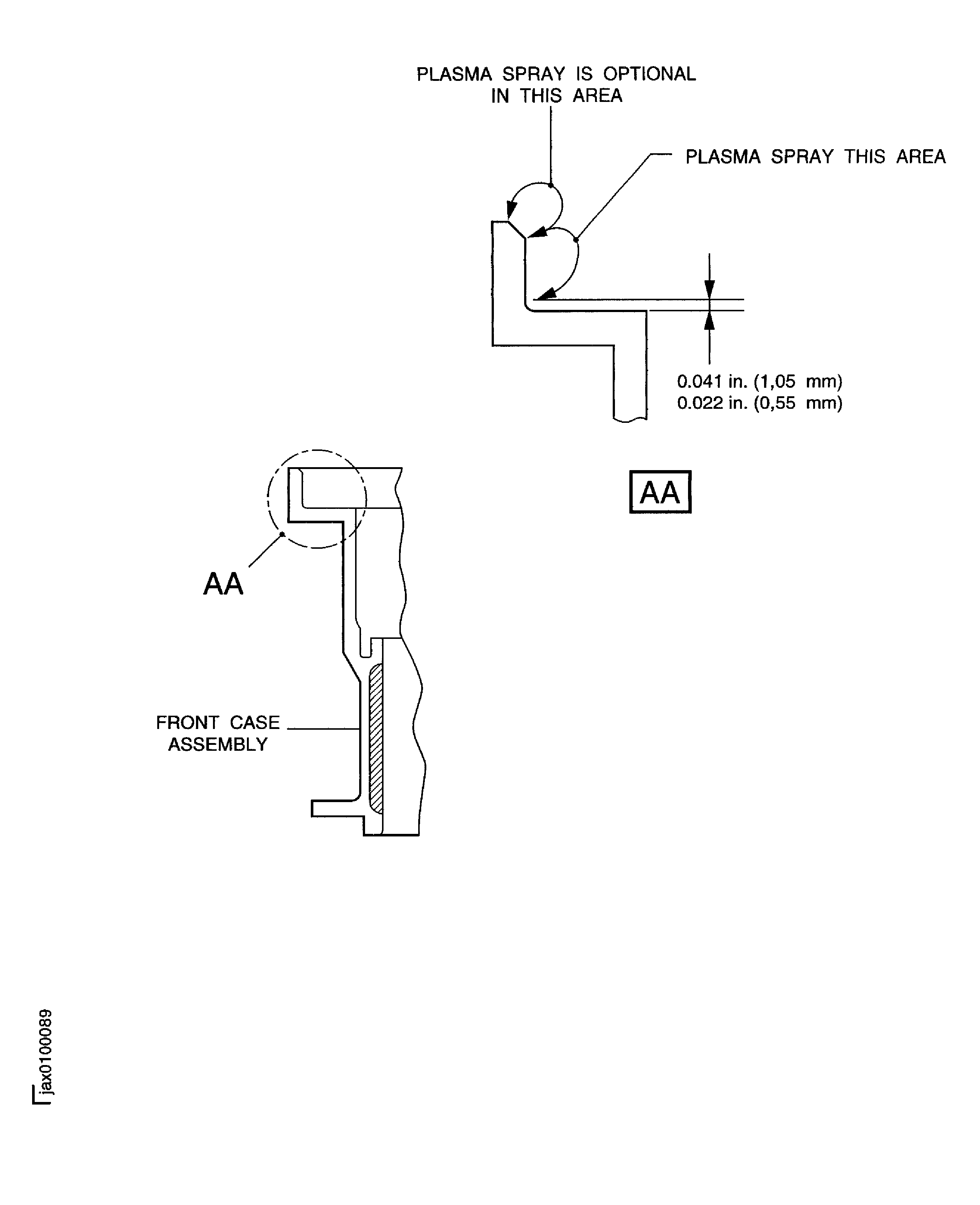

    Figure: Repair details and dimensions - plasma spray area

    Repair details and dimensions - plasma spray area

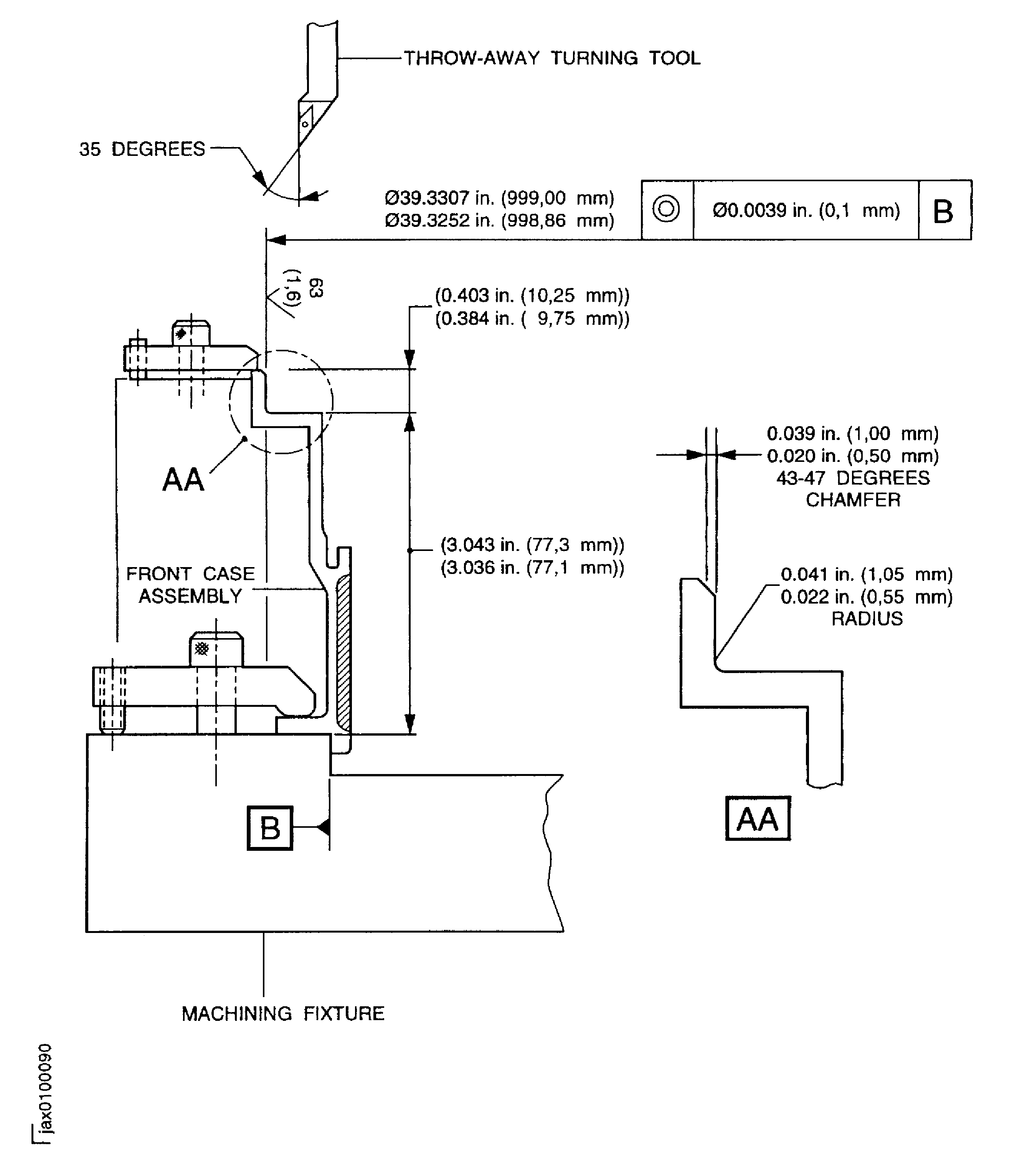

    Figure: Repair details and finish machining dimensions after plasma spray

    Repair details and finish machining dimensions after plasma spray

Requirements After Job Completion

Follow-On Conditions

NONE
