TASK 72-32-85-300-047 Fan Case - Repair The PTO Shaft Oil Seal Tube Bore By Bush Installation, Repair-047 (VRS1413)

DMC:V2500-A0-72-32-8501-00A-664A-C|Issue No:002.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-85-300-047 Fan Case - Repair The PTO Shaft Oil Seal Tube Bore By Bush Installation, Repair-047 (VRS1413)

Effectivity

FIG/ITEM

PART NO.

01-100

5W0069

01-100

5W0072

01-100

5W0081

01-100

5W0093

01-100

5W0094

01-100

5W0100

01-100

5W0124

01-100

5W0144

01-100

5W0149

01-100

5W0154

01-100

5W0168

01-100

5W0169

01-100

5W0171

01-100

5W0172

01-100

5W0184

01-100

5W0186

01-100

5W0187

01-100

5W0188

01-100

5W0189

01-100

5W0190

01-100

5W0191

01-100

5W0192

01-100

5W0193

01-100

5W0194

01-100

5W0195

01-100

5W0196

01-100

5W0197

01-100

5W0198

01-100

5W0199

01-100

5W0200

01-100

5W0201

01-100

5W0202

01-100

5W0203

01-100

5W0204

01-100

5W0205

01-100

5W0206

01-100

5W0207

01-100

5W0208

01-100

5W0209

01-100

5W0210

01-100

5W0211

01-100

5W0212

01-100

5W0213

01-100

5W0214

01-100

5W0215

01-100

5W0216

01-100

5W0217

01-100

5W0218

01-100

5W0219

01-100

5W0220

01-100

5W0221

01-100

5W0222

01-100

5W0223

01-100

5W0224

01-100

5W0225

01-100

5W0226

01-100

5W0306

01-100

5W0307

01-100

5W0313

Material of component

PART IDENT

SYMBOL

MATERIAL

Fan case

Titanium alloy

Bush

Corrosion and heat resistant steel

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Horizontal boring millLOCALHorizontal boring mill
Boring headLOCALBoring head
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Inside micrometerLOCALInside micrometer
Dial bore gageLOCALDial bore gage
Vibrating marking pencilLOCALVibrating marking pencil
IAE 3J12797 Insertion fixture0AM53IAE 3J127971
IAE 3J12798 Reamer0AM53IAE 3J127981
IAE 3J12799 Drill0AM53IAE 3J127991
IAE 3J12800 End mill0AM53IAE 3J128001
IAE 3J12801 Machining fixture0AM53IAE 3J128011

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Bush5A14821

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-85-323-001 Machine the PTO Shaft Oil Seal Tube Bore of the Fan Case Assembly

    1. Refer to Figure.

      2. Apply masking tape to the insert holes.

      3. Set up the fan case on the machining fixture.

      4. Machine the PTO bore J1.

        1. Use boring head.

        1. Use inside micrometer.

      5. Machine the timing hole.

      6. Machine the back spot face J2.

        1. Use IAE 3J12824 cutter and IAE 3J12825 boring bar.

        1. Use boring head.

    2. SUBTASK 72-32-85-220-174 Examine the Fan Case Assembly

    1. Refer to Figure.

      2. Measure the machined areas (PTO shaft tube bore J1, timing hole and back spot face J2).

      1. Use inside micrometer and dial bore gage.

    3. SUBTASK 72-32-85-230-061 Examine the Fan Case Assembly for Cracks

      1. Do a penetrant crack test the machined areas.

      1. Use fluorescent penetrant inspection.

      2. Make sure there is no crack in the machined area.

      3. Refer to the SPM TASK 70-23-05-230-501.

    4. SUBTASK 72-32-85-110-066 Clean the Bush and PTO Shaft Tube Bore

      1. Clean the bush and PTO shaft tube bore.

      1. Refer to the SPM TASK 70-11-26-300-503.

    5. SUBTASK 72-32-85-350-127 Install the Bush to the Insertion Fixture

    1. Refer to Figure.

    2. Install the bush to the shaft of the insertion fixture.

    3. Install the ring to the shaft.

    4. Install the guide to the ring and tighten the bolt.

    5. Remove the ring.

      6. Chill the bush with fixture.

    6. SUBTASK 72-32-85-350-128 Install the Bush to the Fan Case Assembly

    1. Refer to Figure.

    2. Install the bush to the PTO shaft tube bore of the fan case.

    3. Remove the bolt from fixture.

    4. Remove the guide shaft of the fixture from the fan case.

    7. SUBTASK 72-32-85-210-001 Examine the Bush on the Fan Case Assembly

    1. Refer to Figure.

      2. Visually examine the installed bush.

      1. The installed bush must be correctly seated to spot face.

      2. The bush must be tightened to the PTO shaft tube bore.

    8. SUBTASK 72-32-85-350-129 Identify the Repair

      1. Make a mark VRS1413 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

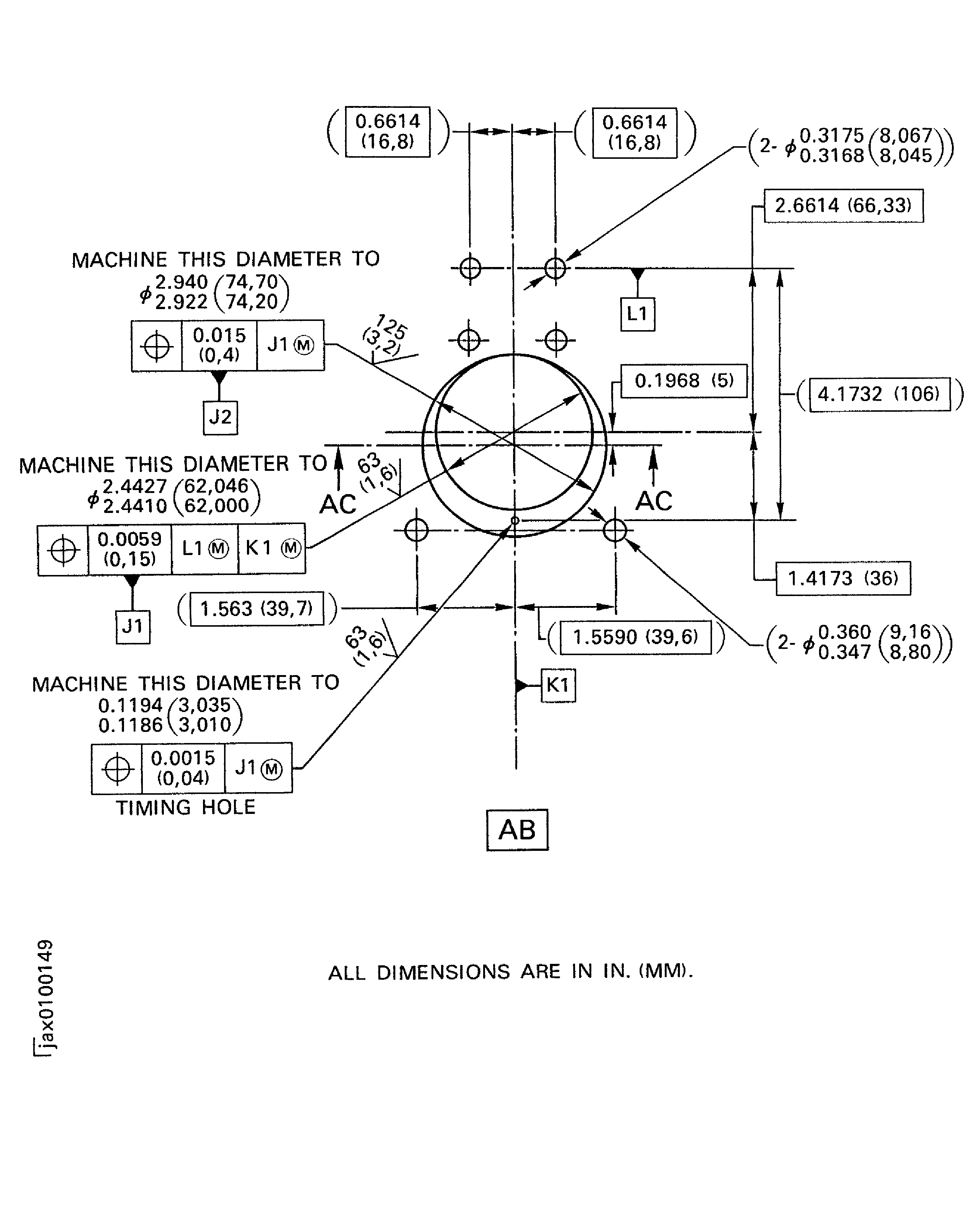

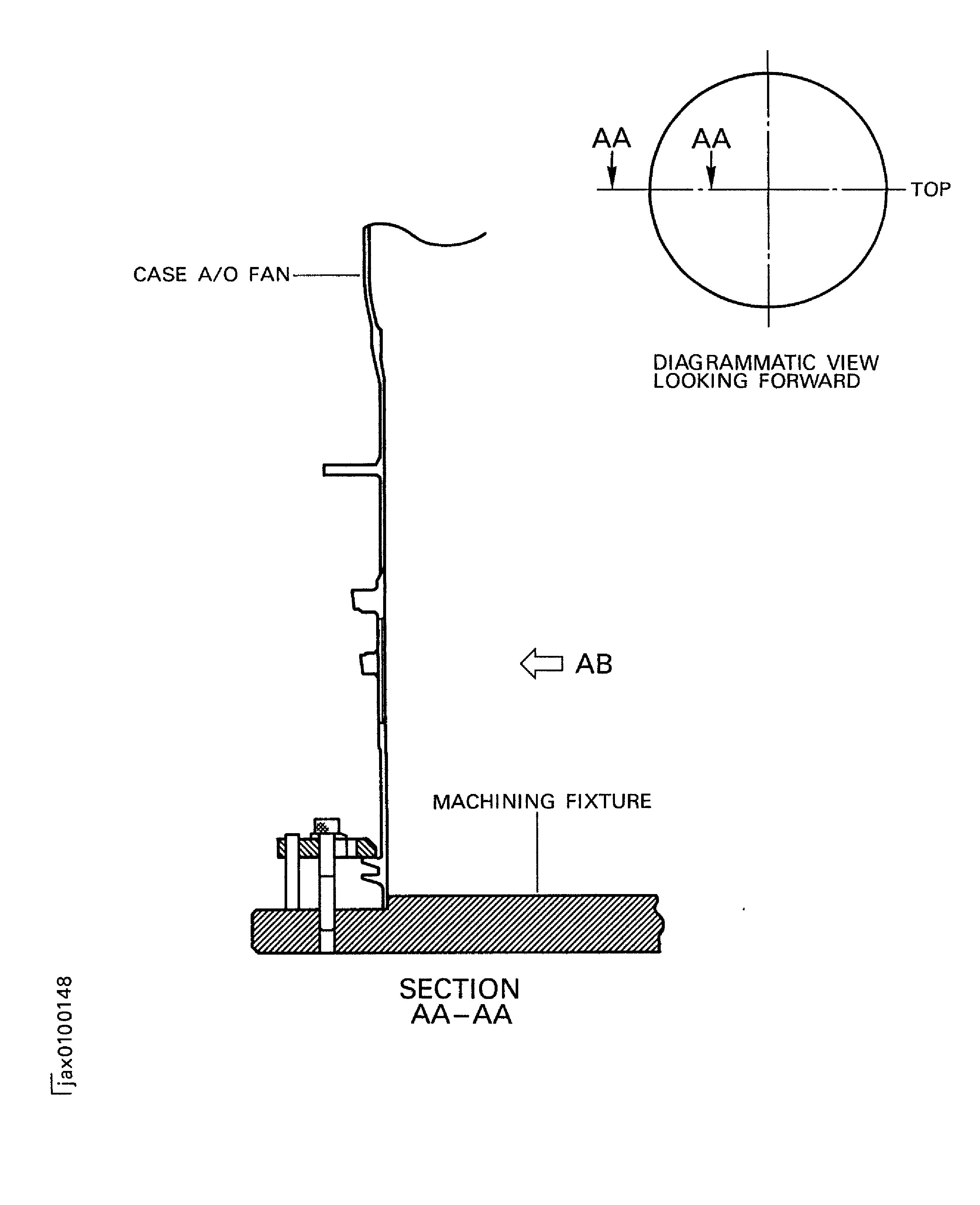

    9. Figure: Repair Details and Dimensions
