TASK 72-32-86-300-002 Intermediate Structure Rear Fairing - Replace The Strip Seal, Repair-002 (VRS1416)

DMC:V2500-A0-72-32-8600-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-86-300-002 Intermediate Structure Rear Fairing - Replace The Strip Seal, Repair-002 (VRS1416)

Effectivity

FIG/ITEM

PART NO.

01-100

5A0833

01-100

5A4123

Material of component

PART IDENT

SYMBOL

MATERIAL

Rear fairing

Aluminum alloy

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Strip seal5A1255AR
Strip seal5A1837AR

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-86-330-051 Remove the Damaged Strip Seal from the Rear Fairing Assembly

    1. Refer to Figure.

    2. Inspect and identify damaged strip seal.

      3. Remove damaged strip seal without any damage to the parent material, and remove the remaining compound.

    2. SUBTASK 72-32-86-360-051 Prepare the Mating Surfaces for the Cold Curing Silicone Rubber Compound

    1. Refer to Figure.

      2. Cold liquid degrease the mating surfaces.

      1. Refer to the SPM TASK 70-11-26-300-503.

    4. NOTE

      A water break-test is not necessary.

      Do Step.

    3. SUBTASK 72-32-86-230-053 Apply the Surface Protection to the Rear Fairing Assembly

      1. Apply chromate conversion coating to the repair surfaces, if necessary.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-32-86-360-052 Apply and Cure the Cold Curing Silicone Rubber Compound

    1. Refer to Figure.

      2. CAUTION

        DO NOT EAT ANYTHING OR SMOKE AT LOCATIONS WHERE THESE MATERIALS ARE USED.

        CAUTION

        AFTER PREPARATION THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND, TO PREVENT CONTAMINATION.

        CAUTION

        DO NOT APPLY THE PRIMER TO THE MATING SURFACE OF THE STRIP SEAL BECAUSE THE SILICON RUBBER IS WEAK IN THE BOND STRENGTH IF YOU APPLY THE PRIMER.

        NOTE

        The primer must be applied immediately after the mating surfaces are prepared, It is cured at room temperature by touching to moisture in air.
        If the parts are not used immediately, after the primer is applied, they must be kept in polythene bags, but for no longer than 24 hours.

        Apply a thin layer of primer only to the prepared mating surface of rear fairing. Dry in air for 30 minutes.

      2. Refer to the SPM TASK 70-36-02-360-501.

      3. Apply the cold curing silicone rubber compound to each of the mating surfaces.

      2. Refer to the SPM TASK 70-36-02-360-501.

      4. Install the strip seal to the rear fairing assembly within three minutes after the compound is applied.

      1. Apply sufficient pressure to ensure good contact and to form a witness of adhesive at all edges.

      2. Make sure that compound can be seen around the sealed surfaces.

      5. Cure the compound at 68 deg F (20 deg C) for 48 hours.

      1. NOTE

        The parts can be touched after 12 hours.

        Do not apply a load during this time.

    5. SUBTASK 72-32-86-220-057 Examine the Repaired Areas of the Rear Fairing Assembly

    1. Refer to Figure.

    2. Dimensionally inspect the position of the repaired strip seal.

    3. Visually inspect gapping and filling.

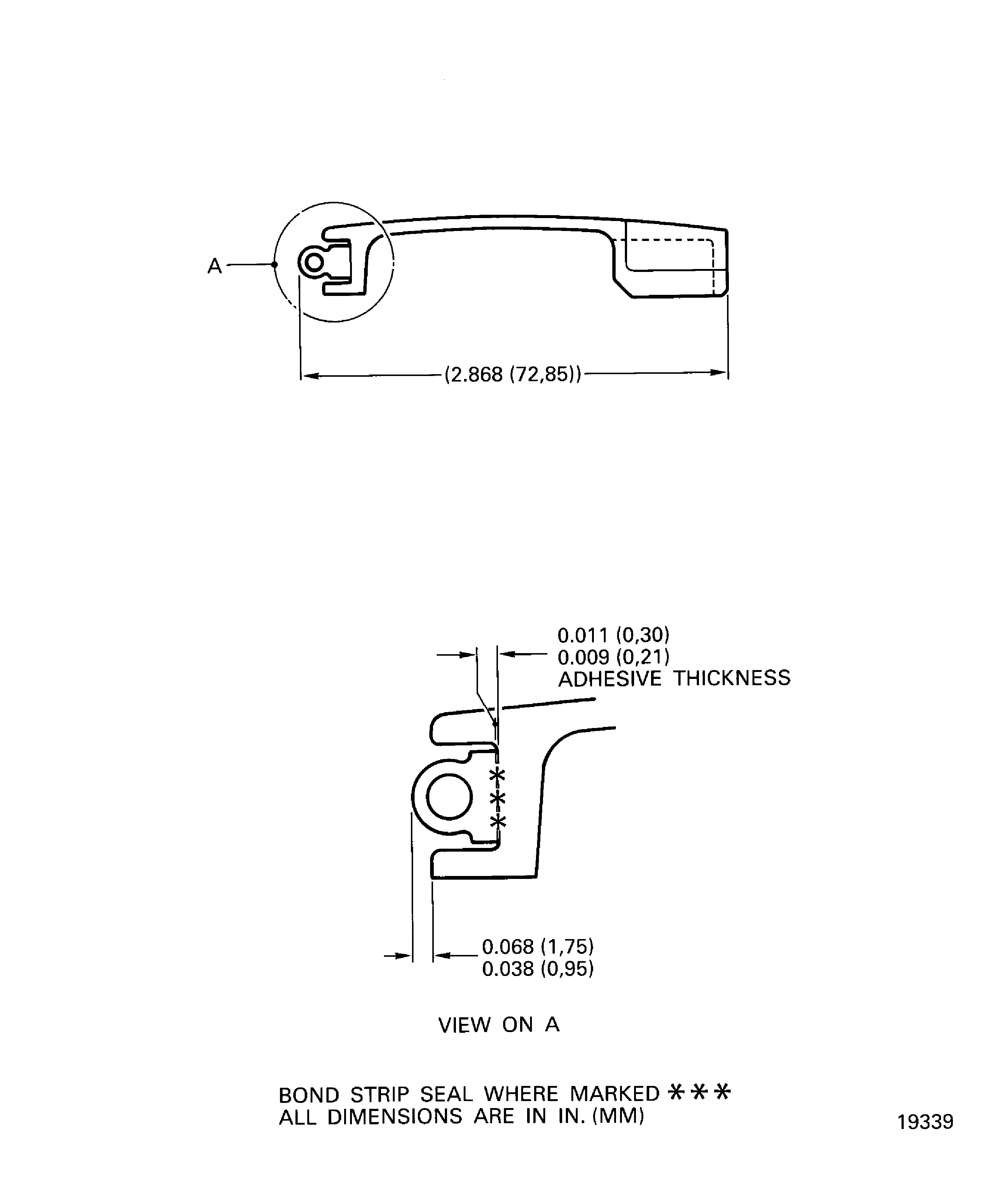

    6. Figure: Replace the strip seal (For 5A4123 and 5A0833)

    Replace the strip seal (For 5A4123 and 5A0833)

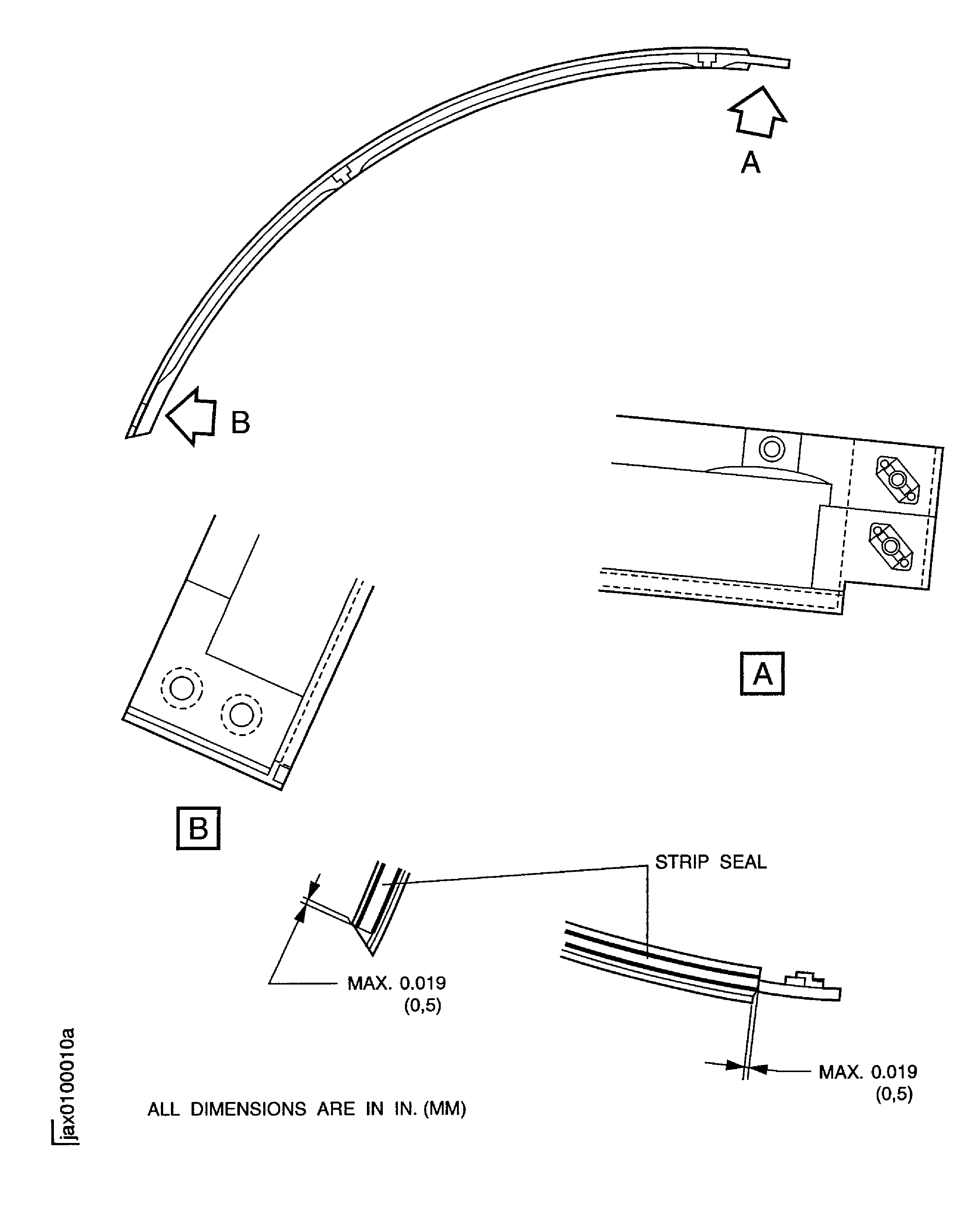

    Figure: Replace the strip seal (For 5A0833)

    Replace the strip seal (For 5A0833)

Requirements After Job Completion

Follow-On Conditions

NONE
