TASK 72-32-91-300-002 LPC Splitter Fairing - Repair Surface Damage, Repair-002 (VRS1440)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Magnifying Glass, 10x | LOCAL | Magnifying Glass, 10x |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 01-031 ACETONE (CH3)2CO | LOCAL | CoMat 01-031 | ||
| CoMat 01-124 ISOPROPYL ALCOHOL | LOCAL | CoMat 01-124 | ||
| CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM | LOCAL | CoMat 01-275 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 | ||
| CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY) | LOCAL | CoMat 06-064 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Surface finish of the repair must be the same as the adjacent area.
Refer to the SPM TASK 70-35-03-300-501.
Use abrasive stones or papers and/or fine files.
Scallop, make smooth and/or hand polish to remove the nicks, the scratches and the galls.
SUBTASK 72-32-91-350-052 Remove the Damage from the Splitter Fairing
Refer to TASK 72-32-91-200-000 (INSPECTION-000).
Visually examine the repaired area.
SUBTASK 72-32-91-220-057 Examine the Splitter Fairing
Make sure there are no cracks in the repaired area.
Refer to the SPM TASK 70-23-05-230-501.
Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-91-230-053 Examine the Splitter Fairing for Cracks
Use a clean cloth which is moist with degreasing fluid and make clean the repaired area.
Refer to the SPM TASK 70-11-26-300-503.
Remove the grease with cold vapor.
SUBTASK 72-32-91-110-055 Remove the Grease from the Splitter Fairing
Refer to the SPM TASK 70-38-02-300-503.
Apply the chromate conversion coating with a brush to the repaired area.
SUBTASK 72-32-91-380-051 Apply the Surface Protection to the Splitter Fairing
Refer to Repair, VRS1441 TASK 72-32-91-300-003 (REPAIR-003).
Apply the heat resistant ES coating with a brush to the repaired area.
Refer to TASK 72-32-91-200-000 (INSPECTION-000).
Examine the coating surface.
SUBTASK 72-32-91-380-052 Apply the Heat Resistant ES Coating to the Splitter Fairing

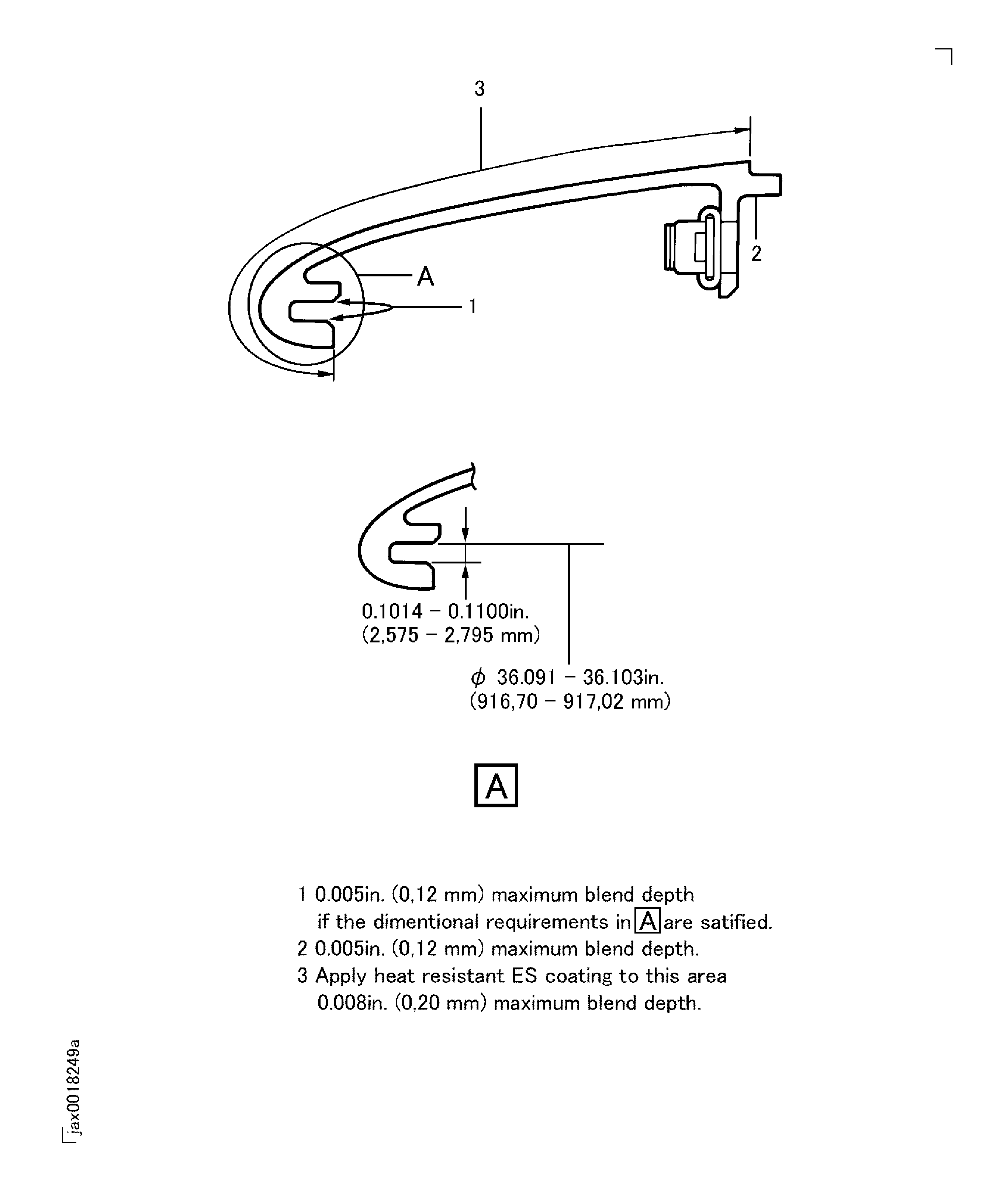

Figure: Splitter fairing - Repair limits
Splitter fairing - Repair limits
