TASK 72-32-93-300-001 Intermediate Structure Front Fairing - Replace The Rubber Cushion, Repair-001 (VRS1445)

DMC:V2500-A0-72-32-9302-00A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-93-300-001 Intermediate Structure Front Fairing - Replace The Rubber Cushion, Repair-001 (VRS1445)

Effectivity

FIG/ITEM

PART NO.

01-200

5A0836

01-200

5A1444

01-200

5A3447

Material of component

PART IDENT

SYMBOL

MATERIAL

Front fairing

Aluminum alloy

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-005 SOLVENT CLEANER72190CoMat 01-005
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Rubber cushion5A34483
Strip seal5A1837A/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-93-330-051 Remove the Defective Rubber Cushion from the Front Fairing Assembly

    1. Refer to Figure.

    2. Inspect and identify the damaged rubber cushion.

      3. Remove the damaged rubber cushion without any damage to the parent material and remove the remaining compound.

    2. SUBTASK 72-32-93-360-051 Prepare the Mating Surfaces for the Cold Curing Silicon Rubber Compound

    1. Refer to Figure.

      2. Remove the grease from the mating surfaces.

      1. Refer to the SPM TASK 70-11-26-300-503.

      3. Hand clean the mating surfaces.

    4. NOTE

      A water break test is not necessary.

      Do Step again.

    3. SUBTASK 72-32-93-350-051 Apply the Surface Protection to the Front Fairing

    1. Refer to Figure.

      2. Apply the chromate conversion coating to the repaired surfaces, if necessary.

    4. SUBTASK 72-32-93-360-052 Apply and Cure the Cold Curing Silicon Rubber Compound

    1. Refer to Figure.

      2. CAUTION

        DO NOT APPLY THE PRIMER TO THE MATING SURFACE OF THE RUBBER CUSHION, BECAUSE THE SILICON RUBBER IS WEAK IN BOND STRENGTH IF YOU APPLY THE PRIMER.

        CAUTION

        DO NOT EAT ANYTHING OR SMOKE AT THE LOCATIONS WHERE THESE MATERIALS ARE USED.
        AFTER PREPARATION, THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND, TO PREVENT CONTAMINATION.

        NOTE

        The primer must be applied immediately after the mating surfaces are prepared. It cures at room temperature when it comes into contact with moisture in the air.
        If the parts are not used immediately after the primer is applied, they must be kept in polythane bags, but for not longer than 24 hours.

        Apply a thin layer of primer only to the prepared mating surface of the front fairing. Dry in air for 30 minutes minimum.

      3. Apply the cold curing silicon rubber compound to each of the mating surfaces.

        1. Refer to the SPM TASK 70-36-02-360-501 step 23.D.

      4. Install the rubber cushion to the front fairing within three minutes after the compound is applied.

        1. Apply sufficient pressure to ensure good contact by hand.

        1. Make sure that the compound can be seen around the sealed surfaces.

      5. NOTE

        The parts can be handled carefully after 2 hours at room temperature.

        Cure the compound at 68 deg F (20 deg C) for 48 hours.

      1. Do not apply a load during this time.

    5. SUBTASK 72-32-93-220-056 Examine the Repaired Areas of the Front Fairing

    1. Refer to Figure.

    2. Dimensionally inspect the position of the repaired rubber cushion.

    3. Visually inspect the gapping and filling.

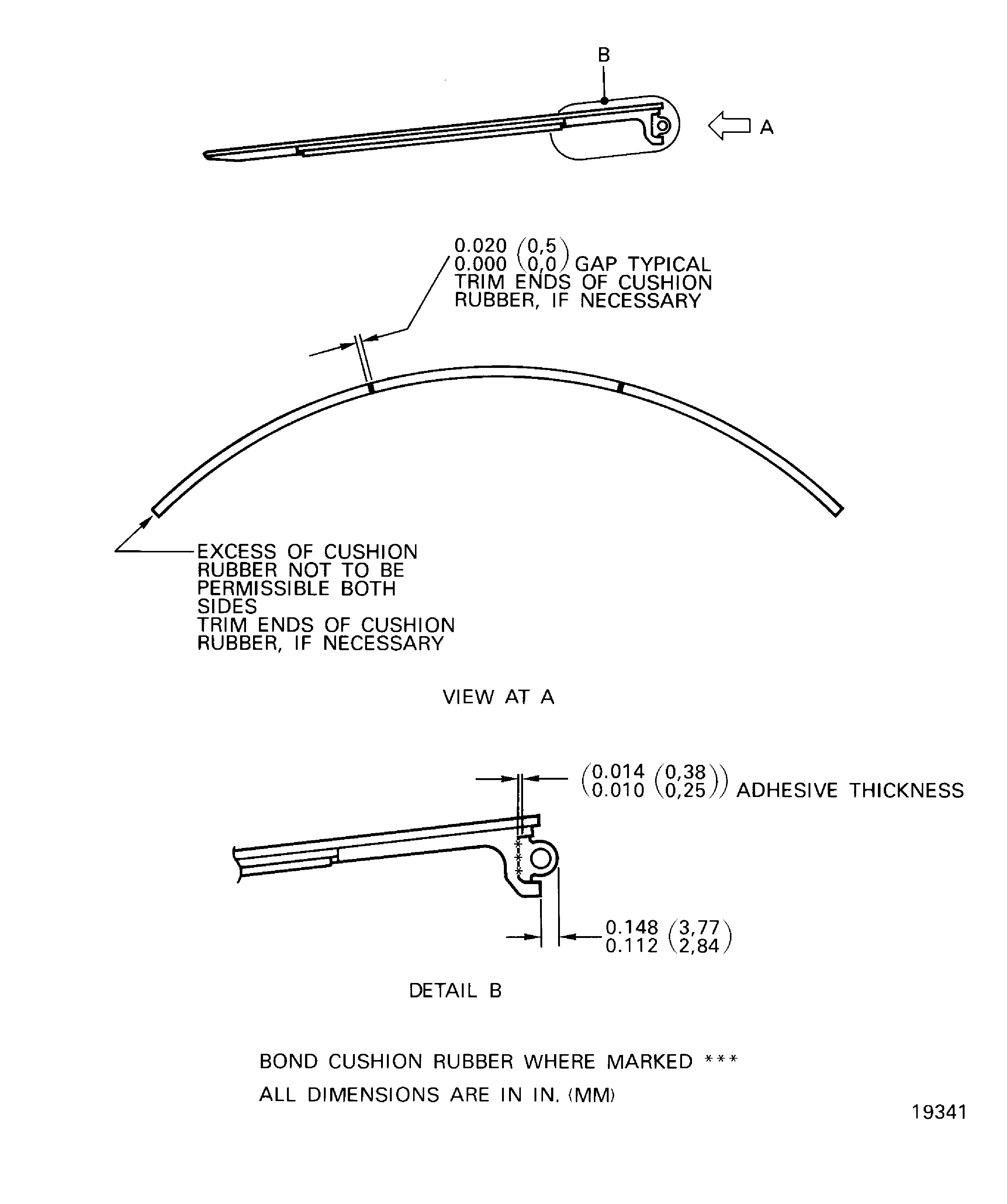

    6. Figure: Replace the cushion rubber

    Replace the cushion rubber

Requirements After Job Completion

Follow-On Conditions

NONE
