TASK 72-40-00-200-005 No. 4 Bearing/HPT Spacer - Examine, Inspection-005

DMC:V2500-A0-72-40-0011-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-200-005 No. 4 Bearing/HPT Spacer - Examine, Inspection-005

Effectivity

FIG/ITEM

PART NO.

03-003

2A1282CL1

03-005

2A1282CL2

03-007

2A1282CL3

03-009

2A1282CL4

03-011

2A1282CL5

03-013

2A1282CL6

03-015

2A1282CL7

03-017

2A1282CL8

03-019

2A1282CL9

03-021

2A1282CL10

03-023

2A1282CL11

03-025

2A1282CL12

03-027

2A1282CL13

03-029

2A1282CL14

03-031

2A1282CL15

03-033

2A1282CL16

03-035

2A1282CL17

General

This TASK gives the procedure for the inspection of the No.4 bearing spacer. For the other parts of the HP system module, refer to TASK 72-40-00-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-40-00-230-051. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, TASK 70-02-02-350-501

Inspection of Parts, TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-230-051-001 Examine the No. 4 Bearing Spacer (03-003) thru (03-035) for Cracks

    1. Clean the part. Refer to TASK 72-40-00-100-000.

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART INDENT

        TASK/OP

        No. 4 bearing spacer

        (Dip or Spray)

        1. Cracked

        1. Reject

    2. SUBTASK 72-40-00-230-051-002 Examine the No. 4 Bearing Spacer (03-003) thru (03-035) for Cracks

    1. Clean the part. Refer to TASK 72-40-00-100-000.

      2. Do the crack test on the part that is given below. Use the applicable penetrant inspection procedure.

        PART IDENT

        TASK/OP

        No. 4 bearing spacer

        (Dip or Spray)

        1. Cracked

        1. Reject

    3. SUBTASK 72-40-00-220-066 Examine the No. 4 Bearing Spacer (03-003) thru (03-035) for Wear on the Faces

    1. Refer to Figure.

      2. Examine the No. 4 bearing spacer at locations 1 and 2, for wear on the faces.

        1. Wear

        1. Reject

    4. SUBTASK 72-40-00-220-067 Examine the No. 4 Bearing Spacer (03-003) thru (03-035) for the Inside Diameter

    1. Refer to Figure.

      2. Examine the No. 4 bearing spacer at location 3, for the inside diameter.

        1. Inside diameter.

          1. If the inside diameter is between 5.111 and 5.113 in. (129.819 and 129.870 mm)

          1. Accept

          2. Other than Step

          1. Reject

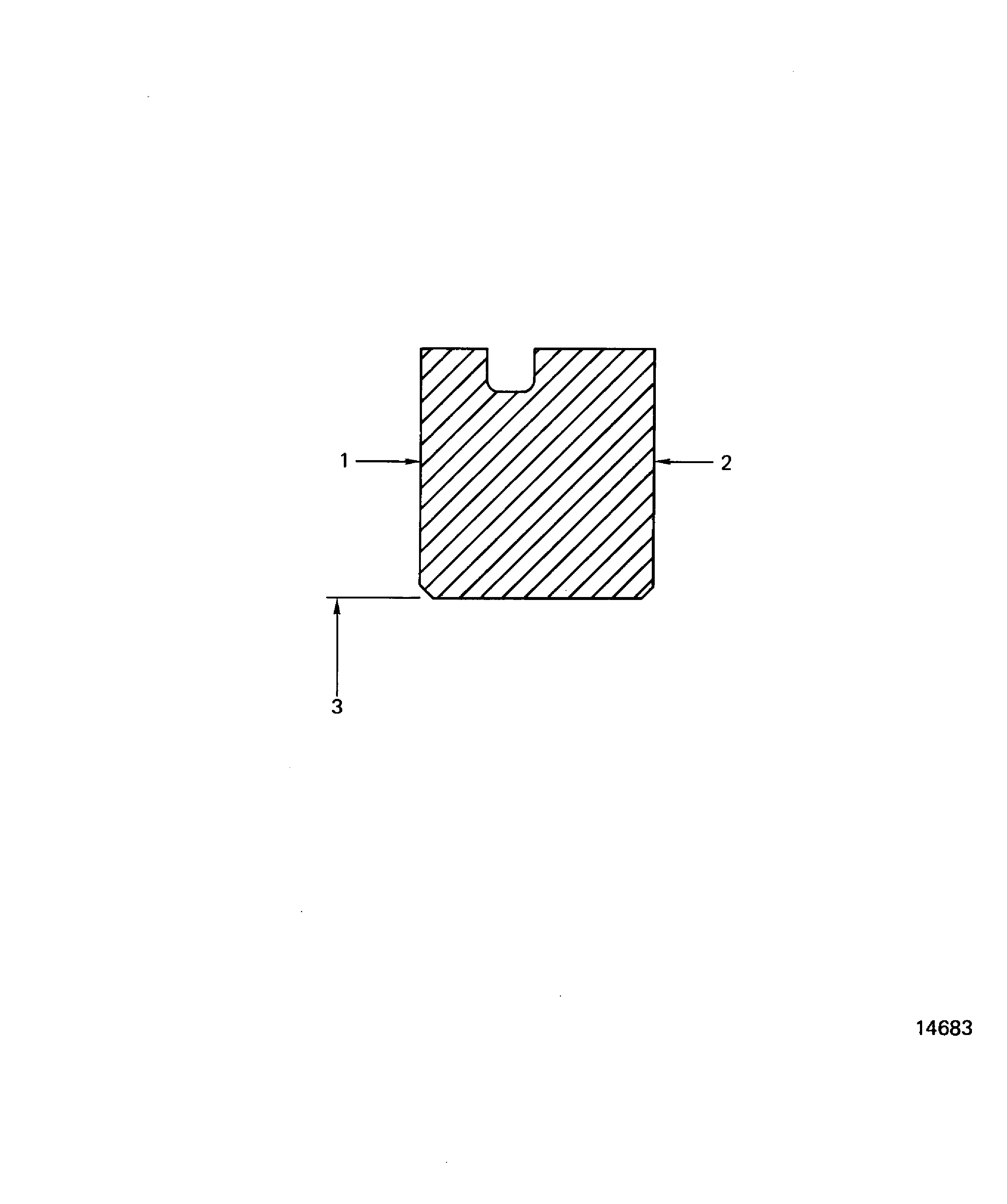

    5. Figure: No.4 bearing spacer inspection locations

    No.4 bearing spacer inspection locations

Requirements After Job Completion

Follow-On Conditions

NONE
