TASK 72-40-00-200-010 Combustion Chamber Clamp Spacer - Examine, Inspection-010

DMC:V2500-A0-72-40-0021-00A-310A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-200-010 Combustion Chamber Clamp Spacer - Examine, Inspection-010

Effectivity

FIG/ITEM

PART NO.

02-061

2A0354CL1

02-062

2A0354CL2

02-063

2A0354CL3

02-064

2A0354CL4

02-065

2A0354CL5

02-066

2A0354CL6

02-067

2A0354CL7

02-068

2A0354CL8

02-069

2A0354CL9

02-070

2A0354CL10

02-071

2A0354CL11

02-072

2A0354CL12

02-073

2A0354CL13

02-074

2A0354CL14

02-075

2A0354CL15

02-076

2A0354CL16

02-077

2A0354CL17

02-078

2A0354CL18

General

This TASK gives the procedure for the inspection of the combustion chamber clamp spacer.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, TASK 70-02-02-350-501

Inspection of Parts, TASK 70-20-01-200-501

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-220-062 Examine the Combustion Chamber Clamp Spacer (02-061 thru 02-078) for Wear on the Contact Surfaces

    1. Refer to Figure.

      2. Examine the combustion chamber clamp spacer, location 1, for wear on the contact surfaces.

        1. Wear

        1. Reject

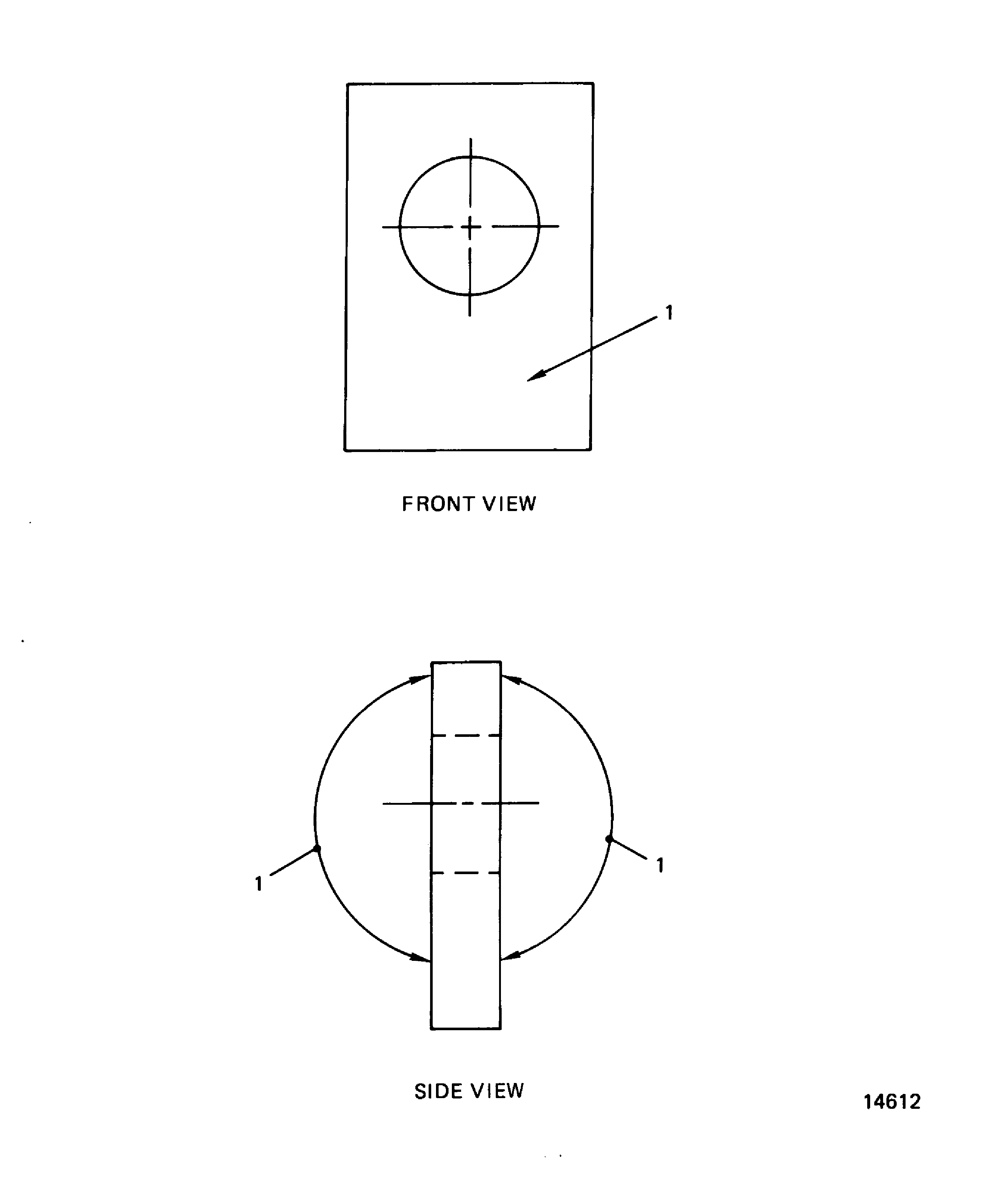

    2. Figure: Location at the combustion chamber clamp spacer

    Location at the combustion chamber clamp spacer

Requirements After Job Completion

Follow-On Conditions

NONE
