TASK 72-40-00-200-013 Brackets - Examine, Inspection-013

DMC:V2500-A0-72-40-0035-02A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-200-013 Brackets - Examine, Inspection-013

Effectivity

FIG/ITEM

PART NO.

05-300

5T8098

05-300

5T8121

05-300

6A6589

05-340

5T8099

05-340

5T8122

05-340

6A6590

General

The TASK gives the procedure for the inspection of the Brackets. For the other parts of the HP system module, refer to TASK 72-40-00-200-000.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-01-200-501.

All the parts must be cleaned before any part is examined. Refer to TASK 72-40-00-100-000.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in Step. Do the test before the part is visually examined. Limits for cracks are given in the SUBTASK for each part.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of damage, SPM TASK 70-02-02-350-501.

Inspection of parts, SPM TASK 70-20-01-200-501.

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-230-058 Examine the Brackets for (05-300 and 05-340) Cracks

    1. NOTE

      For the method to clean the part, refer to the SPM TASK 70-11-01-300-503.

      Clean the parts. Refer to TASK 72-40-00-100-000.

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/OP

        Bracket

        1. Cracked

        1. Reject

    2. SUBTASK 72-40-00-220-120 Examine the Brackets (05-300 and 05-340) All the Surface

    1. Refer to Figure.

      2. Nicked

      1. Repair, VRS1477 TASK 72-40-00-300-007

      3. Scored

      1. Repair, VRS1477 TASK 72-40-00-300-007

    3. SUBTASK 72-40-00-220-121 Examine the Bracket (05-300 and 05-340) Bolt Holes

    1. Refer to Figure.

      2. Scored

      1. Repair, VRS1477 TASK 72-40-00-300-007

    4. SUBTASK 72-40-00-220-122 Examine the Bracket (05-300 and 05-340) Bolt Hole Bores

    1. Refer to Figure.

      2. Worn.

        1. Less than replacement limits

        1. Accept

        2. More than replacement limits

        1. Reject

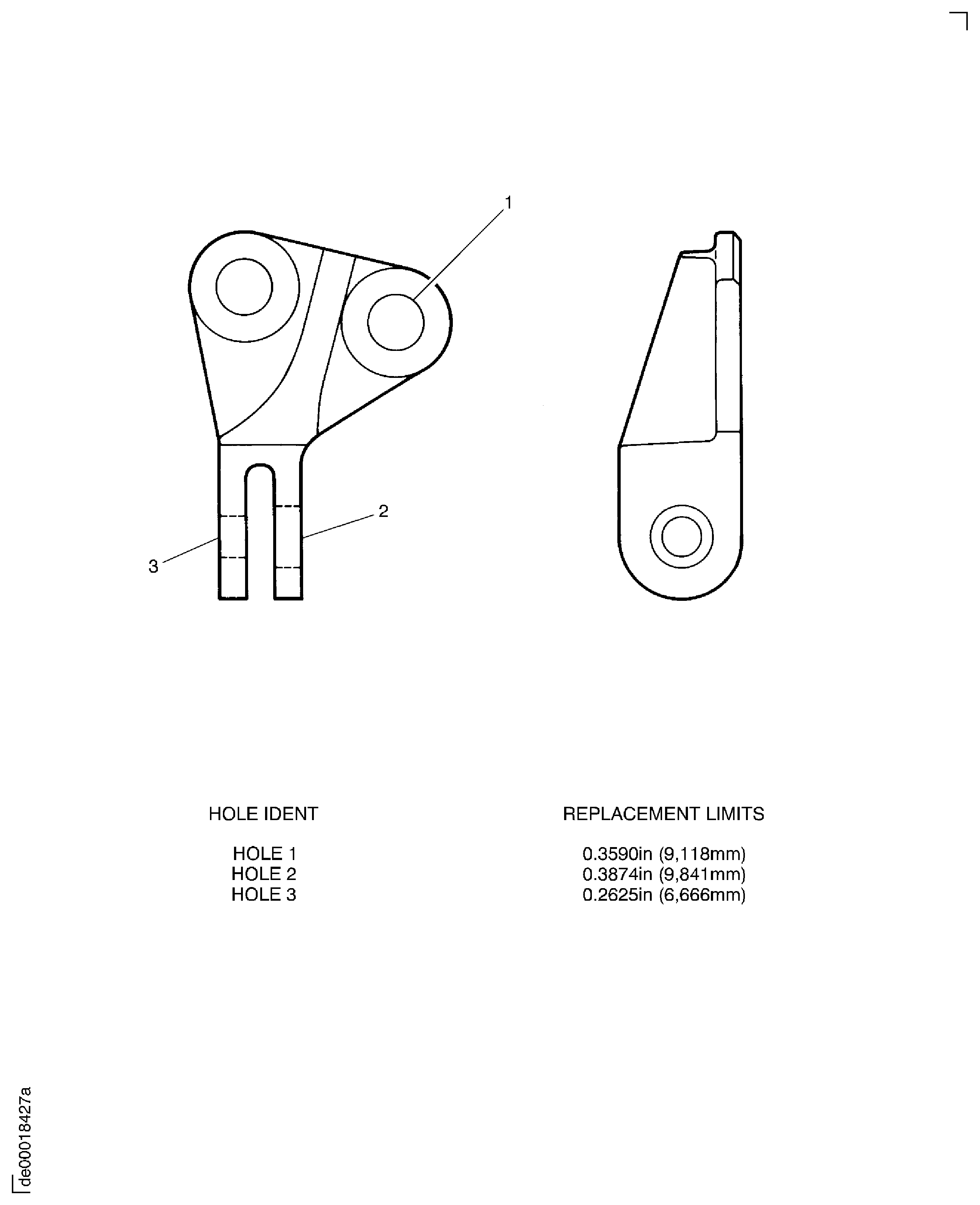

    5. Figure: Bolt holes

    Bolt holes

Requirements After Job Completion

Follow-On Conditions

NONE
