TASK 72-40-00-200-009 Loop Clamp Brackets - Examine, Inspection-009

DMC:V2500-A0-72-40-0036-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-200-009 Loop Clamp Brackets - Examine, Inspection-009

Effectivity

FIG/ITEM

PART NO.

01-060

2A0406

01-070

2A1225

01-070

2A3281

01-080

2A0876

01-080

2A1939

01-080

2A3373

01-100

2A1196

01-140

2A0878

01-140

2A1938-01

01-160

2A0929

01-160

2A1963

01-161

2A1964

01-170

2A0897

01-170

2A1952-01

01-194

2A2529-01

01-194

2A3275

01-197

2A2537

01-250

2A2546

01-310

2A3279

01-435

2A2542-01

General

This TASK gives the procedure for the inspection of the loop clamp brackets.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the SPM TASK 70-10-00-100-501.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in SUBTASK 72-40-00-230-057. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all the repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-01-200-501

Some data on these items is contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-230-057-001 Examine the Loop Clamp Brackets (01-060, 01-070, 01-080, 01-100, 01-140, 01-160, 01-161, 01-170, 01-194, 01-197, 01-250 and 01-435) for Cracks

    1. Clean the part. Refer to TASK 72-40-00-100-000.

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/OP

        Loop clamp brackets

        (Dip or Spray)

        1. Cracked

        1. Reject

    2. SUBTASK 72-40-00-230-057-002 Examine the Loop Clamp Brackets (01-060, 01-070, 01-080, 01-100, 01-140, 01-160, 01-161, 01-170, 01-194, 01-197, 01-250 and 01-435) for Cracks

    1. Clean the part. Refer to TASK 72-40-00-100-000.

      2. Do the test for cracks on the part that is given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/OP

        Loop clamp brackets

        (Dip or Spray)

        1. Cracked

        1. Reject

    3. SUBTASK 72-40-00-220-110 Examine the Loop Clamp Brackets (01-060, 01-070, 01-080, 01-100, 01-140, 01-160 and 01-170) for Rub and Wear

      2. Examine the loop clamp brackets for rub and wear.

        1. Rub or wear

        1. Reject

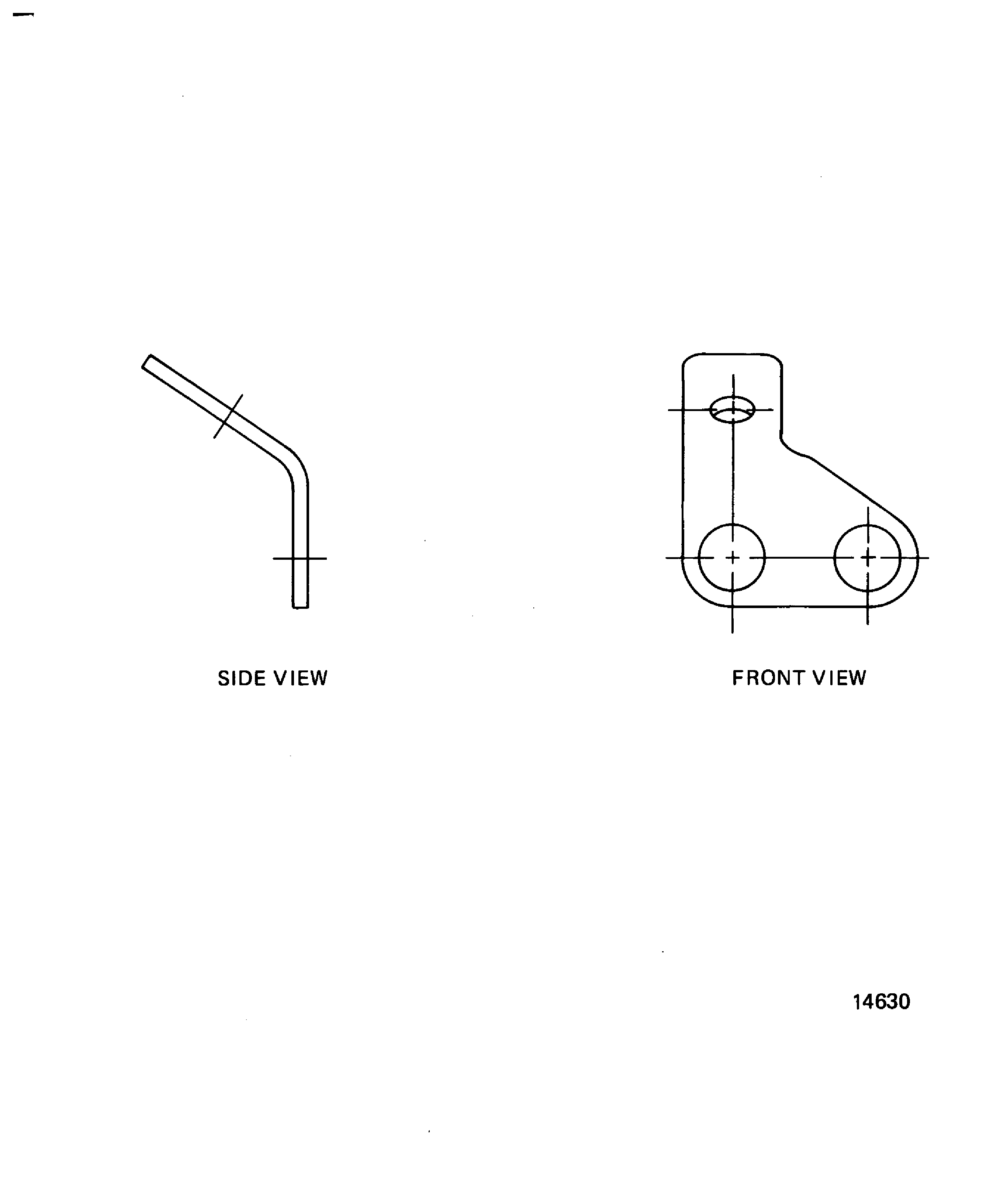

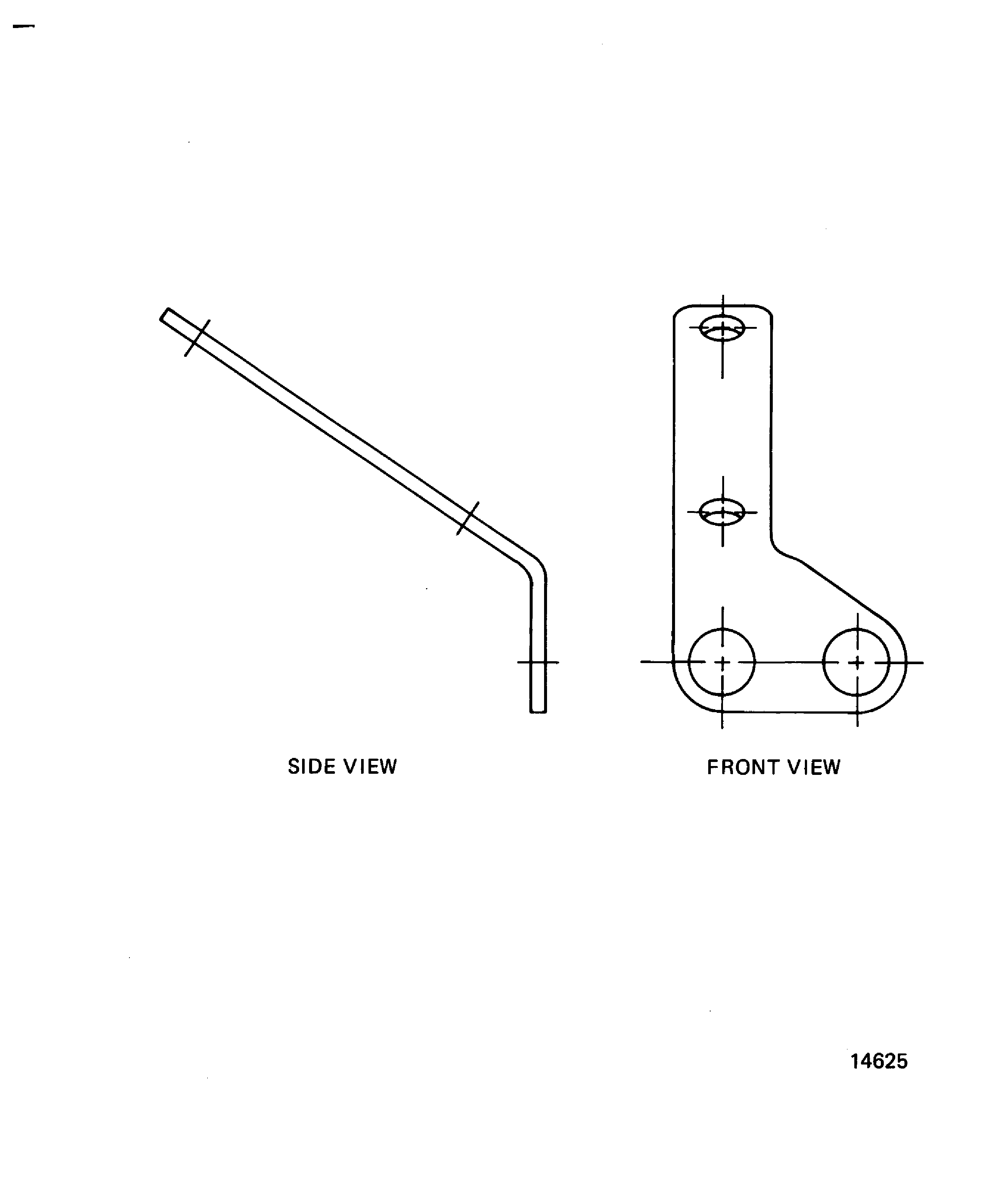

    4. Figure: Loop clamp bracket (01-060) inspection

    Loop clamp bracket (01-060) inspection

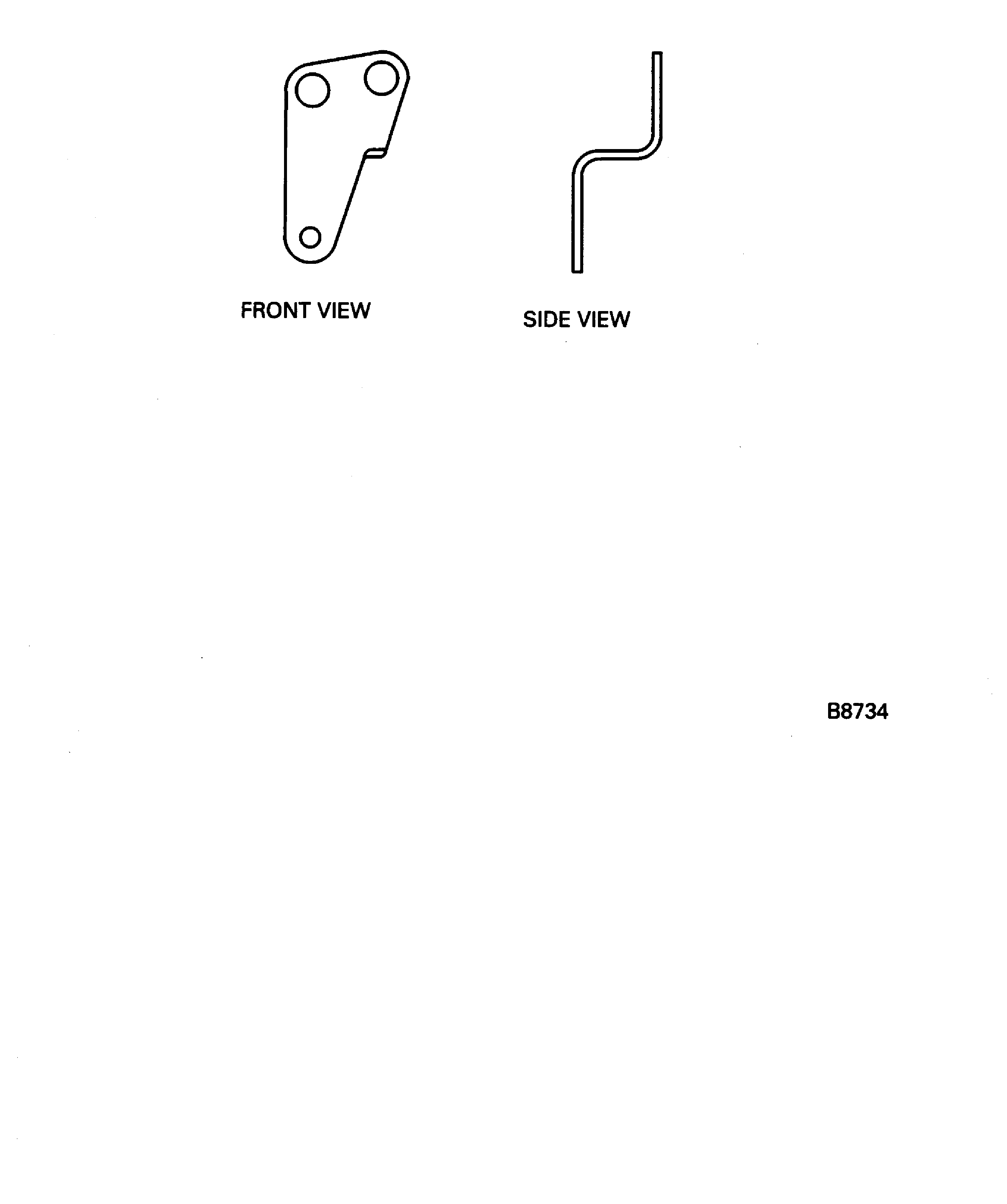

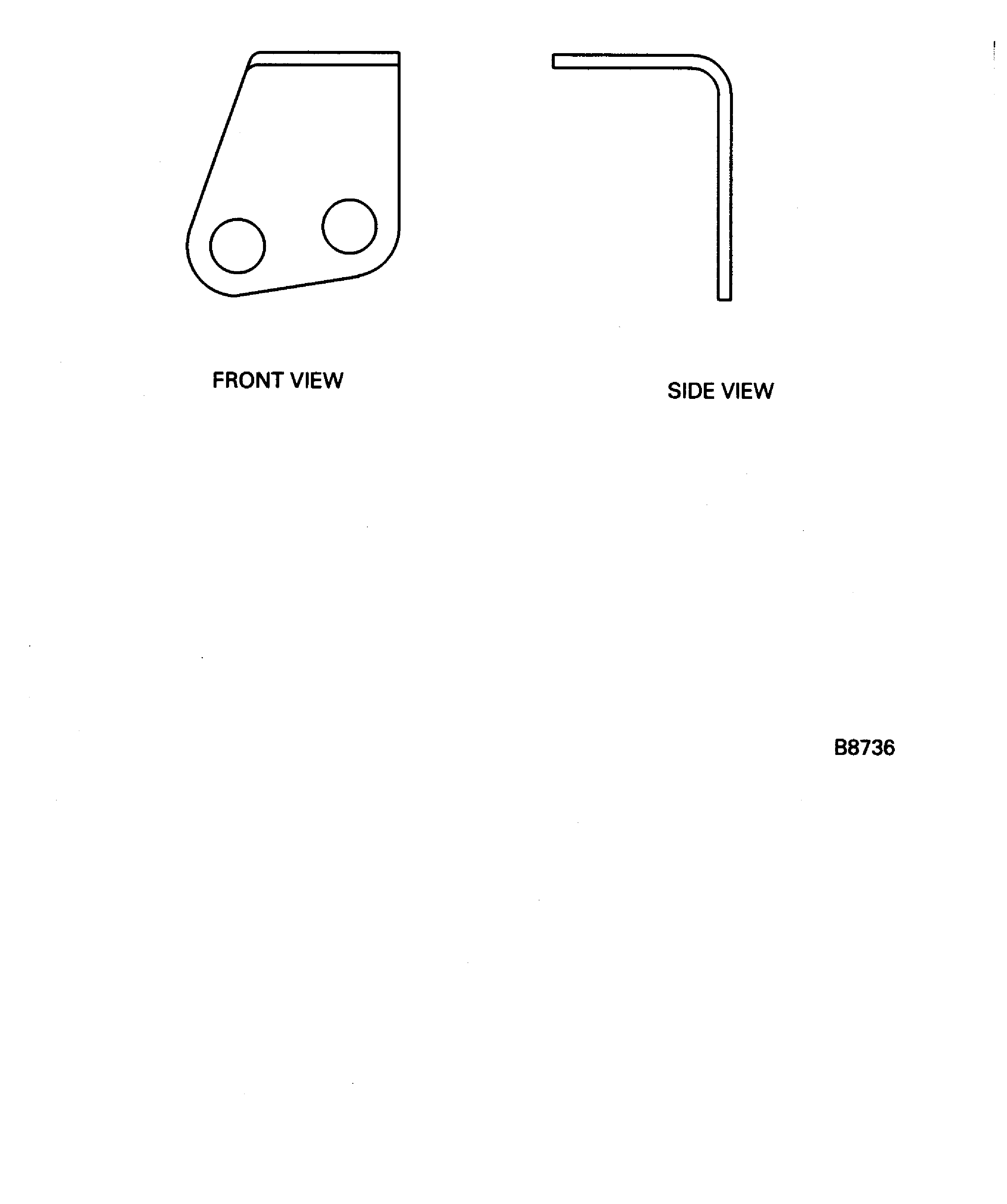

    Figure: Loop clamp bracket (01-070) inspection

    Loop clamp bracket (01-070) inspection

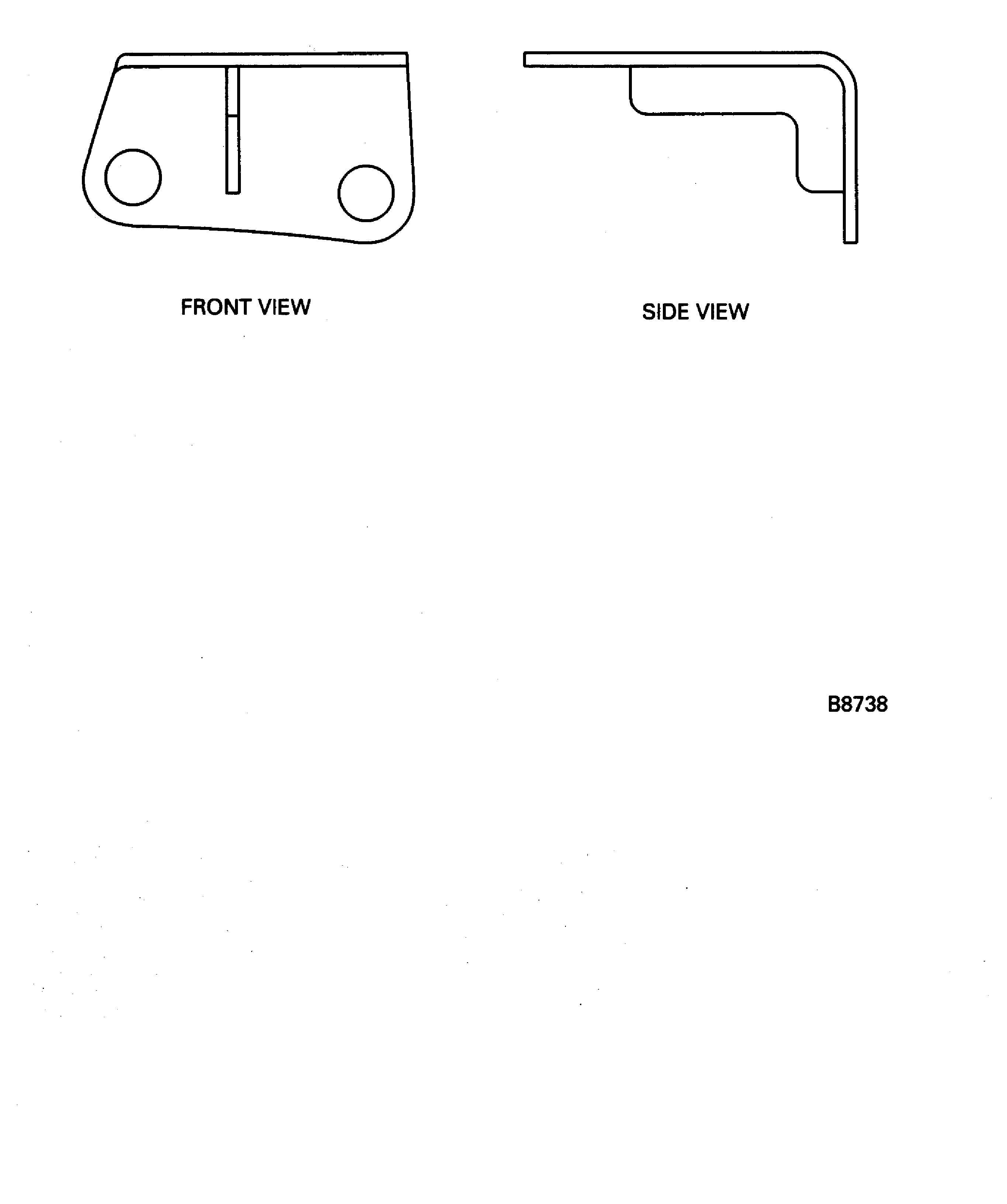

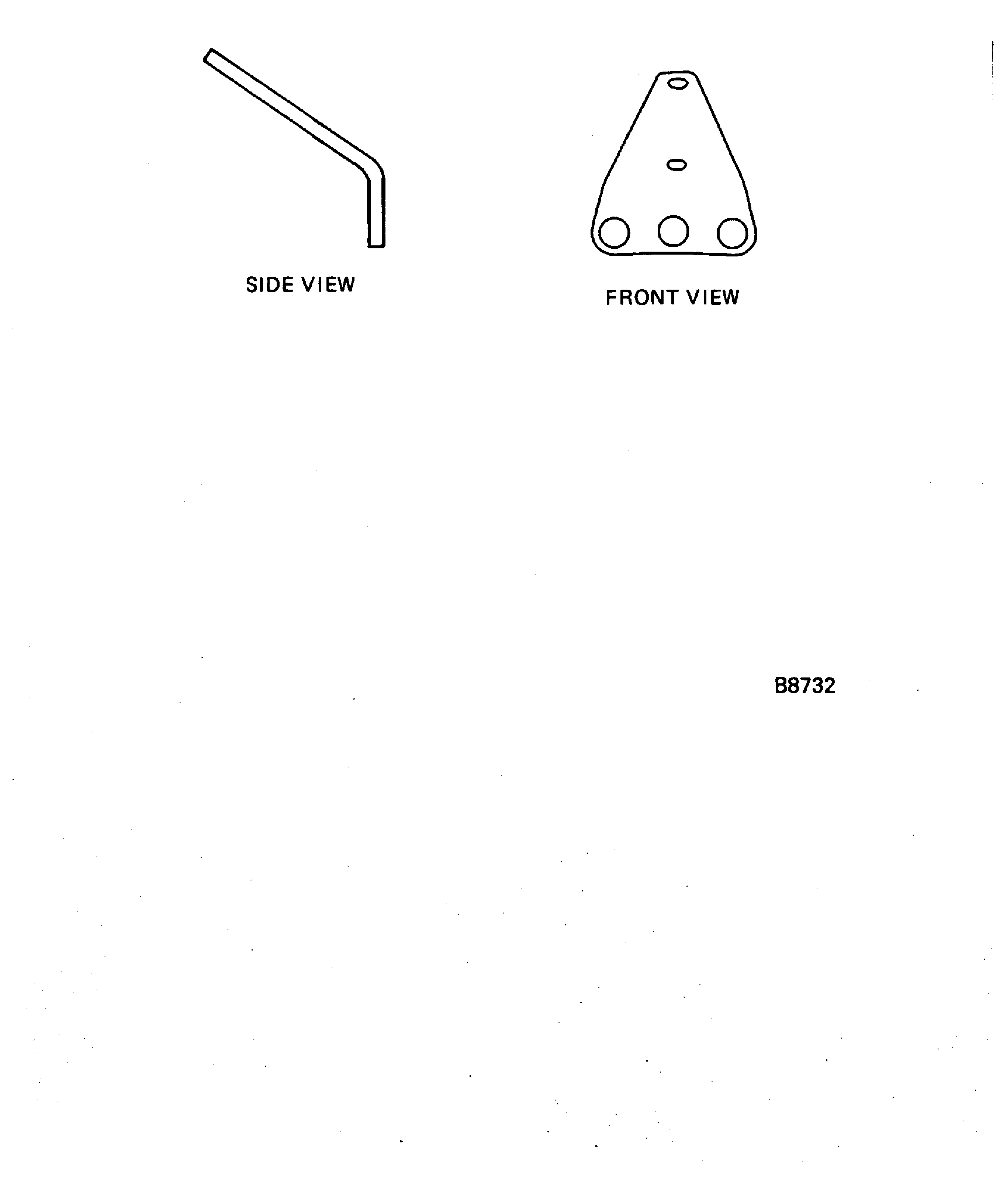

    Figure: Loop clamp bracket (01-080) inspection

    Loop clamp bracket (01-080) inspection

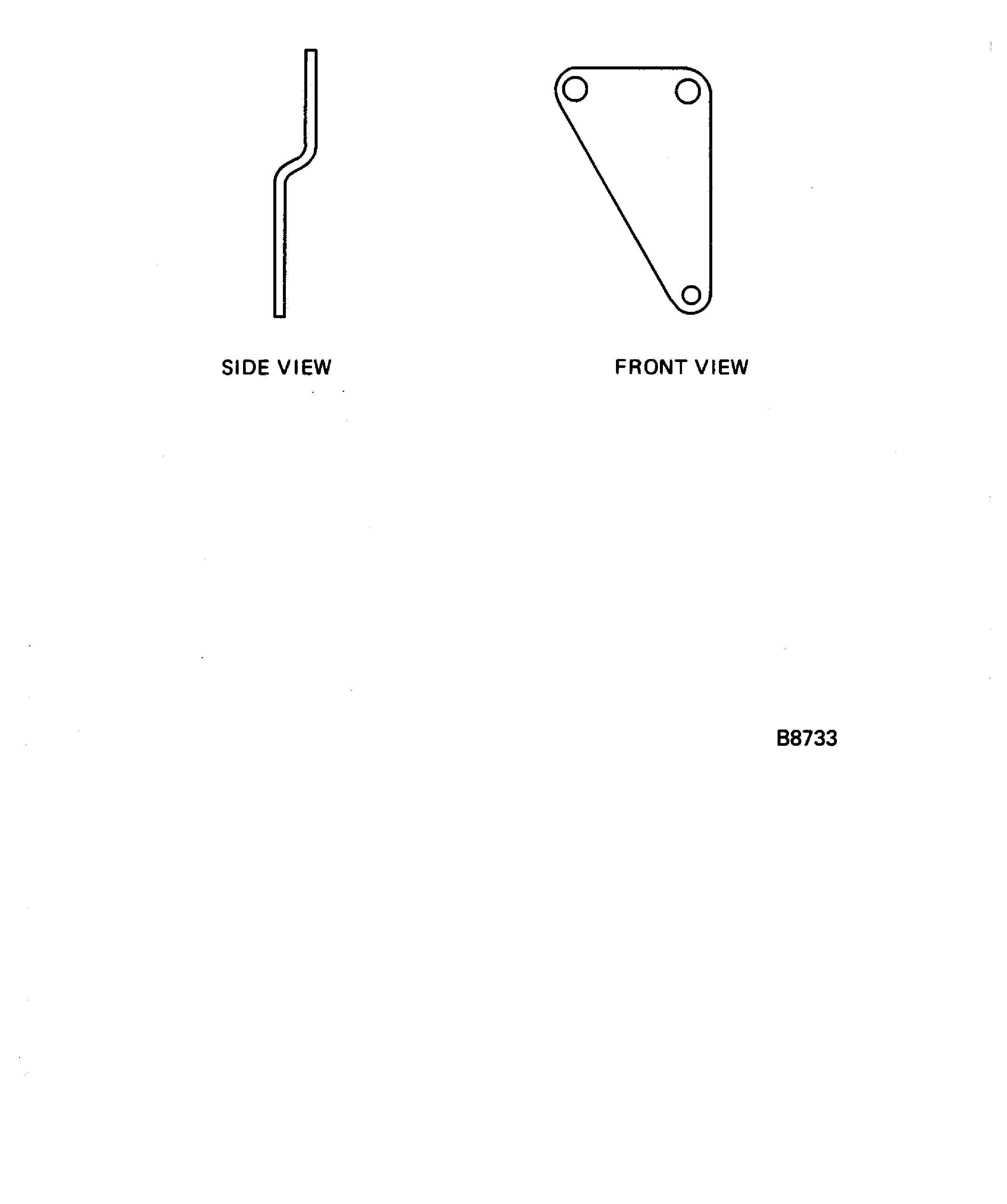

    Figure: Loop clamp bracket (01-100) inspection

    Loop clamp bracket (01-100) inspection

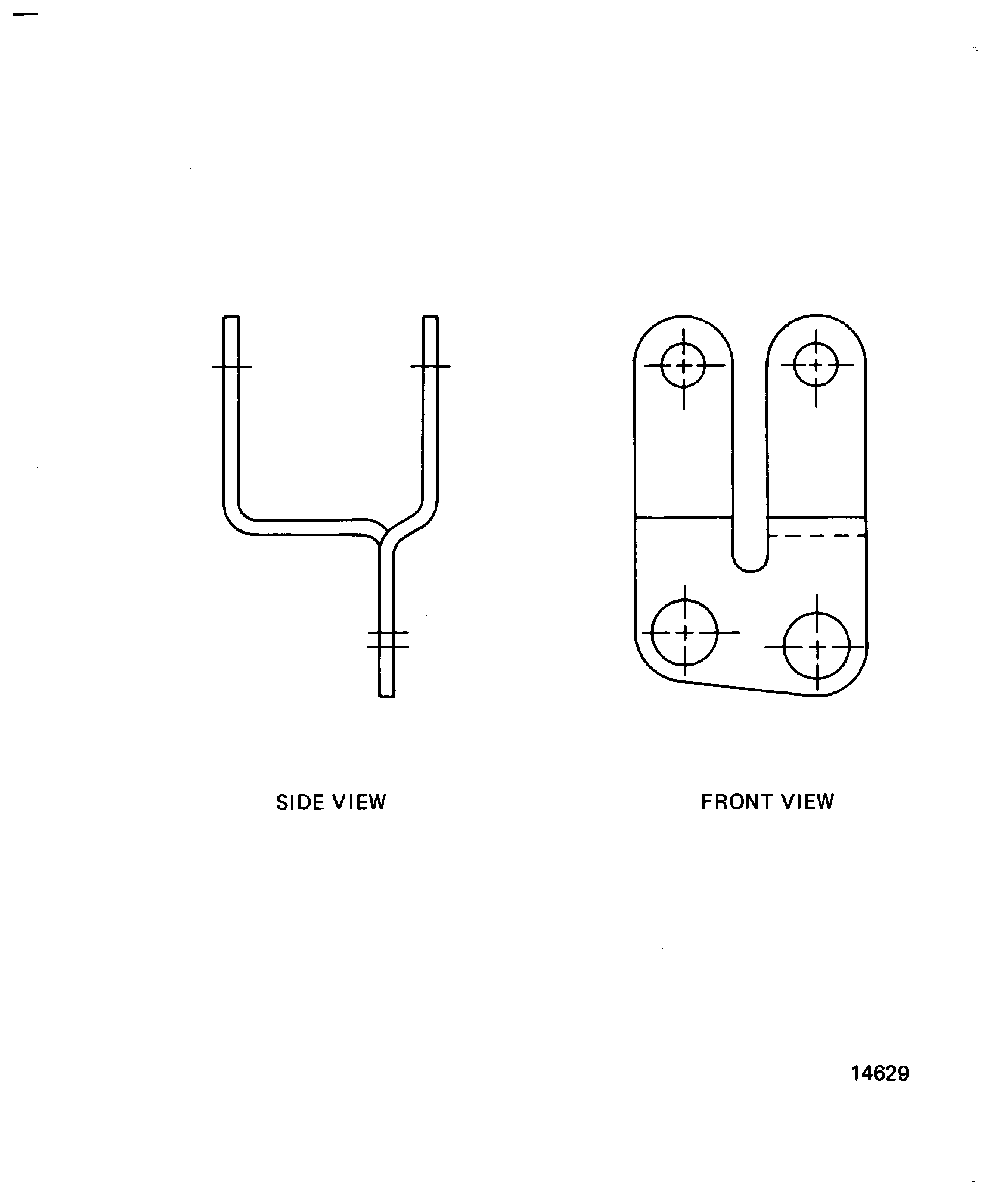

    Figure: Loop clamp bracket (01-140) inspection

    Loop clamp bracket (01-140) inspection

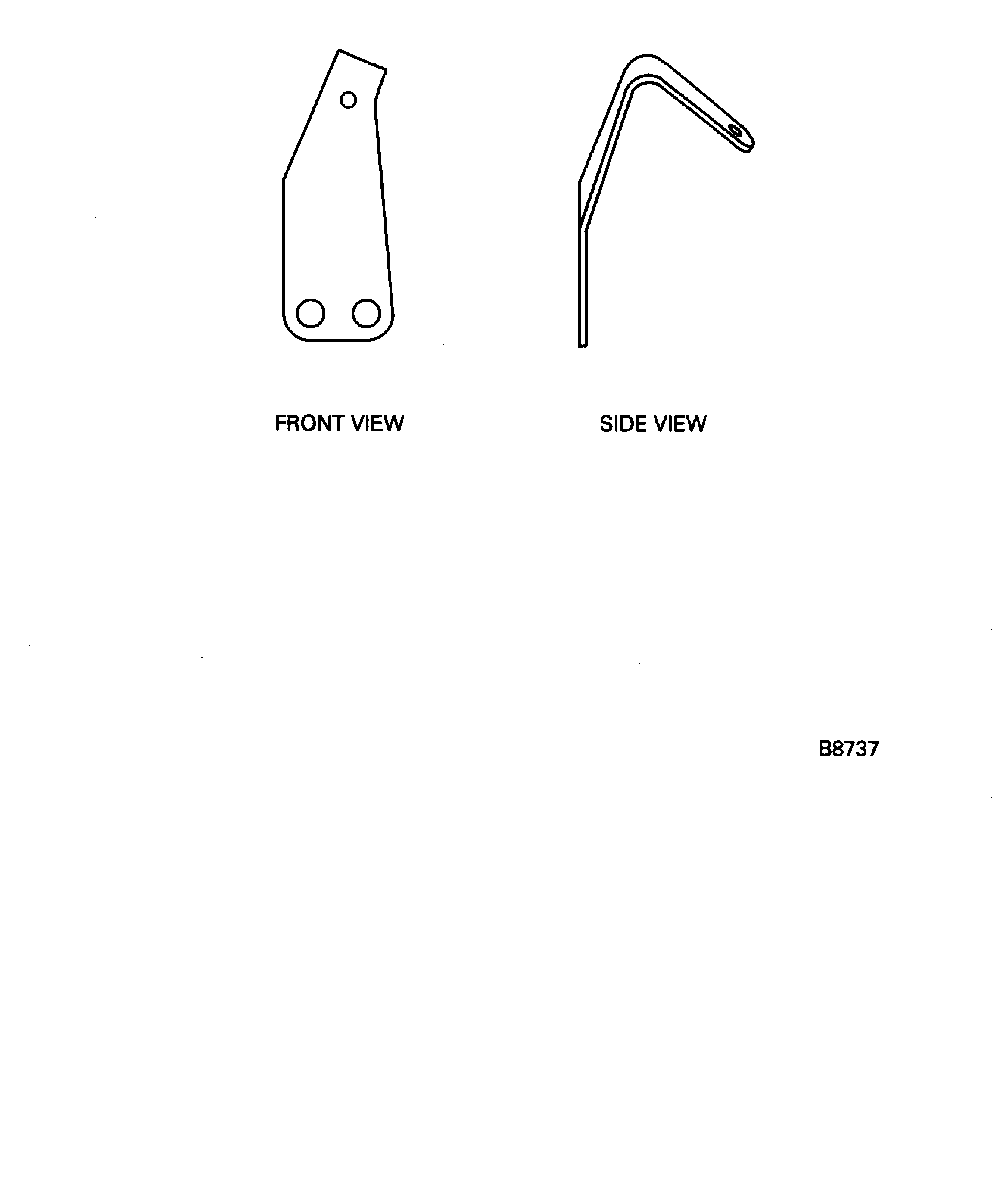

    Figure: Loop clamp bracket (01-160) inspection

    Loop clamp bracket (01-160) inspection

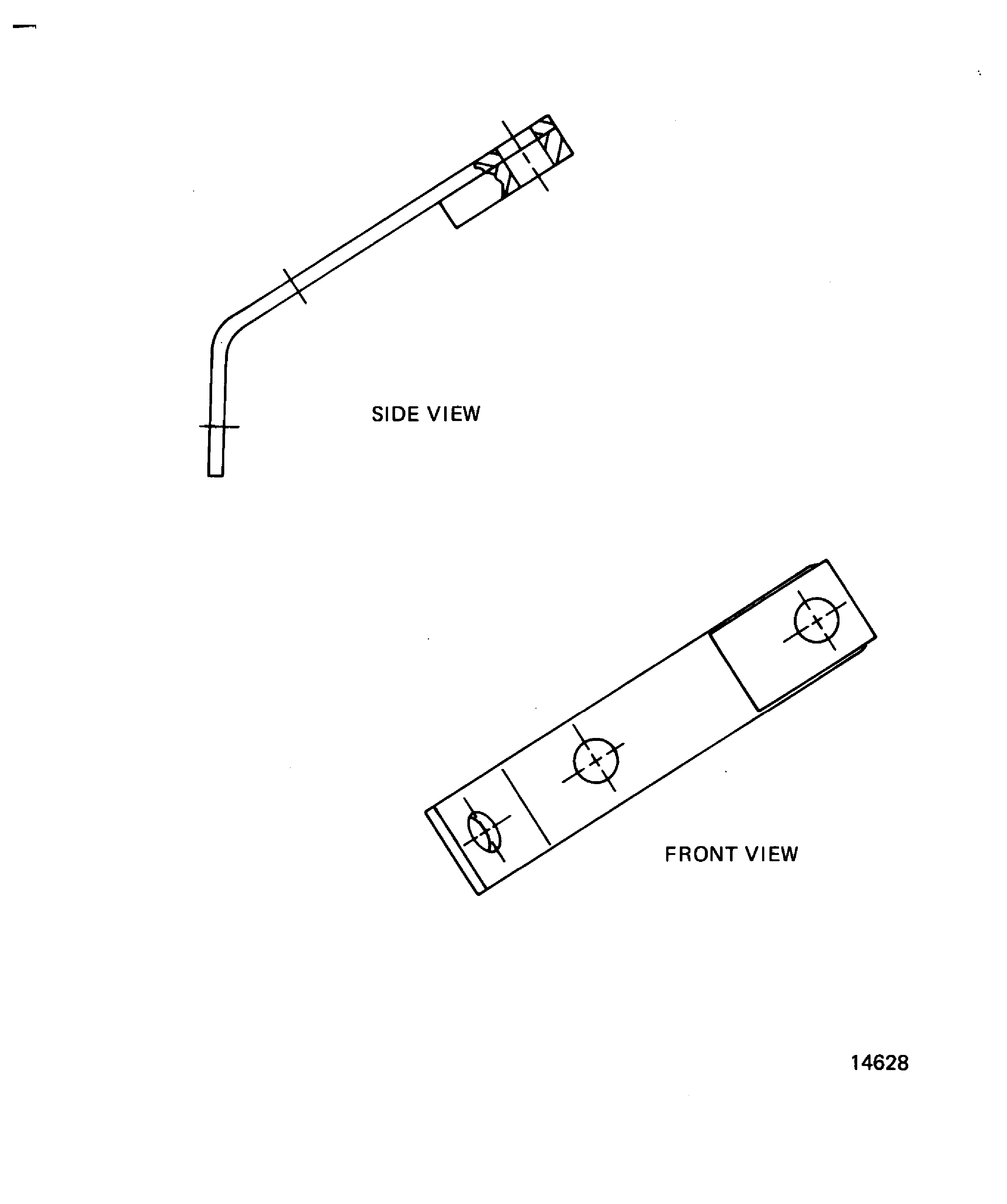

    Figure: Loop clamp bracket (01-170) inspection

    Loop clamp bracket (01-170) inspection

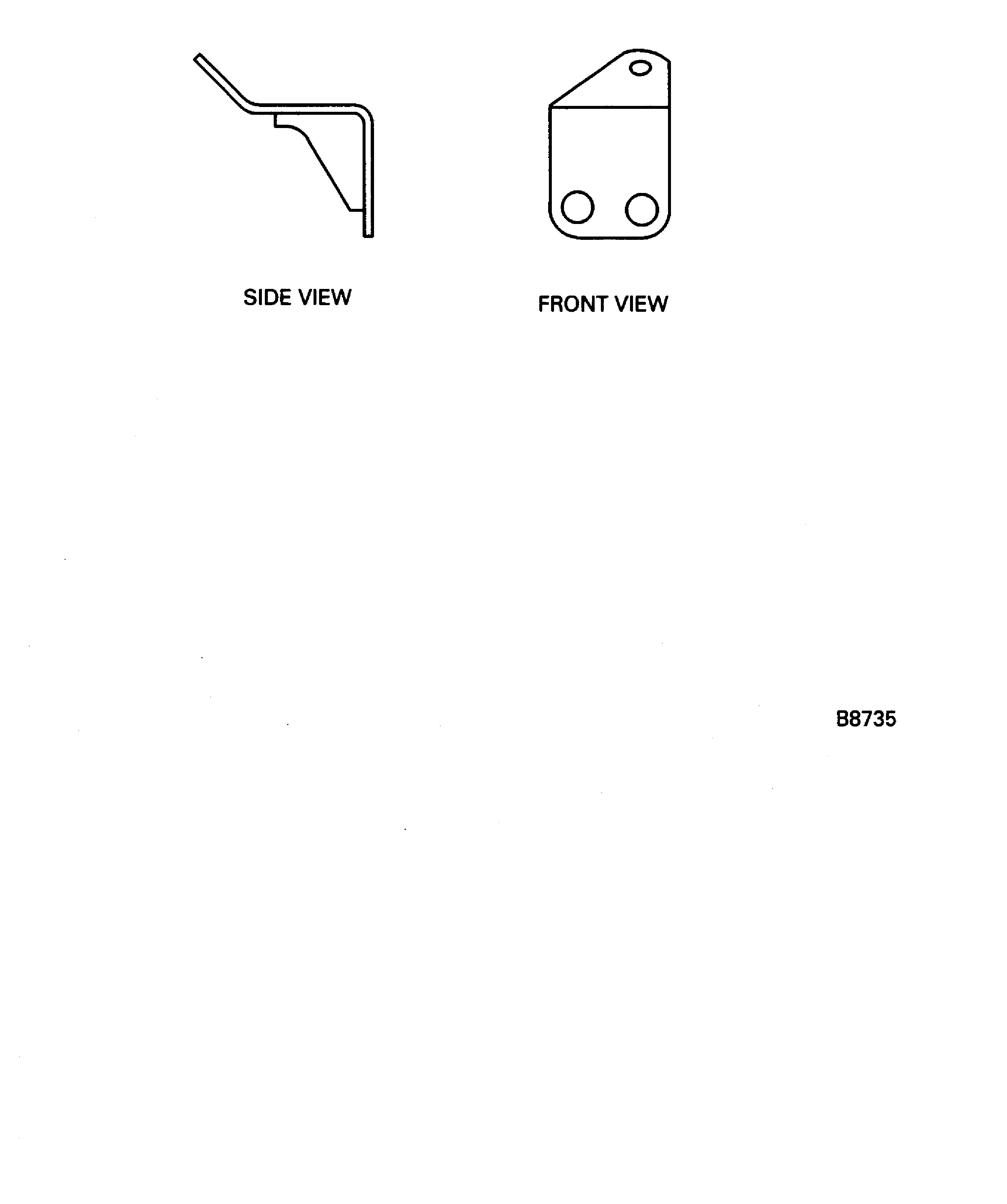

    Figure: Loop clamp bracket (01-140) and (01-080) inspection

    Loop clamp bracket (01-140) and (01-080) inspection

    Figure: Loop clamp bracket (01-160) inspection

    Loop clamp bracket (01-160) inspection

    Figure: Loop clamp bracket (01-161) inspection

    Loop clamp bracket (01-161) inspection

    Figure: Loop clamp bracket (01-194) inspection

    Loop clamp bracket (01-194) inspection

    Figure: Loop clamp bracket (01-197) inspection

    Loop clamp bracket (01-197) inspection

    Figure: Loop clamp bracket (01-435) inspection

    Loop clamp bracket (01-435) inspection

    Figure: Loop clamp bracket (01-170) inspection

    Loop clamp bracket (01-170) inspection

Requirements After Job Completion

Follow-On Conditions

NONE
