TASK 72-41-11-300-013 HPC Stage 3 - 8 Drum Disk - Repair The Damaged Seal Fin By Removal, Repair-013 (VRS6122)

DMC:V2500-A0-72-41-1101-00A-659A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-11-300-013 HPC Stage 3 - 8 Drum Disk - Repair The Damaged Seal Fin By Removal, Repair-013 (VRS6122)

Effectivity

FIG/ITEM

PART NO.

01-200

6A3508

01-200

6A3648

01-200

6A3934

01-200

6A3936

01-200

6A4189

01-200

6A4900

01-200

6A5467

01-200

6A5592

01-200

6A5594

01-200

6A5659

01-200

6A6473

01-200

6A7379

01-200

6A7380

01-200

6A7382

01-200

6A7383

01-200

6A7384

01-200

6A7385

01-200

6A7401

01-200

6A7705

01-200

6A8236

01-200

6A8316

01-200

6A8318

01-200

6A8350

01-200

6B1379

01-200

6B1380

01-200

6B1381

01-200

6B1382

01-200

6B1383

01-200

6B1384

01-200

6B1385

01-200

6B1386

01-200

6B1387

01-200

6B1391

01-200

6B1392

01-200

6B1393

01-200

6B1401

01-200

6B1402

01-200

6B1403

01-200

6B1404

01-200

6B1405

01-200

6B1406

General Data

This repair must only be done when the instruction to do so is given in 72-41-11 Inspection/Check.

This repair must only be done at the seal fin position which has four fins.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the Standard Practices and Processes Manual (SPM).

NOTE

  1. It is possible that some materials in the Consumable Materials chart cannot be used for some or all of the necessary applications. Before you use the materials, make sure the types, quantities and applications of the materials necessary are legally permitted in your location. All persons must obey all applicable federal, state, local and provincial laws and regulations when it is necessary to work with these materials.

  2. To identify the consumable materials, refer to the Overhaul Processes and Consumables Index (PCI).

  3. Other necessary consumable materials are referred to in the SPM TASKs.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Binoculars 10XLOCALBinoculars 10X
Chemical cleaning equipmentLOCALChemical cleaning equipment
LatheLOCALLathe
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Standard workshop equipmentLOCALStandard workshop equipment
Vibro-engraving equipmentLOCALVibro-engraving equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 05-106 ABRASIVE STONEK6835CoMat 05-106
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-11-230-092 Do a Crack Test

      1. Do a local penetrant crack test on the area to be repaired.

      1. Refer to the SPM TASK 70-23-05-230-501.

        Use penetrant crack test equipment.

        Cracks are not permitted.

    2. SUBTASK 72-41-11-325-051 Remove the Damage

      CAUTION

      TITANIUM COMPONENT - YOU MUST USE SILICON CARBIDE TYPE ABRASIVE WHEELS, STONES AND PAPERS TO DRESS, BLEND AND POLISH THIS COMPONENT.

      CAUTION

      TITANIUM COMPONENT - DO NOT USE FORCE WITH MECHANICAL CUTTERS OR THE MATERIAL WILL BECOME TOO HOT.

      CAUTION

      TITANIUM COMPONENT - MAXIMUM SPEED FOR MECHANICAL TOOLS MUST NOT EXCEED 1000 REVOLUTIONS PER MINUTE.

      CAUTION

      TITANIUM COMPONENT - YOU MUST MAKE SURE THAT WHEN YOU REMOVE MATERIAL, BLEND AND POLISH, TO MAKE SMOOTH, THAT NO SPARKS ARE PRODUCED.

      CAUTION

      TITANIUM COMPONENT - IF THE MATERIAL SHOWS A CHANGE IN COLOR, TO DARKER THAN A LIGHT STRAW COLOR, THE COMPONENT IS TO BE REJECTED.

    1. Refer to Figure.

      2. Machine to remove the damaged fin.

      1. Clamp the component to the faceplate of the lathe and set to turn correctly. Use the adjacent seal fin to check the concentricity.

        Remove sufficient material to remove damage. Do not machine in to seal fin land.

        Only one of the four seal fins can be fully removed.

        Use standard workshop equipment.

      3. Polish and remove burrs from the repaired area.

    4. Remove the component from the machine.

    3. SUBTASK 72-41-11-110-090 Do a Swab Etch

      1. Chemically clean.

      1. Refer to the SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-001.

        Use chemical cleaning equipment.

      2. Swab etch the repair area.

      1. Refer to the SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-002.

        Use chemical cleaning equipment.

    4. SUBTASK 72-41-11-220-237 Binocular Examine

      1. Binocular examine the repair area.

      1. Use X10 binoculars.

        Indications of surface defects are not permitted.

        Make sure that there is no raised metal remaining.

    5. SUBTASK 72-41-11-230-095 Do a Crack Test

      1. Do a local penetrant crack test of the repair area.

      1. Refer to the SPM TASK 70-23-05-230-501.

        No cracks are permitted.

        Use penetrant crack test equipment.

    6. SUBTASK 72-41-11-110-091 Chemically Clean

      1. Chemically clean the repair area to remove fluorescent penetrant.

      1. Refer to the SPM TASK 70-11-26-300-503.

        Use chemical cleaning equipment.

    7. SUBTASK 72-41-11-220-070 Examine the Seal Fin

    1. Refer to Figure.

    2. Do a dimensional inspection.

    8. SUBTASK 72-41-11-350-052 Identify the Repair

    1. Refer to Figure.

      NOTE

      If the parts are already identified with VRS6122 from a repair that was done before, more identification is not necessary.

      2. Vibro-engrave VRS6122 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

        Use vibro-engraving equipment.

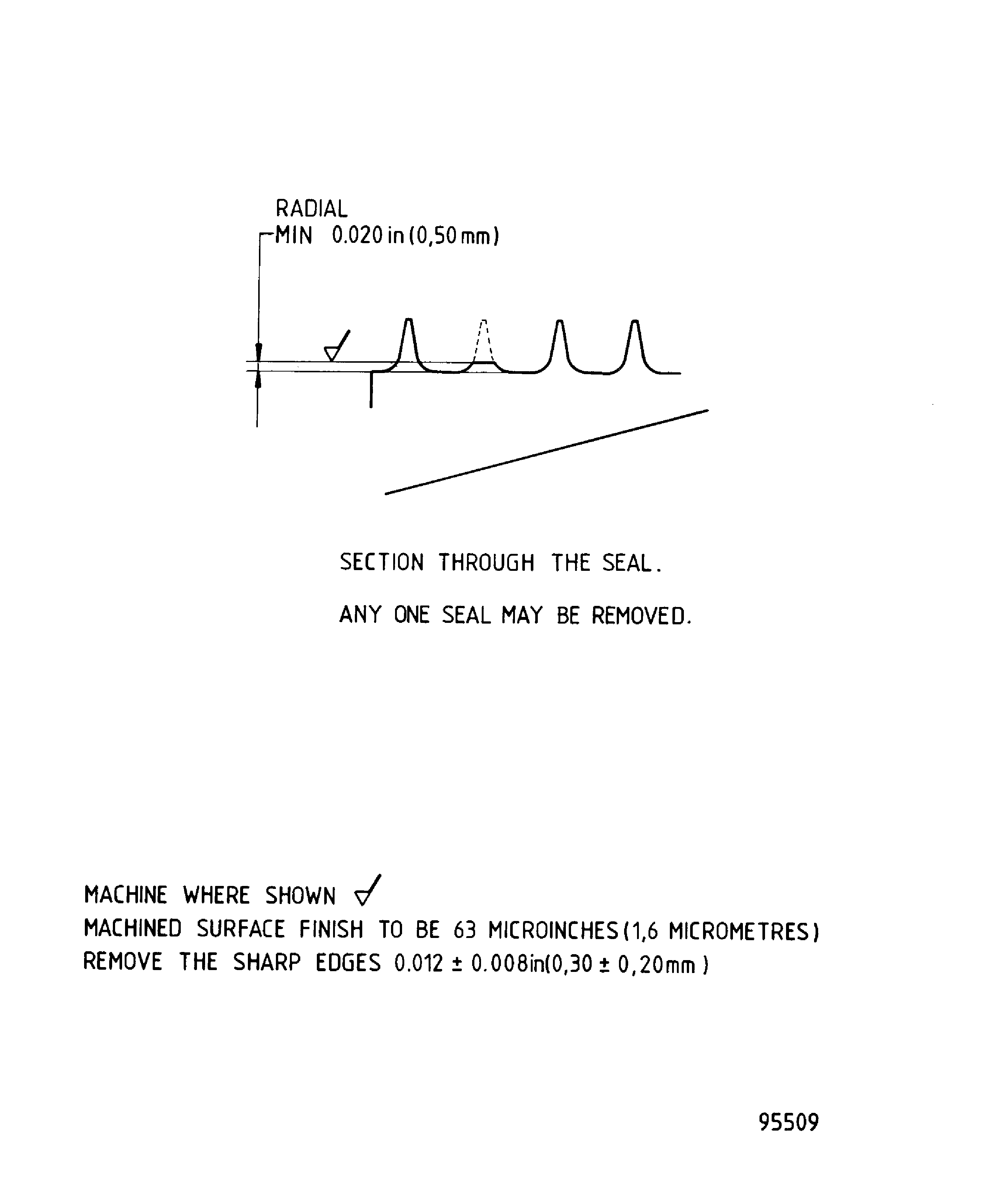

    9. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
