TASK 72-41-11-300-003 HPC Stage 3 - 8 Drum Disk - Blend Repair, Repair-003 (VRS6047)

DMC:V2500-A0-72-41-1101-01A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-11-300-003 HPC Stage 3 - 8 Drum Disk - Blend Repair, Repair-003 (VRS6047)

Effectivity

FIG/ITEM

PART NO.

01-200

6A3508

01-200

6A3648

01-200

6A3934

01-200

6A3936

01-200

6A4189

01-200

6A4900

01-200

6A5467

01-200

6A5592

01-200

6A5594

01-200

6A5659

01-200

6A6473

01-200

6A7379

01-200

6A7380

01-200

6A7382

01-200

6A7383

01-200

6A7384

01-200

6A7385

01-200

6A7401

01-200

6A7705

01-200

6A8236

01-200

6A8316

01-200

6A8318

01-200

6A8350

01-200

6B1379

01-200

6B1380

01-200

6B1381

01-200

6B1382

01-200

6B1383

01-200

6B1384

01-200

6B1385

01-200

6B1386

01-200

6B1387

01-200

6B1391

01-200

6B1392

01-200

6B1393

01-200

6B1401

01-200

6B1402

01-200

6B1403

01-200

6B1404

01-200

6B1405

01-200

6B1406

Material of component

PART IDENT

MATERIAL

HP Compressor Stage 3 to 8 Disks

Shaft Assembly

Titanium alloy

General

This repair must only be done when the instruction to do so is given in inspection procedures (identified by the applicable part number) located in section 72-41-11.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the Standard Practices Manual (SPM).

If the damage is nicks, dents or scores the maximum depth of damage before material removal is 0.002 in. (0.051 mm) and you must remove damage to 2X depth to a maximum depth of 0.005 in. (0.127 mm).

If the damage is frettage the maximum depth of damage before material removal is 0.005 in. (0.127 mm) and you must remove damage to depth to a maximum depth of 0.005 in. (0.127 mm).

Price and availability.

Refer to International Aero Engines (IAE).

Related repairs.

None.

NOTE

  1. Equipment and materials necessary to do this repair are in the SPM TASKS given below:

SPM TASK 70-09-00-400-501
SPM TASK 70-11-08-300-503
SPM TASK 70-11-26-300-503
SPM TASK 70-23-05-230-501
SPM TASK 70-35-03-300-501

NOTE

It is possible that some materials in the consumable materials chart cannot be used for some or all of the necessary applications. Before you use the materials, make sure the types, quantities and applications of the materials necessary are legally permitted in your location. All persons must obey all applicable federal, state, local and provincial laws and regulations when it is necessary to work with these materials.

NOTE

To identify the consumable materials refer to the Overhaul Processes and Consumable Index Manual (CoMat).

NOTE

Other necessary consumable materials are referred to in the SPM TASKS.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Standard workshop equipmentLOCALStandard workshop equipment
Chemical cleaning equipmentLOCALChemical cleaning equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Binoculars 10XLOCALBinoculars 10X
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 05-106 ABRASIVE STONEK6835CoMat 05-106
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-11-230-055 Do a Crack Test

      1. Do a local penetrant crack test on the area to be repaired.

      1. Refer to SPM TASK 70-23-05-230-501.

      3. Cracks are not permitted.

    2. SUBTASK 72-41-11-325-054 Remove the Damage

    1. CAUTION

      TITANIUM COMPONENT - YOU MUST USE SILICON CARBIDE TYPE ABRASIVE WHEELS, STONES AND PAPERS TO DRESS, BLEND AND POLISH THIS COMPONENT.

      CAUTION

      TITANIUM COMPONENT - DO NOT USE FORCE WITH MECHANICAL CUTTERS OR THE MATERIAL WILL BECOME TOO HOT.

      CAUTION

      TITANIUM COMPONENT - MAXIMUM SPEED FOR MECHANICAL TOOLS MUST NOT EXCEED 1000 REVOLUTIONS PER MINUTE.

      CAUTION

      TITANIUM COMPONENT - YOU MUST MAKE SURE THAT WHEN YOU REMOVE MATERIAL, BLEND AND POLISH, TO MAKE SMOOTH, THAT NO SPARKS ARE PRODUCED.

      CAUTION

      TITANIUM COMPONENT - IF THE MATERIAL SHOWS A CHANGE IN COLOR, TO DARKER THAN A LIGHT STRAW COLOR, THE COMPONENT IS TO BE REJECTED.

      Refer to Figure.

      2. Remove small area(s) of damage as necessary.

      1. Refer to SPM TASK 70-35-03-300-501.

      2. The maximum depth to remove the damage must not be more than 0.005 in. (0.13 mm).

      3. The repaired area(s) diameter is to be 50 times the depth.

        1. If material damage is frettage you must dress to depth to a maximum depth of 0.005 in. (0.127 mm).

        2. If material damage is nicks, dents or scores you must dress to 2X depth to a maximum depth of 0.005 in. (0.127 mm).

      4. Polish the area of repair.

      1. Refer to SPM TASK 70-35-03-300-501.

      3. Polish the repaired area to give a surface finish the same as the adjacent material.

    3. SUBTASK 72-41-11-110-100 Do a Swab Etch

      1. Chemically clean.

      1. Refer to SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-001.

      2. Swab etch the repair area.

      1. Refer to SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-002.

    4. SUBTASK 72-41-11-220-247 Binocular Examine

      1. Binocular examine the repaired area.

      2. Indications of surface defects are not permitted.

      3. Make sure that there is no raised metal remaining.

    5. SUBTASK 72-41-11-230-102 Do a Crack Test

      1. Do a local penetrant crack test of the repaired area.

      1. Refer to SPM TASK 70-23-05-230-501.

      2. Cracks are not permitted.

    6. SUBTASK 72-41-11-110-101 Chemically Clean

      1. Chemically clean the repaired area to remove fluorescent penetrant.

      1. Refer to SPM TASK 70-11-26-300-503.

    7. SUBTASK 72-41-11-220-071 Examine the Repair

    1. Refer to Figure.

      2. Do a dimensional inspection.

      1. Make sure the surface finish is the same as the adjacent material.

      2. The maximum depth of the repair must not be more than 0.005 in. (0.13 mm) and the diameter of repair must not be more than 0.250 in. (6.35 mm).

    8. SUBTASK 72-41-11-350-054 Identify the Repair

    1. Refer to Figure.

      2. Vibro-engrave VRS6047 adjacent to the part number.

      1. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

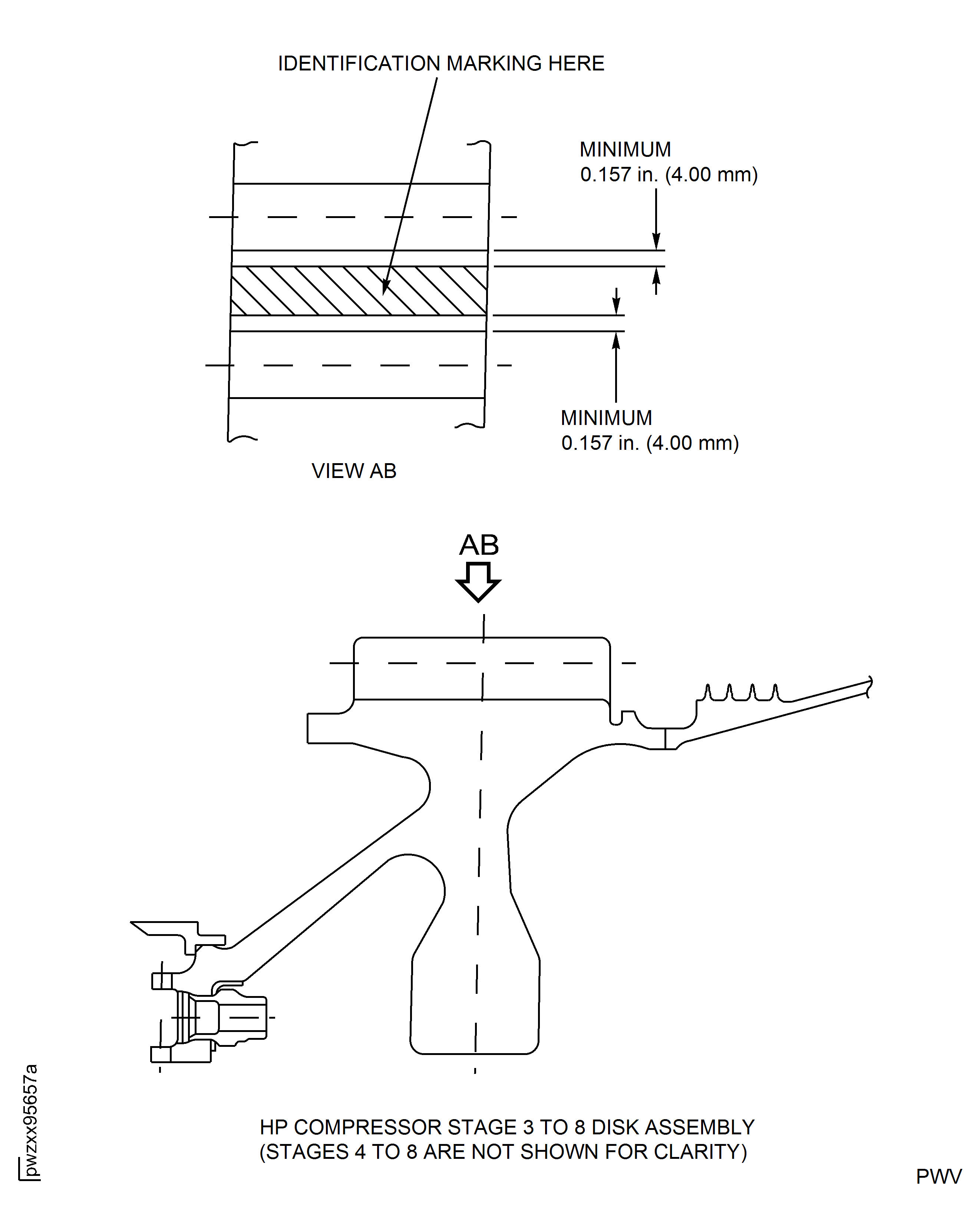

    9. Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the effectivity table, figure 2 and added note to address SPM references. (89VR755F)
