TASK 72-41-11-300-023 HPC Stage 3 - 8 Drum Disk - Blend Repair To The Stages 3 To 5 Retaining Slots, Repair-023 (VRS6630)

DMC:V2500-A0-72-41-1101-08A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-11-300-023 HPC Stage 3 - 8 Drum Disk - Blend Repair To The Stages 3 To 5 Retaining Slots, Repair-023 (VRS6630)

Effectivity

FIG/ITEM

PART NO.

01-200

6A3508

01-200

6A3648

01-200

6A3934

01-200

6A3936

01-200

6A4189

01-200

6A4900

01-200

6A5467

01-200

6A5592

01-200

6A5594

01-200

6A5659

01-200

6A6473

01-200

6A7379

01-200

6A7380

01-200

6A7382

01-200

6A7383

01-200

6A7384

01-200

6A7385

01-200

6A7401

01-200

6A7705

01-200

6A8236

01-200

6A8316

01-200

6A8318

01-200

6A8350

01-200

6B1379

01-200

6B1380

01-200

6B1381

01-200

6B1382

01-200

6B1383

01-200

6B1384

01-200

6B1385

01-200

6B1386

01-200

6B1387

01-200

6B1391

01-200

6B1392

01-200

6B1393

01-200

6B1401

01-200

6B1402

01-200

6B1403

01-200

6B1404

01-200

6B1405

01-200

6B1406

General Data

This Repair must only be done when the instruction to do so is given in inspection procedures (identified by the applicable part number) located in section 72-41-11.

This TASK gives the procedure to repair the V2500 HP Compressor Stage 3 to 8 Discs Shaft Assembly, stages 3 to 5 retaining slots, by material removal.

Material of Component

DESCRIPTION

MATERIAL

HP Compressor Stage 3 to 8 Discs Shaft Assembly

Titanium

TASKS identified by SPM TASK are in the Standard Practices and Processes Manual (SPM).

Price and Availability

Refer to International Aero Engines

Related Repairs - None

This repair must only be done by the operators those who are trained and qualified with regards to the operation, operation constraints and conditions (malfunctioning tools) of hand held power tools. Operators must be aware of and be able to identify changes in surface texture and colour of the component/repair area.

NOTE

Equipment and materials necessary to do this Repair are in the SPM TASKS given below:
SPM TASK 70-09-00-400-501
SPM TASK 70-11-08-300-503
SPM TASK 70-11-26-300-503
SPM TASK 70-23-05-230-501
SPM TASK 70-35-03-300-501

NOTE

It is possible that some materials in the consumable materials chart cannot be used for some or all of the necessary applications. Before you use the materials, make sure the types, quantities and applications of the materials necessary are legally permitted in your location. All persons must obey all applicable federal, state, local and provincial laws and regulations when it is necessary to work with these materials.

NOTE

To identify the consumable materials, refer to the Overhaul Processes and Consumables Index (PCI).

NOTE

Other necessary consumable materials are referred to in the SPM TASKS.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Chemical cleaning equipmentLOCALChemical cleaning equipment
BinocularsLOCALBinoculars

10x and 20x

Workshop inspection equipmentLOCALWorkshop inspection equipment
Vibrating marking pencilLOCALVibrating marking pencil
Stage 3 retaining plateLOCAL6A10287
Stage 3 retaining plateLOCAL6A35972
Stage 3 lock plateLOCAL6A85249
Stage 4 retaining plateLOCAL6A10339
Stage 4 lock plateLOCAL6A85253
Stage 5 retaining plateLOCAL6A103812
Stage 5 lock plateLOCAL6A10393

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-364 MARKER PEN - WHITE98148CoMat 02-364
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 05-106 ABRASIVE STONEK6835CoMat 05-106
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022
CoMat 06-030 NON AQUEOUS DEVELOPERLOCALCoMat 06-030

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-11-230-088 Do a Crack Test

      1. Do a local penetrant crack test of the area to be repaired.

      1. Refer to SPM TASK 70-23-05-230-501.

      3. Cracks are not permitted.

    2. SUBTASK 72-41-11-220-230 Examine the Area(s) to be Repaired

    1. CAUTION

      BEFORE MATERIAL REMOVAL MAKE SURE THAT THE AREA(S) OF REPAIR WILL NOT BE MORE THAN THE LIMITS GIVEN IN Step AND/OR Step

      Refer to Figure, Figure, Figure, Figure and Figure.

      2. Visually and dimensionally examine the retaining slots at stages 3, 4 and 5 for damage and previous blend repairs.

      1. Use standard inspection equipment. The depth of damage must be measured.

      2. Make sure the limits given in Step can be achieved.

      3. If limits cannot be achieved, reject.

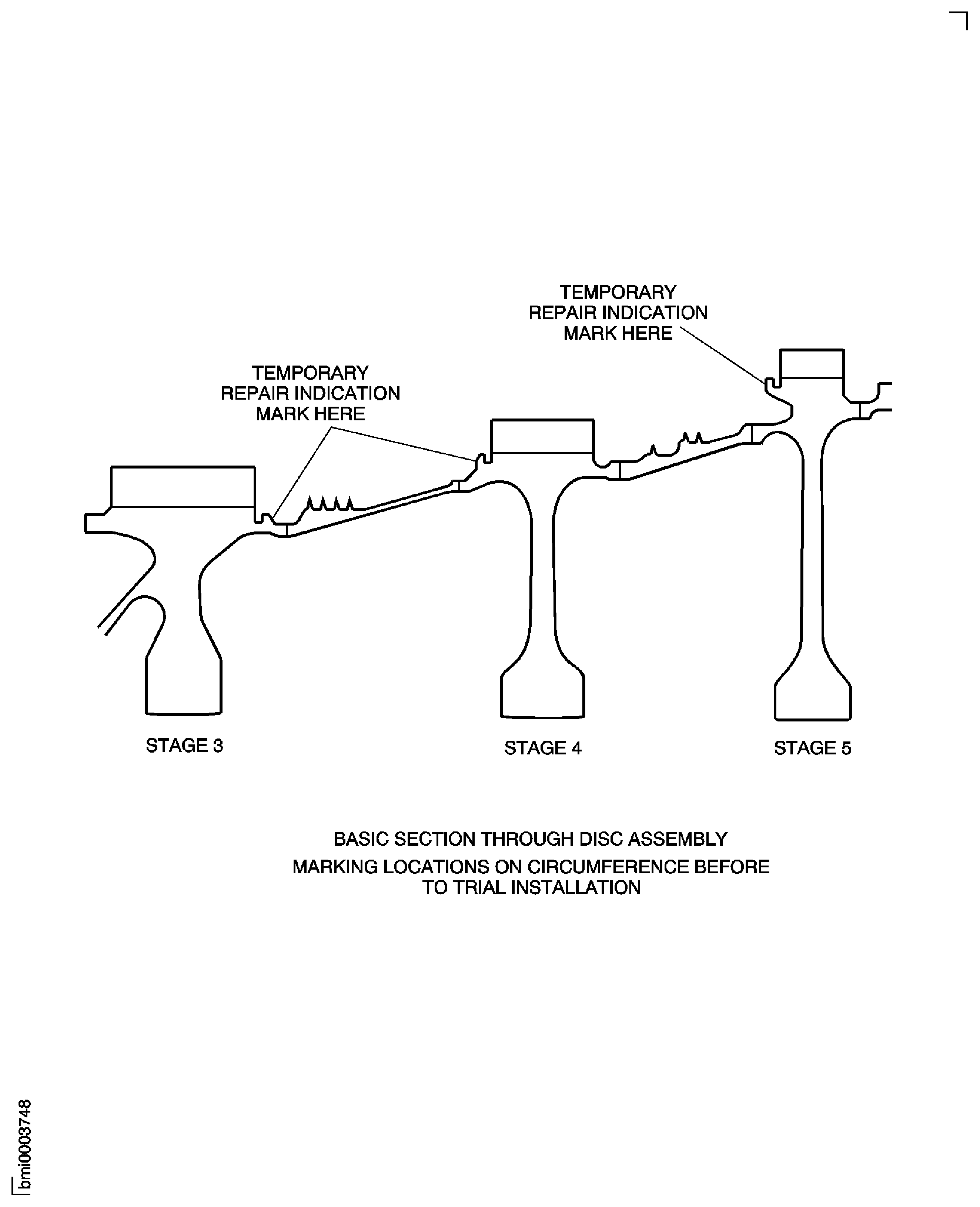

      3. Mark the location of damage and previous blend repairs.

        1. NOTE

          Consider the post repair dimensions, blend depth and blend ratio.

          Mark adjacent surface with the location and circumferential length of previous blend repairs.

        1. Mark the location and circumferential length of the damage.

        2. Marking are to be visible when the retaining plates and lock plates are installed in Step

    3. SUBTASK 72-41-11-440-054 Trial Install the Lock Plates and the Reatining Plates

    1. Refer to Figure.

      NOTE

      If there is one blend indication or damaged area per stage, this SUBTASK does not need to be done on that stage.
      If there are no blend indication(s) or damaged area(s) on a stage, this SUBTASK does not need to be done on that stage.
      To do this SUBTASK the drum must be orientated in the vertical position with the retaining slot uppermost. The orientation will vary depending on the stage affected.

      2. NOTE

        If the depth of dressing at AE on stage 3 is larger than 0.079 in. (2.00 mm), then a long retaining plate must be installed over the damage.

        Replicate the installation of the lock plates and retaining plates.

        1. Blades do not need to be installed in this TASK. Locking of the lock plates is not necessary. This TASK can be done by resting the plates in position, refer to installation TASK 72-41-10-440-003-A00.

        1. The function of this SUBTASK is to make sure that the limits can be met.

        2. Make sure that after repair, the retaining plates can be installed spanning all blended areas on the stage.

        3. If it is not possible to span all the blended areas with a retaining plate, reject.

    4. SUBTASK 72-41-11-350-080 Remove the Damage from the Retaining Slot(s)

    1. CAUTION

      TITANIUM COMPONENT - YOU MUST USE SILICON CARBIDE TYPE ABRASIVE WHEELS, STONES AND PAPERS TO DRESS, BLEND AND POLISH THIS COMPONENT.

      CAUTION

      TITANIUM COMPONENT - AVOID BUILD UP OF HEAT BY APPLYING ONLY GENTLE PRESSURE AND KEEPING THE TOOL SPEED AS LOW AS POSSIBLE. USE TECHNIQUES WHICH ALLOW FOR PROGRESSIVE WEAR OF THE DRESSING MEDIA TO PRESENT A CONTINUALLY FRESH CUTTING SURFACE TO THE WORK PIECE.

      CAUTION

      DO NOT DWELL ON ONE AREA OF THE COMPONENT.

      CAUTION

      DRESS, WHERE POSSIBLE, IN A CIRCULAR MOTION, TAKING LIGHT CUTS TO AVOID OVERHEATING.

      CAUTION

      TITANIUM COMPONENT - MAXIMUM SPEED FOR MECHANICAL TOOLS MUST NOT EXCEED 1000 REVOLUTIONS PER MINUTE.

      CAUTION

      TITANIUM COMPONENT - YOU MUST MAKE SURE THAT WHEN YOU REMOVE MATERIAL, BLEND AND POLISH, TO MAKE SMOOTH, THAT NO SPARKS ARE PRODUCED AND THE ADJACENT AREA IS MASKED OFF.

      CAUTION

      TITANIUM COMPONENT - IF THE MATERIAL SHOWS A CHANGE IN COLOR DURING DRESSING, TO DARKER THAN A LIGHT STRAW COLOR, THE COMPONENT IS TO BE REJECTED.

      Refer to Figure, Figure, Figure and Figure.

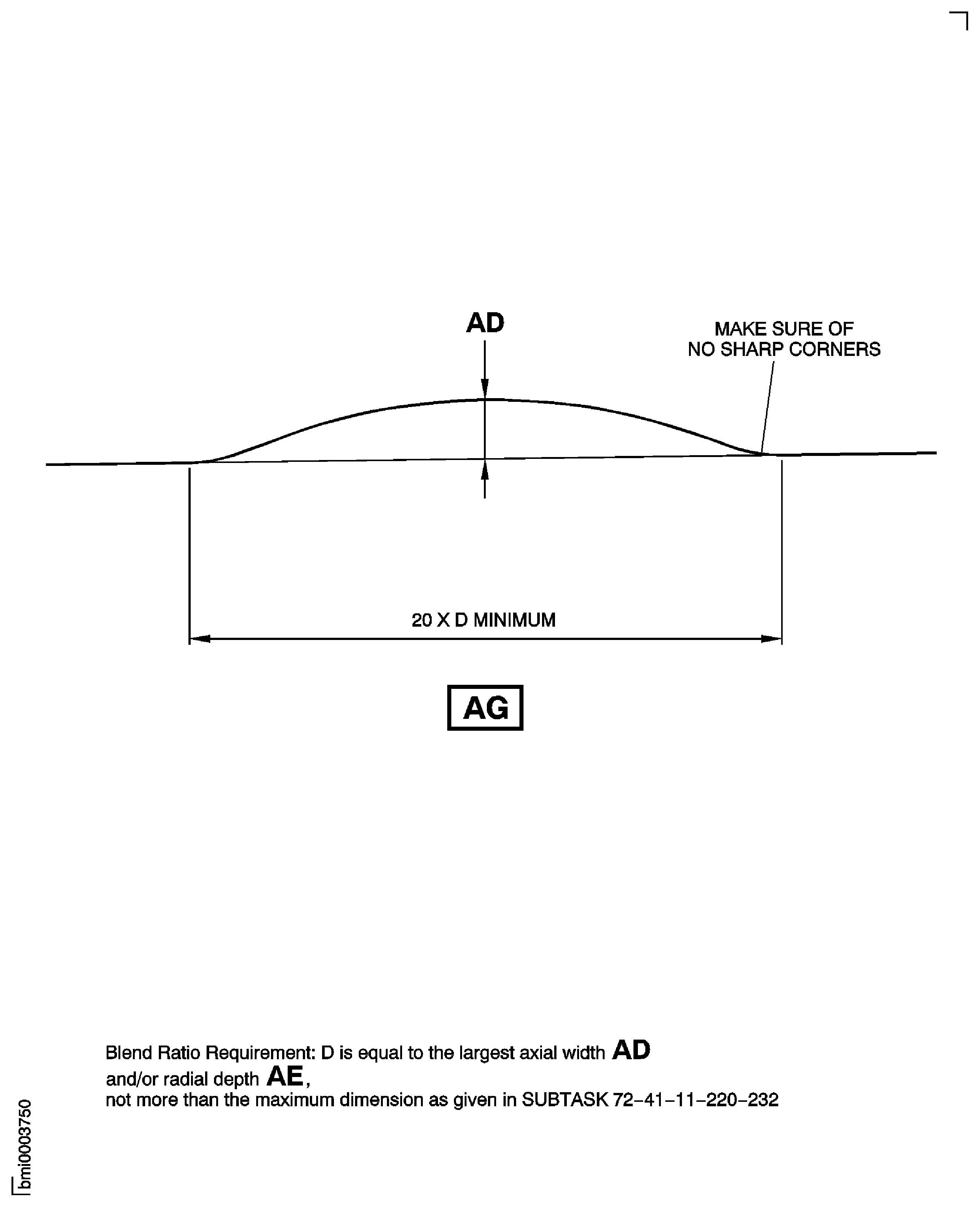

      2. NOTE

        The proportional ratio for the length of material removal must be 20 x D minimum, not more than a maximum length AF as given in Step
        Where D is equal to the largest axial Width AD and/or radial Depth AE, not more than the maximum dimension as given in Step

        Dress to remove the area(s) of damage.

        1. Refer to SPM TASK 70-35-03-300-501.

        2. Remove no more material than is necessary, refer to Step

      3. Blend the dressed area(s) of damage.

      1. Refer to SPM TASK 70-35-03-300-501.

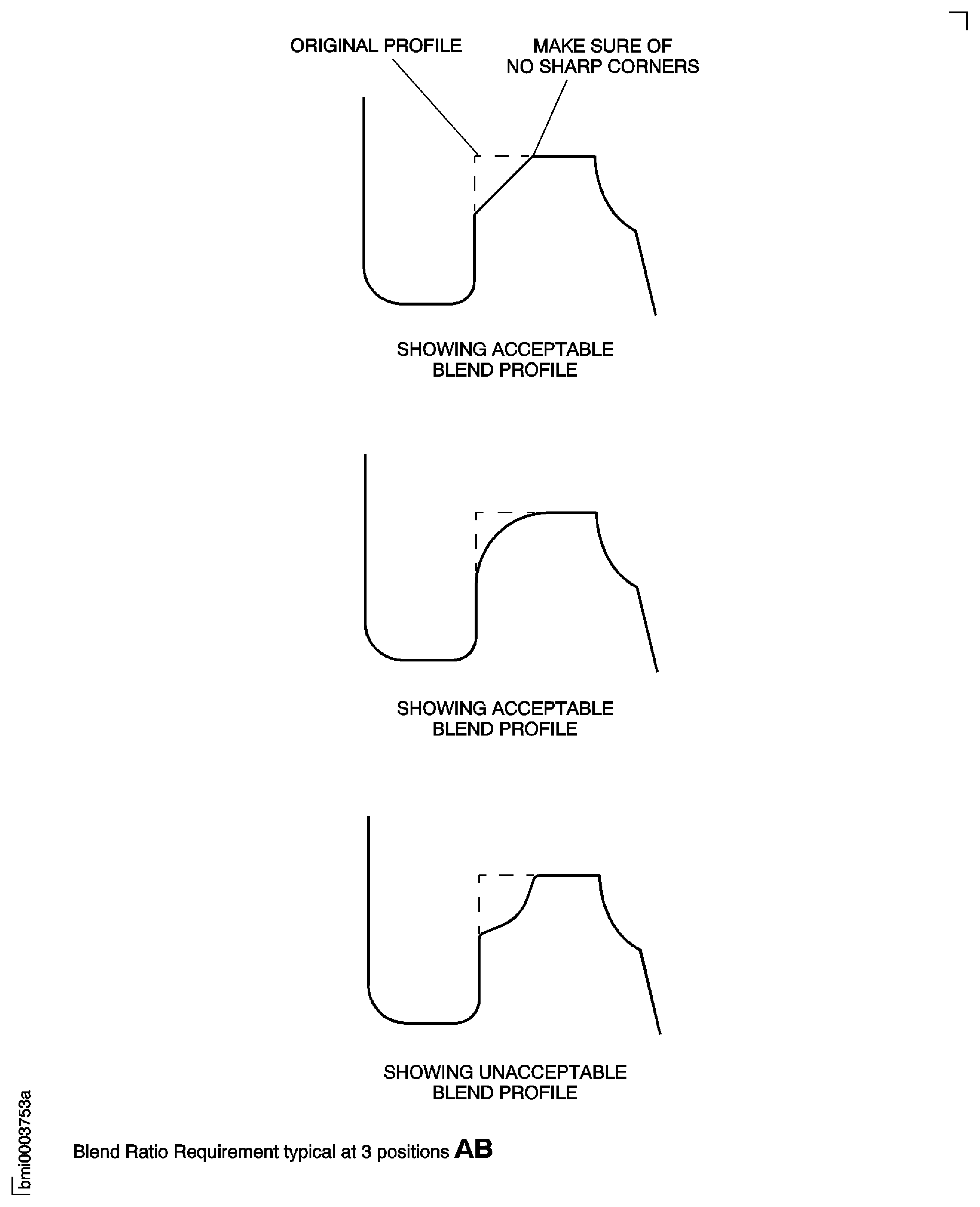

      3. Remove sharp corners.

      4. Make sure all dimensions are contained within the given limits, refer to Step

      4. Polish the blended area(s) of damage.

      1. Refer to SPM TASK 70-35-03-300-501.

      3. Polish the repaired area(s) to remove scratches and to give a surface finish the same as the adjacent material.

    5. SUBTASK 72-41-11-110-122 Chemically Clean

    1. Refer to Figure.

      2. Chemically clean the damaged area(s).

      1. Refer to SPM TASK 70-11-26-300-503.

      3. Make sure that the temporary marking at the stage 3, 4 and/or 5 retaining slots have been removed.

    6. SUBTASK 72-41-11-110-082 Do a Swab Etch

      1. Chemically clean.

      1. Refer to SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-001.

      2. Swab etch the repaired area(s).

      1. Refer to SPM TASK 70-11-08-300-503, SUBTASK 70-11-08-300-002.

    7. SUBTASK 72-41-11-220-231 Binocular Examine

      1. Binocular examine the repaired area(s).

      1. Use X10 and X20 binoculars.

      2. Indications of surface defects and discolouration are not permitted.

    8. SUBTASK 72-41-11-230-089 Do a Crack Test

      1. Do a local penetrant crack test of the repaired area.

      1. Refer to SPM TASK 70-23-05-230-501.

      3. Cracks are not permitted.

    9. SUBTASK 72-41-11-110-083 Chemically Clean

      1. Chemically clean the repaired area(s) to remove fluorescent penetrant.

      1. Refer to SPM TASK 70-11-26-300-503.

    10. SUBTASK 72-41-11-220-232 Examine the Stage 3, 4 and 5 Retaining Slots

    1. Refer to Figure, Figure and Figure.

      2. Visually examine and measure the dimensions of the repaired area(s).

        1. Make sure the surface finish is the same as the adjacent material.

        1. Make sure the blend ratio of 20 X D has been achieved.

        2. The maximum width, dimension AD, must not be more than 0.040 in. (1.00 mm).

        3. The maximum depth, dimension AE, must not be more than 0.098 in. (2.50 mm).

        4. The maximum length, dimension AF, must not be more than 1.969 in. (50.00 mm).

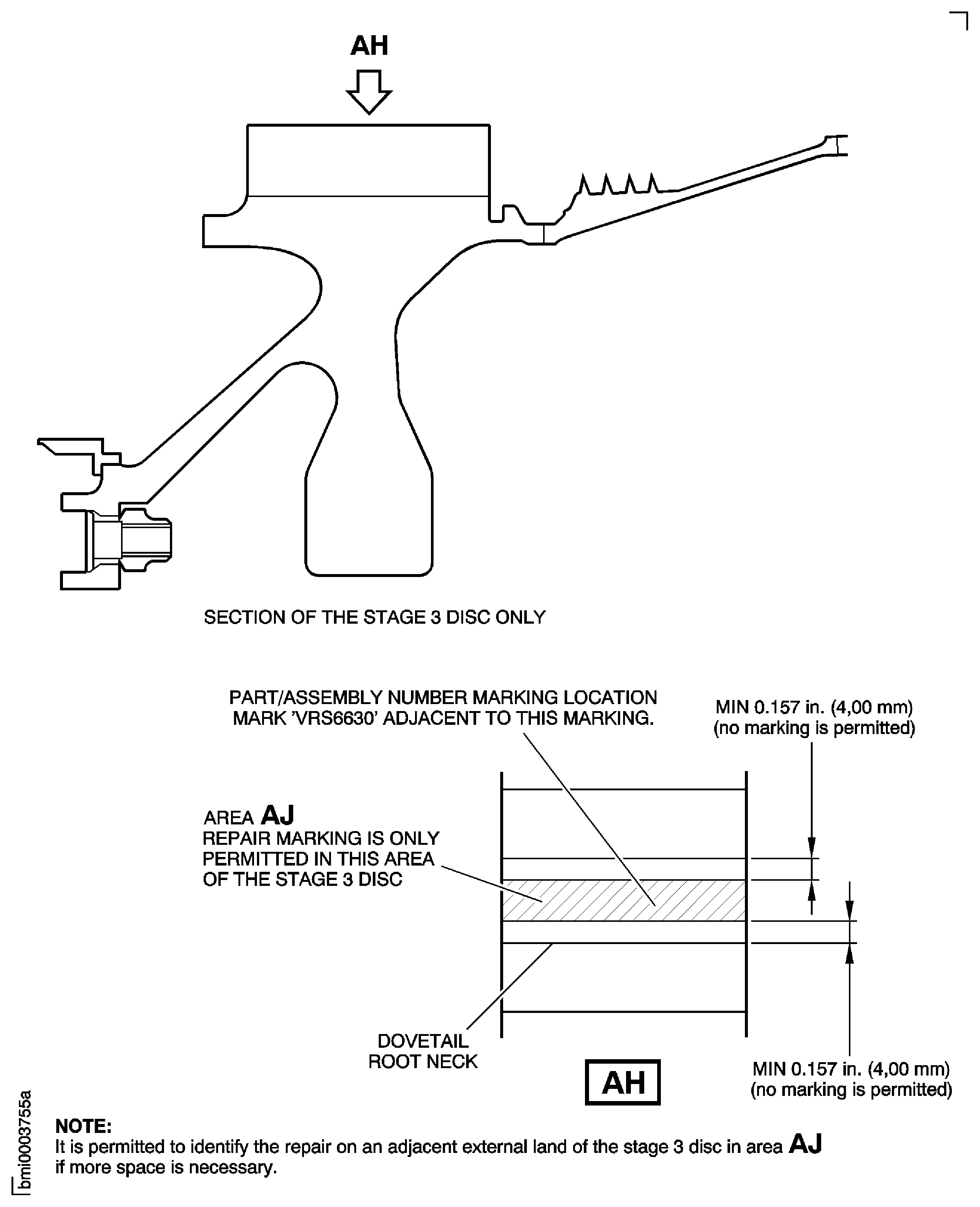

    11. SUBTASK 72-41-11-350-081 Identify the Repair

    1. Refer to Figure.

      2. Vibro-engrave VRS6630 adjacent to the part number.

      1. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

    12. SUBTASK 72-41-11-440-055 Instruct the Correct Assembled Position for the Lock Plates and Retaining Plates

    1. Refer to Figure.

      2. NOTE

        This SUBTASK only applies to stages that show blend indication(s) or are known to have been repaired. This SUBTASK does not need to be performed for stages that have not been repaired or do not show blend indications.

        Make a planning instruction to position the lock plates and retaining plates.

      1. Give the instruction to install the lock plates and retaining plates in accordance with the limits.

      2. Make a note of the stages with blend repairs/blend indications.

      3. Make a note of the circumferential location of all blend repairs/blend indications that are on the stages 3 to 5 retaining groove of the component.

      4. This is an additional requirement to the existing assembly instructions.

    13. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

    Figure: Repair Details and Dimensions

    Sheet 3

    Legend
    Repair Details and Dimensions

    Sheet 3

    Close

    Figure: Repair Details and Dimensions

    Sheet 4

    Legend
    Repair Details and Dimensions

    Sheet 4

    Close

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised effectivity table and consumable materials. (98VR852C)
