TASK 72-41-12-200-004 Focus Inspection on Rear HPC Disc for Cracks
Effectivity
FIG/ITEM | PART NO. |
|---|---|
01-600 | 2A2100-01 |
01-600 | 2A2200-01 |
01-600 | 2A2600-01 |
01-600 | 2A3200-01 |
01-600 | 2A3300-01 |
01-600 | 2A3400-01 |
01-600 | 2A3500-01 |
General
This TASK gives the procedure to Focus FPI Rear HPC discs.
The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
References
Refer to the SPM for data on these items.
Definitions of Damage, SPM TASK 70-02-02-350-501
Inspection of Parts, SPM TASK 70-20-01-200-501
Some data on these items is contained in this TASK. For more data on these items refer to the SPM.
Method of Testing for Crack Indications
Chemical Processes
Surface Protection
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-005 ADHESIVE TAPE (MASKING) | LOCAL | CoMat 02-005 |
Spares
NONESafety Requirements
CAUTION
Procedure
Clean the parts. Refer to TASK 72-41-12-100-000 (CLEANING-000).
Mask the areas adjacent to inspection locations with CoMat 02-005 ADHESIVE TAPE (MASKING). This will prevent glare during inspection from Fluorescent Penetrant which may have soaked into the ceramic.
Do the crack test. Refer to the SPM TASK 70-23-04-230-501. While completing the Fluorescent Penetrant Inspection called out by the TASK, special attention must be given to the focused areas listed in the following locations:
SUBTASK 72-41-12-230-079 Focus Inspect the Rear HPC Disc for Cracks
NOTE
This SUBTASK is an additional examination to the Ultra High Sensitivity Fluorescent Penetrant Inspection of the whole component. The additional examination using Ultra High Sensitivity Fluorescent Penetrant is only required for component areas that are specified within this SUBTASK.
Figure: Rear HPC disk inspection locations
Rear HPC disk inspection locations
Figure: Rear HPC disk inspection locations
Rear HPC disk inspection locations
Figure: Rear HPC disk inspection locations
Rear HPC disk inspection locations
Figure: Rear HPC disk inspection locations
Rear HPC disk inspection locations
Figure: Rear HPC Disk inspection locations
Rear HPC Disk inspection locations
Figure: Rear HPC disk inspection locations
Rear HPC disk inspection locations
Figure: Rear HPC disk inspection locations
Rear HPC disk inspection locations
Figure: Focused Inspection - Stages 9, 10, 11 and 12 disks bore and Stage 9 Air transfer holes (Vent Holes)
Focused Inspection - Stages 9, 10, 11 and 12 disks bore and Stage 9 Air transfer holes (Vent Holes)
Figure: Focused Inspection - Blade Loading and Locking Slots Stages 9, 10, 11 and 12
Focused Inspection - Blade Loading and Locking Slots Stages 9, 10, 11 and 12
Figure: Focused Inspection - Front Flange Slots
Focused Inspection - Front Flange Slots
Figure: Focused Inspection - Rear Bolt Holes
Focused Inspection - Rear Bolt Holes

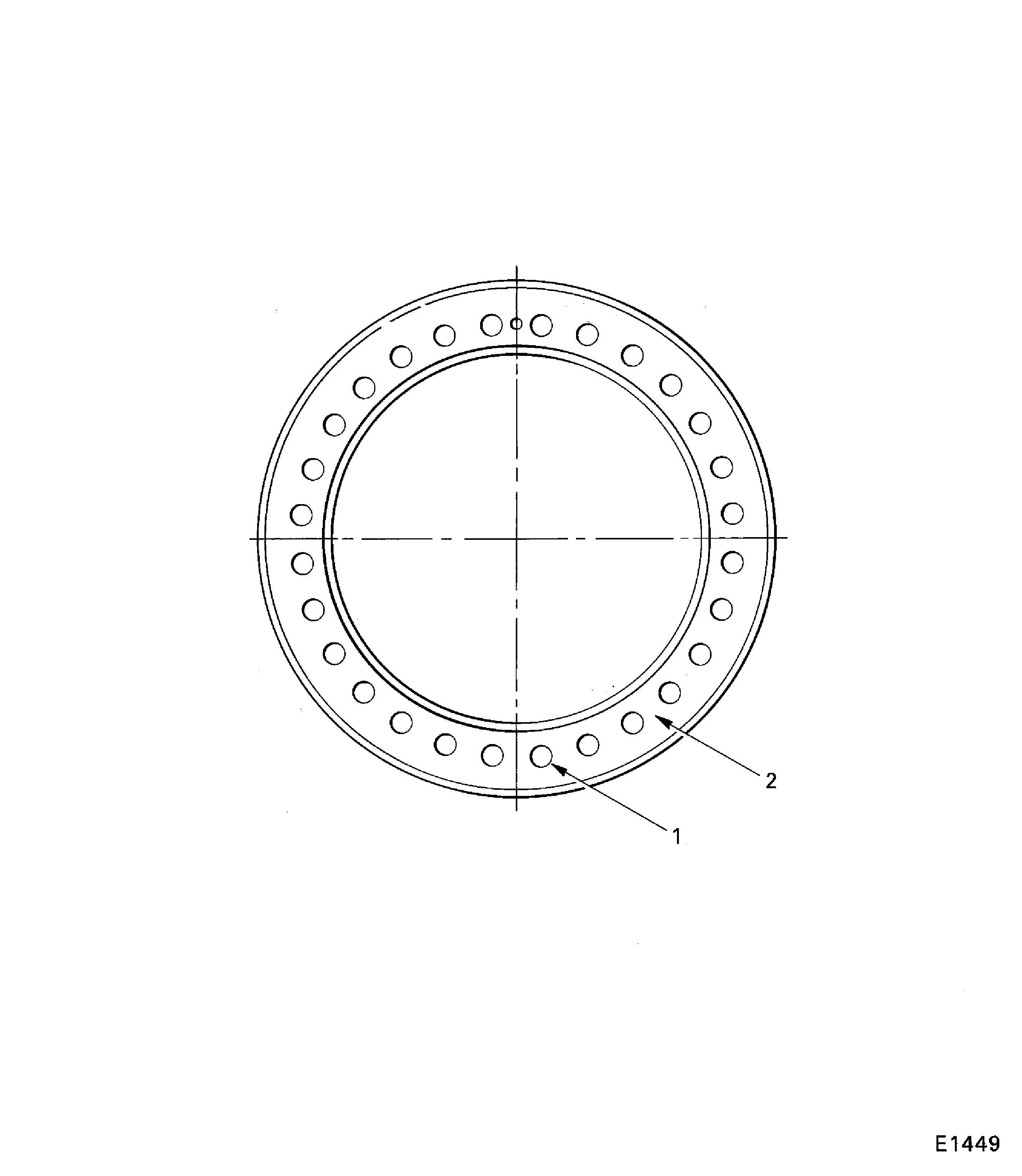

Figure: Focused Inspection - Rear Bolt Holes (Assembly B)
Focused Inspection - Rear Bolt Holes (Assembly B)
