TASK 72-41-13-300-027 HPC Rear Shaft - Repair The Front Outer Location Diameter By Metal Spray, Repair-027 (VRS6625)

DMC:V2500-A0-72-41-1301-04A-609A-C|Issue No:002.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-13-300-027 HPC Rear Shaft - Repair The Front Outer Location Diameter By Metal Spray, Repair-027 (VRS6625)

Effectivity

FIG/ITEM

PART NO.

01-850

6A4157

01-850

6A5867

Material of component

PART IDENT

SYMBOL

MATERIAL

HP Compressor Rear Shaft Assembly

QYX

Inconnel 718

General

This repair must only be done when the instruction to do so is given in 72-41-13 Inspection.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Price and availability

Refer to International Aero Engines

Related repairs - none

NOTE

  1. Equivalent equipment can be used.

  2. More equipment and materials necessary to do this repair are given in the TASKS given below:

    TASK 70-34-01-300-501

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Grinding machineLOCALGrinding machine
Standard workshop equipmentLOCALStandard workshop equipment
Dial test indicatorsLOCALDial test indicators
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment
Chemical cleaning equipmentLOCALChemical cleaning equipment
OvenLOCALOven
Abrasive blast equipmentLOCALAbrasive blast equipment
Metal spray equipmentLOCALMetal spray equipment
Vibrating marking pencilLOCALVibrating marking pencil
LatheLOCALLathe
IAE 3R19391 Grinding fixture0AM53IAE 3R193911

(or locally made fixture)

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-198 ADHESIVE TAPE (MASKING METAL SPRAY)LOCALCoMat 02-198
CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)IE200CoMat 03-038
CoMat 03-248 METAL SPRAY POWDERLOCALCoMat 03-248
CoMat 05-001 ABRASIVE MEDIUM, ALUMINIUM OXIDE, 20/30 GRADELOCALCoMat 05-001
CoMat 06-018 FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY)37676CoMat 06-018
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-13-325-001 Turn the HP Compressor Rear Shaft Assembly

    1. Refer to Figure.

      2. Install the fixture in to the lathe.

      1. Use IAE 3R19391 Grinding fixture, 1 off or locally made fixture.

      2. Use a lathe and standard workshop equipment.

      3. Install the HP Compressor Rear Shaft Assembly on to the fixture and set to turn correctly.

      1. Use a dial test indicator and standard workshop equipment.

      2. Make sure that Datum A and B are set correctly.

      4. Turn the location diameter, to remove all damage.

      1. Use a lathe and standard workshop equipment.

      2. Machine only the minimum quantity of material to remove scores or coating.

      5. NOTE

        If a metal spray layer has been applied before, make sure all metal spray is removed.

        Remove burrs.

      1. Use standard workshop equipment.

    2. SUBTASK 72-41-13-110-073 Cold Ferric Chloride Etch

      1. Swab etch the repaired area.

      1. Refer to the SPM TASK 70-11-39-300-503, SUBTASK 70-11-39-300-001.

      2. Use chemical cleaning equipment.

    3. SUBTASK 72-41-13-230-088 Do a Crack Test

      1. Do a local penetrant crack test on the location diameter.

      1. Refer to the SPM TASK 70-23-05-230-501.

    4. SUBTASK 72-41-13-220-167 Examine the HP Compressor Rear Shaft Assembly

    1. Refer to Figure.

      2. Measure the dimensions of the location diameter.

      1. Use workshop inspection equipment.

      2. Keep this dimension for use with Step

    5. SUBTASK 72-41-13-110-074 Clean the HP Copmpressor Rear Shaft Assembly

      1. Chemically clean the assembly.

      1. Refer to the SPM TASK 70-11-34-300-503.

      2. Use chemical cleaning equipment.

      2. Oven dry the assembly.

      1. Heat to a temperature of 302 deg F (150 deg C) for 1 hour.

      2. Use an oven.

    6. SUBTASK 72-41-13-350-081 Seal the Surfaces Not to be Repaired

    1. Refer to Figure and Figure.

      2. Seal the areas not to be repaired.

      1. NOTE

        The adhesive tape (masking metal spray) permits the blasting and sprayed coating to be done in one operation.

    7. SUBTASK 72-41-13-120-052 Abrasive Blast the Surface to be Repaired

    1. CAUTION

      TO PREVENT CONTAMINATION, DO NOT TOUCH THE SURFACE WHICH IS CLEANED FOR REPAIR.

      CAUTION

      TOO MUCH ABRASIVE BLAST CAN CAUSE DETERIORATION OF THE PREPARED SURFACE CONDITION AND MUST BE PREVENTED.

      Refer to Figure

      2. Abrasive blast the surface to be repaired.

      1. Refer to the SPM TASK 70-12-02-120-501.

    8. SUBTASK 72-41-13-340-056 Metal Spray the Location Diameter

    1. Refer to Figure and Figure.

      2. Apply metal spray.

      1. Refer to the SPM TASK 70-34-01-340-501, SUBTASK 70-34-01-340-025 or SUBTASK 70-34-01-340-021.

      3. Apply sufficient metal spray to get the correct dimensions when machined, refer to Step

    3. Remove masking tape.

    9. SUBTASK 72-41-13-320-063 Turn/Grind the HP Compressor Rear Shaft Assembly

    1. Refer to Figure and Figure.

      2. Install the fixture in to the lathe/grinding machine.

      1. Use IAE 3R19391 Grinding fixture 1 off or locally made fixture.

      2. Use a lathe or grinding machine and standard workshop equipment.

      3. Install the HP Compressor Rear Shaft Assembly on to the fixture and set to turn correctly.

      1. Use a dial test indicator and standard workshop equipment.

      2. Make sure that datum A and B are set to turn correctly.

      4. Turn/grind the location diameter.

      1. Use a lathe or grinding machine and standard workshop equipment.

      5. Remove burrs and overspray.

      1. Use standard workshop equipment.

    10. SUBTASK 72-41-13-110-075 Clean the HP Compressor Rear Shaft Assembly

      1. Chemically clean the assembly.

      1. Refer to the SPM TASK 70-11-34-300-503.

      2. Use chemical cleaning equipment.

      2. Oven dry the assembly.

      1. Heat to a temperature of 302 deg F (150 deg C) for 1 hour.

      2. Use an oven.

    11. SUBTASK 72-41-13-220-168 Examine the HP Compressor Rear Shaft Assembly

    1. Refer to Figure and Figure.

      2. Visually examine and measure the dimensions of the front outer location diameter.

      1. Use workshop inspection equipment.

    12. SUBTASK 72-41-13-350-082 Identify the Repair

      1. Mak a mark VRS6625 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

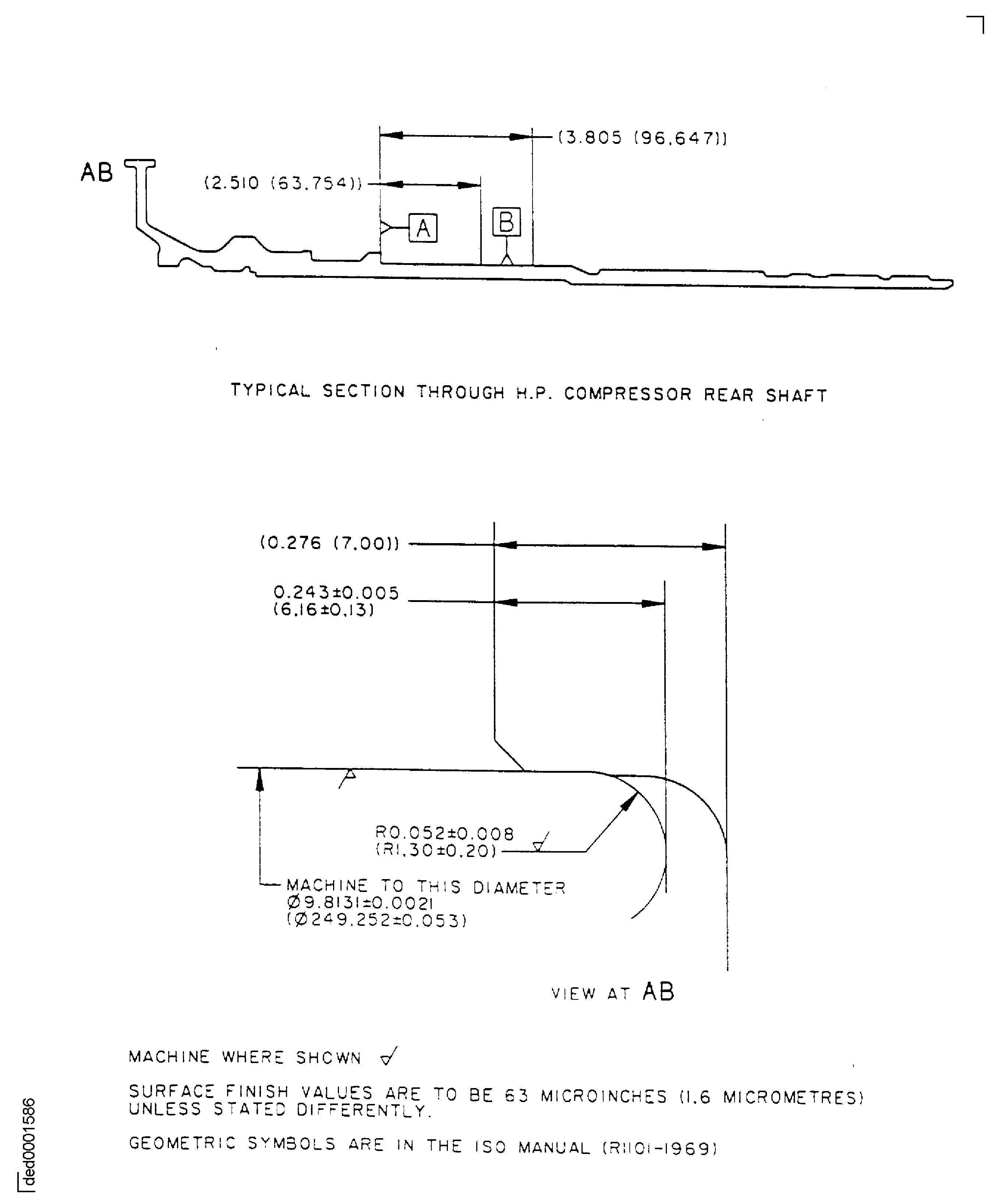

    13. Figure: Repair details and dimensions

    Repair details and dimensions

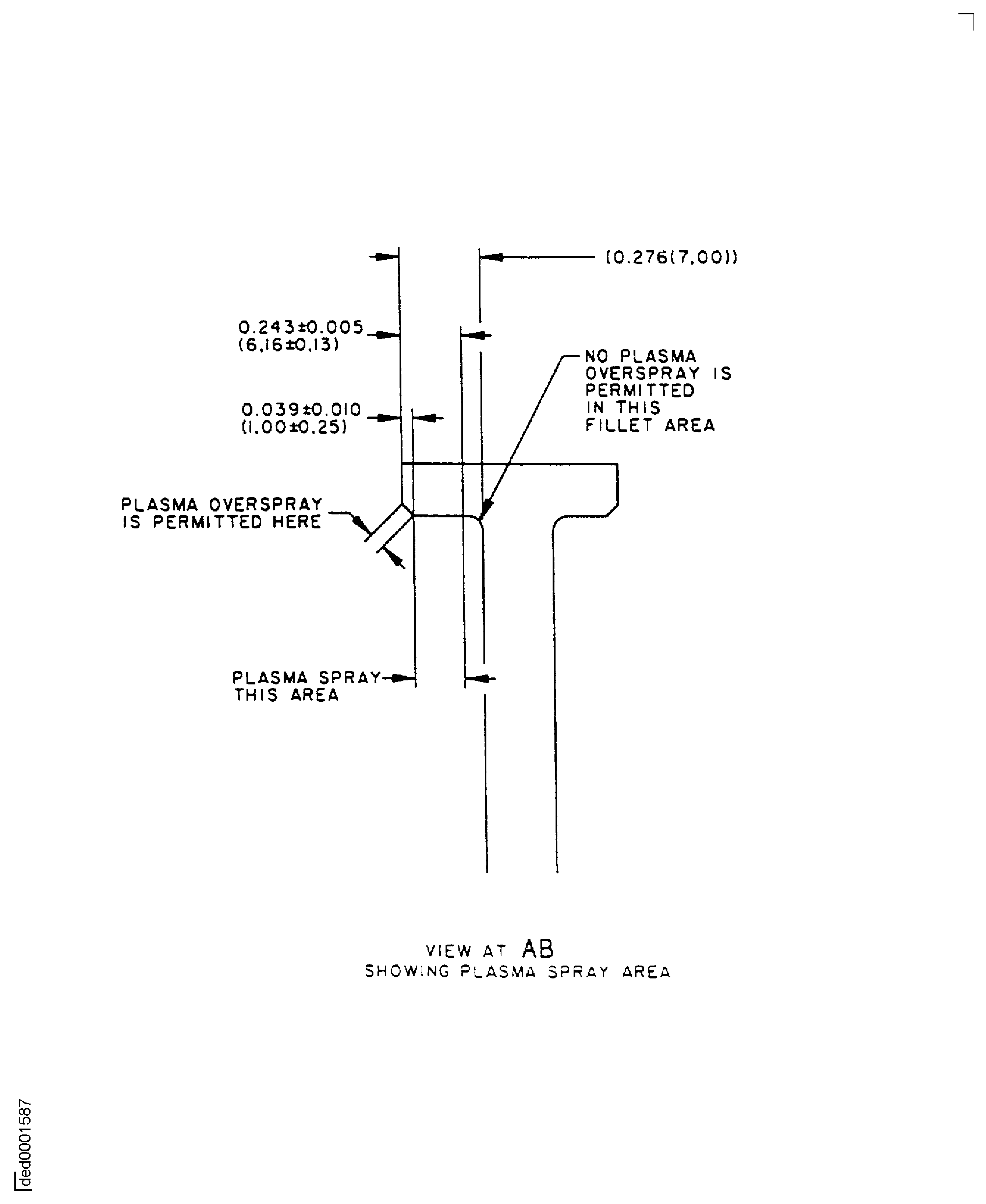

    Figure: Repair details and dimensions

    Repair details and dimensions

    Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion
