TASK 72-41-15-300-043 HP Compressor Stage 7 To 8 Rotor Blades - Shot Peen The Root Of The Blades To Restore The Fatigue Strength, Repair-043 (VRS6152)

DMC:V2500-A0-72-41-1500-02A-635A-C|Issue No:004.00|Issue Date:2018-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-15-300-043 HP Compressor Stage 7 To 8 Rotor Blades - Shot Peen The Root Of The Blades To Restore The Fatigue Strength, Repair-043 (VRS6152)

Effectivity

FIG/ITEM

PART NO.

ASSEMBLY

02-270

6A3246

A

02-270

6A4302

B

02-270

6A4905

B

02-270

6A5588

A

02-270

6A6462

B

02-270

6A6493

A

02-270

6A7511

B

02-270

6A8314

B

02-270

6A8743

B

02-285

6A3247

A

02-285

6A4906

B

02-285

6A5589

A

02-285

6A6463

B

02-285

6A6494

A

02-285

6A7512

B

02-285

6A8315

B

02-285

6A8744

B

02-300

6A3245C01

A

02-300

6A4907C01

B

02-300

6A5584C01

A

02-300

6A6469C01

B

02-300

6A6492C01

A

02-300

6A7513C01

B

02-300

6A8312

B

02-300

6A8741

B

02-315

6A3245C01

A

02-315

6A4907C01

B

02-315

6A5584C01

A

02-315

6A6469C01

B

02-315

6A6492C01

A

02-315

6A7513C01

B

02-315

6A8312

B

02-315

6A8741

B

02-316

6B1495

B

02-317

6A3245C02

A

02-317

6A4907C02

B

02-317

6A5584C02

A

02-317

6A6469C02

B

02-317

6A6492C02

A

02-317

6A7513C02

B

02-317

6A8313

B

02-317

6A8742

B

02-370

6A3249

C

02-370

6A4908

D

02-370

6A5590

C

02-370

6A6464

D

02-370

6A6496

C

02-370

6A7514

D

02-370

6A8747

D

02-385

6A3250

C

02-385

6A4307

D

02-385

6A4909

D

02-385

6A5591

C

02-385

6A6465

D

02-385

6A6497

C

02-385

6A7515

D

02-385

6A8748

D

02-400

6A3248C01

C

02-400

6A4910C01

D

02-400

6A5585C01

C

02-400

6A6470C01

D

02-400

6A6495C01

C

02-400

6A7516C01

D

02-400

6A8745

D

02-415

6A3248C01

C

02-415

6A4910C01

D

02-415

6A5585C01

C

02-415

6A6470C01

D

02-415

6A6495C01

C

02-415

6A7516C01

D

02-415

6A8745

D

02-416

6B1496

D

02-417

6A3248C02

C

02-417

6A4910C02

D

02-417

6A5585C02

C

02-417

6A6470C02

D

02-417

6A6495C02

C

02-417

6A7516C02

D

02-417

6A8746

D

Material of component

PART IDENT

SYMBOL

MATERIAL

HP Compressor Stage 7 to 8 Rotor Blades

TAF, TDY or TTX

Titanium Alloy

General

This TASK gives the procedure to shot peen the root of the HP Compressor Stage 7 to 8 Rotor Blades to restore the fatigue strength.

This repair must only be done when the instruction to do so is given in the inspection procedures (identified by the applicable part number) located in section 72-41-15.

To put back the surface condition on the blade root, it is necessary to shot-peen.

The shot-peened part of this repair requires to be source demonstrated and can only be done by approved vendors.

This repair on the HP Compressor Stage 7 to 8 Rotor Blades can only be done three times.

Where reference is made to a SUBTASK within a TASK in the form "TASK, SUBTASK" the operator must read and apply the complete TASK. The SUBTASK is listed only when the TASK gives options for the processing of the component. The specified SUBTASK instructs what option must be used during application of the TASK for the successful completion of the repair scheme VRS6152.

TASKS identified by SPM TASK are in the Standard Practices Manual (SPM).

Price and Availability.

Refer to International Aero Engines (IAE).

Related Repairs - None.

NOTE

Equivalent materials or equipment can be used.
More equipment and materials necessary to do this Repair are given in the SPM TASK 70-09-00-400-501 and SPM TASK 70-38-04-300-503.

NOTE

It is possible that some materials in the consumable materials chart cannot be used for some or all of the necessary applications. Before you use the materials, make sure the types, quantities and applications of the materials necessary are legally permitted in your location. All persons must obey all applicable federal, state, local and provincial laws and regulations when it is necessary to work with these materials.

NOTE

To identify the consumable materials refer to the Overhaul Materials Manual (OMat).

NOTE

Other necessary consumable materials are referred to in the SPM TASKS in this TASK.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical cleaning equipmentLOCALChemical cleaning equipment
Fluorescent penetrant inspection equipmentLOCALFluorescent Penetrant Inspection Equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Shot peening equipmentLOCALShot peening equipment

Automatic

Glass bead peening equipmentLOCALGlass bead peening equipment
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOFLOCALCoMat 02-003
CoMat 05-028 METALLIC SHOT (CAST STEEL), S230IE249CoMat 05-028
CoMat 06-018 FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY)37676CoMat 06-018

Spares

NONE

Safety Requirements

NONE

Procedure

    1. Repair Facilities

    2. The Source Demonstration requirements of this repair means that any facility not authorized to accomplish this repair either, utilize the Authorized Repair Vendors listed below or contact the IAE Repair Services Group to determine if a qualification program can be initiated at their facility.

      IAE International Aero Engines AG

      400 Main Street

      M/S 121-10

      East Hartford CT 06118

      U.S.A.

      Attn: Manager Technical Services

    3. Authorized Repair Vendors for Repair VRS6152 are listed below:

      ROLLS ROYCE AERO REPAIR AND OVERHAUL - EAST KILBRIDE

      MAVOR AVENUE

      NERSTON

      EAST KILBRIDE

      GLASGOW

      G74 4PY

      SCOTLAND

      ATTN: Business Manager, Component Refurbishment

      AIRFOIL SERVICES SDN BHD

      NO. 12 JALAN TEKNOLOGI

      TAMAN SAINS SELANGOR 1

      KOTA DAMANSARA PJU5

      47810 PETAILING JAYS

      SELANGOR DARUL EHSAN

      MALAYSIA

      ATTN: Managing Director

      ISHIKAWA-HARIMA HEAVY INDUSTRIES CO. LTD

      229 TONOGAYA, MIZUHO-MACHI

      NISHITAMA-GUN

      TOKYO 190-1297

      JAPAN

      ATTN: Manager, Repair Engineering Group

      MTU MAINTENANCE GMBH

      FLUGHAFEN HANNOVER

      MUNCHNER STRASSE 31

      30855 LANGENHAGEN

      GERMANY

      ATTN: Manager, Quality Assurance

      GE ENGINE SERVICES

      9311 REEVES STREET

      DALLAS

      TEXAS 75235

      USA

      ATTN: Program Manager, V2500

      TURBINE OVERHAUL SERVICES PTE, LTD. (TOS)

      5 TUAS DRIVE TWO - MAIL STOP 107-58

      SINGAPORE 638639

      TEL: 65-6860-2260

      FAX: 65-6862-1068

      Rolls-Royce Inchinnan

      Inchinnan Drive

      Inchinnan Business Park

      Inchinnan, PA4 9AF

      Scotland

    4. The designation by IAE of an Authorized Repair Vendor indicates that the Repair Vendor has demonstrated the necessary capability to enable it to carry out the listed repair work. However, IAE makes no warranties or representations concerning the qualifications or quality standards of the Repair Vendors to carry out the repair work, and accepts no responsiblity whatsoever for any work that may be carried out by a Repair Vendor other than when IAE is listed as the Repair Vendor. Authorized Repair Vendors do not act as agents or representatives of IAE.

    1. SUBTASK 72-41-15-110-115 Clean the HP Compressor Stage 7 to 8 Rotor Blades

      1. Chemically clean the HP Compressor Stage 7 to 8 Rotor Blades.

    1. SUBTASK 72-41-15-230-123 Fluorescent Penetrant Inspect

      1. Do a fluorescent penetrant inspection of the HP Compressor Stage 7 to 8 Rotor Blades.

      2. Refer to SPM TASK 70-23-03-230-501.

          1. If cracking is detected.

          2. Reject.

          1. If no cracking is detected.

          2. Continue with the repair.

    1. SUBTASK 72-41-15-220-266 Make Sure that the HP Compressor Stage 7 to 8 Rotor Blades can be Repaired

    2. Refer to Figure.

      1. Visually examine the roots of the HP Compressor Stage 7 to 8 Rotor Blades, to tell you if the shot-peening has been done before (look for the repair identification symbol).

      2. If the repair identification symbol and /2 is engraved adjacent to the part number, then the blade cannot be shot-peened.

    1. SUBTASK 72-41-15-380-101 Shot-Peen the Dovetail Root HP Compressor Stage 7 to 8 Rotor Bladesof the

    2. For Assembly A, refer to Figure, Figure and Figure. For Assembly B, refer to Figure, Figure and Figure. For Assembly C, refer to Figure, Figure and Figure. For Assembly D, refer to Figure, Figure and Figure.

      1. Seal the areas of the HP Compressor Stage 7 to 8 Rotor Blades not to be shot peened.

      2. Use CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOF or a locally manufactured mechanical mask.

      3. Patch mask all identification symbols.

      1. Install the sealed HP Compressor Stage 7 to 8 Rotor Blades onto the table of the shot-peeing equipment.

      2. Use automatic Shot peening equipment.

      1. Shot-peen the dovetail root of the HP Compressor Stage 7 to 8 Rotor Blades, as necessary.

      2. Refer to the SPM TASK 70-38-04-300-503, SUBTASK 70-38-04-300-002.

      3. Use CoMat 05-028 METALLIC SHOT (CAST STEEL), S230 to get almen intensity of 0.006 in. to 0.010 in. (0.15 mm to 0.25mm) on an "A" type test strip.

      4. A coverage of 200 percent must be applied.

      5. Use automatic Shot peening equipment.

        NOTE

        Unwanted shot-peen spray is permitted in area AC, see Figure (Assembly A), Figure (Assembly B), Figure (Assembly C) and Figure (Assembly D).

        Shot-Peening Data

        Machine type

        Metal shot-peen

        Process type/mode

        Dry/automatic

        Shot type

        Shot size

        0.024 in. to 0.040 in. (0.6 mm to 1.0 mm) diameter

        Shot hardness

        450 HV to 600 HV

        Coverage

        200 percent

        Table speed

        5.900 in. (150.00 mm) per minute

        Oscillation speed

        30 cycles per minute

        Oscillation height

        1.97 in. (50.00 mm)

        Oscillation type

        Pneumatic

        Air pressure

        54 psi - 56 psi (372 kPa to 386 kPa)

        Nozzle type/diameter

        'Y' type 36 CFM/0.375 in. (9.52 mm)

        Nozzle/Work distance

        3.54 in. (90 mm)

        Number of nozzles

        8

        Almen intensity

        0.006 to 0.010 in (0.15 to 0.25 mm),

        using test strip 'A'

        NOTE

        For information, the table speed, oscillation speed, height, type, air pressure, nozzle type/diameter and work distance may change if different equipment is being used. You must achieve the coverage and almen intensity as given in the Shot-Peening Data.
    3. Make sure all loose unwanted cast steel shot is removed.

      1. Remove iron contamination after you have shot peened, as necessary.

      2. Refer to Approved Vendors in 4. Repair Facilities, Para. B and/or refer to the SPM TASK 70-38-04-300-503, SUBTASK 70-38-04-300-002.

      3. Use wet or dry glass beades, with Glass bead peening equipment.

    4. Remove mechanical seals and seal tape.

    1. SUBTASK 72-41-15-220-267 Examine the Shot-Peened Areas of the HP Compressor Stage 7 to 8 Rotor Blades

    2. For Assembly A, refer to Figure. For Assembly B, refer to Figure. For Assembly C, refer to Figure. For Assembly D, refer to Figure.

      1. Make a visual inspection of the shot-peened dovetails roots.

      2. Refer to the SPM TASK 70-38-04-300-503, SUBTASK 70-38-04-300-002.

    1. SUBTASK 72-41-15-350-130 Identify the Repair

    2. Refer to Figure.

      1. Make a mark adjacent to the part number.

        1. Mark the repair scheme identification symbol, 6, at the identified location with the appropriate suffix.

          1. If the HP Compressor Stage 7 to 8 Rotor Blades have been shot-peened once, mark a code symbol adjacent to the part number.

          2. Refer to SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

          3. If this is the first repair to this scheme, then no suffix number is required.

          4. If this is the second repair to this scheme, then vibro-engrave /1 adjacent to the code symbol.

          5. If this is the third repair to this scheme then vibro-engrave /2 adjacent to the code symbol.

          6. NOTE

            The HP Compressor Stage 7 to 8 Rotor Blades can only be shot-peened three times to this repair.
  1. Figure: Repair Details and Dimensions - Assembly A

    Repair Details and Dimensions - Assembly A

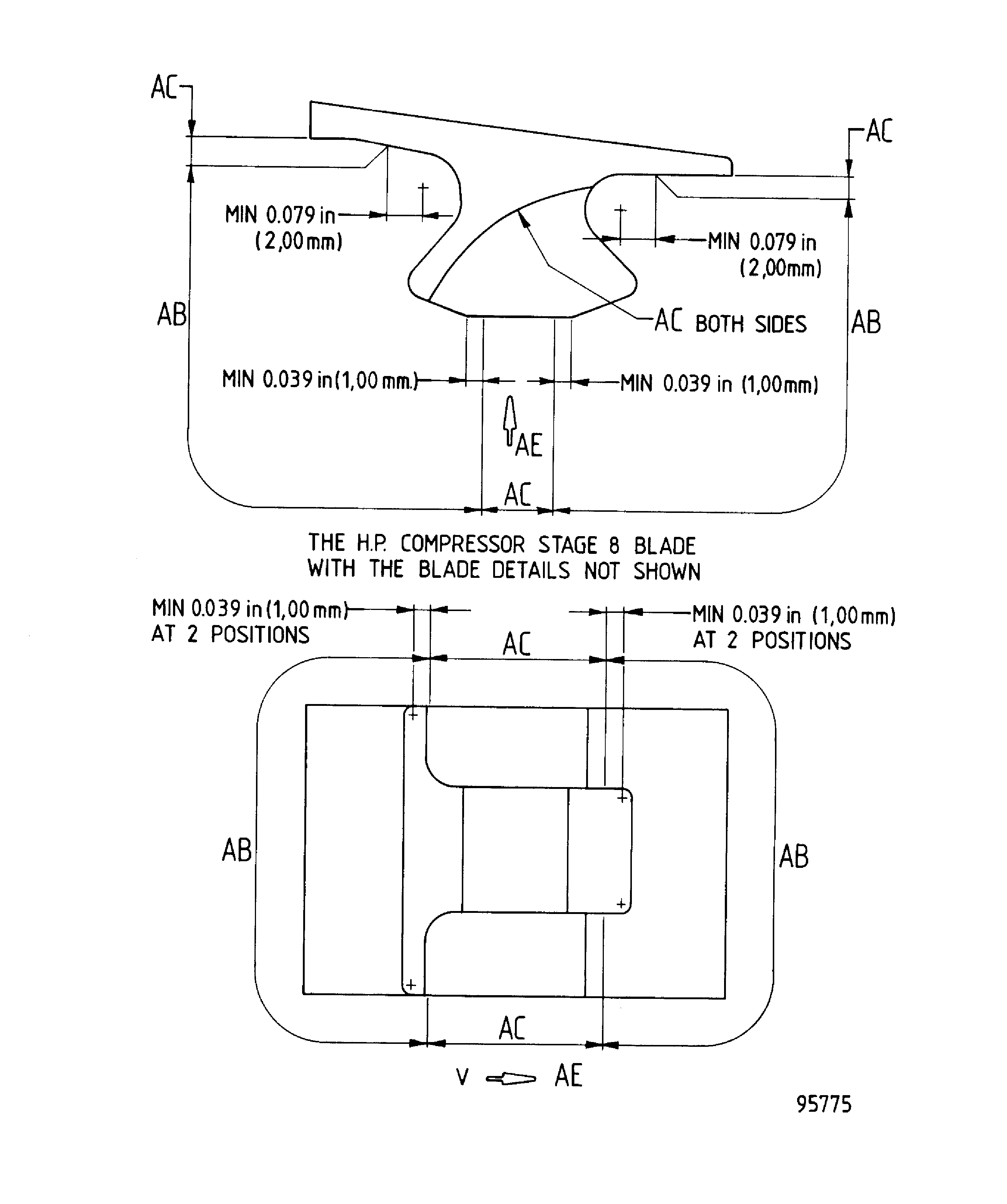

    Figure: Repair Details and Dimensions - Assembly B

    Repair Details and Dimensions - Assembly B

    Figure: Repair Details and Dimensions - Assembly C

    Repair Details and Dimensions - Assembly C

    Figure: Repair Details and Dimensions - Assembly D

    Repair Details and Dimensions - Assembly D

    Figure: Repair Details and Dimensions - All Assemblies

    Repair Details and Dimensions - All Assemblies

    Figure: Repair Details and Dimensions - All Assemblies

    Repair Details and Dimensions - All Assemblies

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the repair facilities to update vendor addresses. (17VC206)

Manufacturer Code:37676
Enterprise Name:ITW MAGNAFLUX
BU Name:MAGNAFLUX CORPORATION
Street:155 HARLEM AVE
City:GLENVIEW
State:IL
Zip Code:60025
Country:USA
Phone Number:1-847-657-5300
Fax Number:1-847-867-5388
Internet:www.magnaflux.com
Manufacturer Code:IE249
Enterprise Name:DELETED - Was FERGUSSON AND WILD CO LTD,ABRASIVES AND AGGREGATES (no longer in business)
BU Name:DELETED - FERGUSSON AND WILD CO LTD,ABRASIVES AND AGGREGATES (no longer in business)
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Supply Number:CoMat 02-003
Type:sp01
Supply Short Name:CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOF
Supply Name:CoMat 02-003 ADHESIVE TAPE BLACK WATERPROOF
Specification Groups:
Doc NumberType
OMAT: 285ISATAPE 160
Suppliers:
ManufacturerRemarks
LOCAL
IE305
K6835
Manufacturer Code:IE249
Supply Number:CoMat 05-028
Type:sp01
Supply Short Name:CoMat 05-028 METALLIC SHOT (CAST STEEL), S230
Supply Name:CoMat 05-028 METALLIC SHOT (CAST STEEL), S230
Specification Groups:
Doc NumberType
AMS 2431/1 ASR 230
Suppliers:
ManufacturerRemarks
IE249
K0247
55807
Manufacturer Code:X222X
Supply Number:CoMat 06-018
Type:sp01
Supply Short Name:CoMat 06-018FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY)
Supply Name:CoMat 06-018 FLUORESCENT PENETRANT (POST-EMULSIFIED HIGH SENSITIVITY)
Specification Groups:
Doc NumberType
It is not permitted to mix the selected CoMat 06‐018 letter suffix material with other CoMat 06‐018 letter suffix materials. Where CoMat 06‐018 is specified with no suffix, use one of the CoMat 06‐018 letter suffix materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:LOCAL
Tool Number:Chemical cleaning equipment
Tool Name:Chemical cleaning equipment
Link not Found
Manufacturer Code:LOCAL
Tool Number:Glass bead peening equipment
Tool Name:Glass bead peening equipment
Manufacturer Code:LOCAL
Tool Number:Penetrant crack test equipment
Tool Name:Penetrant Crack Test Equipment
Manufacturer Code:LOCAL
Tool Number:Shot peening equipment
Tool Name:Shot peening equipment
Link not Found
