TASK 72-41-21-300-033 HPC Stage 11 Case - Repair The HPC Stage 11 Case And Stage 12 Rotor Path Assembly By Replacement Of The Shank Nuts, Repair-033 (VRS6219)

DMC:V2500-A0-72-41-2111-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-21-300-033 HPC Stage 11 Case - Repair The HPC Stage 11 Case And Stage 12 Rotor Path Assembly By Replacement Of The Shank Nuts, Repair-033 (VRS6219)

Effectivity

FIG/ITEM

PART NO

ASSEMBLY

04-600

6A3390

A

04-600

6A4328

B

04-600

6A6552

C

Material of component

PART IDENT

MATERIAL

HP compressor case assembly

Heat resisting alloy

Nut self locking shank

General

This repair must only be done when the instruction to do so is given in 72-41-21 Inspection.

This repair has been issued for HP compressor stage 11 case assembly and stage 12 rotor path assembly shank nut damage.

The practices and processes referred to in the procedure by the TASK/SUBTASK number are in the SPM.

Price and Availability

Refer to International Aero Engines

Related Repairs - None

NOTE

Equipment and materials necessary to do this repair are in the SPM TASK given below:
TASK 70-11-03-300-503
TASK 70-11-26-300-503
TASK 70-23-05-230-501
TASK 70-35-11-300-501

NOTE

It is possible that some materials in the consumable materials chart cannot be used for some or all of the necessary applications. Before you use the materials, make sure the types, quantities and applications of the materials necessary are legally permitted in your location. All persons must obey all applicable federal, state, local and provincial laws and regulations when it is necessary to work with these materials.
To identify the consumable materials, refer to the Overhaul Processes and Consumables Index (PCI).
Other necessary consumable materials are referred to in the SPM TASKS.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
DrillLOCALDrill

5.7 mm (0.224 in.) diameter

Chemical cleaning equipmentLOCALChemical cleaning equipment
Dimensional inspection equipmentLOCALDimensional inspection equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Standard workshop equipmentLOCALStandard workshop equipment
Vibrating marking pencilLOCALVibrating marking pencil
IAE 3R18591 Swage bush0AM53IAE 3R185911
IAE 3R18592 Tool bolt0AM53IAE 3R185921

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Nut self locking shankAS44750A/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-21-110-230 Clean the Assembly

      1. Chemically clean.

      1. Refer to the SPM TASK 70-11-03-300-503.

      2. Use chemical cleaning equipment.

    2. SUBTASK 72-41-21-350-089 Remove Damaged Shank Nuts

    1. Refer to Figure, Figure, Figure and Figure.

      2. Drill the flare until the nut is released. Remove the nut.

      1. Use a drilling machine and a 5.7 mm (0.224 in.) diameter drill.

      2. Refer to the SPM TASK 70-35-11-300-501, SUBTASK 70-35-11-350-001.

      3. Remove the sharp edges around the nut location hole.

      1. Use hand methods.

      4. Clean the shank nut location in the shaft.

      1. Use a soft clean cloth and blast with air.

    3. SUBTASK 72-41-21-220-600 Examine the Nut Location

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine nut location hole.

      1. Examine the dimensions of the nut location holes.

      2. Make sure all sharp edges are removed.

      3. Use dimensional inspection equipment.

    4. SUBTASK 72-41-21-230-099 Do a Crack Test

      1. Do a local penetrant crack test in the repaired area(s).

      1. Refer to SPM TASK 70-23-05-230-501.

      3. Use penetrant crack test equipment.

      4. Cracks are not permitted.

    5. SUBTASK 72-41-21-110-209 Chemically Clean

      1. Chemically clean the repaired area(s) to remove fluorescent penetrant.

      1. Refer to the SPM TASK 70-11-26-300-503.

      2. Use chemical cleaning equipment.

    6. SUBTASK 72-41-21-350-213 Install the new Shank Nuts

    1. Refer to Figure, Figure, Figure and Figure.

      2. Install new nut into the hole.

      1. Make sure the shank nut is installed correctly.

      2. Refer to SPM TASK 70-35-11-300-501, SUBTASK 70-35-11-350-001.

      3. Hold nut and swage the flange.

    7. SUBTASK 72-41-21-220-658 Examine the new Shank Nuts

    1. Refer to Figure, Figure, Figure and Figure.

      2. Examine the installed new shank nut.

      1. Make sure the nut is installed correctly and satisfactorily tightened.

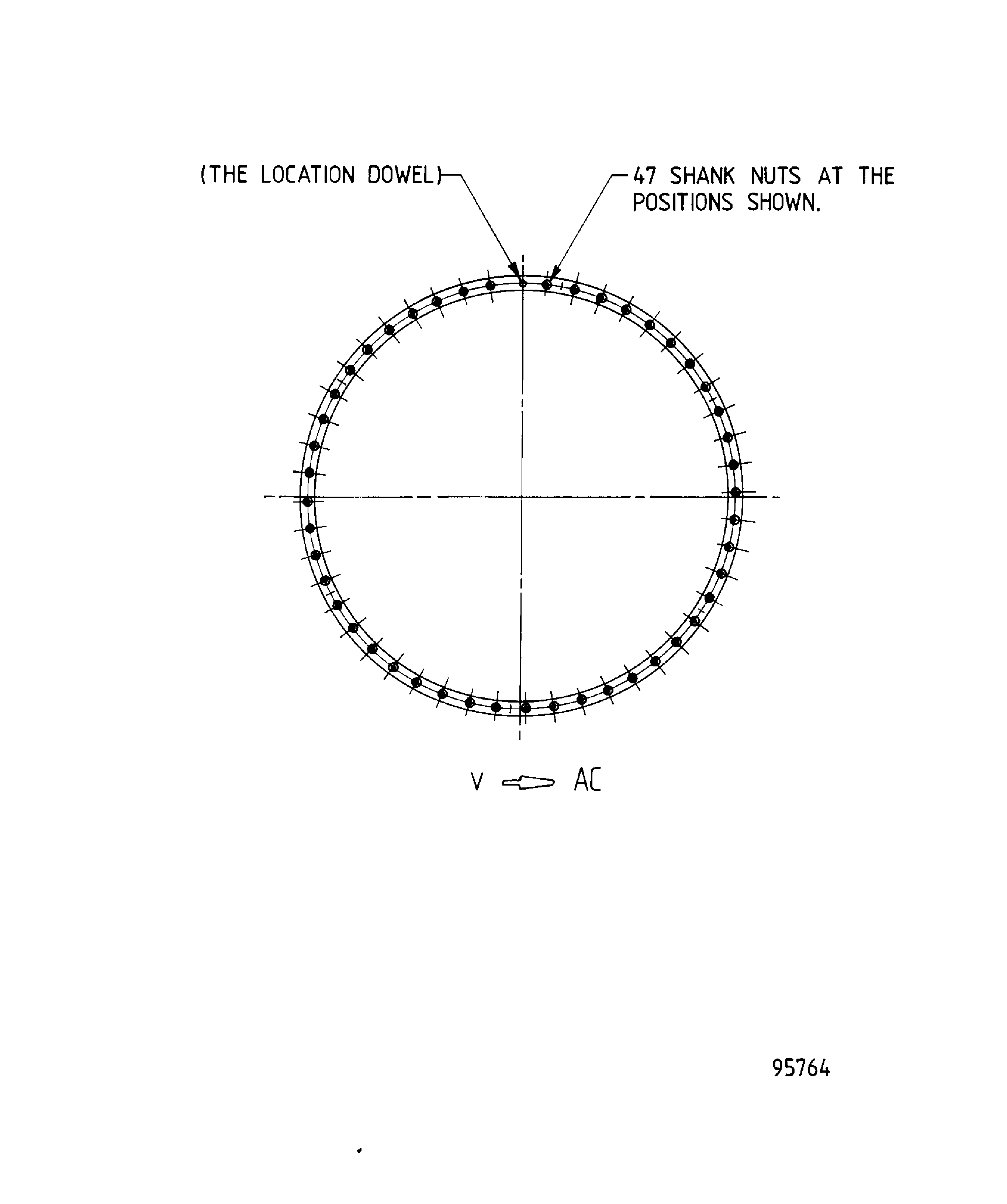

    8. Figure: Repair Details and Dimensions - Assembly A and Assembly B

    Repair Details and Dimensions - Assembly A and Assembly B

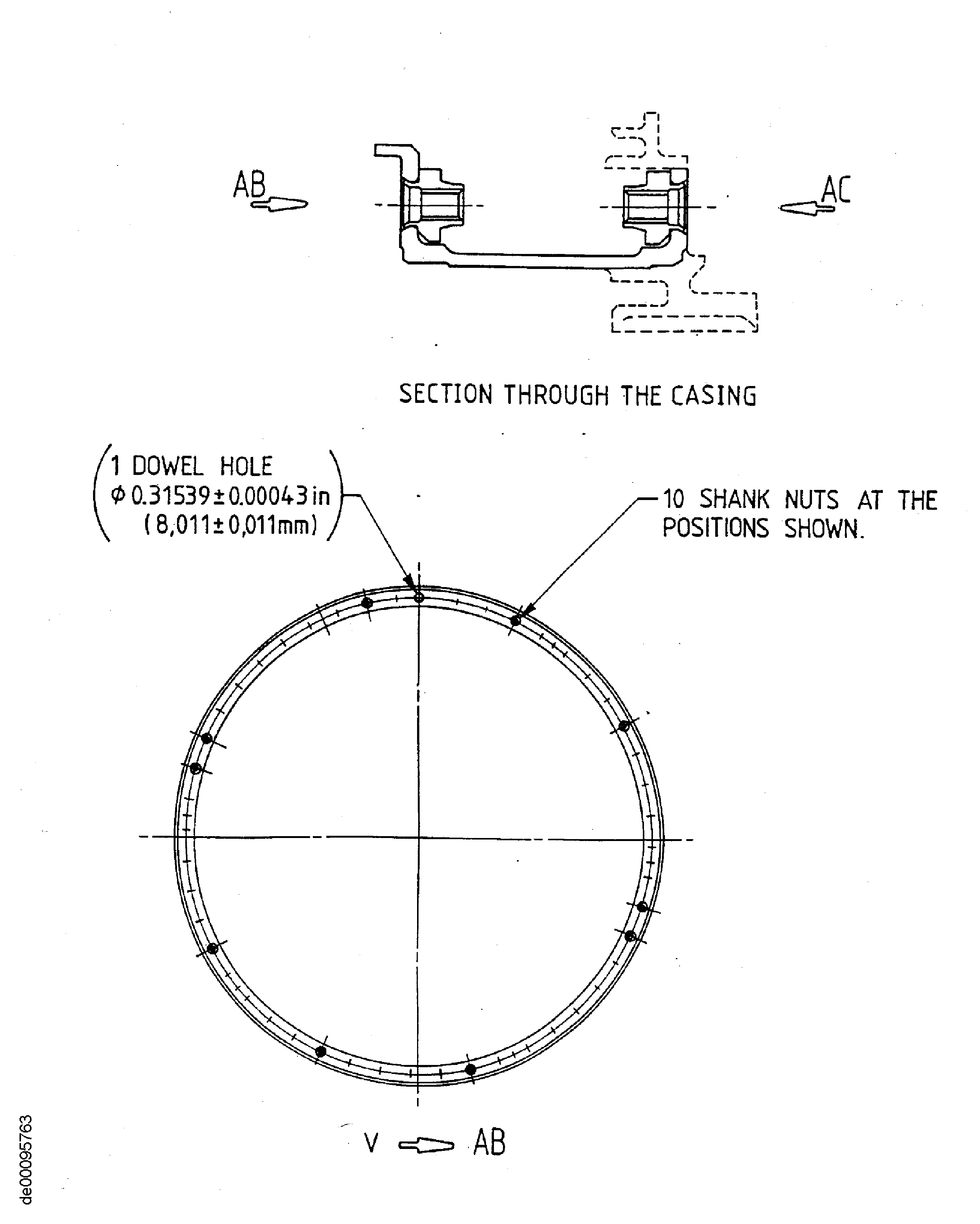

    Figure: Repair Details and Dimensions - Assembly C

    Repair Details and Dimensions - Assembly C

    Figure: Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Figure: Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

    Repair Details and Dimensions - Assembly A, Assembly B and Assembly C

Requirements After Job Completion

Follow-On Conditions

NONE
